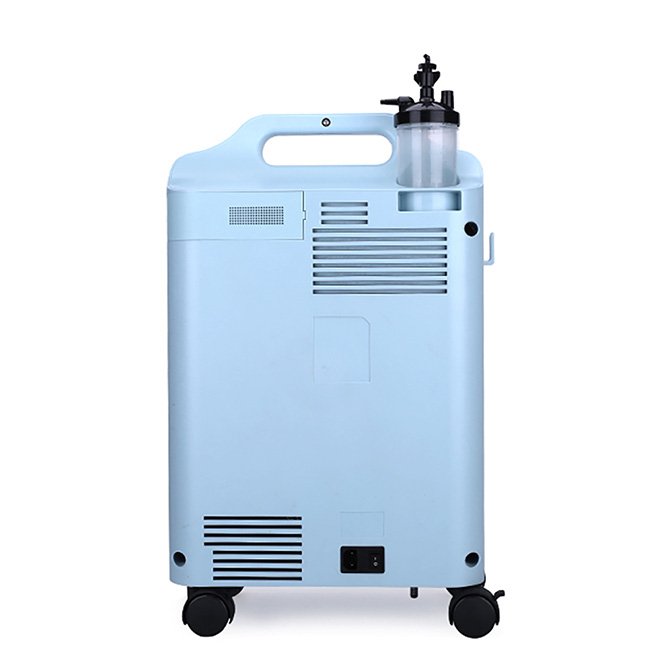

Oxygen Concentrator NEUZY60
- High-performance Oxygen Concentrator NEUZY60
- Power supply: AC 220V/50HZ
- Maximum flow rate: 3L/min (5L/min for MSLZY60)
- Oxygen concentration: 93% ± 3%
- Quiet operation with noise levels ≤ 55dB
- Dimensions: 380mm x 240mm x 627mm
- Ideal for home and healthcare settings
- Equipped with atomization feature (MSLZY60)
- Suitable ambient temperature: 5°C - 40°C
- Type II equipment with a continuous operation mode
- SKU
- NEUZY60
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Oxygen Concentrator NEUZY60
High-performance PSA oxygen concentrator delivering 93% ± 3% oxygen concentration at up to 3L/min (5L/min with atomization). Designed for continuous operation in home and healthcare settings with ultra-quiet performance and reliable clinical-grade output.
Clinical overview
The NEUZY60 is a compact, high-efficiency oxygen concentrator utilizing Pressure Swing Adsorption (PSA) technology to extract and concentrate oxygen from ambient air. With a consistent output of 93% ± 3% oxygen concentration and flow rates up to 3L/min (5L/min with atomization), it meets the clinical requirements for home oxygen therapy and long-term respiratory support. The device operates continuously with minimal noise (≤55dB), making it suitable for both residential and healthcare environments.
Engineered for reliability and ease of use, the NEUZY60 features robust medical-grade construction, precise pressure regulation (30–70 kPa), and optional atomization capability for enhanced therapeutic delivery. Its compact footprint (380 × 240 × 627 mm) and efficient power consumption (380VA) make it an ideal solution for patients requiring sustained oxygen supplementation.
Key features & surgeon benefits
Consistent oxygen delivery
- 93% ± 3% oxygen concentration maintained across all flow rates
- Pressure-regulated output (30–70 kPa) with <10% flow variation under back pressure
- Reliable PSA technology for continuous operation
Quiet, unobtrusive operation
- Ultra-low noise ≤55dB (standard) / ≤58dB (atomization model)
- Compact design fits seamlessly into home and clinical settings
- Continuous operation mode for 24/7 patient support
Cost-effective therapy
- Efficient power consumption at 380VA rated power
- Minimal maintenance requirements with robust construction
- Long-term operational cost savings vs. oxygen cylinder supply
Flexible configurations
- Standard 3L/min or enhanced 5L/min atomization model (MSLZY60)
- Optional mist particle generation (median 3.0 μm, >60% <5 μm)
- OEM and custom integration available
Technical specifications
| Method | Pressure Swing Adsorption (PSA) |
|---|---|
| Power supply | AC 110V/220V / 50/60Hz |
| Rated power | 380VA (MSLZY60 with atomization) |
| Maximum flow rate | 3L/min (standard); 5L/min (MSLZY60) |
| Oxygen concentration | 93% ± 3% |
| Oxygen pressure range | 30–70 kPa |
| Flow stability | <10% change under 7 kPa back pressure |
| Operating noise | ≤55dB (A-weighted standard); ≤58dB (MSLZY60) |
| Atomization rate | >0.2 mL/min (MSLZY60 only) |
| Mist particle size | Median 3.0 μm; >60% particles <5 μm |
| Electrical classification | Type II equipment, Type B application part |
| Operation mode | Continuous |
| Dimensions | 380 × 240 × 627 mm |
| Ambient temperature (operating) | 5–40°C |
| Relative humidity (operating) | <80% RH |
| Atmospheric pressure (operating) | 86–106 kPa |
| Storage temperature | −20 to 60°C |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | NEUZY60 main device with PSA technology | 1 |
| Power cord | AC 110V/220V/50/60Hz supply cable | 1 |
| Oxygen outlet tubing | Medical-grade delivery tubing | 1 |
| User manual | Operating and maintenance instructions | 1 |
