Portable Automatic Animal Sperm Concentration Detector Tester NEUDDS01
- Portable automatic animal sperm concentration detector
- Measures sperm concentration ranging from 0.2 to 5 million/ml
- High accuracy of 98% for reliable results
- Equipped with a 560mm light source for optimal performance
- Features an LED display for easy readability
- Operates effectively in an environment of 37℃
- 9V battery-powered for convenience and portability
- Automatic calibration for hassle-free maintenance
- Compact dimensions: 192mm x 103mm x 67mm
- Lightweight design at just 290g for easy handling
- SKU
- NEUDDS01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

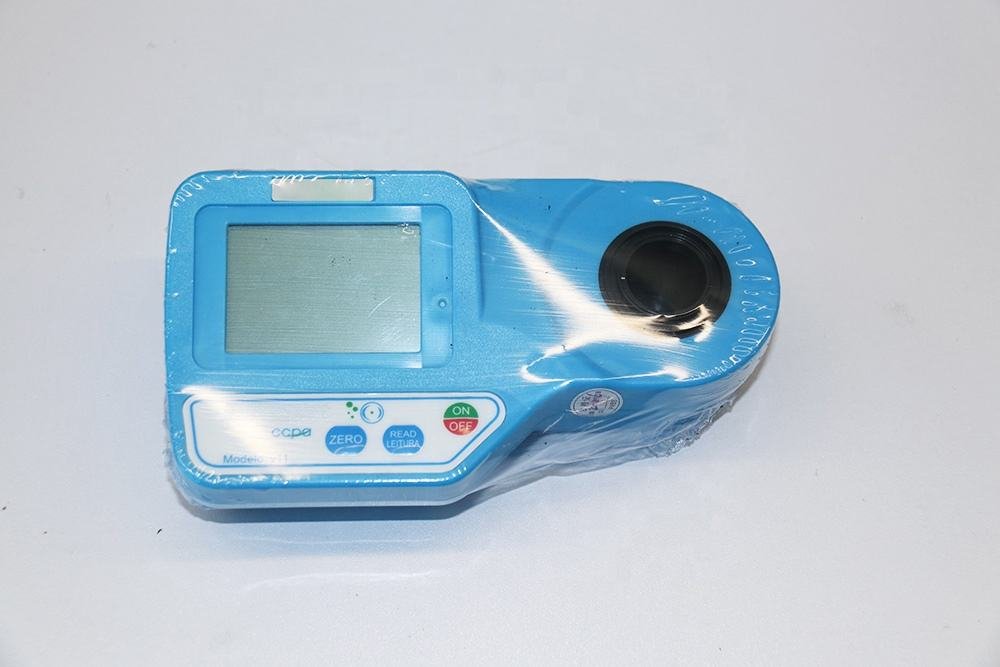

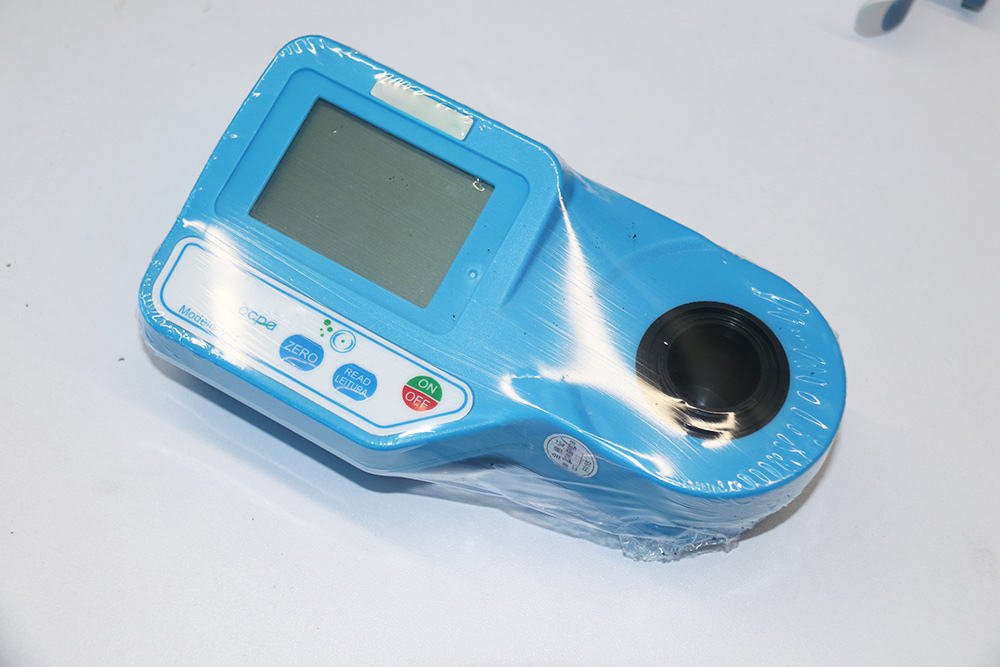

Portable Automatic Animal Sperm Concentration Detector Tester
Precise, portable sperm concentration measurement for veterinary and reproductive research applications. Delivers 98% accuracy with automatic calibration, LED display readout, and battery-powered convenience for field and laboratory use.
Clinical overview
The Portable Automatic Animal Sperm Concentration Detector Tester (NEUDDS01) is a precision laboratory instrument designed for rapid, accurate measurement of sperm concentration in animal semen samples. Engineered for veterinary clinics, breeding facilities, and reproductive research laboratories, this device provides objective quantification of semen quality essential for breeding decisions, fertility assessment, and research protocols.
With a measuring range of 0.2–5 million/ml and 98% accuracy, the detector delivers reliable results critical for animal reproduction management. The automatic calibration feature eliminates manual adjustment errors, while the 560mm LED light source ensures consistent optical performance. Battery-powered operation and compact, lightweight design make this instrument ideal for both fixed laboratory settings and field-based reproductive assessments.
Key features & surgeon benefits
High-Confidence Results
- 98% measurement accuracy for reliable sperm concentration data
- 560mm optimised light source for consistent optical performance
- Automatic calibration eliminates manual adjustment errors
Field-Ready Design
- Compact dimensions: 192 × 103 × 67 mm
- Lightweight at 290g for easy transport and handling
- 9V battery-powered for independent operation without mains dependency
Intuitive Operation
- LED display for clear, easy-to-read measurement results
- Operates effectively at 37°C for physiological sample conditions
- 10-minute auto-shutdown conserves battery life during standby
Comprehensive Coverage
- Measures 0.2–5 million/ml concentration range
- Suitable for diverse animal species and semen quality profiles
- Rapid analysis supports high-throughput breeding programmes
Technical specifications
| Measuring Range | 0.2–5 million/ml |
|---|---|
| Accuracy | 98% |
| Light Source | 560 mm |
| Display | LED |
| Operating Temperature | 37°C |
| Power Supply | 9V Battery |
| Auto-Shutdown | 10 minutes |
| Calibration | Automatic |
| Dimensions | 192 × 103 × 67 mm |
| Net Weight | 290 g |
| Warranty | 2 Year Manufacturer Warranty |

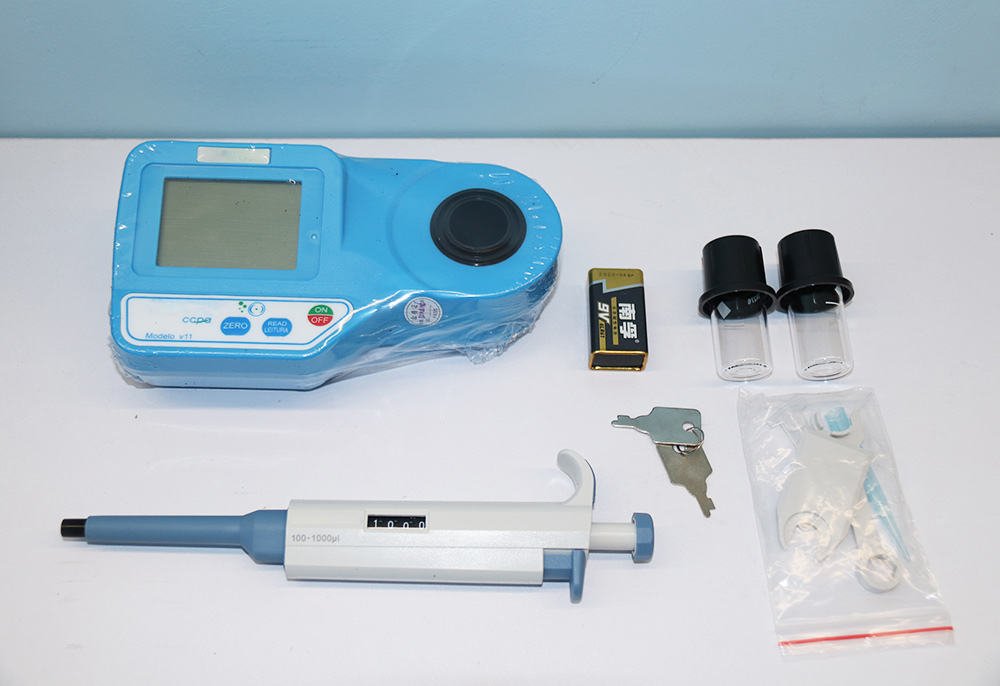

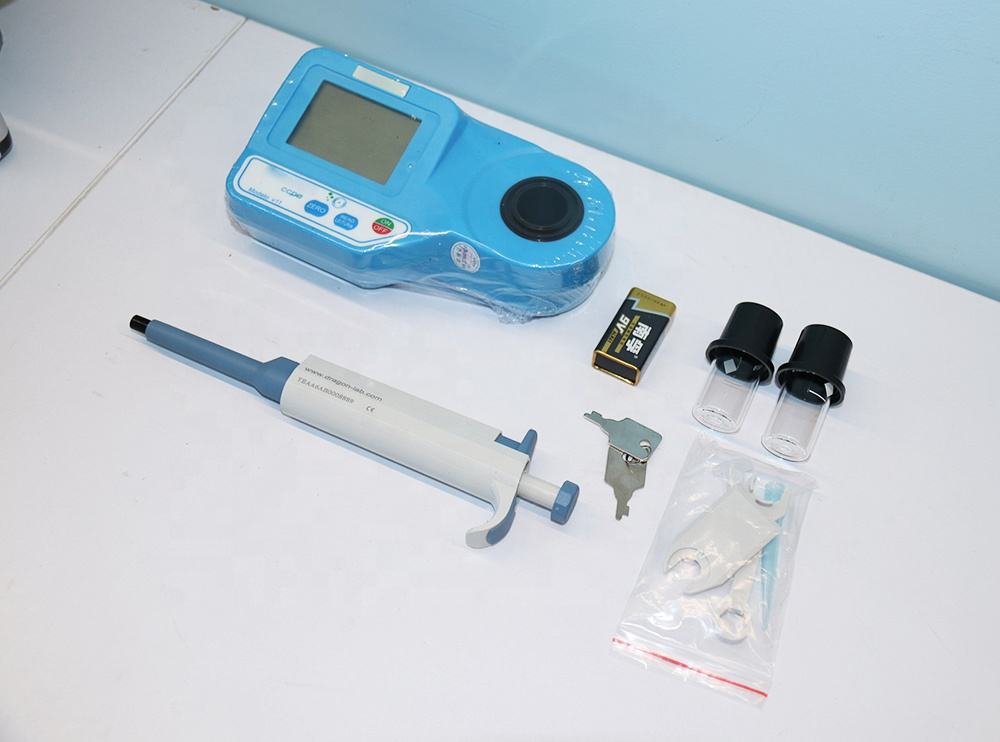

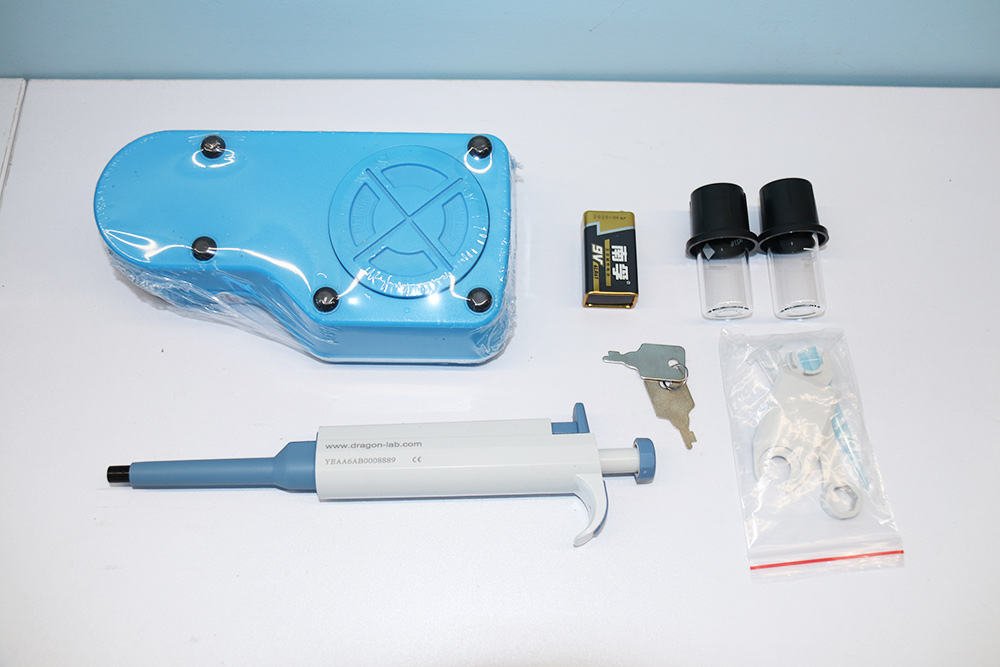

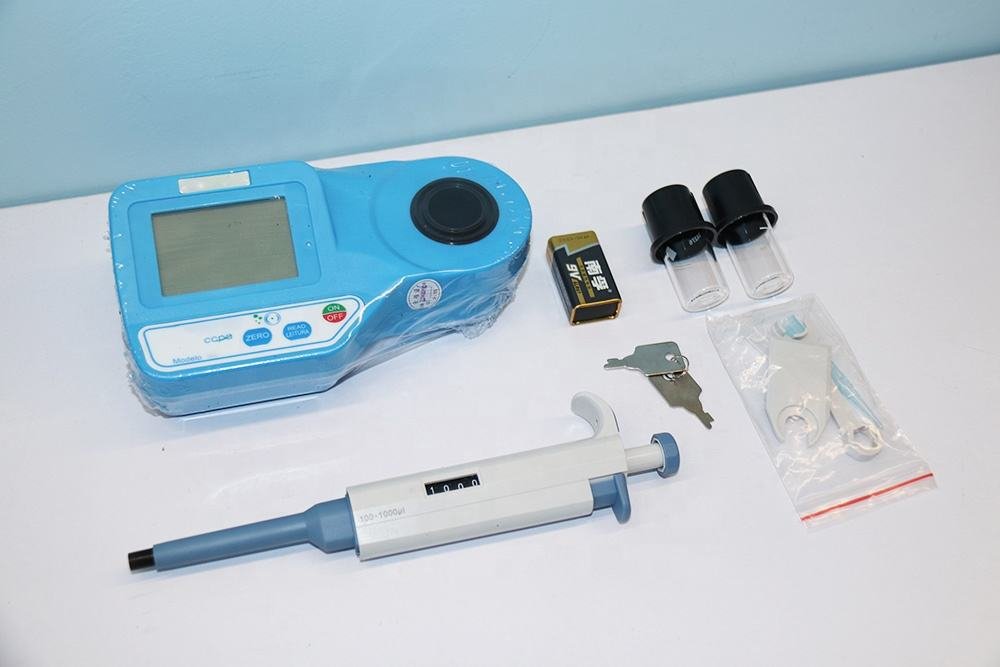

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Portable Automatic Sperm Concentration Detector with LED display and 560mm light source | 1 |
| Battery | 9V power supply (included) | 1 |
| Measurement Chamber | Precision optical chamber for sample analysis | 1 |
| User Manual | Operating instructions and calibration guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sperm concentration analysis requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
