Portable Microplate Reader Machine NEUER07
4.3(3 reviews)- Portable microplate reader with a 10.4” color touch screen
- Supports 96 and 48-well plates for versatile testing
- High accuracy with a reading range of 0.000 to 4.000A
- Auto calibration and lamp adjustment for reliable performance
- Built-in thermal printer and optional external printer support
- Extensive data storage with the capability to save up to 20 million test results
- Offers multiple report formats for comprehensive analysis
- Interface options include DVI, VGA, USB, and RS-232
- Linear shaking function with three adjustable speeds
- Compact dimensions of 460(L)×350(W)×197(H)mm and lightweight at 8kg
- SKU
- NEUER07
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Laboratory Equipment
Portable Microplate Reader Machine NEUER07
Advanced microplate analysis with 10.4" touch screen interface and comprehensive data management for clinical laboratories and research facilities.
The NEUER07 combines precision optics, intelligent software, and intuitive operation to deliver accurate, reproducible results across immunoassay and biochemical applications. Supporting both 96 and 48-well microplates with reading speeds as fast as 3 seconds per plate, this portable system is ideal for multi-location laboratories and space-constrained facilities.
Ordering Ref.
NEUER07
ConfigurationPortable microplate reader system
MaterialPrecision optics, silicon photodiode, tungsten halogen lamp
ApplicationClinical diagnostics, research, quality control
OEM customisation and integration support available. Contact sales for bespoke configurations.
Clinical overview
The NEUER07 Portable Microplate Reader represents next-generation laboratory analysis equipment designed to meet the demanding requirements of modern clinical and research environments. This advanced system combines precision optics, intelligent software, and intuitive touch-screen operation to deliver accurate, reproducible results across a wide range of immunoassay and biochemical applications. With support for both 96 and 48-well microplates, the NEUER07 offers exceptional versatility for laboratories performing ELISA, protein quantification, enzyme activity assays, and cellular analysis.
Built with a silicon photodiode detection system and a controlled tungsten halogen lamp, the NEUER07 ensures stable, high-quality readings with exceptional linearity across the 400–850nm wavelength range. The system's auto-calibration functionality and automatic lamp adjustment eliminate the need for manual intervention, reducing operator error and ensuring consistent performance. With its compact footprint of just 460×350×197mm and a lightweight design of only 8kg, this microplate reader is truly portable, making it ideal for multi-location laboratories, field research, and space-constrained facilities.
Key features & surgeon benefits
Optical Performance
Precision Detection System
- Silicon photodiode with 400–850nm wavelength range
- Reading range 0.000–4.000A with 0.001A resolution
- Accuracy ±0.008A; reproducibility ≤0.2%; stability ±0.003A
Workflow
Rapid Analysis & Operation
- Complete 96-well plate reading in 3 seconds (single wavelength)

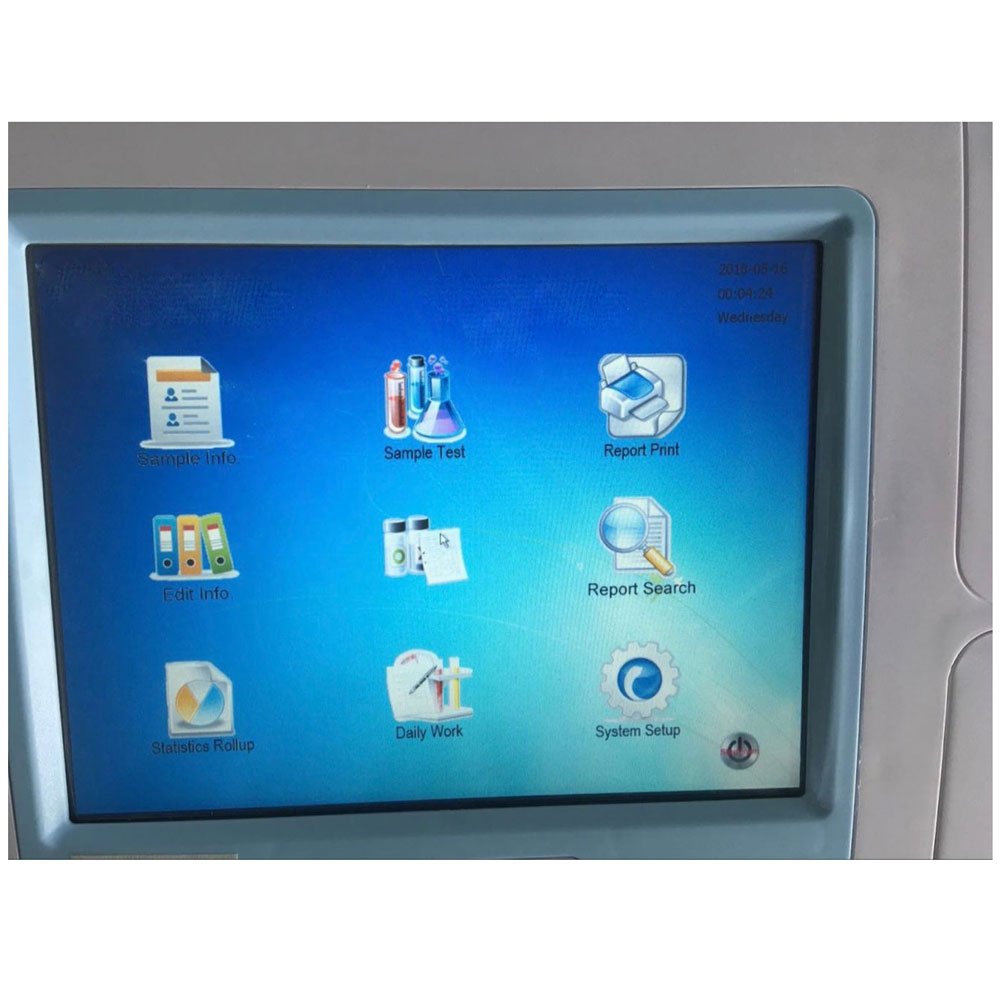

- Intuitive 10.4" color LED touch screen interface
- Built-in linear shaking with 3 adjustable speeds
Data Management
Comprehensive Storage & Reporting
- Store up to 20 million test data points and 500 projects
- Generate professional reports in 20+ formats
- Multiple curve-fit algorithms and transformation formulas
Integration
Seamless Connectivity
- DVI, VGA, USB, RS-232, network, and audio interfaces
- Built-in thermal printer with optional external printer support
- Auto-calibration and automatic lamp adjustment
Technical specifications
| Indications | ELISA testing, protein quantification, cell viability assays, clinical diagnostics, enzyme activity studies, drug development, microbiology testing, quality control |
|---|---|
| Microplate types | 96-well and 48-well plates |
| Photodetector | Silicon photodiode |
| Light source | 8v/50w controlled tungsten halogen lamp |
| Wavelength range | 400–850nm |
| Standard filters | 405, 450, 492, 630nm (4 optional positions available) |
| Reading range | 0.000–4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Reading speed | Single wavelength ≤3s; double wavelength ≤6s |
| Shaking function | Linear shaking with 3 adjustable speeds |
| Display | 10.4" color LED touch screen, 1024×600 resolution |
| Printer | Built-in thermal printer; optional external printer support |
| Interface connections | DVI, VGA, network interface, USB, audio interface, RS-232 |
| Data storage | Up to 20 million test data points; 500 test projects |
| Power supply | 100–110V/240V, 50–60Hz |
| Dimensions | 460(L) × 350(W) × 197(H)mm |
| Net weight | 8kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUER07 Microplate Reader | Complete portable microplate reader system with 10.4" touch screen, silicon photodiode detection, tungsten halogen lamp, and integrated thermal printer | 1 |
| Power cable | Universal AC power cable (100–110V/240V, 50–60Hz) | 1 |
| USB cable | USB interface cable for computer connectivity | 1 |
| RS-232 cable | Serial interface cable for legacy system integration | 1 |
| User manual | Comprehensive operation and maintenance documentation | 1 |
| Quick start guide | Quick reference guide for initial setup and basic operation | 1 |
| Thermal paper roll | Replacement thermal paper for built-in printer | 2 |
| Cleaning kit | Optical cleaning materials and maintenance supplies | 1 |
