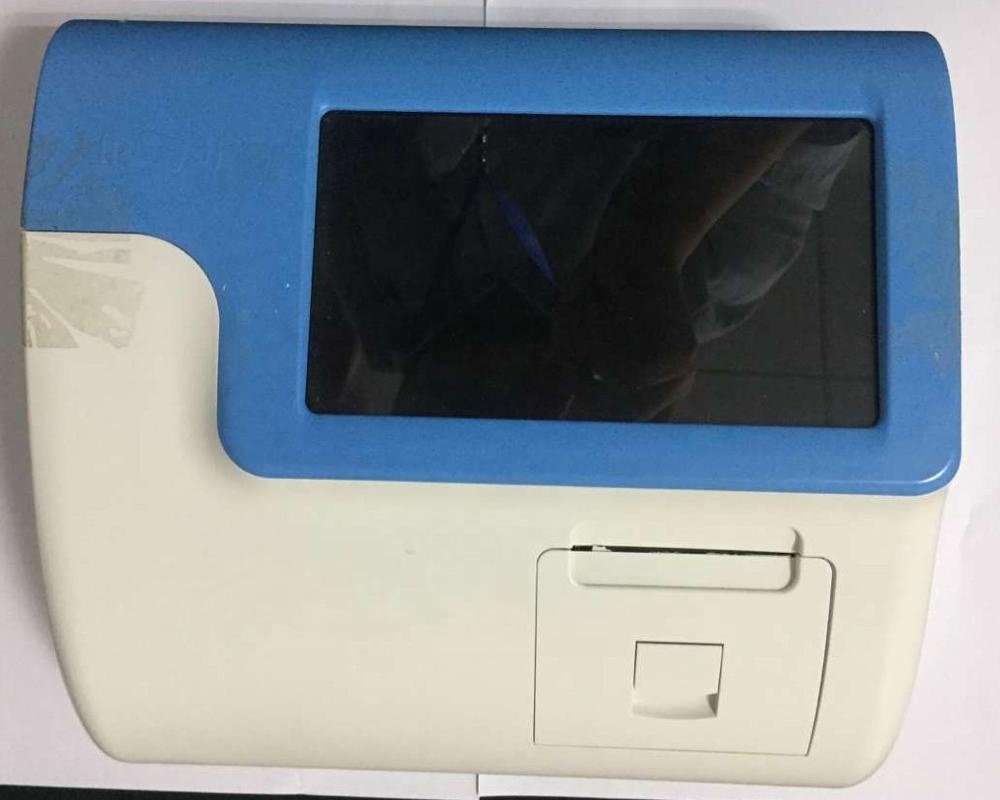

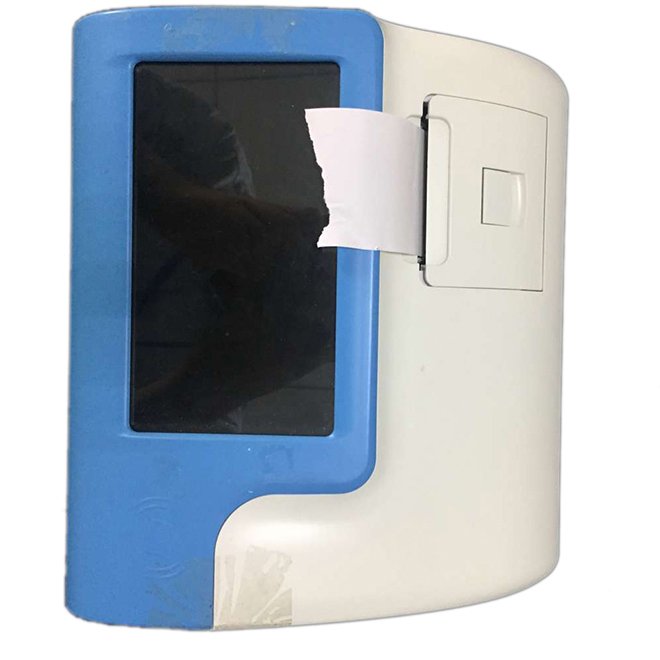

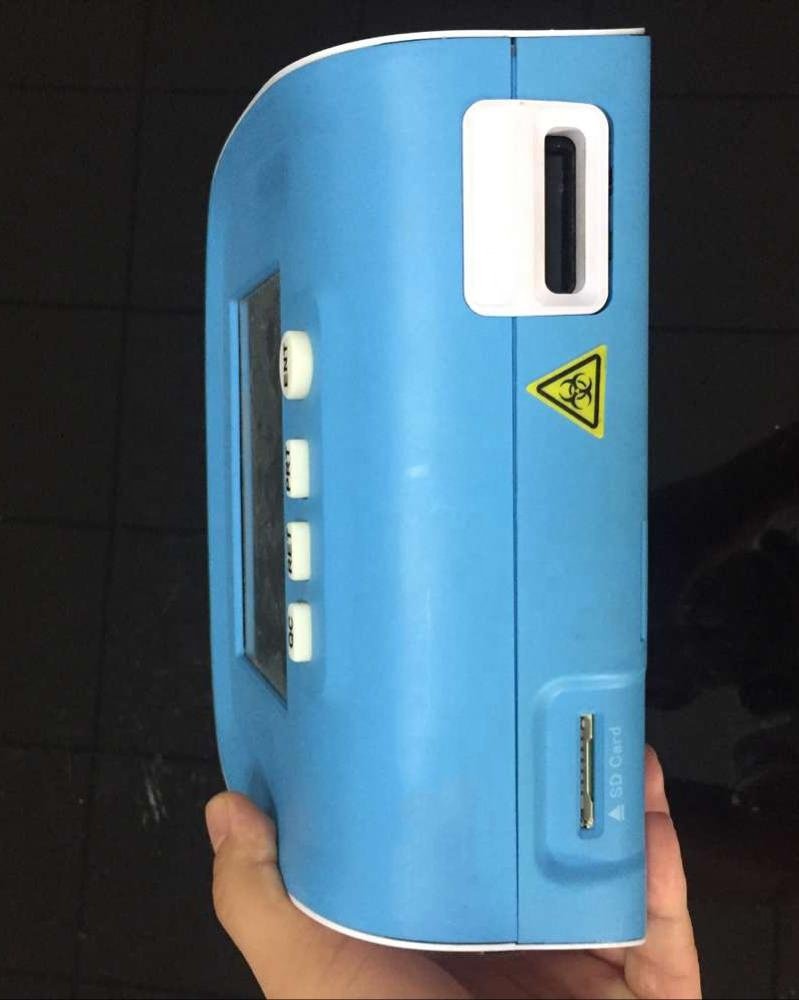

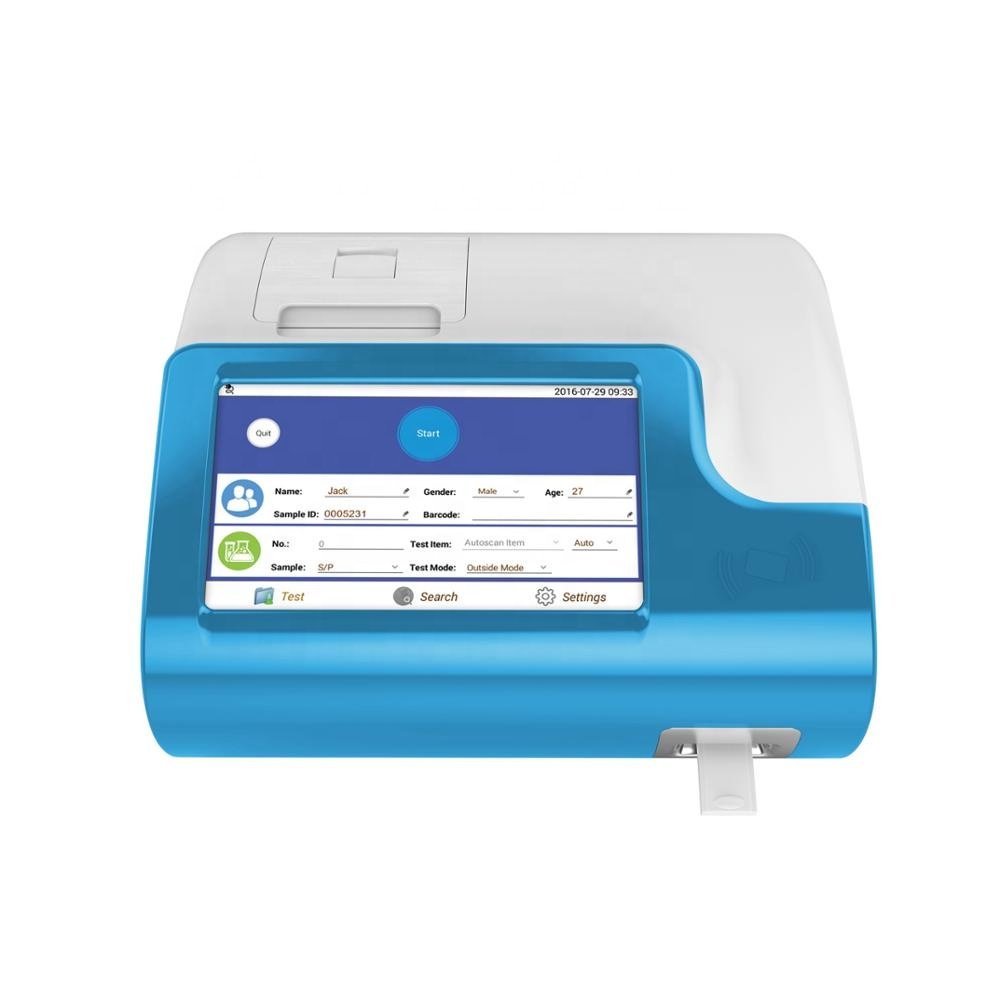

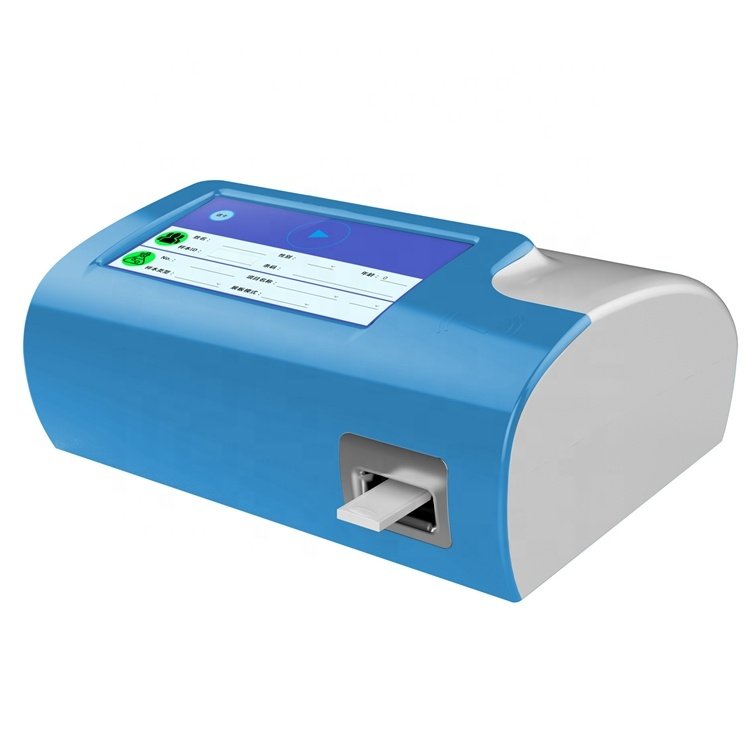

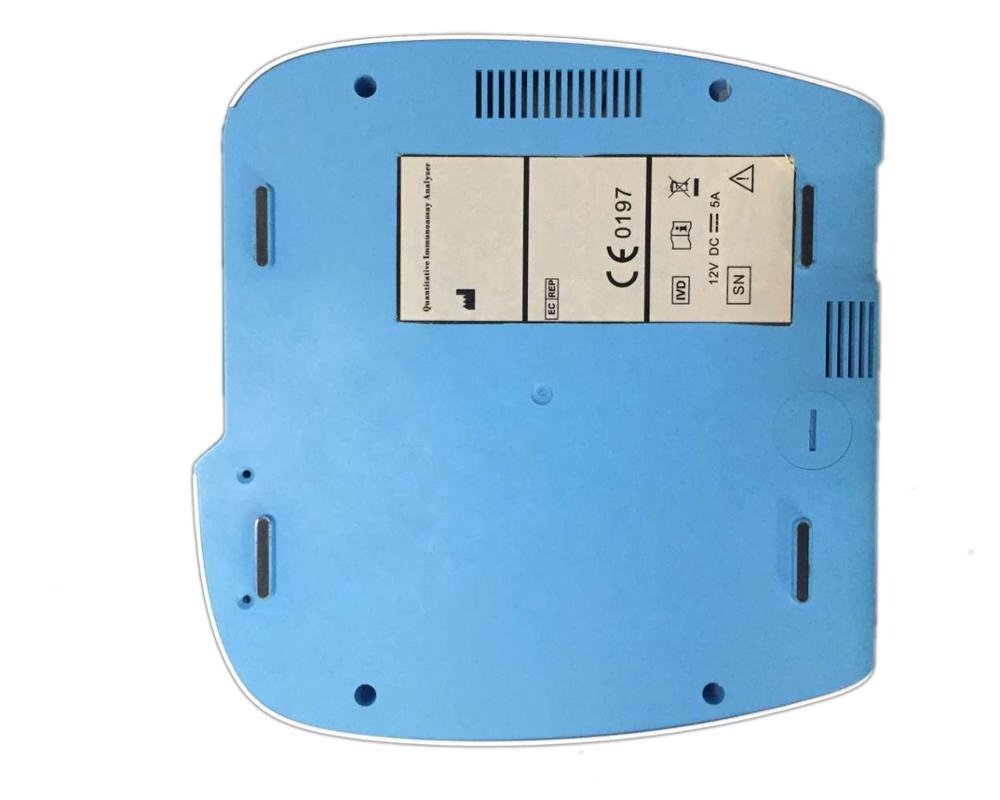

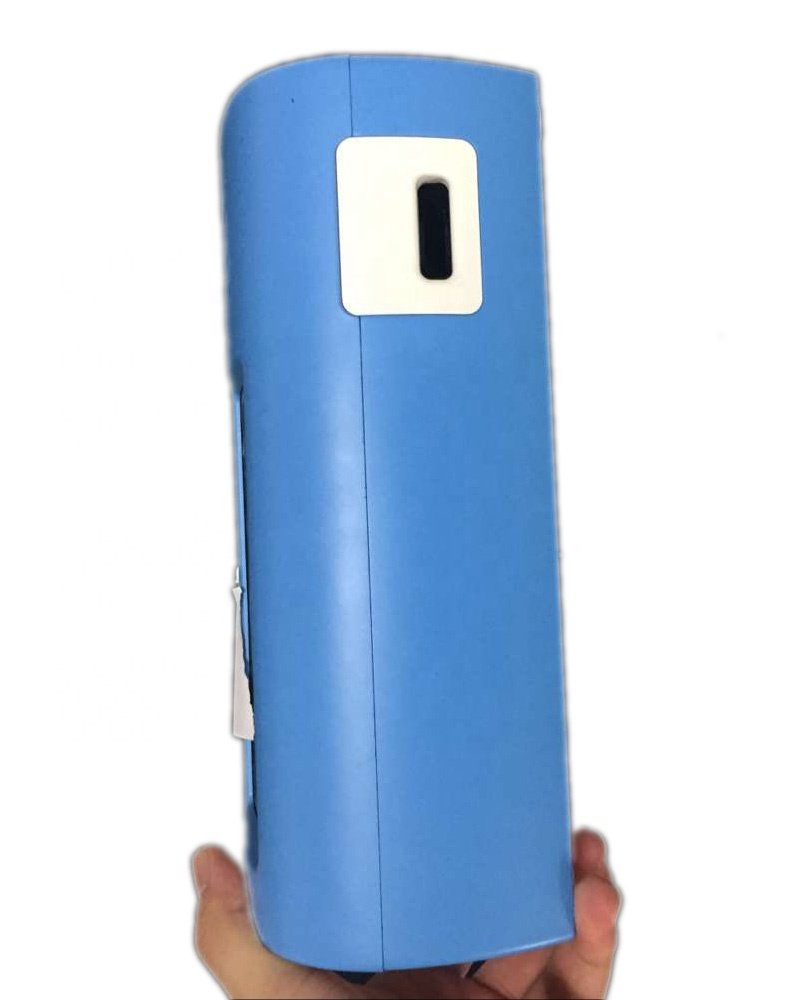

Quantitative Immunofluorescence Analyzer NEUIF08
- High-efficiency fluorescence immunoassay technology for accurate results
- Quick real-time testing: results in 2-15 minutes; multi-item testing in 5 seconds
- User-friendly 7-inch touch screen with Android interface
- Compact and lightweight design with built-in lithium battery
- Extensive disease management with over 10 matching reagents
- Supports both English and Chinese languages
- Integrated thermal printer for automatic data printing
- Suitable for varied environments with broad operating conditions
- Stores up to 10,000 data records for efficient information management
- Dimensions: 261 mm x 241 mm x 115 mm; weighs only 1.9 kg
- SKU
- NEUIF08
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Quantitative Immunofluorescence Analyzer NEUIF08
Advanced fluorescence immunoassay technology delivering quantitative results in 2–15 minutes. Compact, portable design with 7-inch Android touch screen, integrated thermal printer, and support for over 10 disease management reagents. Ideal for point-of-care and laboratory environments.
Clinical overview
The NEUIF08 Quantitative Immunofluorescence Analyzer represents a breakthrough in rapid, accurate point-of-care diagnostics. Employing advanced lateral flow chromatography with immunofluorescence detection, the system delivers quantitative results in as little as 2–15 minutes following sample collection. Multi-item testing is completed in just 5 seconds after cartridge insertion, enabling high-throughput screening without compromising accuracy.
Designed for versatility, the NEUIF08 supports comprehensive disease management across cardiac, inflammatory, renal, and metabolic markers. With over 10 matching reagent panels available, clinicians can tailor testing protocols to specific patient populations and clinical workflows. The integrated thermal printer and automatic data logging ensure seamless documentation and regulatory compliance, while bilingual interface support (English/Chinese) expands accessibility across diverse healthcare settings.
Key features & surgeon benefits
High-Efficiency Immunoassay
- Advanced fluorescence immunoassay technology for precise quantitative results
- Multiple quality control protocols built into every assay cycle
- Lateral flow chromatography ensures reproducible, clinically validated performance
Rapid Turnaround & Ease of Use
- Results in 2–15 minutes; multi-item testing in 5 seconds post-insertion
- 7-inch Android touch screen with intuitive, user-friendly interface
- Integrated thermal printer for automatic data printing and record retention
Compact Design with Built-In Battery
- Dimensions: 261 mm × 241 mm × 115 mm; weighs only 1.9 kg
- Integrated lithium battery supports operation in varied environments
- Broad operating conditions: +15°C to +35°C, 10–85% humidity
Comprehensive Diagnostic Coverage
- Stores up to 10,000 data records for efficient patient information management
- Over 10 matching reagents covering cardiac, inflammation, renal, and diabetes care
- Bilingual support (English/Chinese) with automatic data upload capability
Technical specifications
| Assay Method | Lateral flow chromatography (Immunofluorescence) |
|---|---|
| Test Result | Quantitative |
| Result Time | 2–15 minutes (single item); 5 seconds (multi-item after insertion) |
| Display | 7-inch touch screen with Android interface |
| Language Support | English and Chinese |
| Printer | Internal thermal printer with automatic data printing |
| Operating Temperature | +15°C to +35°C |
| Operating Humidity | 10% to 85% RH |
| Air Pressure | 70.0 kPa to 106.0 kPa |
| Power Supply | AC 100V–110V/240V, 50–60 Hz, 60 VA |
| Battery | Built-in lithium battery |
| Data Storage | Up to 10,000 records (maximum) |
| Dimensions | 261 mm (D) × 241 mm (W) × 115 mm (H) |
| Weight | 1.9 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | NEUIF08 Quantitative Immunofluorescence Analyzer with integrated thermal printer and lithium battery | 1 |
| Touch Screen Display | 7-inch Android interface with bilingual support | 1 |
| Power Adapter | AC 100V–110V/240V input, 50–60 Hz | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quality Control Materials | Calibration and control cartridges (as applicable) | As applicable |
