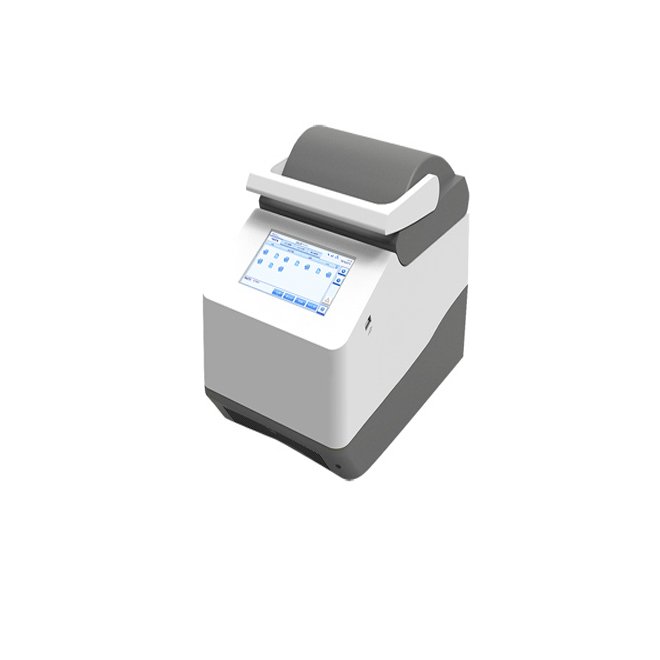

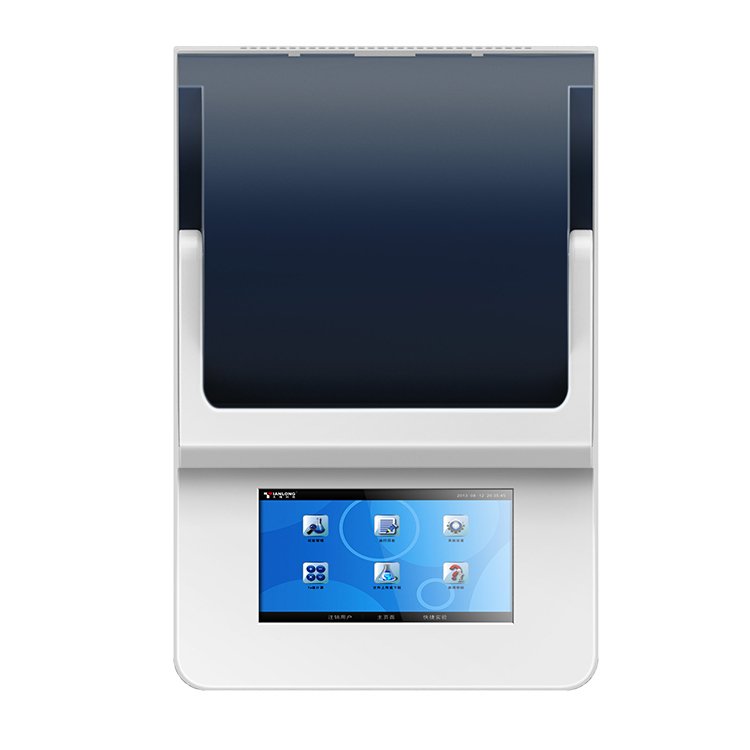

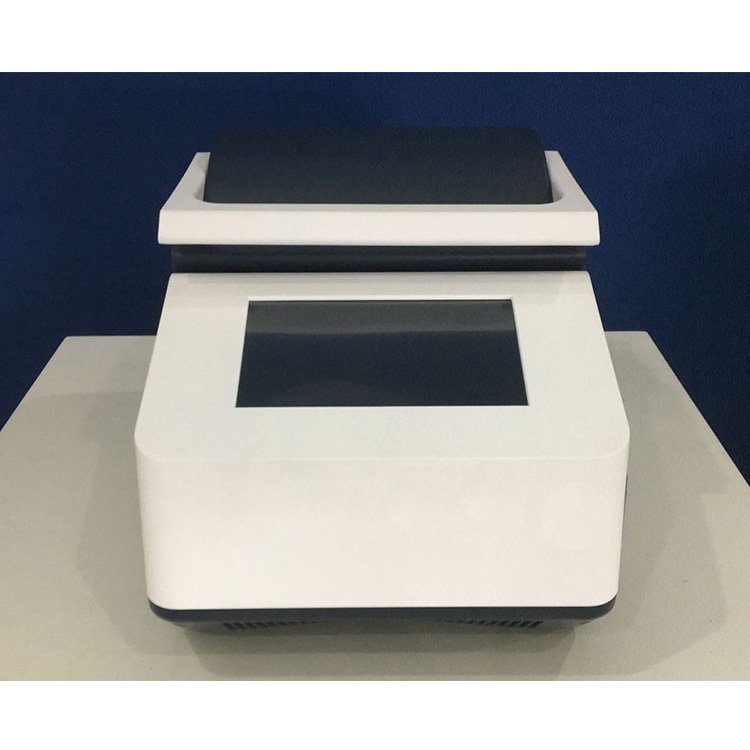

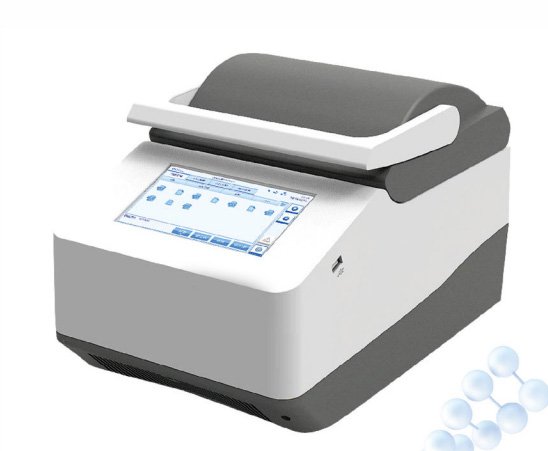

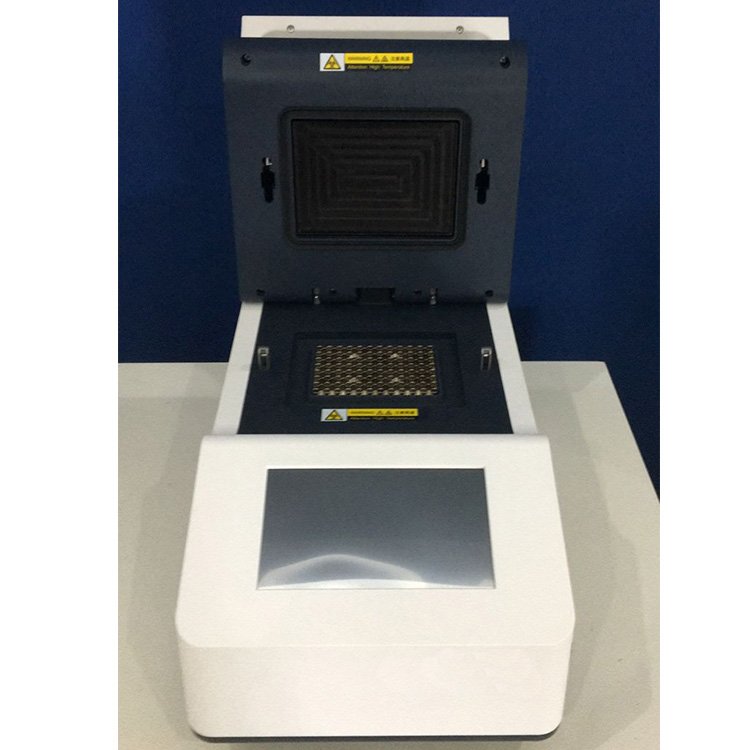

Real-Time PCR System NEUPCR16E
- Real-Time PCR System with 48 wells sample capacity
- Reaction volume ranging from 5-100 µL
- Temperature range of 0°C to 100°C with ±0.1°C temperature accuracy
- Advanced optical system featuring 4 LEDs and photodiode detection
- Supports multiplexing of up to 4 targets
- Data analysis modes including qualitative and quantitative analysis
- Power failure protection for automatic resumption of experiments
- User-friendly 1.7” touch screen and WLAN control capabilities
- Compatible with TaqMan, Molecular Beacons, and Scorpion probes
- Compact design with dimensions of 260mm x 400mm x 260mm and weight of 11 kg
- SKU
- NEUPCR16E
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
NEUPCR16E Real-Time PCR System
Advanced 48-well real-time PCR detection platform with precision thermal control, 4-channel simultaneous optical scanning, and WLAN connectivity for molecular diagnostics and research applications.
Clinical overview
The NEUPCR16E Real-Time PCR System represents a breakthrough in molecular diagnostic technology, offering laboratories a sophisticated yet accessible platform for quantitative PCR analysis. Engineered with precision Peltier-based thermal cycling and a state-of-the-art 4-LED optical detection system, this instrument delivers exceptional accuracy with temperature uniformity of ±0.1°C across all 48 wells. The lateral excitation and scanning method eliminates edge effects, ensuring consistent results across the entire thermal block.
Designed for modern laboratory workflows, the NEUPCR16E features innovative connectivity options including WLAN control capability that allows a single PC to manage up to 10 units simultaneously. The integrated 1.7" touch screen provides intuitive on-device control, while power failure protection automatically resumes experiments after power restoration without requiring PC intervention. With support for multiple probe types, comprehensive data analysis modes, and flexible reaction volumes from 5–100 µL, this system adapts seamlessly to diverse research and diagnostic applications requiring reliable, high-throughput real-time PCR performance.
Key features & surgeon benefits
Precision Temperature Management
- ±0.1°C accuracy and uniformity across all 48 wells
- Peltier-based heating/cooling with 8.0°C/sec max heating rate
- Temperature range 0°C to 100°C with rapid cycling capability
4-Channel Simultaneous Detection
- Four LED excitation sources with photodiode detection
- Lateral scanning eliminates edge effects
- Complete 48-well scan in 2 seconds across all channels
WLAN & Multi-Unit Management
- One PC controls up to 10 instruments simultaneously
- Network access from any connected workstation
- Ethernet and USB ports for LIS integration
Comprehensive Analytical Modes
- Qualitative, absolute, and relative quantification analysis
- Melt curve and high-resolution melting capability
- Genotyping and endpoint analysis functions
Technical specifications
| Indications | Infectious disease detection, gene expression analysis, oncology diagnostics, prenatal genetic testing, cardiovascular disease markers, pharmacogenomics, GMO detection, quality control |
|---|---|
| Sample capacity | 48 wells |
| Reaction volume | 5–100 µL |
| Temperature range | 0°C to 100°C |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ±0.1°C |
| Heating/cooling method | Peltier |
| Max heating rate | 8.0°C/sec |
| Max cooling rate | 5.5°C/sec |
| Gradient range | 1°C to 40°C (8-row gradient block) |
| Excitation source | 4 LEDs |
| Detector | Photodiode |
| Detection method | 4-channel simultaneous scanning (no edge effect) |
| Detection time | 2 seconds for 48 wells (all channels) |
| Fluorescence linearity | r ≥ 0.990 |
| Sample linearity | r ≥ 0.999 |
| Sample repeatability | Ct value CV ≤ 0.5% |
| Sample dynamic range | 1–10¹⁰ copies |
| Probe compatibility | TaqMan, Molecular Beacons, Scorpion probes |
| Multiplexing | Up to 4 targets per well |
| Touch screen | 1.7" |
| Communication ports | 1 Ethernet, 2 USB |
| Data storage | 1,000 results internally; USB disk transfer |
| PC operating system | Windows 7, Windows 10 |
| Dimensions (W × D × H) | 260 mm × 400 mm × 260 mm |
| Weight | 11 kg |
| Power consumption | 600 VA |
| Operating temperature | 10°C to 30°C |
| Operating humidity | 20% to 85% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | NEUPCR16E Real-Time PCR System with 48-well thermal block | 1 |
| Touch screen interface | 1.7" integrated control panel | 1 |
| Optical detection module | 4-LED excitation system with photodiode detector | 1 |
| Thermal block | 48-well aluminium block with Peltier heating/cooling | 1 |
| Heat lid | Heated cover (room temperature to 110°C) | 1 |
| Power supply | AC 100–125 V / 200–110V/240V (50/60 Hz) | 1 |
| Software | Real-time PCR analysis software with data management | 1 |
| Cables | Ethernet and USB connectivity cables | As applicable |
| Documentation | User manual, technical specifications, quality certificate | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss your real-time PCR requirements, request a detailed quote, or schedule a demonstration of the NEUPCR16E system. We provide comprehensive support for assay development, instrument training, and ongoing technical assistance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
