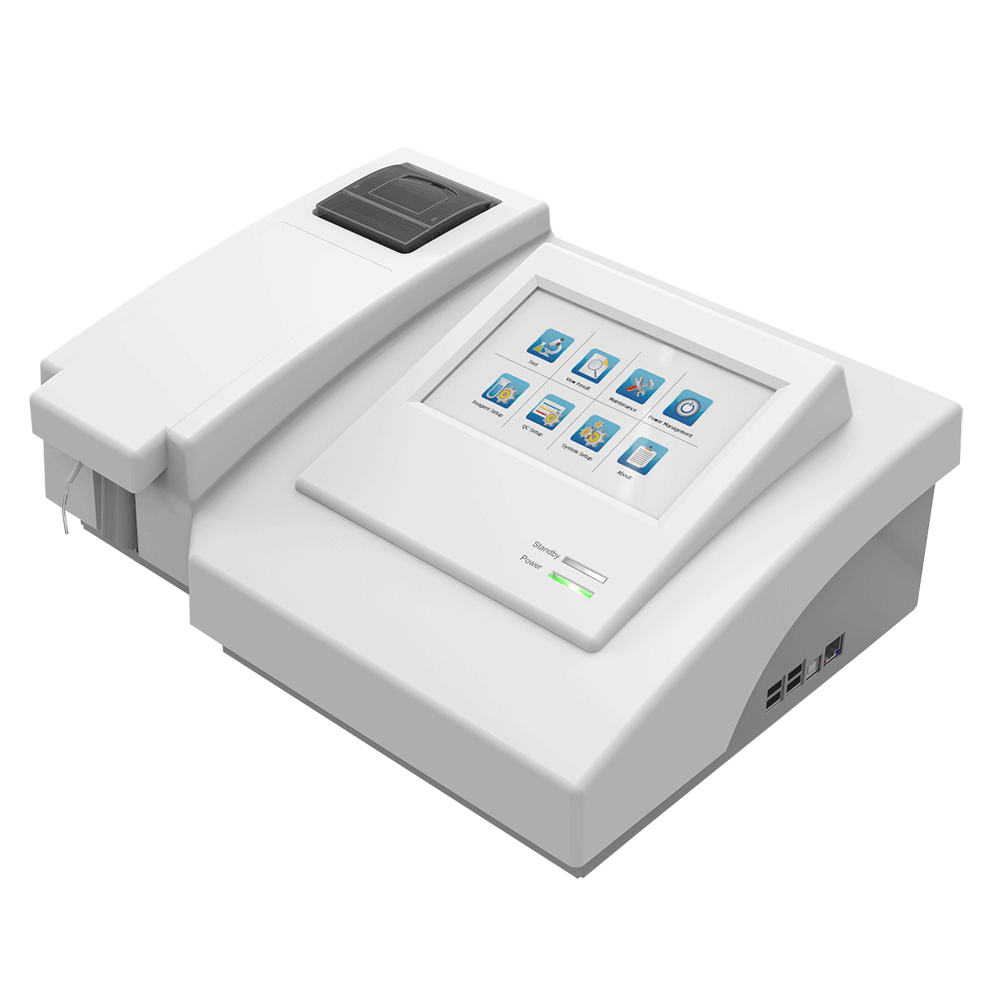

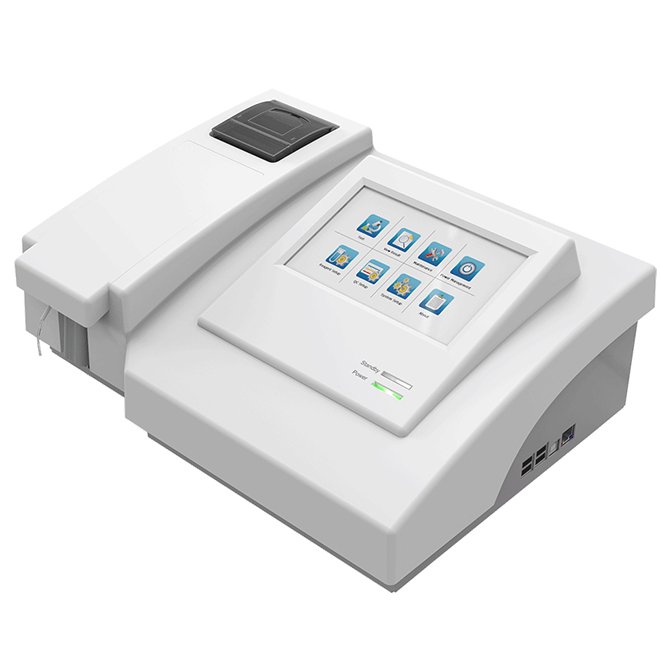

Semi-auto Chemistry Analyzer NEUES100P
$2,590.00$2,890.00 (-10%)
The instrument is semi-automatic chemistry and coagulation analyzer for in vitro diagnostic use in clinical laboratories and designed for in vitro quantitative determination of clinical chemistries in serum, plasma, urine or cerebrospinal fluid samples.

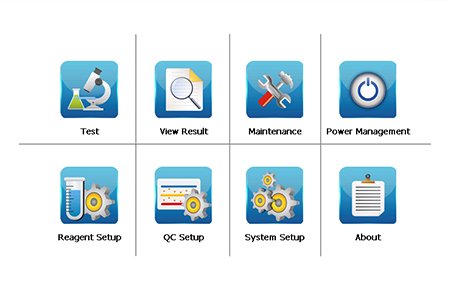

1.Window embedded compact 7 smart operation system
2.7’inch true color touch screen(800*480 pixels)
3.5USB ports& 1ethernet port
4.Flow cell &cuvette testing mode
5.Huge storage of more than 300 programs & 200000 samples results
Specifications
Features of Semi-Automatic Biochemistry Analyzer NEUES100P:
1.Window embedded compact 7 smart operation system 2.7’inch true color touch screen(800*480 pixels) 3.5USB ports& 1ethernet port 4.Flow cell &cuvette testing mode 5.Huge storage of more than 300 programs & 200000 samples results
Specification of Semi-Automatic Biochemistry Analyzer NEUES100P:
Dimension:400X300X160 (mm) 2 Reading mode for flow cell, cuvette Build-in thermal printer,57mm printer paper. 7” color display with touch screen operations.800×480 pixels. Interference Filters: 340, 405, 450, 505, 546, 578, 630 nm Memory:DDR2 SDRAM:1G bit; Flash:256 MB Over 300 programs,200000 results can be stored. USB port(host)for keyboard, mouse, printer, U disk, bar code reader etc. USB port (slave) for PC connection(support PC software control function) CPU:ARM Cortex-A8,720M Hz.
Test method
|
1 point end, 2 point end(Sample blank) Kinetics, Fxed-time, Coagulation(optional).
|
Optics
|
7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm.2 more for optinal.
|
Lamp house
|
Long-life tungsten halogen lamp(6V/10W), auto-sleep function.
|
Display
|

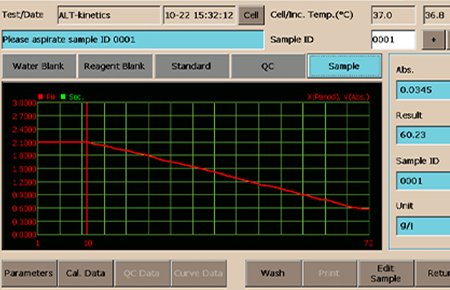

7.0″ TFTLCD with touch screen, 800*480 pixels.
|
Printer
|
Build-in thermal printer, 57mm printer paper.
|
Temperature
|
25, 30, 37℃ and Room temperature. By means of Peltier elements.
|
Flow cell capacity & optical path
|
32ul,10mm.
|
Resolution
|
0.0001 Abs.
|
Photometric range
|
0.0000-4.0000 Abs.
|
CPU
|
ARM Cortex-A8,720M Hz, DDR2 SDRAM:1IG bit, Flash: 256MB
|
Memory
|
Over 300 programs,200000 results can be stored.
|
Interface
|

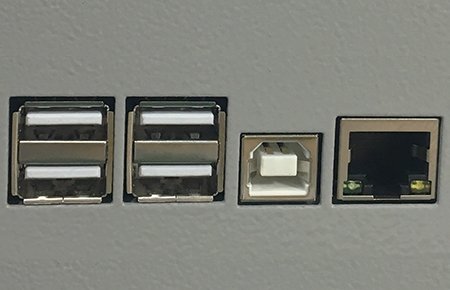

4 USB Hosts, 1 USB Slave, 1 Ethernet port.
USB port(host) for keyboard, mouse, printer, U disk,bar code reader etc.
USB port(slave)for PC connectionsupport PC software control function).
|
Operational environment
|
Temperature:10℃~30℃, Humidity:30%~0%.
|
Power requirement
|
Wide power supply AC100-24OV, 50/60 Hz.
|
Dimension
|
400*300*160mm(L*W*H).
|
