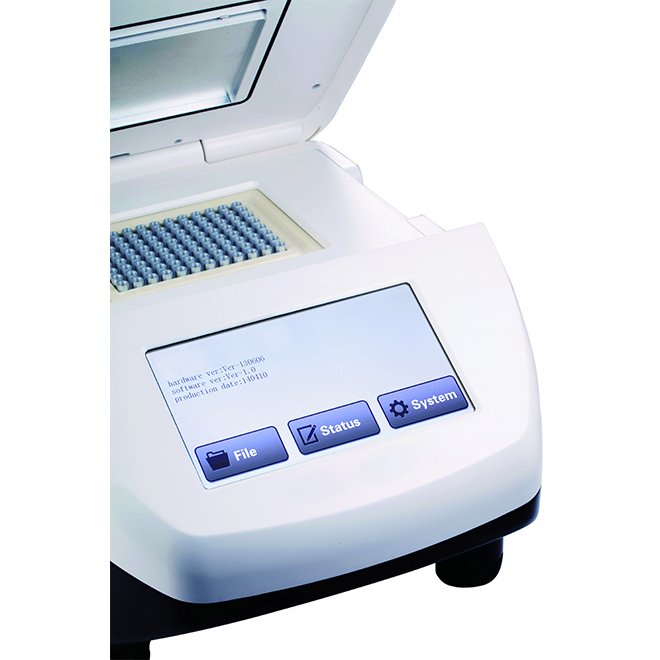

Thermo Cycler gradient NEUTC100plus
- Reliable heating/cooling elements with precise temperature control
- Unique block design ensures temperature uniformity for repeatable results
- 7-inch large color touch panel screen for easy programming
- High-performance DSP and temperature control technology
- Fast heating and cooling rate for efficient processing

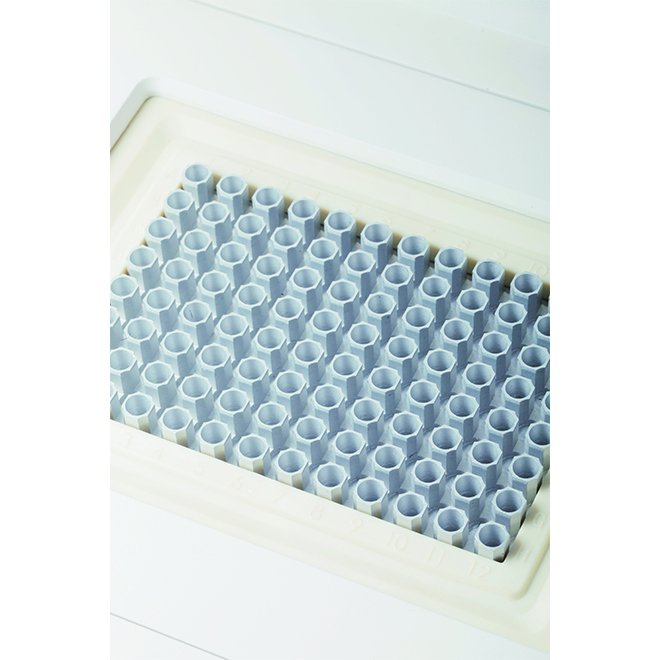

- Sample capacity of 96x0.2mL PCR tubes or 8x12 PCR plates
- Temperature range: 4-105℃ with accurate display and control
- User-defined file system supports up to 30 segments and 99 cycles
- Power supply options: 100-120V or 200-240V, 50/60Hz
- Lightweight design at 11kg for easy handling and storage
- SKU
- NEUTC100PLUS
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Thermo Cycler Gradient NEUTC100plus
Advanced PCR thermal cycling system with precise temperature control, rapid heating/cooling rates, and intuitive 7-inch touchscreen interface. Accommodates 96 × 0.2 mL tubes or 8 × 12-well plates with exceptional temperature uniformity for reproducible molecular biology workflows.
Clinical overview
The NEUTC100plus is a high-performance thermal cycler engineered for demanding PCR and qPCR applications in clinical, research, and diagnostic laboratories. Its advanced heating and cooling technology, combined with precise temperature uniformity across all 96 wells, ensures consistent amplification results and reduces run-to-run variability. The gradient functionality enables optimization of annealing temperatures across a single run, streamlining assay development and validation workflows.
With a robust aluminum block design, rapid thermal ramping (3°C/sec), and intuitive 7-inch color touchscreen interface, the NEUTC100plus delivers both reliability and ease of use. The device supports flexible sample formats—96 × 0.2 mL tubes, 8 × 12-well plates, or standard 96-well plates—making it adaptable to diverse laboratory protocols and throughput requirements.
Key features & surgeon benefits
Precision & Uniformity
- Temperature display accuracy of ±0.1°C
- Control accuracy ±0.3°C at 55°C
- Uniformity <0.3°C across all wells
Fast Thermal Cycling
- Maximum heating/cooling rate of 3°C/sec
- Gradient temperature range 30–99°C with 1–42°C gradient span
- User-defined programs: up to 30 segments and 99 cycles
Efficient Operation
- Lightweight design (11 kg) for easy transport and storage
- Dual power supply options (100–120V or 200–110V/240V, 50/60 Hz)
- Power-off protection preserves user programs and settings
User-Friendly Design
- 7-inch large color LCD touchscreen (800 × 480 resolution)
- Intuitive software for easy programming and monitoring
- Storage for up to 16 folders with 16 files each
Technical specifications
| Sample Capacity | 96 × 0.2 mL PCR tubes, 8 × 12-well PCR plates, or 96-well plates |
|---|---|
| Heating Temperature Range | 4–105°C |
| Lid Temperature Range | 30–110°C |
| Temperature Display Accuracy | ±0.1°C |
| Temperature Control Accuracy (at 55°C) | ±0.3°C |
| Temperature Uniformity (at 55°C) | <0.3°C |
| Max. Heating/Cooling Rate | 3°C/sec |
| Gradient Temperature Setting Range | 30–99°C |
| Gradient Range | 1–42°C |
| Block Material | Aluminum |
| Display | 7-inch LCD color touchscreen, 800 × 480 resolution |
| User-Defined File System | Max. 30 segments, 99 cycles, 16 folders with 16 files each |
| Power Off Protection | Yes |
| Power Supply | 100–120V or 200–110V/240V, 50/60 Hz |
| Dimensions (without heating block) | 280 × 370 × 250 mm (D × W × H) |
| Weight | 11 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Thermal Cycler Unit | NEUTC100plus with 96-well aluminum block and gradient capability | 1 |
| Power Cable | Appropriate for selected voltage (100–120V or 200–110V/240V) | 1 |
| User Manual | Complete operating and maintenance documentation | 1 |
| Software License | Pre-installed thermal cycling control software | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's thermal cycling requirements, request a detailed quotation, or arrange a product demonstration of the NEUTC100plus.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
