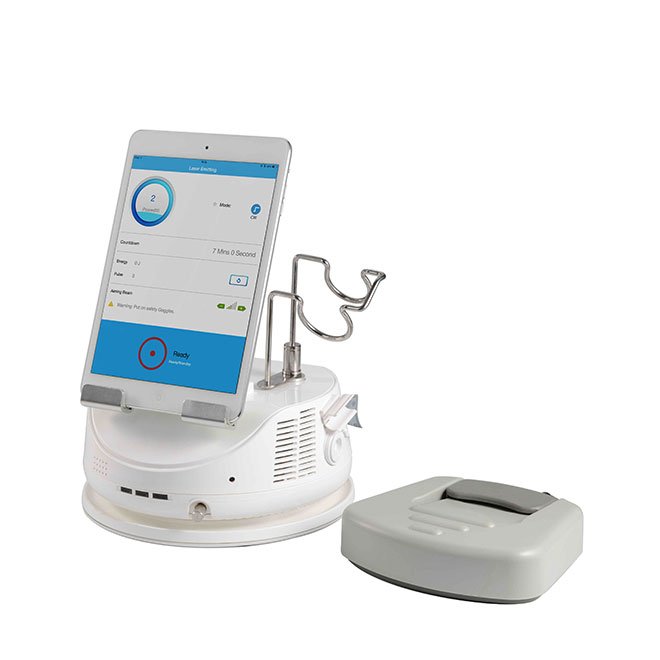

Total Dental Care Diode Laser Machine NEUDLS02

Specifications

Laser Type：
Semiconductor laser

Wavelength：
MSLDLS02A:980nm±10nm
MSLDLS02B:810nm±10nm

Output power：
MSLDLS02A:0.1W-10W
MSLDLS02B:0.1W-7W

Operation mode：
CW, Single, Repeat

Pulse width：
25μs -10s or continuous

Application / Light delivery system：
Core Size (Use only approved systems)≥200µm

Numerical Aperture ：
NA = 0.22 – 0.48

Fiber Connector :
SMA 905

Aiming Beam :
Diode laser of 650nm±10nm, 4mW (max), adjustable brightness.

Laser Class :
4

Operation interface    :
Color LCD touch screen

Power Supply:
Model: FSP105-KGAM1
input: 100-240Vac 1.4-0.7A , 47-63HZ
output: 15V      6.79A Max.

Cooling :
Air cooling

Safety classification    :
ClassⅠType B

Dimensions :
265 mm x 200 mm x 210 mm (HxWxD)
Weight :
3 kg
Operating Temperature :
10℃～40℃（In order to better heat dissipation, it is recommended to use temperature of 10-35 ℃）

Storage/Transport Temperature:
-20℃ to +50℃

Humidity    Storage/Transport : 10% – 80%,

Operating: 30% – 60%

Waterproof level:
IPX1
Footswitch Waterproof level:
IPX8
