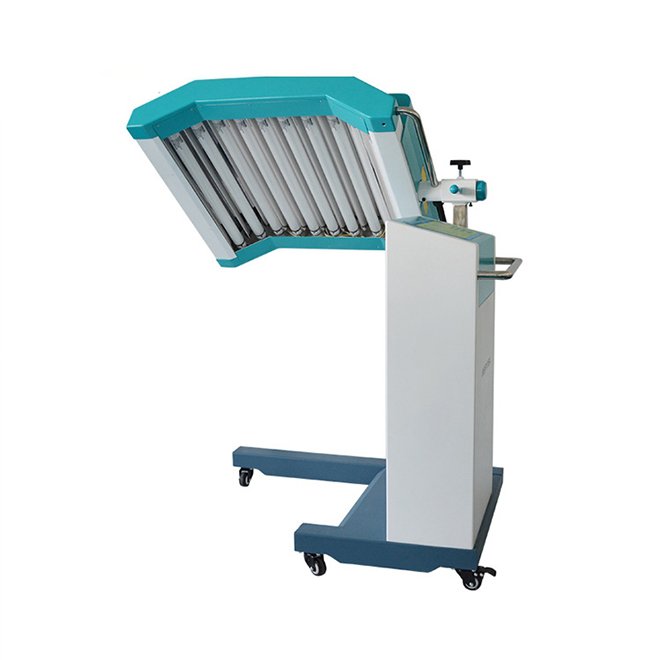

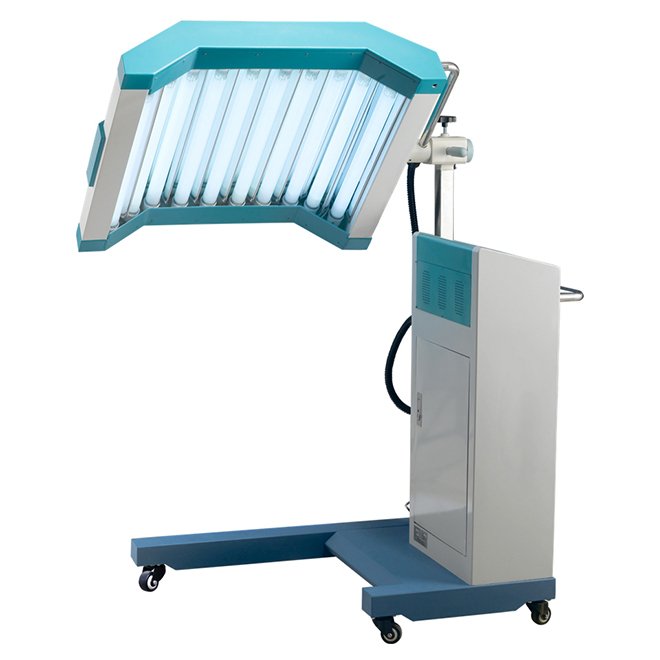

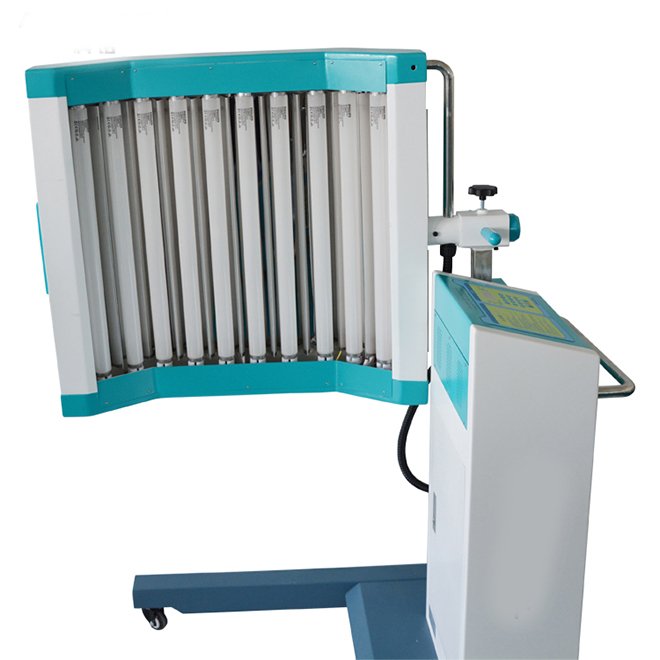

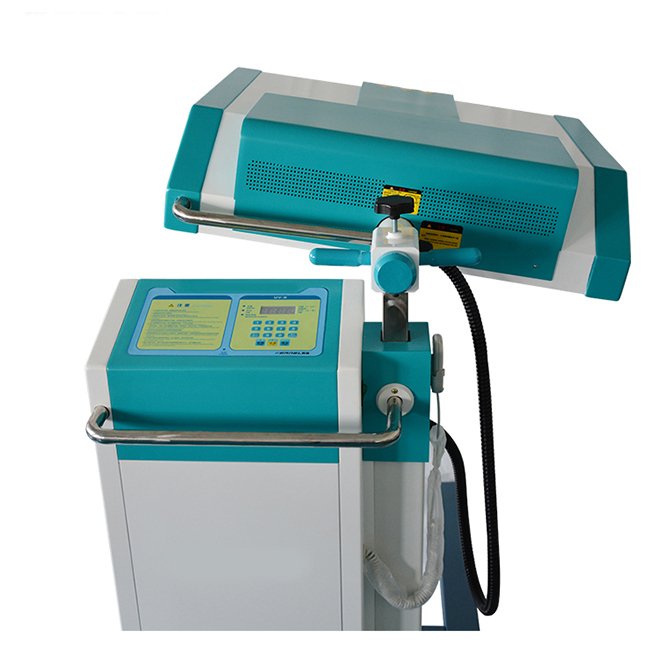

UV Phototherapy NEUKN02
- High-intensity UV light therapy device with Philips special UV lamps
- Features 10 UV lamp combinations: PUVA, NBUVB, and both for efficient treatment
- Microcomputer-controlled radiation dose and time for precise therapy
- Adjustable treatment head with electronic lift and rotation for patient comfort
- Built-in reflectors enhance irradiation efficiency
- Unique anti-interference technology for reliable operation in strong magnetic fields
- Optional remote control and case management software for added convenience
- Safety-focused microcomputer control system
- Effective radiation area of 4020cm² to cover larger treatment zones
- Suitable for a variety of room environments with a stable operating range
- SKU
- NEUKN02
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
UV Phototherapy NEUKN02
High-intensity UV light therapy system with dual PUVA and NBUVB capability. Microcomputer-controlled radiation dosing, adjustable treatment head with electronic lift and rotation, and anti-interference technology for reliable operation in demanding clinical environments.
Clinical overview
The NEUKN02 is a professional-grade UV phototherapy system designed for dermatological clinics and treatment centres. It combines stable Philips special UV lamps with microcomputer-controlled dosimetry to deliver precise, reproducible PUVA and NBUVB therapy. The system supports independent or simultaneous operation of both UV spectra, allowing clinicians to tailor treatment protocols to individual patient needs and condition severity.
Built-in reflectors maximize irradiation efficiency, reducing treatment times while maintaining therapeutic efficacy. The electronically adjustable treatment head—with vertical lift range of ≥36 cm and rotation angle of ≥90°—accommodates both seated and recumbent patient positioning. Unique anti-interference technology ensures reliable operation in facilities with strong magnetic fields, such as those housing MRI equipment.
Key features & surgeon benefits
Flexible UV Therapy Options
- 10 UV lamp combinations: PUVA, NBUVB, and both simultaneously
- Independent or combined operation for tailored treatment protocols
- High-intensity output reduces session duration
Ergonomic Treatment Delivery
- Electronic lift (≥36 cm vertical range) and rotation (≥90°) for patient comfort
- Lockable treatment head at any angle
- Accommodates seated or recumbent positioning
Microcomputer Dosimetry
- Precise radiation dose and time control
- LED display for real-time monitoring
- Safety-focused microcomputer system
Robust Clinical Performance
- Stable, long-life Philips UV lamps
- Built-in reflectors enhance irradiation efficiency
- Anti-interference technology for strong magnetic field environments
Technical specifications
| Indications | Phototherapy treatment for dermatological conditions; PUVA, NBUVB, or combined UV exposure |
|---|---|
| UV Lamp Options | TLK40W/1O-R (350–400 nm), TL20W/01 (311–312 nm), TLK40W/O9R (320–400 nm) |
| Effective Radiation Area | 4020 cm² ± 10% |
| Treatment Distance | 5 cm ± 1 cm |
| Lift Range | ≥36 cm vertical |
| Rotation Range | ≥90° |
| Work Voltage | AC 220V ± 10%, 50Hz ± 2% or AC 110V ± 10%, 60Hz ± 2% |
| Rated Power | 500 VA |
| Operating Environment | Temperature 5–40°C; Relative humidity ≤85%; Atmospheric pressure 700–1060 hPa |
| Display | LED display |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| UV Phototherapy Unit | Complete NEUKN02 system with 10 UV lamp combinations, microcomputer control, electronic lift and rotation head | 1 |
| Philips UV Lamps | Mixed set of PUVA, NBUVB, and combination lamps as specified | 10 |
| Built-in Reflectors | Integrated reflector system for irradiation efficiency | As applicable |
| Power Cable | AC mains connection (220V or 110V as ordered) | 1 |
| User Manual | Operating and maintenance instructions | 1 |
| Optional Remote Control | Wireless remote for system operation (optional accessory) | On request |
| Optional Case Management Software | Patient record and treatment tracking software (optional accessory) | On request |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customisation options, or schedule a product demonstration. We offer flexible delivery and comprehensive support for all UV phototherapy installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
