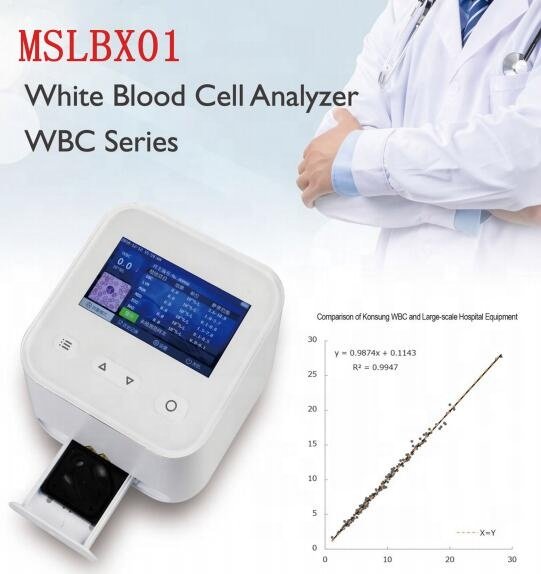

White Blood Cell Analyzer WBC Series NEUBX01
$1,990.00$2,290.00 (-13%)
– Ultra-portable White Blood Cell Analyzer for primary medical departments
– Built-in lithium battery with high capacity for convenience
– Smart TFT color screen for real-time data visualization
– Durable ABS+PC material with antibacterial properties

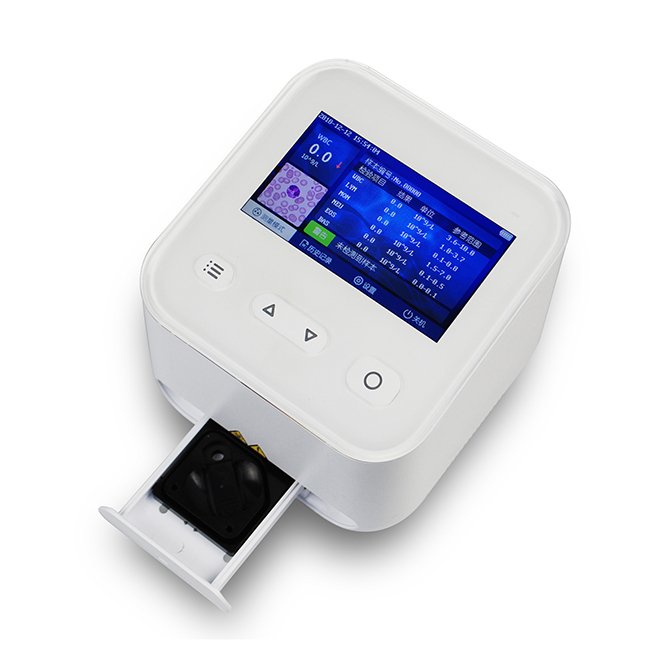

– Unique disposable microfluidic chip to prevent contamination
– Accurate measurements with exclusive OCSP core algorithm
– Quick testing time of ≤3 minutes with a sample volume of only 10uL
– Data transmission via USB and Bluetooth for efficient record keeping
– Compact design with dimensions of 138×140×116mm and weight of about 750g
– Suitable for various operating conditions (15°C-35°C, ≤85% humidity)
White Blood Cell Analyzer WBC Series NEUBX01
Ultra-portable point-of-care white blood cell analysis for primary medical departments, emergency care, and remote clinical settings. Laboratory-grade accuracy in a compact, battery-powered device.
Clinical overview
The NEUBX01 represents a breakthrough in portable hematology diagnostics, engineered specifically for primary medical departments, emergency care, and point-of-care settings where rapid white blood cell analysis directly impacts clinical decision-making. This ultraportable analyzer combines advanced microfluidic technology with optical detection and the exclusive OCSP core algorithm to deliver laboratory-grade accuracy in a compact, battery-powered format. With a testing time of 3 minutes or less and a sample requirement of only 10 microliters, the NEUBX01 brings diagnostic capabilities directly to the patient’s bedside, eliminating time delays and logistical challenges associated with centralized laboratory testing.
The device features a 4.3-inch TFT color display with intelligent voice guidance, creating an intuitive user experience that minimizes training requirements and operator error. The unique disposable microfluidic chip design completely eliminates cross-contamination risk between samples, while the durable ABS+PC housing with antibacterial properties ensures reliable performance in diverse clinical environments. Factory calibration and ready-to-use design enable immediate deployment without complex setup procedures. With storage capacity for 30,000 test records and versatile USB and Bluetooth connectivity, the NEUBX01 seamlessly integrates with electronic medical record systems while supporting mobile health applications and telemedicine consultations.
Key features & surgeon benefits
Ultraportable Point-of-Care Design
- Compact dimensions 138×140×116 mm; weight only 750g
- Built-in high-capacity rechargeable lithium battery for mobile operation
- Enables bedside testing, home healthcare, emergency response, and remote clinics
Rapid 3-Minute Analysis
- Complete WBC count in ≤3 minutes from sample introduction
- Minimal sample requirement of only 10 microliters
- Enables same-visit diagnosis and immediate treatment initiation
Clinical-Grade Measurement Precision
- Device deviation ≤±5% across detection range 0.3–30.0 × 10⁹/L
- Exclusive OCSP algorithm refined through tens of thousands of clinical samples
- Exceptional performance with highly clustered cells
Contamination Prevention
- Unique disposable microfluidic chip for each test
- Eliminates cross-contamination risk between samples
- Antibacterial ABS+PC housing for hygienic clinical environments
Technical specifications
| Product Model | NEUBX01 |
|---|---|
| Detection Principle | Microfluidic + Optical Detection with OCSP Core Algorithm |
| Inspection Item | White Blood Cell Count (WBC) |
| Sample Type | Capillary or venous whole blood (EDTA anticoagulation) |
| Sample Volume | 10 µL |
| Testing Time | ≤3 minutes |
| Detection Range | 0.3–30.0 × 10⁹/L |
| Device Deviation | WBC ≤±5% |
| Calibration | Factory calibrated; no user adjustment required |

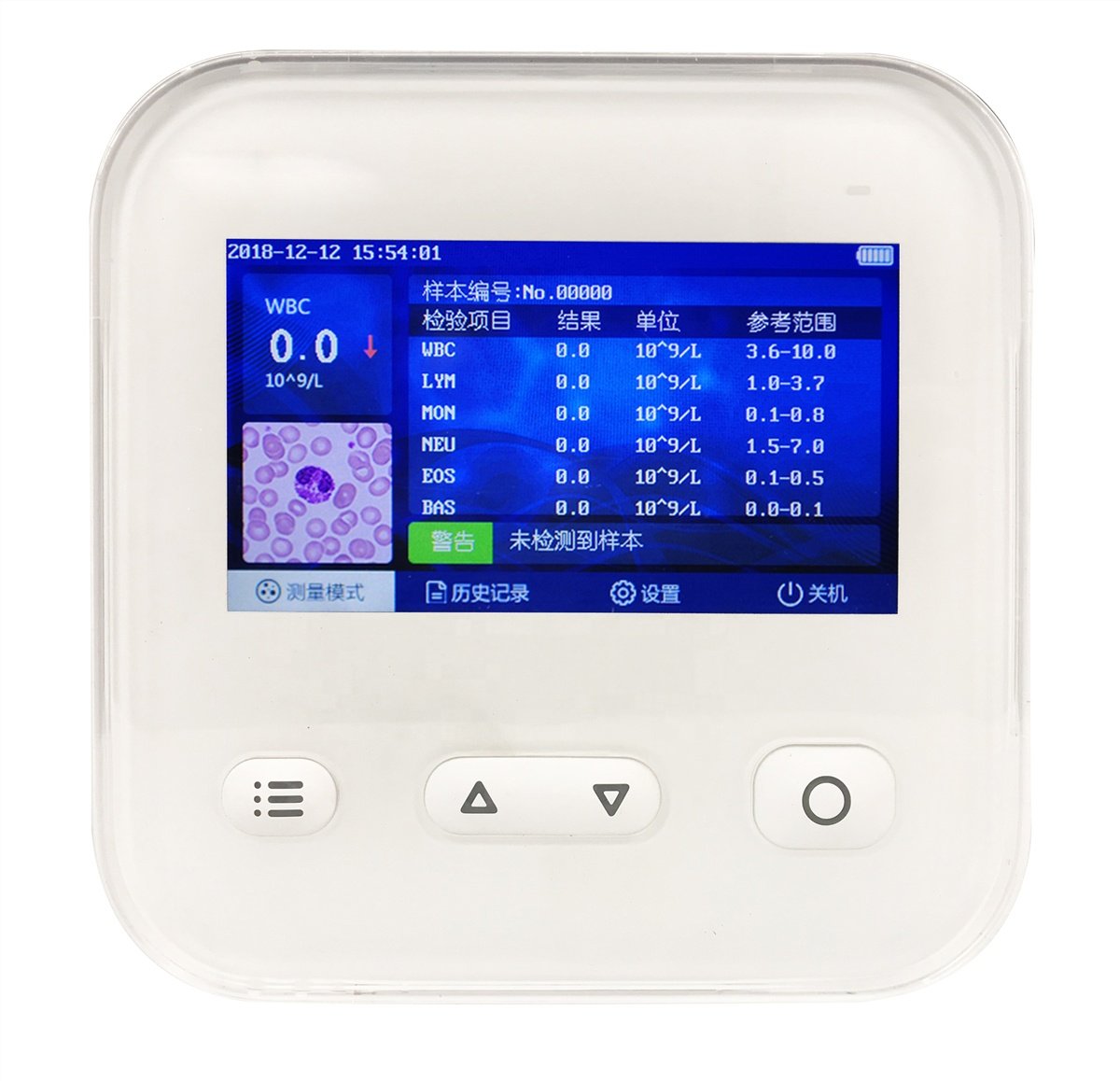

| Display | 4.3″ TFT LCD color screen with intelligent voice guidance |
| Data Storage | 30,000 test records |

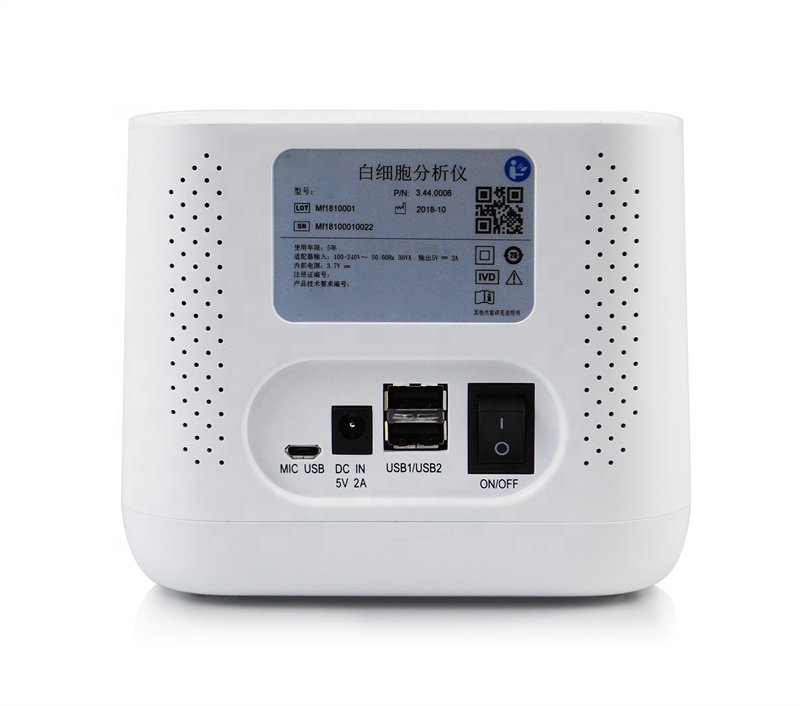

| Data Transmission | USB and Bluetooth connectivity |
| Power Supply | AC adapter and built-in rechargeable lithium battery |
| Dimensions | 138 × 140 × 116 mm |
| Weight | Approximately 750g (including battery) |
| Operating Temperature | 15°C – 35°C |
| Reagent Storage Temperature | 2°C – 35°C |
| Relative Humidity | ≤85% |
| Material | ABS+PC composite with antibacterial properties |
| Microfluidic Chip | Unique disposable single-use design |
| Warranty | 2 Year Manufacturer Warranty |

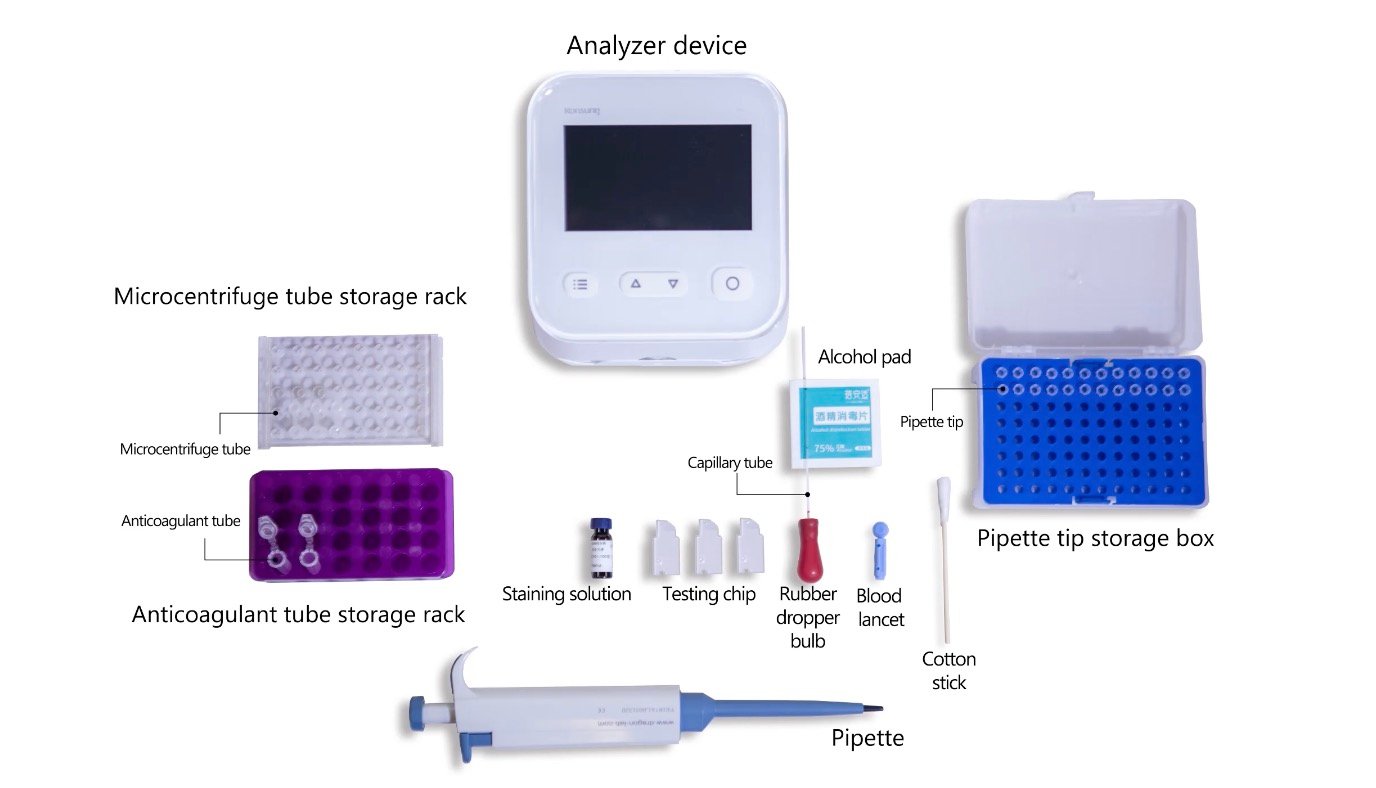

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUBX01 Analyzer | Main portable white blood cell analyzer unit with integrated display and battery | 1 |

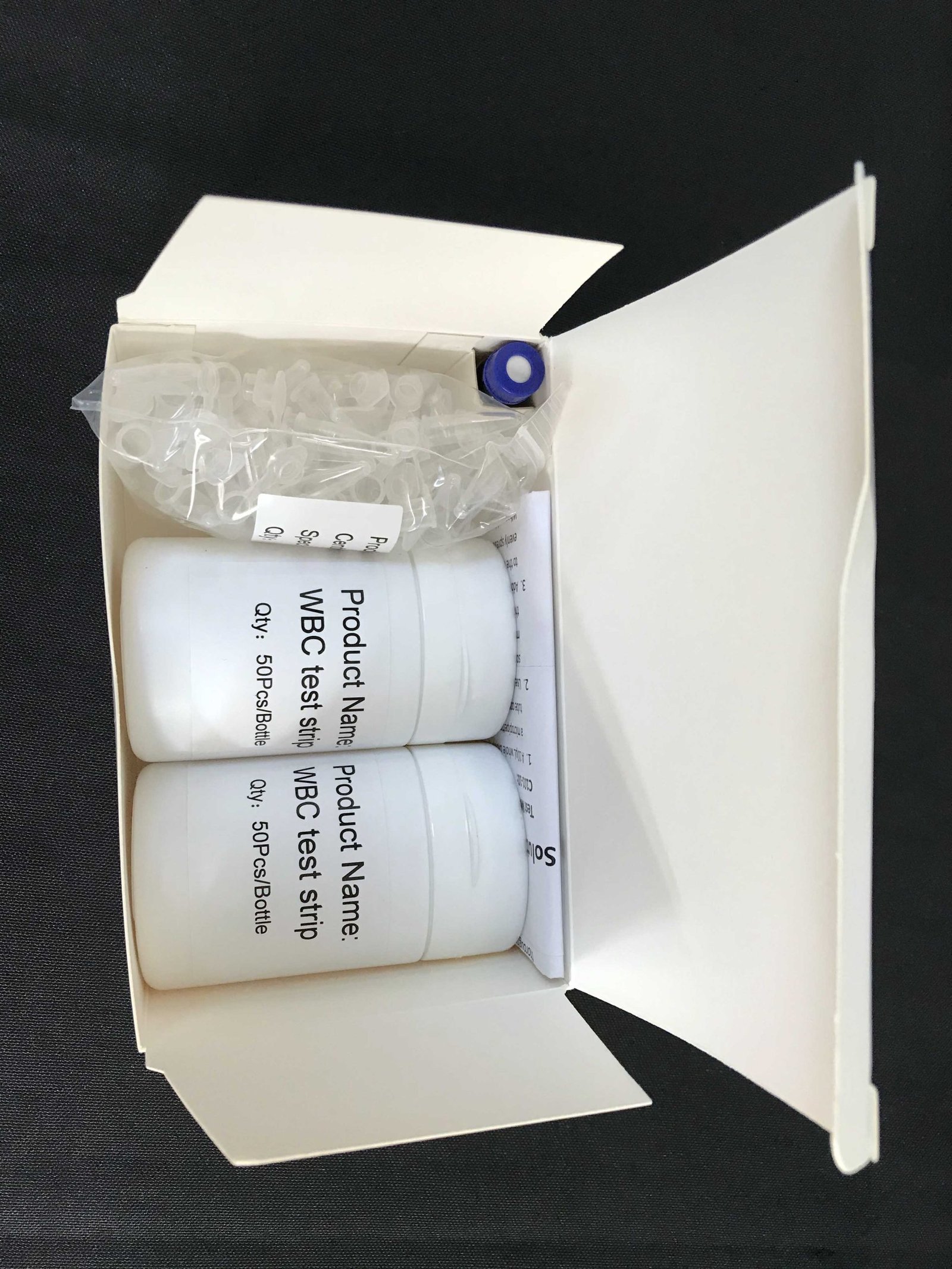

| Disposable Microfluidic Chips | Single-use chips for sample analysis (prevents cross-contamination) | As applicable |
| AC Power Adapter | Mains power supply for device charging and operation | 1 |
| USB Cable | Data transmission and charging connectivity | 1 |
| User Manual | Comprehensive operating instructions and technical documentation | 1 |
| Quality Control Materials | Calibration verification samples (optional) | As applicable |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUBX01 white blood cell analyzer, request pricing, arrange a demonstration, or explore customisation options for your clinical setting.
