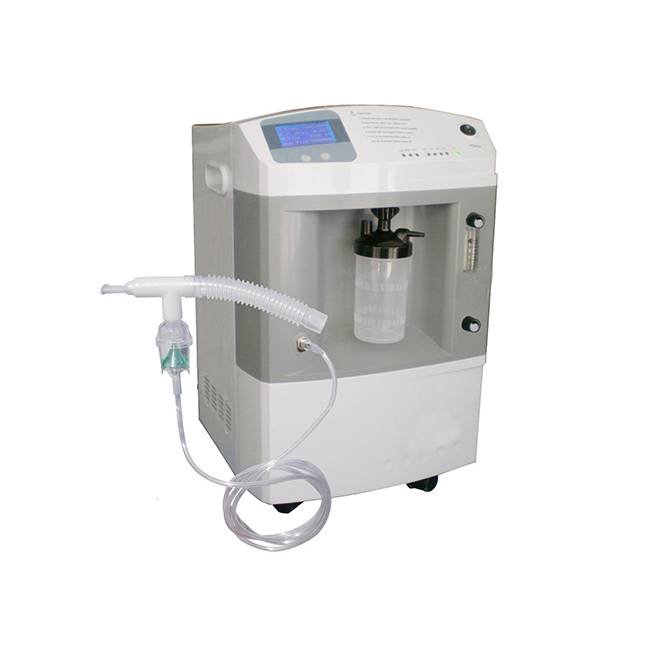

5L Portable Home Oxygen Concentrator Machine NEUOCA3
$1,690.00$1,990.00 (-15%)
– Portable 5L Home Oxygen Concentrator Machine
– Nebulizer (Atomization) feature included
– Equipped with low purity and low flow alarms
– High temperature alarm for safety monitoring
– Integrated pulse oximeter for real-time oxygen saturation tracking
– Maintenance alarm for timely upkeep
– Adjustable flow rate (0-5LPM / 0-8LPM / 0-10LPM)
– Oxygen purity level of 93% (+3%)
– Quiet operation with sound level ≤50db
– LCD display for easy monitoring of working time and presets
– Compact size: 365*375x600mm and lightweight options available (23Kgs to 28Kgs)
5L Portable Home Oxygen Concentrator Machine NEUOCA3
A compact, lightweight oxygen concentrator designed for home and portable use. Delivers consistent oxygen purity of 93% (±3%) with adjustable flow rates, integrated nebulizer function, and comprehensive safety monitoring including low purity, low flow, and high temperature alarms. Real-time pulse oximetry tracking and quiet operation make this an ideal solution for patients requiring continuous or intermittent oxygen therapy.
Clinical overview
The NEUOCA3 is a portable 5-litre oxygen concentrator engineered for patients requiring reliable, continuous oxygen supplementation in home and community settings. The device combines high oxygen purity (93% ±3%) with user-friendly operation, delivering oxygen at adjustable flow rates from 0–5, 0–8, or 0–10 litres per minute depending on clinical need. Integration of a nebulizer function enables simultaneous aerosol medication delivery, expanding therapeutic capability within a single compact unit.
Safety and patient monitoring are prioritised through multiple alarm systems (low purity, low flow, high temperature, power failure, and high/low pressure) and an integrated pulse oximeter for real-time oxygen saturation tracking. Quiet operation (≤50 dB) and a lightweight, portable form factor (23–28 kg) make the NEUOCA3 suitable for both stationary home use and mobile applications, supporting patient independence and quality of life.
Key features & surgeon benefits
Comprehensive alarm system
- Low purity and low flow alarms prevent inadequate oxygen delivery
- High temperature alarm protects against overheating
- Power failure and pressure alarms ensure operational integrity
- Integrated pulse oximeter for continuous SpO₂ tracking
Integrated nebulizer function
- Dual-function device combines oxygen delivery with aerosol medication administration
- LCD display shows working time, accumulated hours, and preset timers (10 mins–40 hours)
- Adjustable flow rates (0–5, 0–8, 0–10 LPM) accommodate varying clinical protocols
- Quiet operation (≤50 dB) minimises patient and caregiver disturbance
Lightweight and compact design
- Dimensions: 365 × 375 × 600 mm enable placement in any home environment
- Weight range: 23–28 kg (depending on flow rate model) supports mobility
- Outlet pressure: 0.04–0.07 MPA ensures consistent delivery across all settings
- Power consumption: ≤400–500 W (model-dependent) for efficient operation
User-friendly upkeep
- Maintenance alarm alerts users to scheduled service intervals
- Oxygen purity: 93% (±3%) maintained across device lifespan
- 2-year manufacturer warranty and lifetime technical support included
- Customisation and OEM configurations available for institutional deployments
Technical specifications
| Indications | Home oxygen therapy, chronic respiratory conditions, oxygen supplementation |
|---|---|
| Flow rate options | 0–5 LPM / 0–8 LPM / 0–10 LPM |
| Oxygen purity | 93% (±3%) |
| Outlet pressure | 0.04–0.07 MPA |
| Sound level | ≤50 dB |
| Power consumption | ≤400 W (0–5 LPM) / ≤400 W (0–8 LPM) / ≤500 W (0–10 LPM) |
| Net weight | 23 kg (0–5 LPM) / 25 kg (0–8 LPM) / 28 kg (0–10 LPM) |
| Dimensions | 365 × 375 × 600 mm |
| Display | LCD with working time, accumulated working time, preset timer (10 mins–40 hours) |
| Alarms | Low purity, low flow, high temperature, power failure, high/low pressure, maintenance |
| Additional features | Integrated nebulizer (atomization), integrated pulse oximeter |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | 5L portable home oxygen concentrator with integrated nebulizer and pulse oximeter | 1 |
| Power cord | AC mains power supply cable | 1 |
| Oxygen delivery tubing | Standard oxygen delivery hose with connectors | 1 |
| Nebulizer cup | Integrated atomization cup for medication delivery | 1 |
| Pulse oximeter probe | Finger-clip SpO₂ sensor | 1 |
| User manual | Comprehensive operating and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss flow rate configurations, pricing, delivery timelines, and any custom specifications for institutional or bulk orders. We provide comprehensive technical support and clinical guidance to ensure optimal device deployment.
