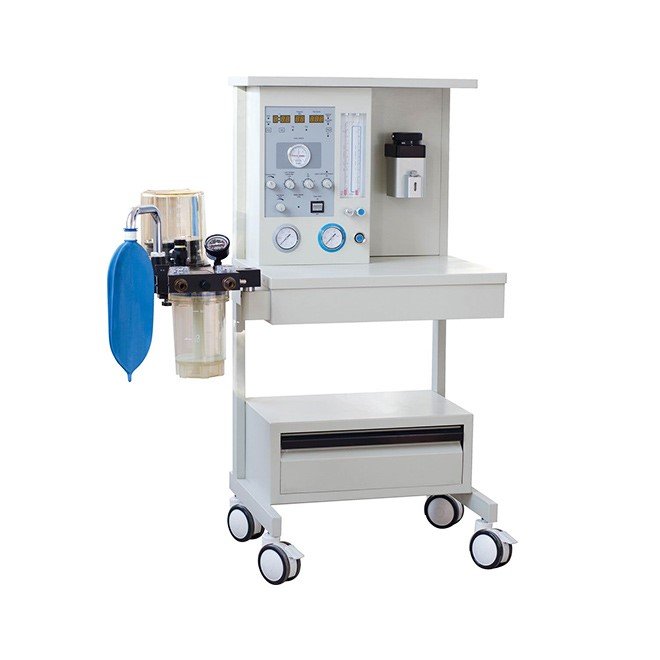

Anesthesia Ventilator NEUGA10
- Operating modes: circulatory closed, semi-closed, and semi-open
- Gas requirement: medical oxygen and laughing gas (0.3MPa to 0.5 MPa pressure)
- Accurate pressure testing device with a maximum error of ± (4% of full scale + 8%)
- Safety valve exhaust pressure capped at 6 kPa
- Flow meter range: 0.1 L/min to 10 L/min, accuracy ±10% from 10% to 100% of scale
- Integrated oxygen-laughing gas proportional control device with alarm features
- Low gas source pressure alarm and automatic shut-off of laughing gas at critical levels
- Adjustable oxygen flush rate: 25 to 75 L/min
- Anesthetic gas concentration adjustment range: 0 to 5% with ±20% relative error
- Multiple ventilation modes: IPPV, SIPPV, and Manual with adjustable tidal volume (50 to 1500 mL)
- SKU
- NEUGA10
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Anesthesia Ventilator NEUGA10
A comprehensive anesthesia delivery and ventilation system combining precise gas mixing, proportional control, and multiple ventilation modes. Designed for operating theatres requiring reliable, accurate anesthetic gas delivery with integrated safety alarms and flexible respiratory support.
Clinical overview
The NEUGA10 is a precision anesthesia ventilator engineered for modern operating theatres and critical care environments. It integrates gas delivery, proportional mixing, and mechanical ventilation into a single, clinically robust platform. The system maintains strict oxygen-nitrous oxide ratios with integrated safety interlocks, ensuring patient safety during all phases of anesthesia.
With three operating modes (circulatory closed, semi-closed, and semi-open), adjustable tidal volumes from 50 to 1500 mL, and respiratory frequencies from 4 to 40 bpm, the NEUGA10 accommodates diverse patient populations and surgical protocols. Real-time airway pressure monitoring, low gas source alarms, and automatic nitrous oxide shut-off at critical oxygen levels provide comprehensive clinical safeguards.
Key features & surgeon benefits
Precise Proportional Control
- Integrated oxygen–nitrous oxide proportional control with automatic alarm at <20% O₂
- Flow meter range 0.1–10 L/min with ±10% accuracy
- Oxygen flush 25–75 L/min for rapid oxygenation
- Low gas source pressure alarm with automatic N₂O shut-off at 0.20 MPa
Flexible Respiratory Support
- Three modes: IPPV, SIPPV, and Manual ventilation
- Adjustable I/E ratio 1:1.5 to 1:4
- Tidal volume range 50–1500 mL
- Respiratory frequency 4–40 bpm for paediatric to adult patients
Comprehensive Alarms & Pressure Control
- Dual airway pressure alarms (upper 0.3–6 kPa, lower 0.2–5 kPa)
- Maximum safety pressure ≤12.5 kPa with pressure limit 1–6 kPa
- Pressure testing accuracy ±(4% full scale + 8% reading)
- 6-second controlled/assisted ventilation switching time
Vaporizer & Gas Mixing
- Anesthetic gas concentration 0–5% with ±20% relative error
- Pressure regulators for O₂ and N₂O (0.3–0.5 MPa input)
- Safety valve exhaust pressure ≤6 kPa
- Circulatory closed, semi-closed, and semi-open operating modes
Technical specifications
| Indications | General anesthesia delivery and mechanical ventilation in operating theatres and critical care |
|---|---|
| Operating Modes | Circulatory closed, semi-closed, semi-open |
| Gas Requirements | Medical oxygen and nitrous oxide, 0.3–0.5 MPa pressure |
| Flow Meter Range | 0.1–10 L/min; accuracy ±10% (10–100% of scale) |
| Oxygen Flush | 25–75 L/min |
| Anesthetic Gas Concentration | 0–5%; relative error ±20% |
| Ventilation Modes | IPPV, SIPPV, Manual |
| Respiratory Frequency | 4–40 bpm |
| Tidal Volume | 50–1500 mL |
| I/E Ratio | 1:1.5 to 1:4 |
| Airway Pressure Range | −10 to +10 hPa |
| Maximum Safety Pressure | ≤12.5 kPa |
| Pressure Limit Range | 1–6 kPa |
| Airway Pressure Alarms | Upper: 0.3–6 kPa; Lower: 0.2–5 kPa (permissible error ±0.2 kPa or ±15%) |
| Safety Valve Exhaust Pressure | ≤6 kPa |
| Pressure Testing Accuracy | ±(4% full scale + 8% of reading) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Anesthesia Ventilator Unit | Complete NEUGA10 system with integrated gas delivery and ventilation control | 1 |
| Oxygen Pressure Regulator | Medical-grade regulator with safety valve (0.3–0.5 MPa) | 1 |
| Nitrous Oxide Pressure Regulator | Medical-grade regulator with safety valve (0.3–0.5 MPa) | 1 |
| Flow Meter Assembly | Dual O₂/N₂O flow meter with proportional control (0.1–10 L/min) | 1 |
| Vaporizer Module | Anesthetic gas vaporizer (0–5% concentration range) | 1 |
| Ventilator Bellows & Circuit | Complete respiratory circuit with safety valves and pressure monitoring | 1 |
| Alarm Module | Integrated low gas pressure, oxygen concentration, and airway pressure alarms | 1 |
| Pressure Testing Device | Calibrated pressure gauge (±4% full scale + 8% accuracy) | 1 |
