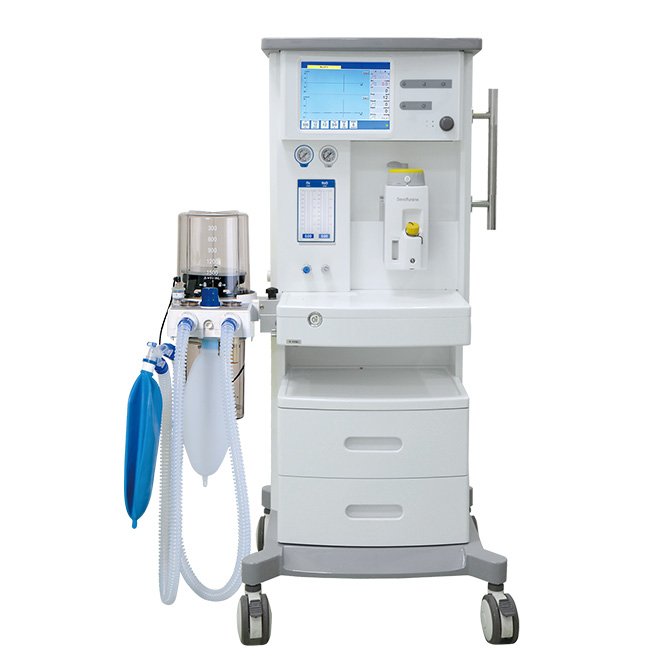

Veterinary Anesthesia Machine NEUBS279
$18,990.00$19,990.00 (-5%)
– Advanced Veterinary Anesthesia Machine with 10.4” TFT LCD touch screen.
– Electronic flow meter for real-time fresh gas flow monitoring.
– Integration breathing circuit design for ease of use and cleanliness.
– Supports multiple working modes: IPPV, A/C, PCV, SIMV, SIGH.
– Safety features include vaporizer with temperature and flow compensation.
– Monitors vital parameters: ETCO2, O2 concentration with high precision.
– Wide usage range for animals up to 200KG.
– Compact size with wooden case packing dimensions: L 680*W 740*H 1400mm.
– Lightweight design with a total weight of 100KG.
Specifications
10.4” TFT LCD touch screen displays the Ventilation parameters, Alarming information and Waveform.
Electronic flow meter, instantly know the fresh gas flow to your patient.
Integration breathing circuit design, ensure easy operating and keep tidy.
Multiple working modes such as volume control and pressure limit, adapt to wide range animal.
Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
Multiple parameters monitoring interface, make every parameter clear, let users know the animal conditions in all aspects;
Real time pressure-time, flow-time loop graphics and high precision ETCO2,O2 concentration detection function included.
Wide use range including animals within 200KG.
Ventilation modes: IPPV; A/C; PCV; SIMV; SIGH
Ventilator parameter ranges
Flow meter O2(0.1-10L/min)
N2O(0.1-10L/min)
Rapid oxygen supply 35L/min-75L/min
Tidal volume(Vt) 0, 20 mL ～ 1500 mL
Frequence(Freq） 1bpm ～ 100 bpm
I/E 4:1～1:8
PEEP 0cmH2O ～ 30 cmH2O
Pressure triggering sensitivity(PTr） －20 cmH2O ～ 20 cmH2O（Based on PEEP）
Flow trigger sensitivity (FTr） 0.5 L/min ～ 30 L/min
Pressure control (PC) 5 cmH2O ～ 60 cmH2O
SIGH 0(off) 1/100 ～ 5/100
Apnea Ventilation OFF，5 s ～ 60 s
Pressure Limit 20 cmH2O ～ 100 cmH2O
Monitored Parameters
Frequence(Freq） 0 /min ～ 100 /min
Tidal volume(Vt) 0 mL ～ 2000 mL
MV 0 L/min ～ 100 L/min
Oxygen concentration 15 % ～ 100 %
Graphical display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
V-T(volume – time )
ETCO2-T(ETCO2-time)
Size
Wooden case packing size: L 680*W 740*H 1400mm , GW：100KG ; NW：70KG
