Portable Veterinary Anesthesia Machine NEUBS266
- Ideal for animals weighing between 0.5-100kg
- Offers multiple respiration modes: IPPV and manual
- Versatile ventilation options: open, closed, half-closed, and half-open
- Adjustable tidal volume range from 10-2000ml
- Oxygen source pressure operating range: 0.25~0.65Mpa
- Comprehensive monitoring of tidal volume, airway pressure, and gas pressure
- Pop-off valve to safely direct waste anesthetic gas
- Customizable I:E ratio settings ranging from 3:1 to 1:3
- Suitable for both large and small animals with variable bellow sizes
- Complete configuration including ventilator, anesthesia vaporizer, and breathing circuit
- SKU
- NEUBS266
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

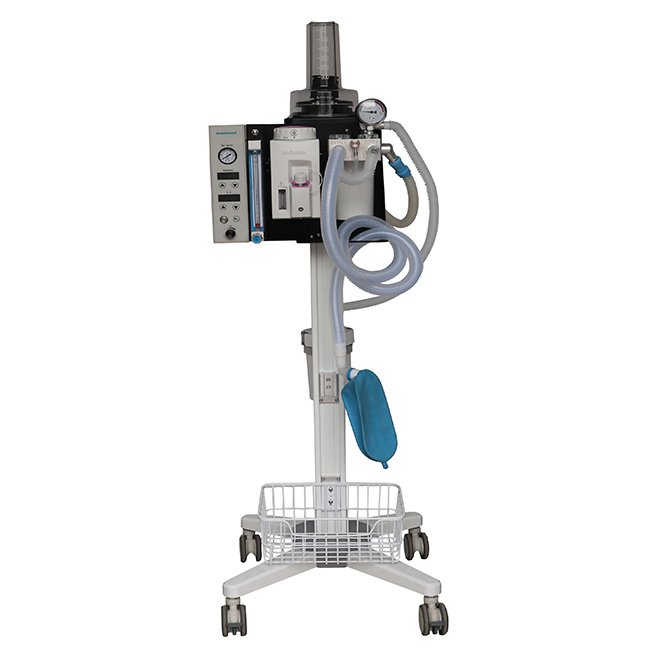

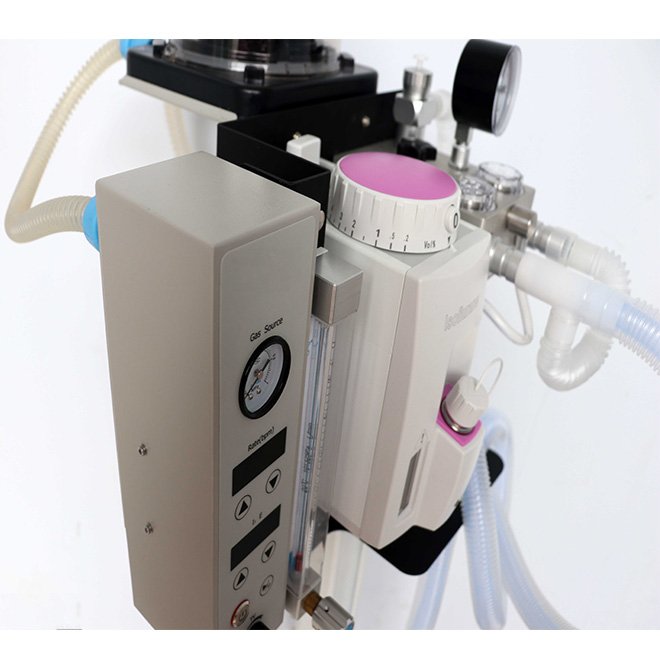

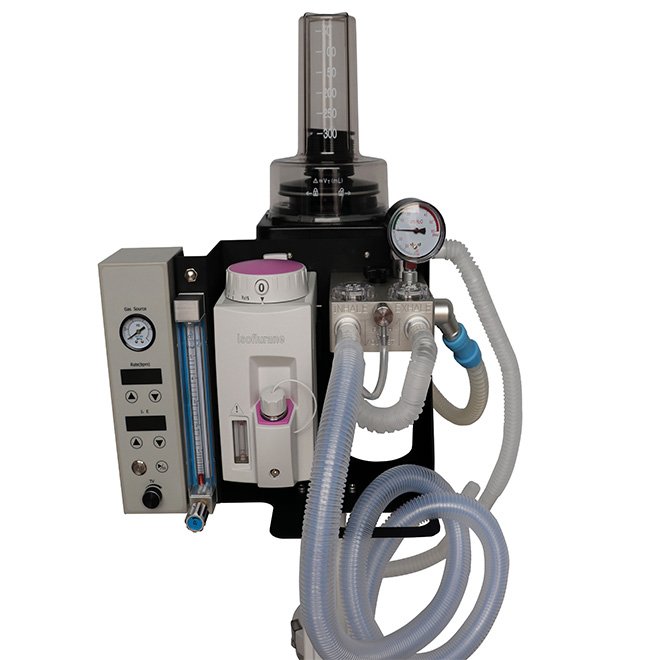

Portable Veterinary Anesthesia Machine NEUBS266
A comprehensive, portable anesthesia system designed for veterinary practitioners treating animals from 0.5 to 100 kg. Features dual respiration modes, multiple ventilation options, and real-time monitoring of critical parameters including tidal volume, airway pressure, and gas source pressure for safe, reliable anesthetic delivery across diverse animal sizes.
Clinical overview
The NEUBS266 is a fully integrated, portable anesthesia delivery platform engineered for modern veterinary practice. It combines a precision ventilator, temperature-compensated vaporizer, and complete breathing circuit in a single, transportable unit. The system accommodates the full spectrum of animal sizes—from small exotic species to large equine and bovine patients—with interchangeable bellows and adjustable tidal volumes ranging from 10 to 2000 ml.
Real-time monitoring of tidal volume, airway pressure, gas source pressure, breathing rate, and I:E ratio ensures clinicians maintain precise control over anesthetic depth and ventilation parameters. The pop-off valve safely directs waste anesthetic gas to a scavenging system, protecting staff and animal welfare. Dual respiration modes (IPPV and manual) and four ventilation configurations (open, closed, half-closed, half-open) provide flexibility for diverse clinical scenarios and patient presentations.
Key features & surgeon benefits
Multi-Species Capability
- Dual bellows system: 50–1600 ml (large animal) and 0–300 ml (small animal)
- Tidal volume range 10–2000 ml accommodates neonates to adult large animals
- Portable design enables use in field, clinic, and surgical suite settings
Precision Monitoring & Regulation
- Real-time display of tidal volume, airway pressure, gas source pressure, and breathing rate
- Adjustable I:E ratio (3:1 to 1:3) for customized ventilation profiles
- Pop-off valve with passive volume maintenance prevents barotrauma and waste gas exposure
Dual Respiration Modes
- IPPV (intermittent positive pressure ventilation) for controlled anesthesia
- Manual mode for spontaneous breathing and emergency backup
- Four ventilation configurations (open, closed, half-closed, half-open) adapt to clinical need
Multi-Agent Vaporizer System
- Temperature, flow, and pressure compensation across all supported agents
- Compatible with Isoflurane, Halothane, Sevoflurane, and Enflurane
- Selectatec bar allows rapid agent switching without system reconfiguration
Technical specifications
| Indications | Anesthesia delivery for animals 0.5–100 kg (small and large animal practice) |
|---|---|
| Respiration Mode | IPPV (intermittent positive pressure ventilation), Manual |
| Ventilation Mode | Open, Closed, Half-closed, Half-open |
| Tidal Volume | 10–2000 ml (adjustable) |
| Bellows Capacity | Large animal: 50–1600 ml; Small animal: 0–300 ml |
| Oxygen Source Pressure | 0.25–0.65 MPa |
| Gas Source Pressure Monitoring | 0–1 MPa |
| Airway Pressure Range | −30 to +60 cm H₂O |
| Flow Control | 0–4 L/min |
| Oxygen Flush | 35–75 L/min |
| Inspiration Impedance | ≤0.6 kPa |
| Expiration Impedance | ≤0.6 kPa |
| CO₂ Absorber Capacity | 700 ml |
| Monitoring Parameters | Tidal volume, airway pressure, gas source pressure, breathing rate, I:E ratio |
| I:E Ratio (Adjustable) | 3:1, 2:1, 1.5:1, 1:1, 1:1.5, 1:2, 1:3 |
| Breathing Rate (BPM) | 2–150 bpm |
| Pop-off Valve | Directs waste anesthetic gas to scavenging system; releases pressure at 2 cm H₂O in fully open position |
| Vaporizer Agents | Isoflurane, Halothane, Sevoflurane, Enflurane (with temperature, flow, and pressure compensation) |
| Material | Stainless steel, silicone, medical-grade polymers |
| Sterilisation | Components sterilizable per facility protocol; breathing circuit and reusable silicone pipeline require standard decontamination |
| Packaging | Complete system with protective case for transport |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Includes ventilator, bellows (large and small animal), bellow tray, flowmeter, CO₂ absorber, Selectatec bar, chassis, oxygen flush | 1 |
| Anesthesia Vaporizer | Multi-agent compatible (Isoflurane, Halothane, Sevoflurane, Enflurane) with temperature, flow, and pressure compensation | 1 |
| Breathing Circuit | Complete circuit assembly with connectors and tubing | 1 |
| Gas Airbag | 0.5 L capacity | 1 |
| Gas Airbag | 1 L capacity | 1 |
| Gas Airbag | 3 L capacity | 1 |
| Reusable Silicone Pipeline | Ø22 × 1000 mm | 1 |
| Oxygen Hose | Standard medical-grade oxygen supply hose | 1 |
| Y-Connector | With pressure differential sampling connector for monitoring | 1 |
Get in touch for pricing & availability
Contact our veterinary equipment specialists to discuss system configuration, pricing, delivery timelines, and customization options for your practice or facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
