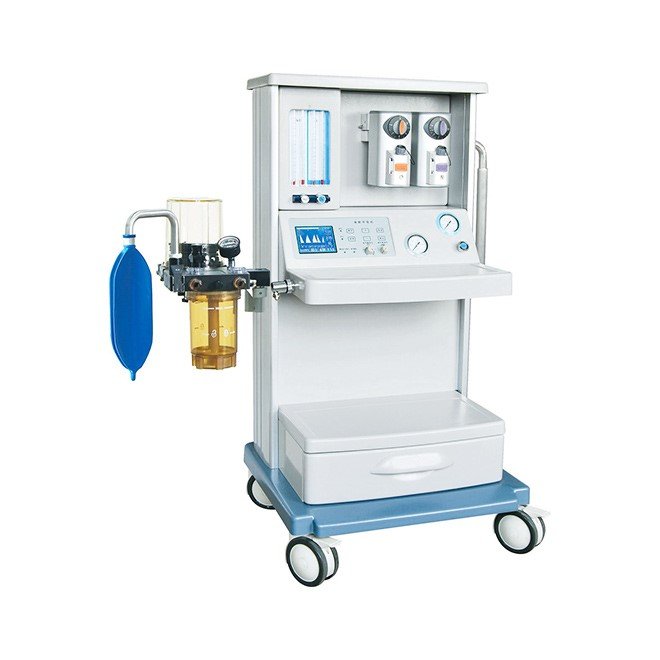

Anesthesia Ventilator NEUGA12

Specifications

1 Operating mode: circulatory closed, semi-closed and semi-open.

2 Gas requirement: medical oxygen and laughing gas with a pressure ranging from 0.3MPa to 0.5 MPa.

3 The maximum error of the pressure testing device should not exceed ± (4% of the full scale reading + 8%

of the actual reading).

4 For oxygen and laughing gas, a special pressure regulator with a safety valve will be provided. The exhaust

pressure of the safety valve should not be higher than 6 kPa.

5 Indication range of the oxygen and laughing gas flow meter: 0.1 L／min ～ 10 L／min.

When the flow rate ranges from 10% of the full scale value to 100%, the scale accuracy should be within ±10％

of the indicated value.

6. The flow meter is equipped with an oxygen-laughing gas proportional control device.

When the oxygen concentration in the mixed gas N2O/O2 conveyed by the anesthesia

machine is no lower than 20% (V/V) or the FiO2 is lower than 20%, the machine will emit an

alarm.

7. When the oxygen pressure of the anesthesia machine is 0.20MPa±0.05MPa, the machine raises a low gas source

pressure alarm which is a high priority alarm, and shuts off the laughing gas conveyed to the common gas outlet.

8. Oxygen Flush:25~75 L/Min;

9. Anesthetic gas concentration adjustment range of vaporizer: ０～5％, relative error ±20 %.

10. The exhaust pressure of the safety valve of the respiratory circuit is no higher than 6 kPa.

11. Anesthesia ventilator

11.1 Respiration Mode:IPPV,SIPPV,Manu

11.2 Respiration Frequency:4~40bpm

11.3 I/E Ratio:1:1.5~1:4

11.4 Tidal Volume:50~1500mL

11.5 Ptr:-10~10hPa

11.6 Controlled ventilation and assisted ventilation switching time: 6s

11.7 Maximum safety pressure: ≤ 12.5 kPa.

11.8 Pressure limit range: 1～6 kPa

11.9 Airway pressure alarm: adjustment range of upper alarm limit: 0.3kPa ～ 6 kPa, permissible error ±0.2 kPa,

or ±15% (whichever is greater), the machine should immediately raise a high level alarm when the airway

pressure rises to the alarm value; the lower alarm limit ranges from 0.2 to 5 kPa and the permissible error

is ±0.2 kPa or ±15% (whichever is greater). The machine should immediately raise a medium level alarm

when the airway pressure drops to the alarm value and such condition lasts 4 to 15s.
