CMS6000 Patient Monitor 8 inch TFT Color LCD, ECG, RESP, SpO2, PR, NIBP and Dual-Channel TEMP
- 8'' TFT color LCD display for clear real-time monitoring.
- Monitors multiple parameters: ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP.
- Suitable for adults, pediatric, and neonates with customizable parameter configurations.
- Fanless design for silent and clean operation, minimizing cross-infection risks.
- Up to 8-channel waveform display, with 7-lead ECG capabilities.
- Supports central monitoring system connections via 3G, WiFi, or wired modes.
- Built-in rechargeable lithium battery ensures uninterrupted monitoring.
- User-friendly interface available in multiple languages.
- Data storage for 4800-group NIBP and review of various alarm events.
- Optional thermal printer for trend table data printing.
- SKU
- 5765BB196EAD
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

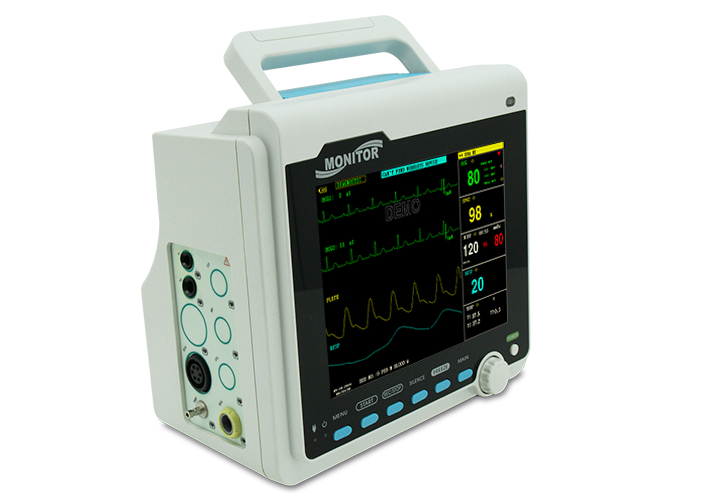

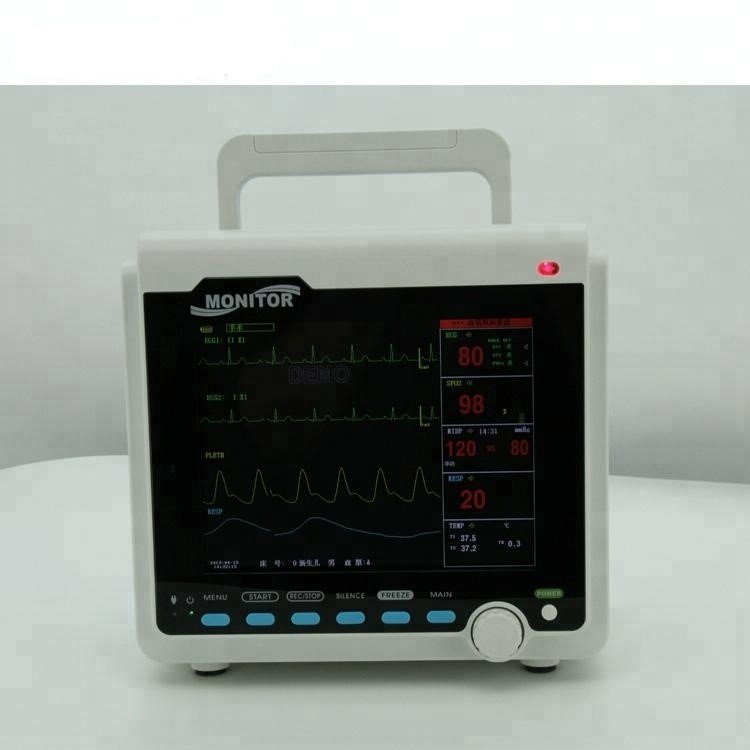

CMS6000 Patient Monitor
8-inch TFT color LCD display with comprehensive multi-parameter monitoring including ECG, RESP, SpO2, PR, NIBP, and dual-channel temperature. Designed for adult, pediatric, and neonatal patients with flexible configuration options and central monitoring system connectivity.
Clinical overview
The CMS6000 is a comprehensive bedside patient monitor designed for continuous monitoring of adult, pediatric, and neonatal patients across diverse clinical environments. The device integrates parameter measurement, real-time display, and optional data recording into a single, portable unit with built-in rechargeable lithium battery for uninterrupted monitoring during patient transport.
With its fanless design, the monitor operates silently and maintains a clean environment, significantly reducing cross-infection risks in sensitive care settings. The 8-inch TFT color LCD provides clear visualization of up to 8 simultaneous waveforms and all monitoring parameters, while the multi-language interface (15 languages supported) ensures accessibility across global healthcare facilities. Advanced digital SpO2 technology delivers accurate measurements even under challenging conditions such as weak perfusion or patient motion, while HRV analysis and comprehensive arrhythmia detection enhance clinical decision-making.
Key features & surgeon benefits
Comprehensive Multi-Parameter Capability
- 7-lead ECG with step function and arrhythmia detection (60 event types)
- Dual-channel temperature monitoring for core and peripheral measurement
- Advanced SpO2 with motion and ambient light rejection
- NIBP with manual, auto, and STAT modes; storage for 4800 measurements
- Respiration and heart rate monitoring with clinical-grade accuracy
Intuitive Interface & Rapid Data Access
- 8-channel simultaneous waveform display on single screen
- Customizable parameter layout, color, and location settings
- Review of 71 alarm events and 60 arrhythmia events for clinical audit
- One-key trend table printing via optional 48mm thermal printer
- Drug concentration calculation and titration table functions
- Multi-language interface (15 languages) for global deployment
Cost-Effective Long-Term Operation
- Fanless design reduces maintenance and operational costs
- Built-in rechargeable lithium battery for portable, uninterrupted monitoring
- AC/DC dual power supply ensures continuous operation
- Anti-high frequency surgical unit and defibrillation-proof (with special leads)
- Compact, portable form factor reduces space requirements
- 2-year manufacturer warranty with lifetime technical support
Seamless Central Monitoring System Integration
- 3G, WiFi, and wired network connectivity options
- Integrates into central monitoring systems for multi-bed oversight
- Data storage for trend analysis and retrospective review
- Standard interface compatibility for hospital IT infrastructure
- OEM customization available for specific clinical workflows
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring in hospital, ICU, emergency, and ambulatory care settings |
|---|---|
| Display | 8-inch TFT color LCD with up to 8-channel waveform display capability |
| Parameters monitored | ECG (7-lead), RESP, SpO2, PR, NIBP, dual-channel TEMP |
| ECG features | 7-lead display on single screen, step function, 60 arrhythmia alarm event types |
| SpO2 technology | Digital technology with motion and ambient light rejection; measurement under weak perfusion conditions |
| NIBP modes | Manual, AUTO, STAT; storage for 4800-group data |
| HRV analysis | Heart rate variability analysis function included |
| Alarm events | Review of 71 alarm events across all parameters and 60 arrhythmia alarm events |
| Power supply | AC/DC with built-in rechargeable lithium battery for portable operation |
| Design | Fanless design for silent, energy-saving, clean operation |
| Languages | 15 languages supported (Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech) |
| Connectivity | 3G, WiFi, and wired network modes for central monitoring system integration |
| Optional features | 48mm thermal printer for trend table data printing; drug concentration calculation and titration tables |
| Safety | Anti-high frequency surgical unit; defibrillation-proof (special leads required) |
| Warranty | 2 Year Manufacturer Warranty with Lifetime Technical Support |

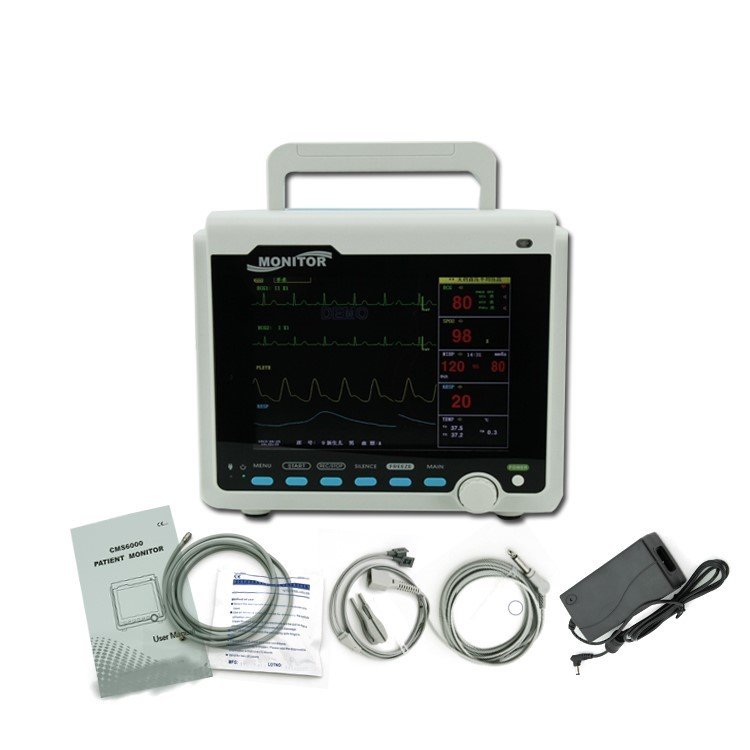

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS6000 Monitor Unit | 8-inch TFT color LCD display with integrated measurement and recording modules | 1 |
| ECG cable | 7-lead ECG patient cable with standard connectors | 1 |
| SpO2 sensor | Reusable finger or adhesive sensor (type as specified) | 1 |
| NIBP cuff | Adult size (pediatric and neonatal sizes available separately) | 1 |
| Temperature probe | Dual-channel temperature sensors (core and peripheral) | 2 |
| Respiration sensor | Integrated with ECG cable or separate as applicable | 1 |
| Power adapter | AC power supply with international plug options | 1 |
| Rechargeable battery | Built-in lithium battery (user-replaceable) | 1 |
| User manual | Multi-language instruction guide and quick reference | 1 |
| Warranty documentation | 2-year manufacturer warranty and support contact information | 1 |
