Clear multi-parameter display
The ECG trace is crisp and the SpO2 and NIBP readings correlate well with our reference cuff and probe. Alarm thresholds are easy to set at the bedside.
Dr. Beatrice Lindqvist, MDVerified buyerDec 4, 2024
Contec
CMS6800 Patient Monitor ECG, RESP, SpO2, PR, NIBP and TEMP
4.3(3 reviews)- 8'' TFT color LCD with multi-language interface
- Monitors ECG, RESP, SpO2, PR, NIBP, and TEMP
- Designed for adult, pediatric, and neonate patients
- Fanless, energy-saving design minimizes cross-infection risk
- Connects to Central Monitoring System via 3G, Wi-Fi, or wired mode
- Built-in rechargeable lithium battery for continuous monitoring
- 7-lead ECG waveform display with cascade functionality
- Stores up to 4800-group NIBP data and reviews 71 alarm events
- Anti-motion and anti-ambient light interference digital SpO2 technology
- One-touch printing for trend graphs and convenient data review
- SKU
- 16F23D07ED94
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical & Diagnostic Devices

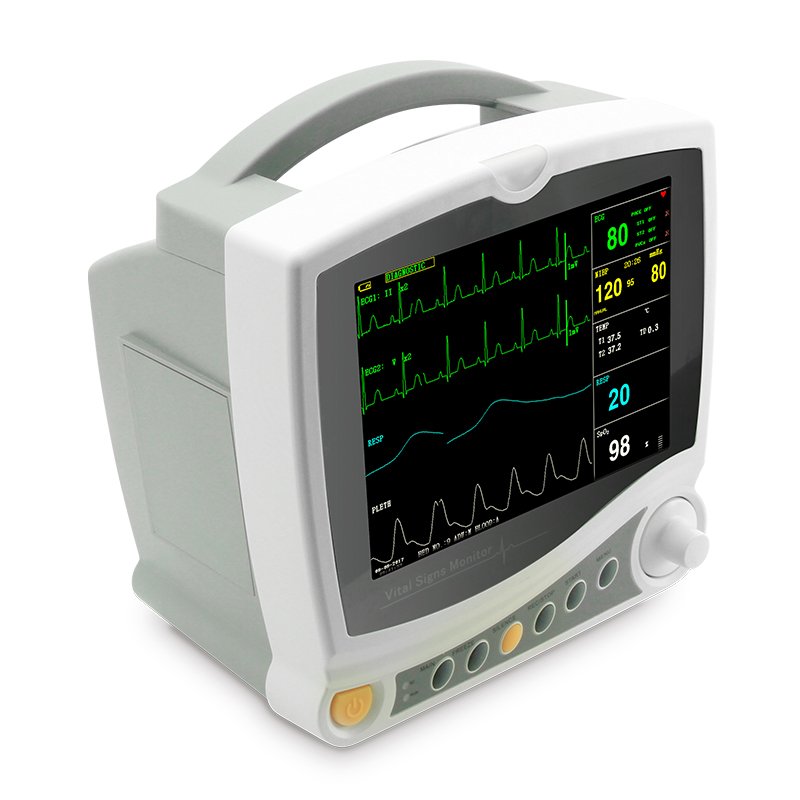

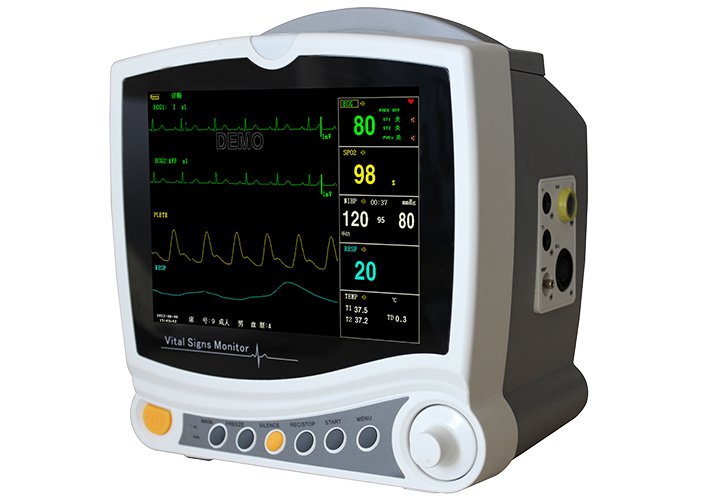

CMS6800 Patient Monitor
Comprehensive multi-parameter monitoring for adult, pediatric, and neonatal patients. Features 8" TFT color LCD display with ECG, RESP, SpO2, PR, NIBP, and TEMP measurement capabilities. Fanless, energy-efficient design with wireless and wired connectivity to central monitoring systems.
Ordering Ref.
16f23d07ed94
ConfigurationMulti-parameter monitoring
MaterialMedical-grade components
ApplicationClinical monitoring
Customizable parameter configuration and display settings available. OEM integration and wireless connectivity options supported.
Clinical overview
The CMS6800 is a comprehensive multi-parameter patient monitor designed for continuous monitoring in clinical environments. It integrates parameter measurement, real-time waveform display, and data recording in a single, portable device. The monitor supports adult, pediatric, and neonatal patient populations with configurable parameter sets to meet diverse clinical requirements. Powered by 100–110V/240V AC or built-in rechargeable lithium battery, it enables uninterrupted monitoring during patient transport and movement.
The 8" TFT color LCD display provides simultaneous visualization of eight-channel waveforms and comprehensive monitoring parameters. Advanced digital signal processing delivers anti-motion and anti-ambient light interference SpO2 measurement, ensuring reliable data even in challenging clinical conditions. Integration with central monitoring systems via 3G, Wi-Fi, or wired connectivity enables seamless network monitoring and data sharing across departments.
Key features & surgeon benefits
Comprehensive Monitoring
Multi-Parameter Capability
- ECG with 7-lead waveform display and cascade functionality
- Respiration, SpO2, pulse rate, NIBP, and temperature measurement
- Heart rate variability (HRV) analysis function
Workflow
Intuitive Interface & Data Management
- Multi-language interface (15 languages supported)
- Customizable waveform, parameter color, and display layout
- One-touch printing of trend graphs for convenient data review
Economics
Cost-Effective Operation
- Fanless design reduces maintenance and cross-infection risk
- Energy-saving architecture minimizes operational costs
- Replaceable internal battery enables extended use without downtime
Connectivity
Network Integration
- Connect to central monitoring systems via 3G, Wi-Fi, or wired mode
- Stores up to 4800-group NIBP data for trend analysis
- Reviews 71 alarm events and 60 arrhythmia alarm events
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring |
|---|---|
| Display | 8" TFT color LCD with multi-language interface |
| Monitored Parameters | ECG, RESP, SpO2, PR, NIBP, TEMP |
| ECG Waveform | 7-lead display with cascade functionality |
| Data Storage | 4800-group NIBP data; 71 alarm events; 60 arrhythmia events |
| Power Supply | 100–110V/240V AC, 50/60Hz; built-in rechargeable lithium battery |
| Connectivity | 3G, Wi-Fi, or wired mode to central monitoring system |
| Special Features | Anti-motion and anti-ambient light SpO2 technology; HRV analysis; drug concentration calculation; defibrillation-proof (with special leads) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS6800 Monitor | 8" TFT color LCD multi-parameter patient monitor with integrated measurement and display | 1 |
| ECG Leads | 7-lead ECG cable assembly | 1 |
| SpO2 Sensor | Finger or ear clip pulse oximetry sensor with anti-motion technology | 1 |
| NIBP Cuff | Non-invasive blood pressure measurement cuff (size as applicable) | 1 |
| Temperature Probe | Thermistor-based temperature measurement probe | 1 |
| Respiration Sensor | Respiration rate measurement sensor | 1 |
| Power Cable | AC power supply cable (100–110V/240V, 50/60Hz) | 1 |
| Battery | Rechargeable lithium battery pack | 1 |
| Thermal Recorder | Optional 48mm thermal recorder for trend graph printing | Optional |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, customization options, and delivery timelines for the CMS6800 Patient Monitor. We provide comprehensive support and flexible ordering for healthcare facilities worldwide.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.3· 3 reviewsGood value monitoring
NIBP inflation is quick and pulse rate tracks the oximetry cleanly. The trend review makes handover straightforward.
Dr. Naomi Adeyemi, MDVerified buyerAug 8, 2024
Reliable across parameters
It has run continuously on our step-down beds with stable temperature and respiration readings. The screen remains legible from across the bay.
Anton Reyes, BMETOct 19, 2025
