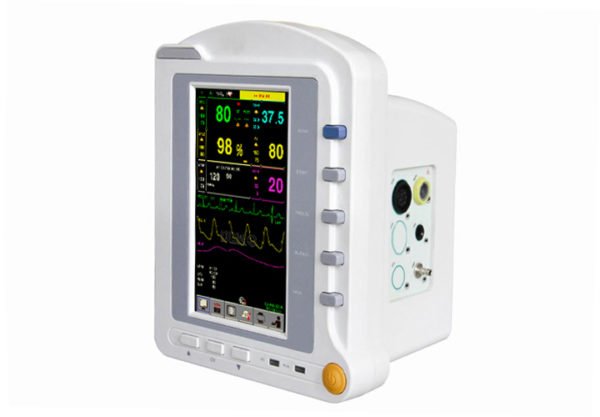

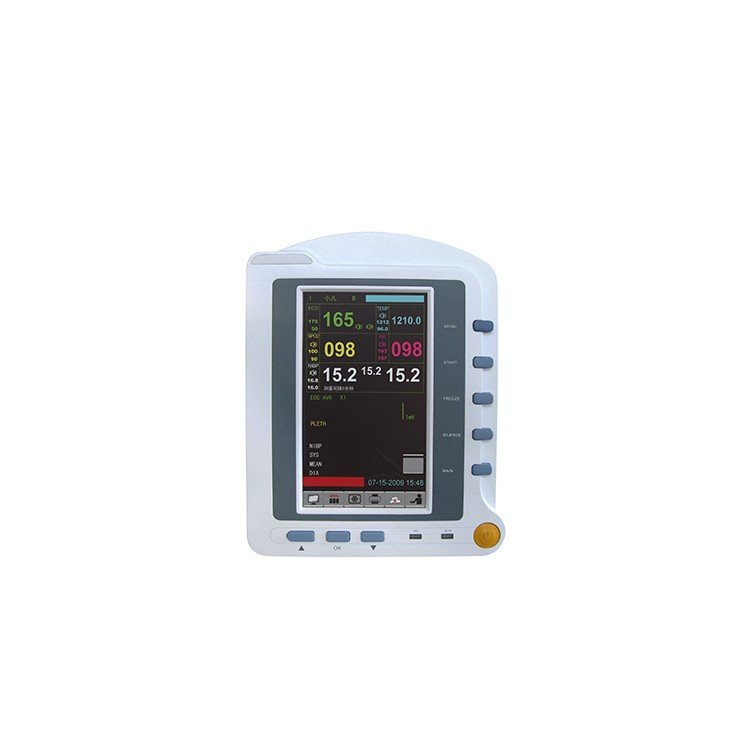

CMS6500 Patient Monitor
- Compact and portable design integrating multiple monitoring parameters.
- Monitors ECG, RESP, SpO2, PR, NIBP, and TEMP.
- 7'' TFT color LCD with multi-language interface.
- User-friendly touch screen operation for enhanced efficiency.
- Fanless design to reduce noise and cross-infection risks.
- Suitable for adults, pediatrics, and neonates.
- Customizable waveform and parameter display settings.
- Digital SpO2 technology for accurate measurements.
- Multiple NIBP measurement modes with extensive data storage.
- Connects to Central Monitoring System via 3G, Wi-Fi, or wired options.
- SKU
- A131370F260B
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CMS6500 Patient Monitor
Compact, portable multi-parameter patient monitoring system integrating ECG, respiration, SpO2, pulse rate, NIBP, and temperature measurement. Features a 7-inch TFT color LCD display with touch screen operation, fanless design for reduced noise, and connectivity to central monitoring systems via 3G, Wi-Fi, or wired connection.
Clinical overview
The CMS6500 is a compact, portable multi-parameter patient monitor designed for continuous hemodynamic and respiratory assessment across adult, pediatric, and neonatal populations. It integrates ECG, respiration, SpO2, pulse rate, non-invasive blood pressure, and temperature monitoring into a single, unified platform with a 7-inch TFT color LCD display. The fanless design minimizes acoustic noise and reduces cross-infection risk, making it ideal for sensitive clinical environments.
The device features advanced digital SpO2 technology with anti-motion and anti-ambient light interference capabilities, enabling reliable measurement even under conditions of weak perfusion. Multiple NIBP measurement modes (Manual, AUTO, Continuous) with storage for up to 4,800 data points support comprehensive patient trend analysis. Connectivity to central monitoring systems via 3G, Wi-Fi, or wired connection enables real-time data transmission and remote patient surveillance, while AC/DC power with rechargeable lithium battery ensures uninterrupted monitoring in any clinical setting.
Key features & surgeon benefits
Intuitive Multi-Language Platform
- 7-inch TFT color LCD with touch screen operation
- Multi-language support (English, Chinese, Russian, Kazakh, Czech, Slovak)
- Customizable waveform, parameter color, and display location
- 7-lead ECG waveform display on single screen
Comprehensive Multi-Parameter Monitoring
- ECG, respiration, SpO2, pulse rate, NIBP, and temperature
- Digital SpO2 technology with motion and light interference rejection
- Three NIBP modes: Manual, AUTO, and Continuous measurement
- Storage for 4,800 NIBP data points and 71 alarm events
Quiet, Energy-Efficient Operation
- Fanless design reduces noise and cross-infection risk
- AC/DC power with built-in rechargeable lithium battery
- Anti-high frequency surgical unit and defibrillation-proof (with special leads)
- Suitable for adult, pediatric, and neonatal populations
Central System Integration & Analytics
- Connect to Central Monitoring System via 3G, Wi-Fi, or wired connection
- Review 71 alarm events and 60 arrhythmia alarm events
- Drug concentration calculation and titration table functions
- Extensive data storage for trend analysis and clinical review
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring in clinical and acute care settings |
|---|---|
| Monitored Parameters | ECG, respiration, SpO2, pulse rate, NIBP, temperature |
| Display | 7-inch TFT color LCD with touch screen; multi-language interface |
| NIBP Measurement Modes | Manual, AUTO, Continuous; storage for 4,800 data points |
| SpO2 Technology | Digital SpO2 with anti-motion and anti-ambient light interference |
| Power Supply | AC/DC with built-in rechargeable lithium battery |
| Design Features | Fanless, quiet operation; anti-high frequency surgical unit; defibrillation-proof (special leads required) |
| Connectivity | 3G, Wi-Fi, or wired connection to Central Monitoring System |
| Data Storage | 71 alarm events, 60 arrhythmia alarm events, extensive trend data |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS6500 Monitor Unit | 7-inch TFT color LCD multi-parameter patient monitor with touch screen interface | 1 |
| ECG Leads | Standard 3-lead or 5-lead ECG cable assembly | 1 |
| SpO2 Sensor | Finger or ear clip pulse oximetry sensor | 1 |
| NIBP Cuff | Non-invasive blood pressure measurement cuff (adult size) | 1 |
| Temperature Probe | Digital temperature sensor | 1 |
| Power Adapter | AC power supply with charging capability | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
