CMS60D-VET Veterinary Clinic Equipment Pulse Oximeter Veterinary Instrument with Tongue SpO2 Probe
Principle of the CMS60D-Vet Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,The Veterinary Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through animal’s tongue or ear and so on.The product is suitable for being used in family,pet hospital and etc. (It is recommended to use the device when the animal is still.)
CMS60D-VET Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure SpO2 and pulse through animal’s tongue or ear. It is applicable for use in family and pet hospital, etc.
- Small in volume, light in weight and convenient to carry.
- Easy and simple to operate, low in power consumption.
- With function menu.
- Display of SpO2 value.
- Display of PR value and bar graph.
- Display of pulse waveform.
- Adjustable screen brightness, PR sound indication.
- Review function.
- Clock function.
- Audible prompt for over-limit and low battery.
- Battery status indication.
- Low battery indication.
- Storage function for SpO2 and PR values, and data stored can be uploaded to PC.
- Real-time data can be uploaded to PC.
- External SpO2 probe can be connected.
Small in volume,light in weight and convenient in carrying
Operation of the product is simple, low power consumption
Operation menu for the function setting
SpO2 value display
Pulse rate value display, bar graph display
Pulse waveform display
Screen brightness can be changed
Pulse rate sound indication
With review function
With clock function
With measured data overruns limits and low-voltage alarm function
Battery capacity indication
Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function
With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers
Real-time data can be transmitted to computers

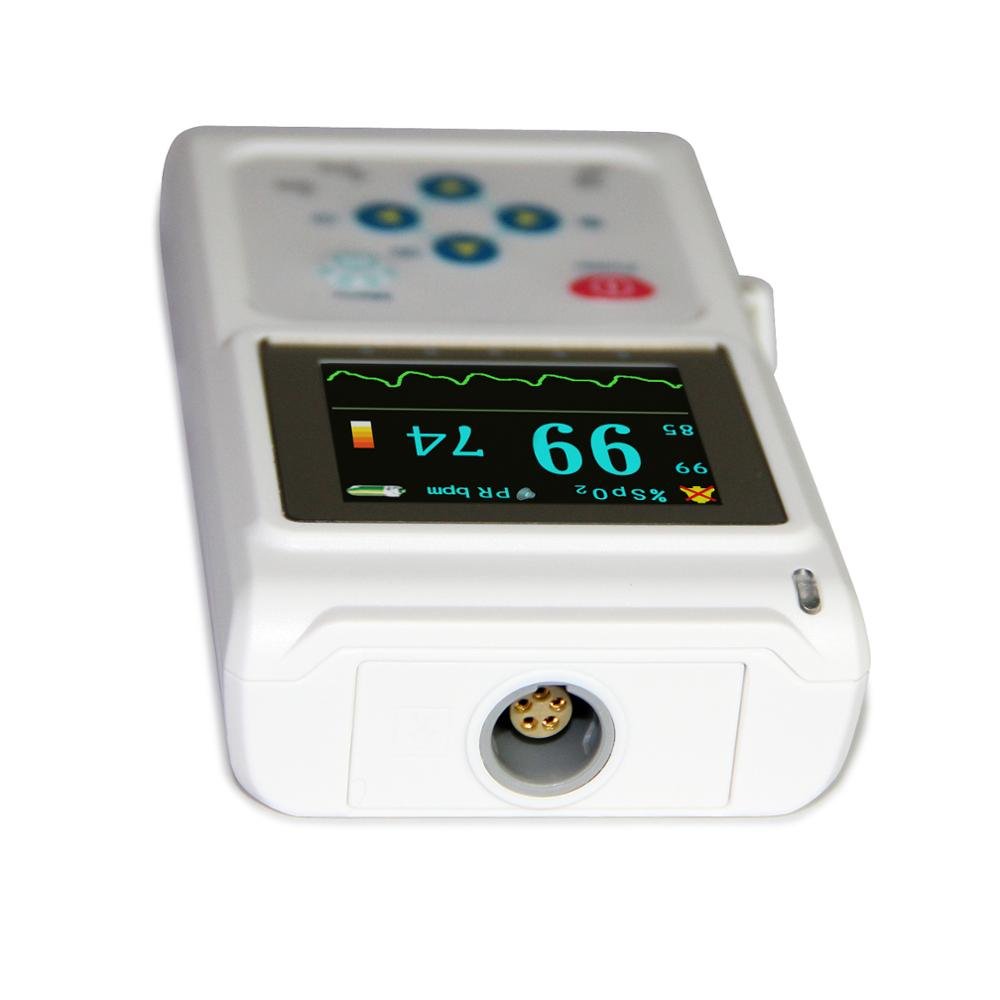

Connected with an external oximeter probe
Display Mode: Color display
Screen Resolution: 160*128
SpO2 Measuring Range: 0%~100%(the resolution is 1%)
Accuracy: 70%~100%: ±2%, Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm(the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption:less than 100mA
Voltage: DC 2.6V~3.6V
Power Supply: Dry battery(2AA)
Battery working hour: The theoretical number is 44 hours.
Safety Type:Interior Battery, BF Type

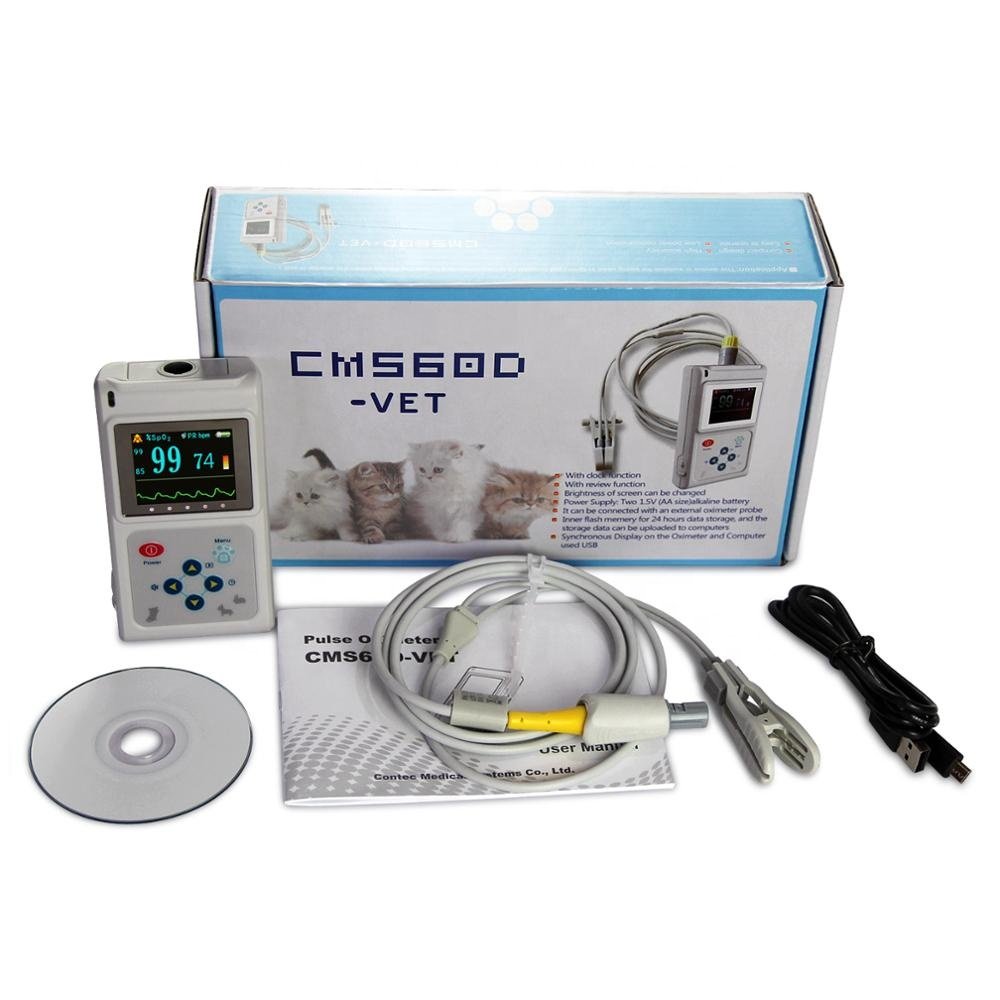

Sell in standard
A user manual

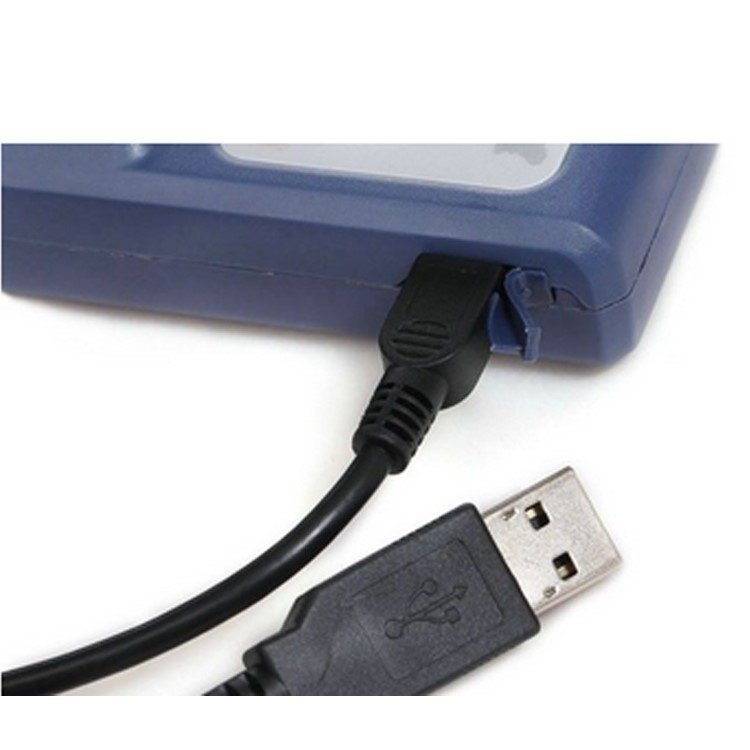

A data line
A disk (PC software)
An oximeter probe for animal
Dimension:110(L) × 60(W) × 23(H) mm
Weight:About 120g (with Dry battery(2AA))
