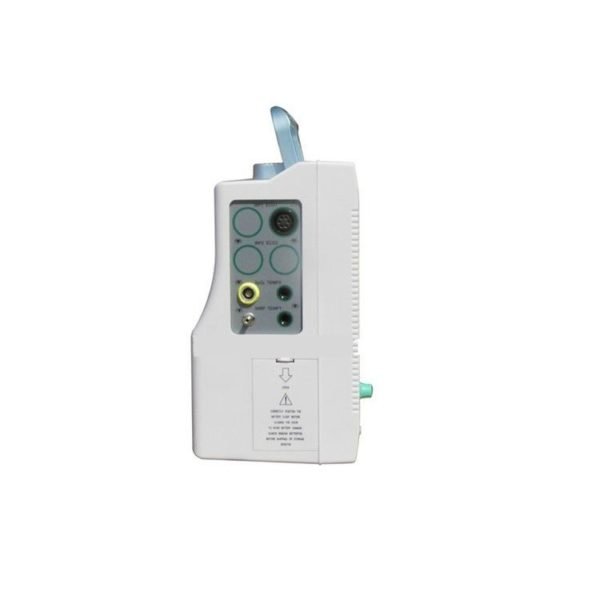

CMS7000 Patient Monitor ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP
- Monitors ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP
- 12.1'' TFT color LCD with multi-language support
- Compact and portable design with built-in rechargeable battery
- Fanless operation for reduced cross-infection risk
- Displays up to 8-channel waveforms simultaneously
- Advanced digital SpO2 technology with anti-interference features
- Comprehensive NIBP measurement modes (Manual/AUTO/Continuous)
- Supports central monitoring via 3G, WiFi, or wired connection
- Alarm review for 71 events and 60 arrhythmia events
- User-friendly operation via keys and buttons
- SKU
- 2D0BEC06E9CA
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CMS7000 Patient Monitor
Comprehensive multi-parameter monitoring system with ECG, RESP, SpO2, PR, NIBP, and dual-channel temperature measurement. 12.1" TFT display with 8-channel waveform capability, fanless operation, and central monitoring connectivity via 3G, WiFi, or wired connection.
Clinical overview
The CMS7000 is a compact, portable multi-parameter patient monitor designed for continuous monitoring of critical vital signs across adult, pediatric, and neonatal patient populations. It integrates parameter measurement, display, and recording functionality into a single device, enabling seamless patient care in hospital wards, ICUs, emergency departments, and mobile settings. The fanless design minimizes cross-infection risk while the built-in rechargeable lithium battery ensures uninterrupted monitoring during patient transport and in areas with variable power availability.
Advanced digital SpO2 technology with anti-motion and anti-ambient light interference capabilities allows reliable measurement even under challenging conditions. The system supports comprehensive NIBP measurement modes (Manual, AUTO, and Continuous) with storage for up to 4,800 NIBP data points, enabling detailed trend analysis and clinical decision-making. Multi-language interface support (18 languages) and flexible waveform/parameter customization enhance usability across diverse clinical environments.
Key features & surgeon benefits
Comprehensive Parameter Suite
- ECG with 7-lead waveform display and step function
- Respiration (RESP), SpO2, pulse rate (PR), NIBP, and dual-channel temperature
- Up to 8-channel simultaneous waveform display on single screen
Intuitive Operation & Connectivity
- Multi-language interface (18 languages) for global deployment
- Central monitoring via 3G, WiFi, or wired connection
- Customizable waveform, parameter color, and layout for clinician preference
Cost-Effective Monitoring
- Fanless design reduces maintenance and cross-infection risk
- AC/DC operation with built-in rechargeable battery for flexible deployment
- Compact, portable form factor reduces space requirements
Advanced Analysis & Reporting
- HRV (Heart Rate Variability) analysis function
- Review of 71 alarm events and 60 arrhythmia alarm events
- Drug concentration calculation and titration table functions
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring |
|---|---|
| Display | 12.1" TFT color LCD with multi-language support (18 languages) |
| Waveform Channels | Up to 8-channel simultaneous display; 7-lead ECG waveform |
| Parameters Monitored | ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP |
| SpO2 Technology | Digital SpO2 with anti-motion and anti-ambient light interference |
| NIBP Modes | Manual, AUTO, Continuous; storage for 4,800 NIBP data points |
| Alarm Events | Review for 71 parameter alarm events and 60 arrhythmia events |
| Connectivity | Central monitoring via 3G, WiFi, or wired connection |
| Power Supply | AC/DC with built-in rechargeable lithium battery |
| Design | Fanless operation; compact and portable |
| Safety | Anti-high frequency surgical unit; defibrillation-proof (with special leads) |
| Warranty | 2 Year Manufacturer Warranty |

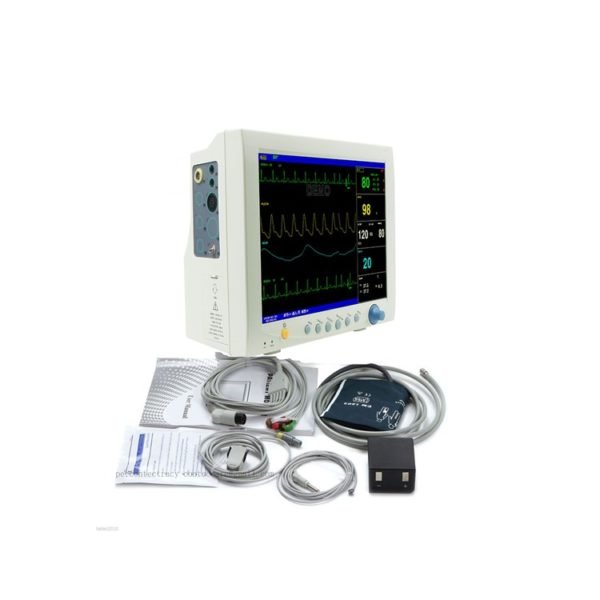

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS7000 Monitor Unit | Main patient monitor with 12.1" TFT display, integrated measurement modules, and rechargeable battery | 1 |
| ECG Leads | Standard ECG cable assembly for multi-lead monitoring | 1 |
| SpO2 Sensor | Digital pulse oximetry sensor with anti-interference technology | 1 |
| NIBP Cuff | Non-invasive blood pressure measurement cuff (size as applicable) | 1 |
| Temperature Probe | Dual-channel temperature sensor assembly | 2 |
| Power Adapter | AC power supply with charging capability | 1 |
| Rechargeable Battery | Built-in lithium battery (replaceable) | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss CMS7000 specifications, pricing, integration options, and delivery timelines. We offer flexible customization and OEM partnership opportunities for healthcare facilities and distributors worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
