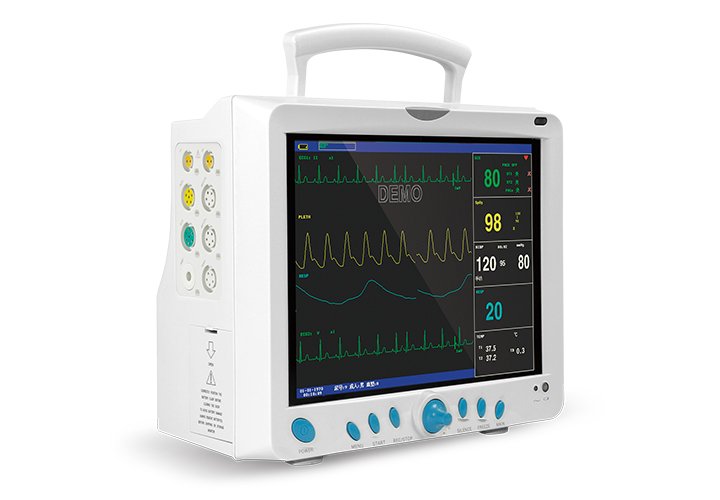

CMS9000 Patient Monitor ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP
- Monitors ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP.
- 12.1'' TFT color LCD with multi-language support.
- Compact, portable design with built-in rechargeable battery.
- Fanless operation for reduced noise and cross-infection risk.
- Suitable for adult, pediatric, and neonate monitoring.
- Displays up to 8-channel waveforms and 7-lead ECG on one screen.
- Anti-motion and ambient light interference for accurate SpO2 measurements.
- Manual, AUTO, and Continuous NIBP measurement modes.
- Connects to Central Monitoring System via 3G, WiFi, or wired options.
- Review of alarm events and drug concentration calculation capabilities.
- SKU
- 57FFCFF88DAF
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

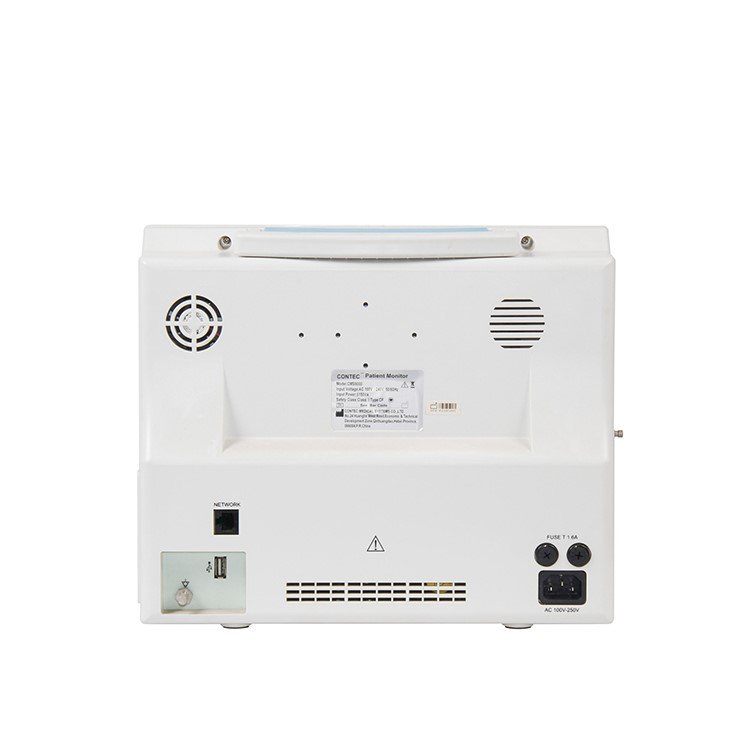

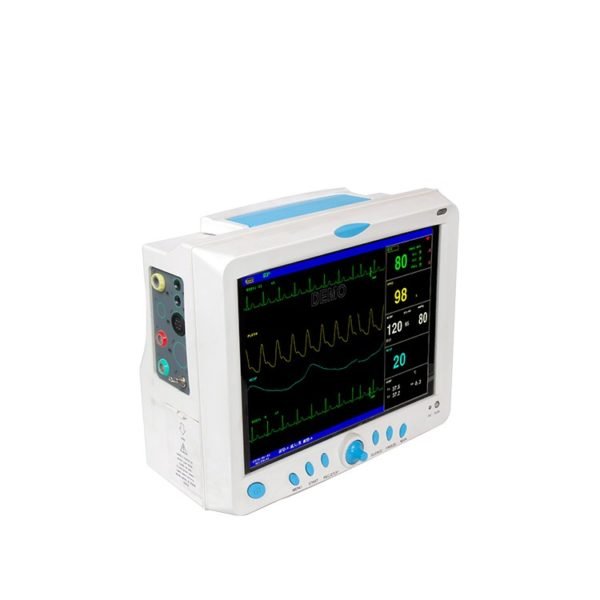

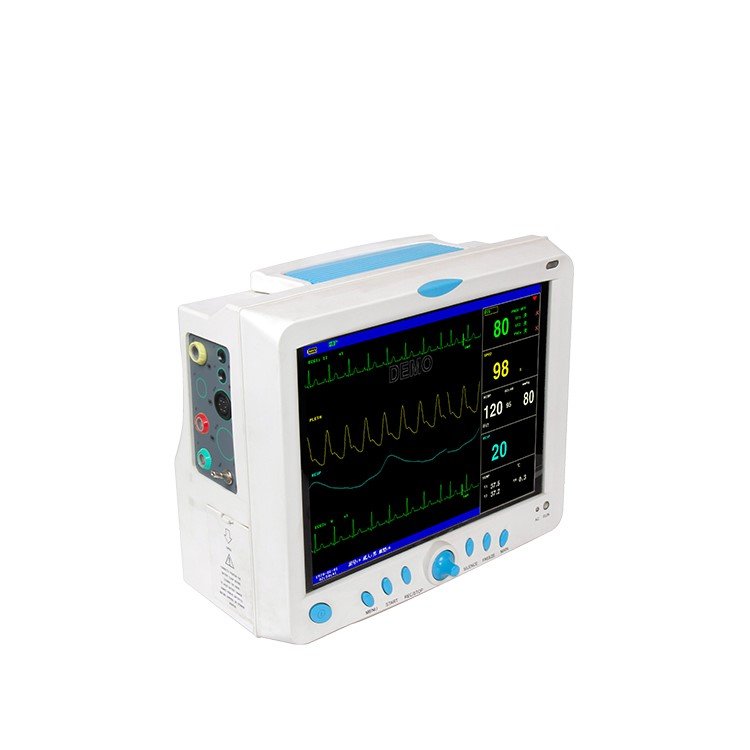

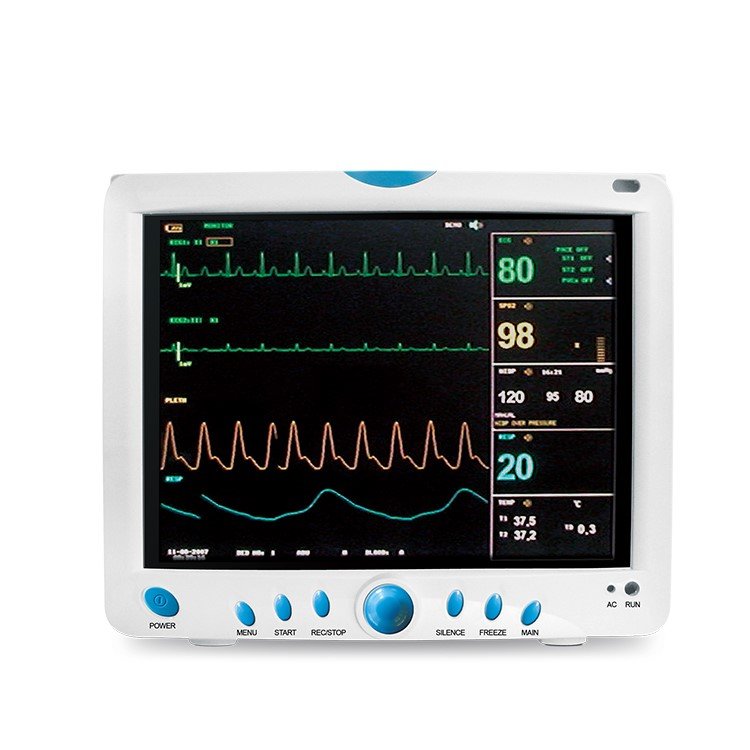

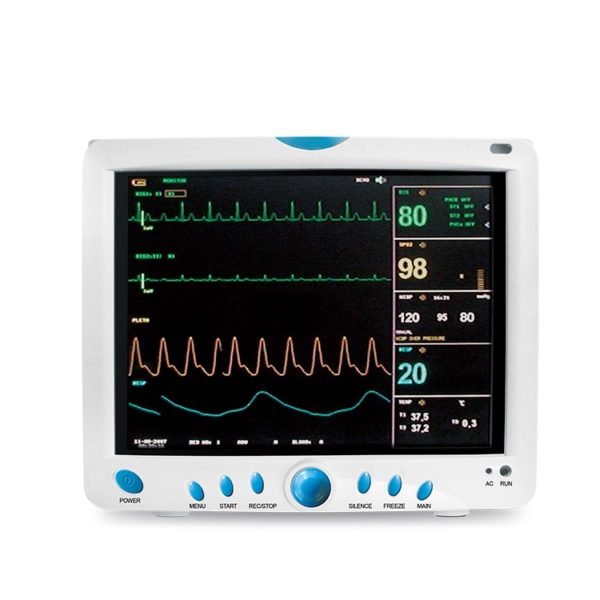

CMS9000 Patient Monitor
Multi-parameter bedside monitoring with ECG, RESP, SpO2, PR, NIBP, and dual-channel temperature. 12.1" TFT display with 8-channel waveform capability, fanless operation, and central system connectivity for adult, pediatric, and neonatal care.
Clinical overview
The CMS9000 is a comprehensive bedside patient monitor integrating ECG, respiration, pulse oximetry, heart rate, non-invasive blood pressure, and dual-channel temperature measurement into a single, portable device. Its 12.1" TFT color LCD display presents up to 8-channel waveforms simultaneously, with dedicated 7-lead ECG visualization and step-function analysis. The fanless design eliminates mechanical noise and reduces cross-infection risk, making it suitable for continuous monitoring across adult, pediatric, and neonatal populations.
Advanced signal processing includes digital SpO2 technology with anti-motion and ambient light interference rejection, enabling reliable measurement even under low perfusion conditions. The device supports multiple NIBP measurement modes (Manual, AUTO, Continuous) with storage for up to 4,800 data points, HRV analysis, and comprehensive alarm event review for 71 parameter-based and 60 arrhythmia-specific alarms. Built-in drug concentration calculation and titration tables support critical care workflows, while AC/DC operation with rechargeable lithium battery ensures uninterrupted monitoring during patient transport.
Key features & surgeon benefits
Multi-Waveform Clarity
- 12.1" TFT color LCD with multi-language interface (18 languages supported)
- Display up to 8-channel waveforms on single screen
- 7-lead ECG with step function and trend charting
- Customizable waveform, parameter color, and layout positioning
Robust Signal Processing
- Digital SpO2 technology with anti-motion and anti-ambient light interference
- Reliable measurement under weak perfusion conditions
- HRV analysis function for cardiac variability assessment
- Defibrillation-proof design (with special leads); anti-surgical unit interference
Clinical Decision Support
- Review of 71 alarm events and 60 arrhythmia alarm events
- Drug concentration calculation and titration table functions
- One-key trend table data printing
- Standard interface, OxyCRG, trend chart, and big-character display modes
Flexible Deployment
- Compact, portable design with built-in rechargeable lithium battery
- AC/DC operation for continuous monitoring during transport
- Central Monitoring System connectivity via 3G, WiFi, or wired options
- Suitable for adult, pediatric, and neonatal patient populations
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring in acute care, ICU, general ward, and transport settings |
|---|---|
| Parameters Monitored | ECG, Respiration (RESP), Pulse Oximetry (SpO2), Pulse Rate (PR), Non-invasive Blood Pressure (NIBP), Dual-channel Temperature (TEMP) |
| Display | 12.1" TFT color LCD; up to 8-channel waveforms; 7-lead ECG visualization |
| Waveform Channels | 8-channel simultaneous display with customizable layout and color |
| NIBP Modes | Manual, AUTO, Continuous; storage for 4,800 data points |
| Alarm Events | 71 parameter-based alarms; 60 arrhythmia-specific alarms |
| Languages Supported | Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish (Europe), Spanish (Mexico), Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech, Bulgarian, Ukrainian |
| Power Supply | AC/DC with built-in rechargeable lithium battery |
| Connectivity | Central Monitoring System via 3G, WiFi, or wired connection |
| Design Features | Fanless operation; anti-motion and ambient light interference rejection; defibrillation-proof (with special leads); anti-surgical unit interference |
| Special Functions | HRV analysis; drug concentration calculation; titration tables; trend charting; one-key data printing |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS9000 Monitor Unit | Main bedside monitor with 12.1" TFT display, integrated ECG/RESP/SpO2/PR/NIBP/TEMP modules | 1 |
| ECG Cable | 3-lead or 5-lead ECG acquisition cable with standard connectors | 1 |
| SpO2 Sensor | Finger or forehead pulse oximetry sensor with extension cable | 1 |
| NIBP Cuff | Non-invasive blood pressure cuff (adult size; pediatric and neonatal sizes available separately) | 1 |
| Temperature Probe | Dual-channel temperature sensor with connector | 2 |
| Power Adapter | AC power supply with universal voltage input | 1 |
| Rechargeable Battery | Lithium-ion battery pack (integrated, user-replaceable) | 1 |
| Documentation | User manual, quick-start guide, technical specifications, warranty card | 1 set |
