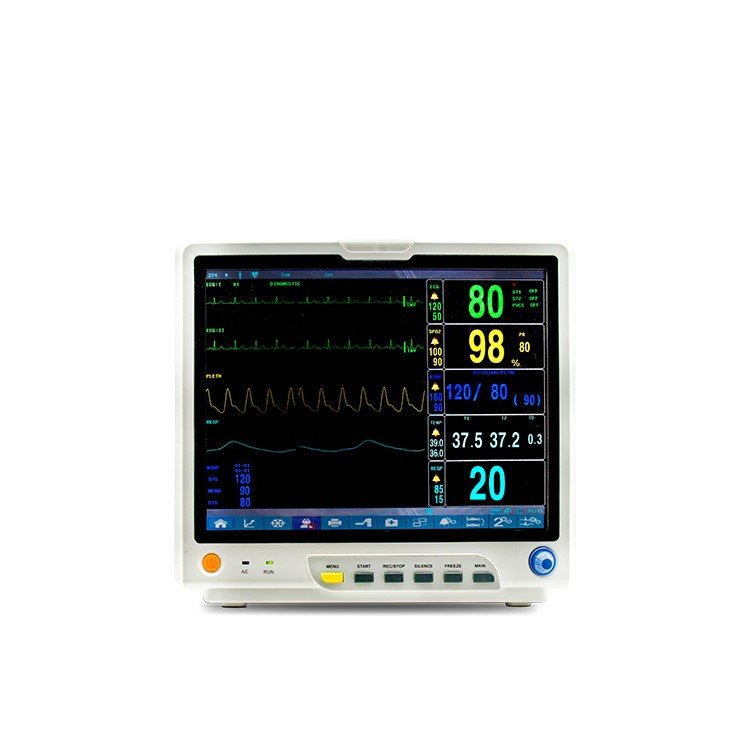

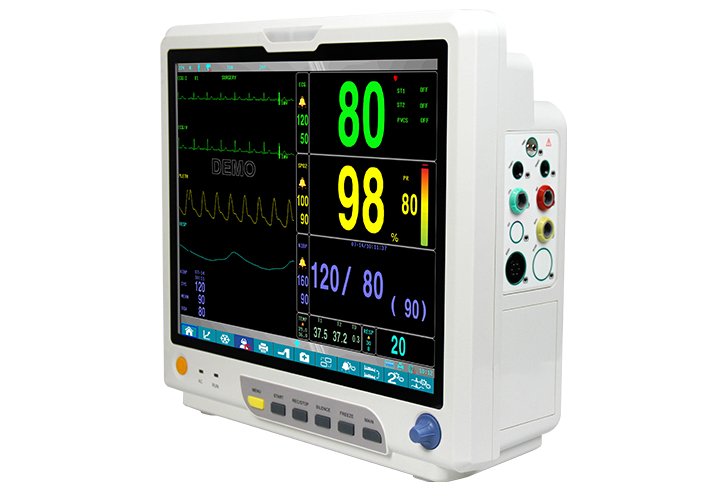

CMS9200PLUS Patient Monitor
- Portable patient monitor with a 15'' TFT color LCD touch screen
- Monitors multiple parameters: ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP
- Fanless design for quiet operation and reduced cross-infection risk
- Supports adult, pediatric, and neonate monitoring
- Customizable waveform and parameter display options
- Stores up to 4800 NIBP data sets and reviews 71 alarm events
- Connects via 3G, Wi-Fi, or wired to a Central Monitoring System
- Built-in rechargeable lithium battery for uninterrupted monitoring
- Anti-high frequency surgical unit and defibrillation-proof design
- Multi-language support: English, Chinese, Russian, and more
- SKU
- DFE02CE5974A
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CMS9200PLUS Patient Monitor
Portable multi-parameter patient monitor with 15" touch-screen display. Monitors ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP with fanless design for quiet, hygienic operation. Supports adult, pediatric, and neonatal monitoring with central system connectivity via 3G, Wi-Fi, or wired connection.
Clinical overview
The CMS9200PLUS is a portable multi-parameter patient monitor designed for comprehensive hemodynamic and respiratory monitoring across all patient populations. Integrating ECG, respiration, pulse oximetry, non-invasive blood pressure, and dual-channel temperature measurement into a single compact device, it delivers real-time clinical data with a responsive 15" touch-screen interface. The fanless design eliminates noise and reduces cross-infection risk, making it ideal for high-acuity and transport environments.
Advanced digital SpO2 technology provides accurate oxygen saturation measurement even under challenging conditions—low perfusion, patient motion, or ambient light interference. Flexible NIBP modes (manual, automatic, continuous) with storage for up to 4,800 datasets enable trend analysis and clinical decision-making. Built-in lithium battery and AC/DC power support uninterrupted monitoring during patient transfers, while 3G, Wi-Fi, and wired connectivity options integrate seamlessly with central monitoring systems for remote oversight and alarm escalation.
Key features & surgeon benefits
Intuitive Touch-Screen Operation
- 15" TFT color LCD with multi-language support (6+ languages)
- Customizable waveform, parameter color, and layout options
- Up to 8-channel waveform and 7-lead ECG display on single screen
All-Round Patient Coverage
- Simultaneous monitoring of adult, pediatric, and neonatal patients
- Standard, big-character, and bed-view interfaces for flexible observation
- Review 71 alarm events and 60 arrhythmia detection records
Seamless System Integration
- 3G, Wi-Fi, and wired connectivity to central monitoring systems
- Storage for 4,800 NIBP datasets for longitudinal trend analysis
- Drug concentration calculation and titration table functions
Clinical-Grade Protection
- Fanless design: quiet, energy-efficient, reduced infection risk
- Anti-high-frequency surgical unit and defibrillation-proof (with special leads)
- AC/DC with built-in rechargeable lithium battery for uninterrupted monitoring
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring in acute care, ICU, emergency, and transport settings |
|---|---|
| Monitored Parameters | ECG, RESP, SpO2, PR, NIBP (non-invasive blood pressure), dual-channel TEMP |
| Display | 15" TFT color LCD touch screen; up to 8-channel waveform; 7-lead ECG display |
| NIBP Modes | Manual, automatic, continuous; storage for 4,800 datasets |
| Alarm Review | 71 alarm events; 60 arrhythmia detection records |
| SpO2 Technology | Digital, anti-motion, anti-ambient light interference; low-perfusion capable |
| Power Supply | AC/DC with built-in rechargeable lithium battery |
| Connectivity | 3G, Wi-Fi, wired connection to central monitoring systems |
| Languages | English, Chinese, Russian, Kazakh, Czech, Slovak |
| Safety Features | Fanless design; anti-high-frequency surgical unit; defibrillation-proof (special leads required) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS9200PLUS Monitor | Portable multi-parameter patient monitor with 15" touch screen | 1 |
| ECG Cable | Standard 3-lead or 5-lead ECG cable with connectors | 1 |
| SpO2 Sensor | Finger or wrist-mounted pulse oximetry sensor | 1 |
| NIBP Cuff | Non-invasive blood pressure cuff (adult size) | 1 |
| Temperature Probe | Dual-channel temperature sensor (x2) | 2 |
| Power Adapter | AC/DC power supply with charging cable | 1 |
| Lithium Battery | Built-in rechargeable battery (replaceable) | 1 |
| User Manual | Multi-language operation and maintenance guide | 1 |
