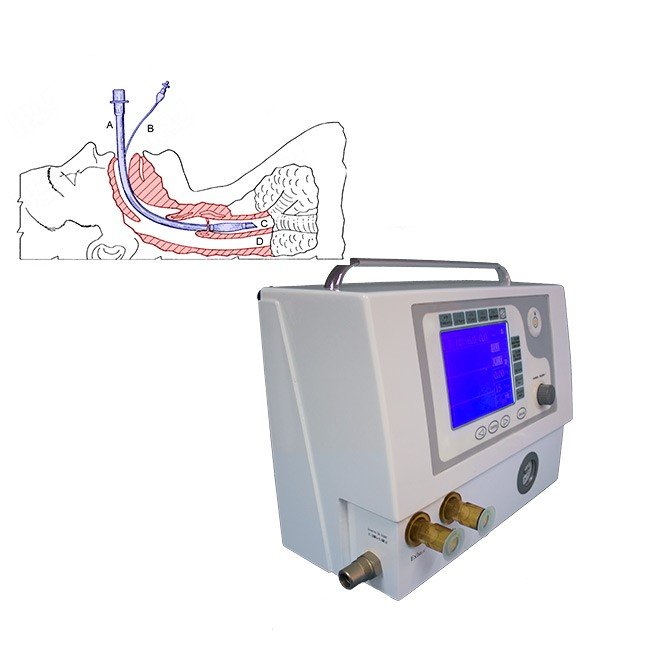

ICU Ventilator Machine NEUPA01
– High-definition 5.7” LCD screen display for clear monitoring
– Multiple ventilation modes: IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH
– Adjustable tidal volume range: 50~1500ml
– Breathing rate settings from 2 to 99 bpm, and SIMV rate from 2 to 20 bpm
– Comprehensive airflow monitoring parameters including tidal volume and pressure readings
– Security alarms for airway pressure, ventilation volume, sustained high pressure, and suffocation
– Power supply: AC 220V±10% 50Hz±1Hz with UPS and storage battery support
– Designed for critical care with robust mechanical arms for stability and support
– Lightweight and portable for easy transportation within medical facilities
– Ideal for ICUs and emergency medical settings for reliable patient ventilation
ICU Ventilator Machine NEUPA01
Advanced critical care ventilation system with high-definition 5.7″ LCD monitoring, multiple ventilation modes (IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH), and comprehensive airflow parameters. Engineered for ICU and emergency medical settings with robust mechanical stability, UPS backup, and integrated security alarm systems for reliable patient ventilation.
Clinical overview
The NEUPA01 is a comprehensive ICU ventilator system designed for critical care environments requiring reliable, multi-mode respiratory support. Featuring a high-definition 5.7″ LCD display for real-time monitoring and six distinct ventilation modes, the device delivers precise control over tidal volume, breathing rate, and pressure parameters. The system integrates comprehensive airflow monitoring including tidal volume, ventilation volume, peak airway pressure, and waveform analysis to support clinician decision-making and patient safety.
Built with robust mechanical arms for stability and equipped with UPS and storage battery backup, the NEUPA01 ensures uninterrupted ventilation support during power transitions. Multiple security alarms—including airway pressure, ventilation volume, sustained high-pressure, and suffocation detection—provide continuous patient protection. Lightweight and portable design facilitates easy repositioning within medical facilities while maintaining the structural integrity required for critical care applications.
Key features & surgeon benefits
Six Distinct Modes
- IPPV (Intermittent Positive Pressure Ventilation)
- SIPPV (Synchronized Intermittent Positive Pressure Ventilation)
- SIMV (Synchronized Intermittent Mandatory Ventilation)
- PEEP (Positive End-Expiratory Pressure)
- MANUAL mode for clinician control
- SIGH mode for periodic lung recruitment
Real-Time Monitoring & Control
- High-definition 5.7″ LCD display for clear parameter visualization
- Comprehensive waveform analysis: pressure-time and flow rate-time curves
- Intuitive parameter adjustment: tidal volume, rate, I:E ratio, trigger pressure
- Integrated security alarm system with audible and visual alerts
- Continuous monitoring of peak airway pressure and PEEP levels
Operational Efficiency
- AC 220V±10% 50Hz±1Hz power supply with UPS and storage battery backup
- Uninterrupted ventilation support during power transitions
- Lightweight and portable design reduces facility infrastructure demands
- Robust mechanical arms ensure long-term stability and durability
- 2-year manufacturer warranty with lifetime technical support
Flexible Configuration
- Adjustable tidal volume range: 50–1500 ml for pediatric to adult patients
- Breathing rate settings: 2–99 bpm; SIMV rate 2–20 bpm
- I:E ratio adjustment: 2:1 to 1:8 for varied clinical protocols
- Pressure range: 1.0–6.0 kPa with customizable alarm thresholds
- OEM integration and bespoke configurations available
Technical specifications
| Display Mode | High-definition 5.7″ LCD screen display |
|---|---|
| Ventilation Modes | IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH |
| Tidal Volume Range | 50–1500 ml |
| Breathing Rate | 2–99 bpm |
| SIMV Rate | 2–20 bpm |
| I:E Ratio | 2:1 to 1:8 |
| Inspiratory Trigger Pressure | −1.0 to 2.0 kPa |
| PEEP Range | 0–2.0 kPa |
| Pressure Range | 1.0–6.0 kPa |
| SIGH Setting | 1.5 times the inspiratory time |
| Monitoring Parameters | Tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak airway pressure, pressure-time waveform, flow rate-time waveform, PEEP, inspiratory trigger pressure |
| Airway Pressure Alarm | Upper limit: 1.0–6.0 kPa; Lower limit: 0.4–2.0 kPa |
| Ventilation Volume Alarm | Upper limit: 3.0–30 L/min; Lower limit: 1.0–10 L/min |
| Sustained High-Pressure Alarm | Triggers when airway pressure exceeds 2.5 kPa continuously |
| Suffocation Alarm | Sound and light alarm if no tidal volume detected for 15 seconds |
| Power Supply | AC 220V±10% 50Hz±1Hz with UPS and storage battery support |
| Mechanical Design | Robust mechanical arms for stability and support; lightweight and portable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ICU Ventilator Unit | Complete NEUPA01 ventilator system with 5.7″ LCD display, multi-mode control, and integrated alarm system | 1 |
| Power Supply Module | AC 220V±10% 50Hz±1Hz input with UPS and storage battery backup | 1 |
| Mechanical Support Arm | Robust mechanical arm assembly for device stability and positioning | 1 |
| Tubing & Connectors | Standard medical-grade tubing and connectors for patient interface | 1 set |
| User Manual & Documentation | Comprehensive operating manual, technical specifications, and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your ICU ventilation requirements, request a detailed quote, or arrange a product demonstration. We provide comprehensive support for equipment selection, installation, and ongoing clinical integration.
