In stock

Scanning mode convex / linear / micro-convex
Probe 96 elements convex, linear, transvaginal, rectal
Monitor 14 inch high resolution CRT

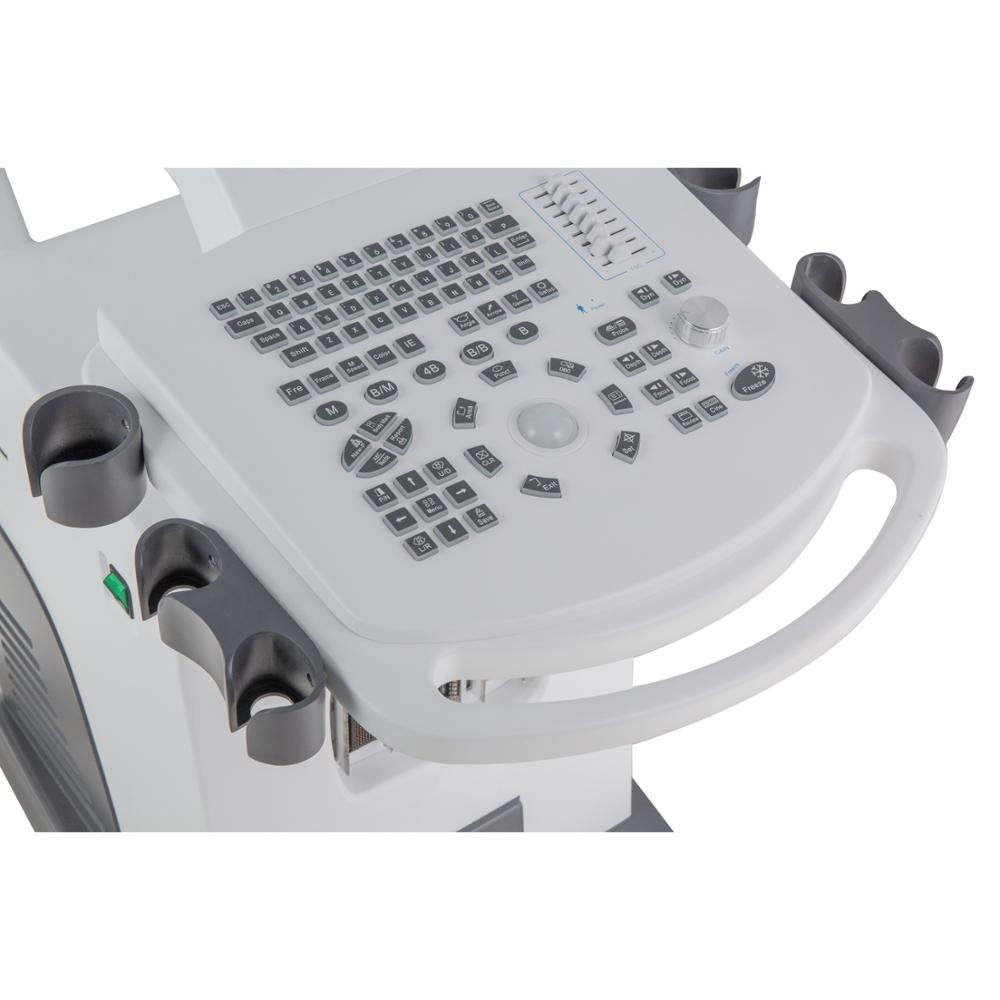

Operation panel user-friendly, convenient and flexible with back-lit silica gel keyboard

& track ball operation

Display mode B, B+B, 4B, B+M, M
Scanning depth more than 244mm
Resolution lateral≤2mm, axial≤1mm
Blind zone ≤3mm
Geometry precision lateral≤5%, axial≤5%
Gray scale 256
Electronical focusing 2 focuses combination randomly

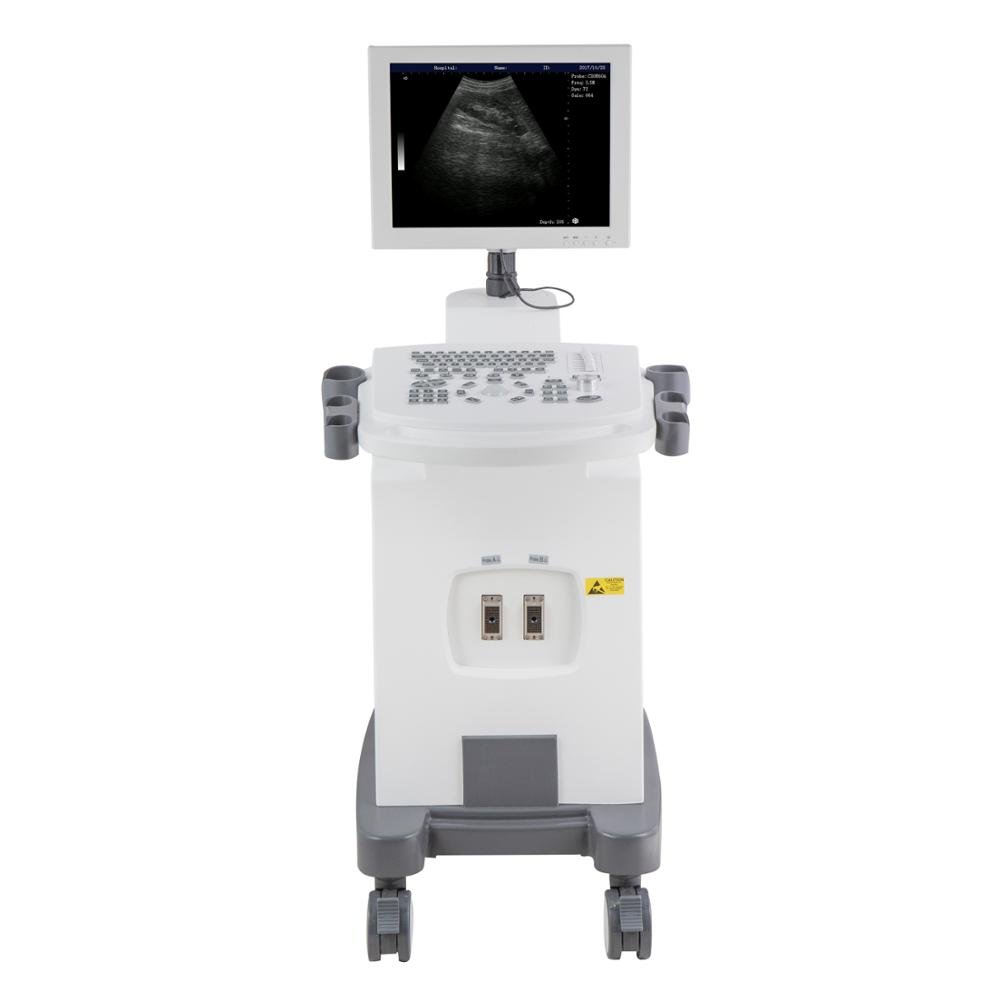

MEK-350 Detailed specs

Cine loop 256 frames, realized in automatic successive playback and manual

single step forward, backward playback

Permanent image storage 8
Magnification ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40,

×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)

Body mark 30
Probe interface 2
Pseudo color 7
Image processing up/ down, left / right, black / white convertion, edge enhancement,

gamma correction, frame correlation, pseudo color processor

( need external color display)

Measurement distance, perimeter, area, volume, heart rate, gestational week,

FW, AFI, EDD , maternity table, heart package etc

Note date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion
Output interface PAL-D, SVGA (SVGA color monitor), USB port
Main power supply AC220V±22V , 50/60Hz
