- Pet Hyperbaric Oxygen Therapy Chamber designed for animal care
- Internal dimensions: L90*W60*H60cm for optimal pet comfort
- External dimensions: L110*W76*H76cm, robust and spacious design
- Pressure setting of 1.4ATA for effective therapy
- Constructed from high-strength aluminum, acrylic, and polycarbonate materials
- Weighs 65KG, durable stainless steel frame for stability
- Rated voltage of AC220V+1-0V 50Hz, ensuring efficient power usage
- Maximum output pressure range of 40~60kPa
- Noise level at a quiet 60dB for a comfortable experience
- Includes advanced oxygen concentrator and air compressor systems
Professional-grade hyperbaric oxygen therapy system designed for companion animal care. Delivers 1.4 ATA pressure with integrated oxygen concentrator and air compressor for safe, effective therapeutic treatment in veterinary clinics and animal care facilities.

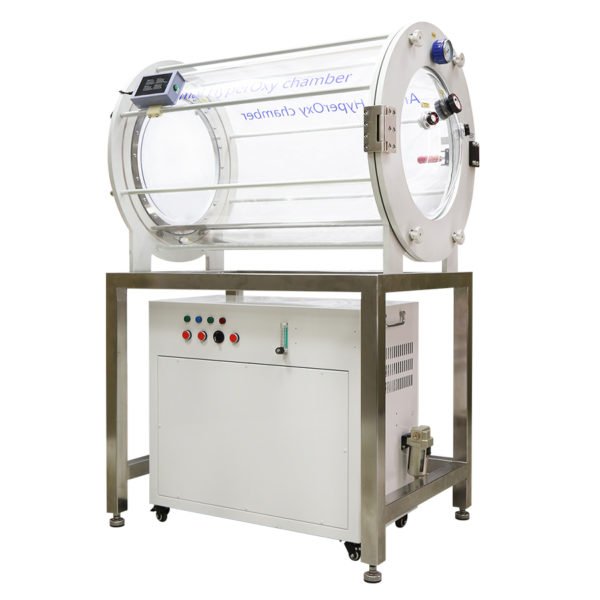

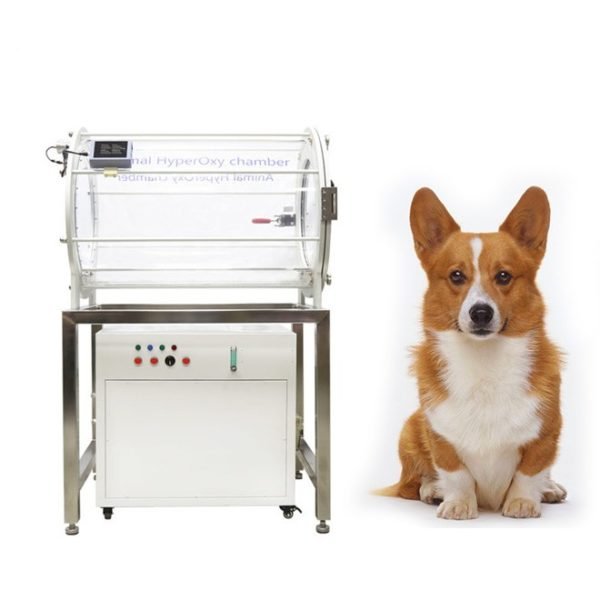

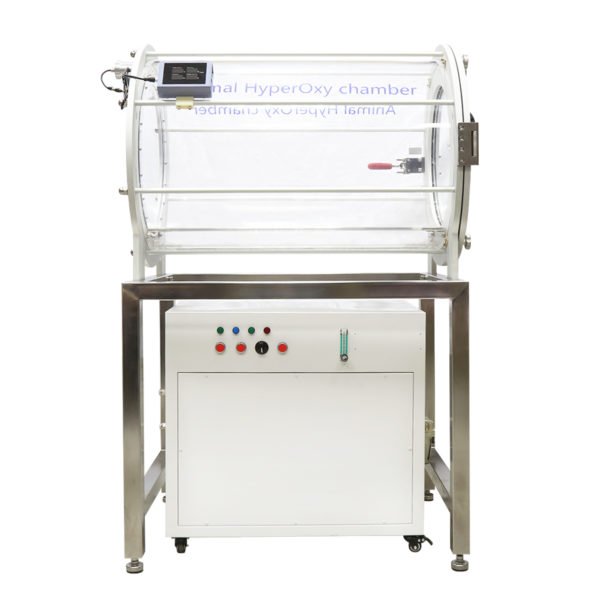

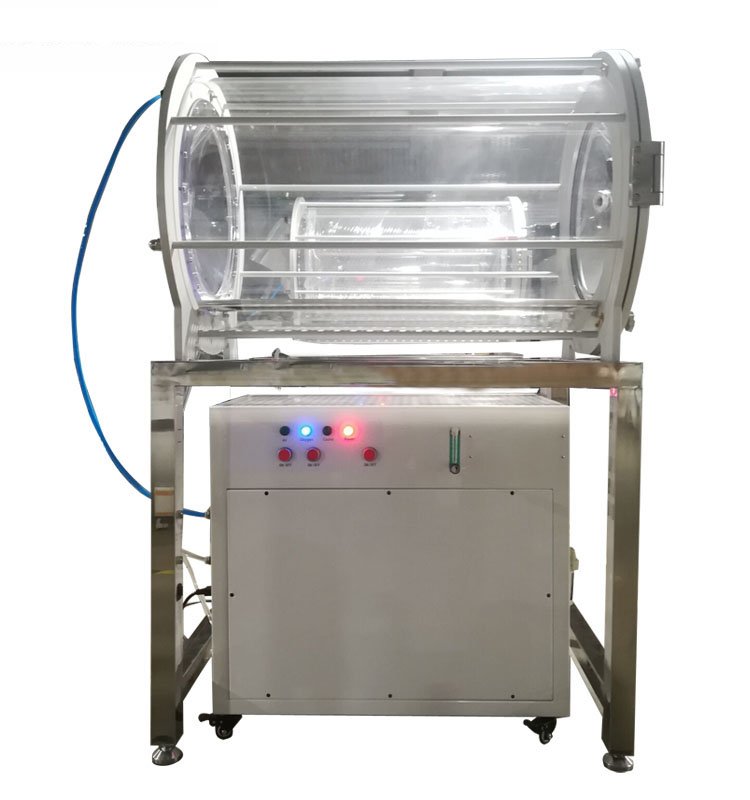

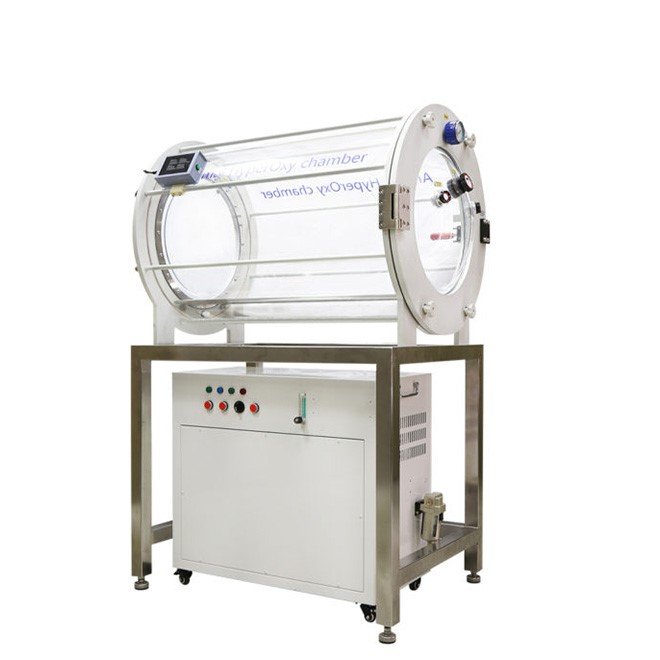

The Pet Hyperbaric Oxygen Therapy Chamber (NEUDN01) is a complete, integrated system for delivering hyperbaric oxygen therapy to companion animals in veterinary practice. Operating at 1.4 ATA (atmospheres absolute), the chamber provides controlled, pressurised oxygen delivery to support tissue oxygenation, accelerate wound healing, and enhance post-operative recovery. The system combines a high-purity oxygen concentrator (≥93% O₂), oil-free air compressor, and semiconductor cooling technology in a single, veterinary-optimised platform.
Constructed from high-strength aluminum, acrylic, and polycarbonate, the chamber offers a spacious internal environment (90 × 60 × 60 cm) suitable for most companion animals. The robust stainless steel frame and mounting system ensure stability and durability in busy veterinary clinics. Quiet operation (60 dB) and continuous oxygen production eliminate the need for external oxygen tanks, reducing operational complexity and cost.
| Indications | Wound healing, post-operative recovery, tissue repair, oxygen therapy in companion animals |
|---|---|
| Internal dimensions | L90 × W60 × H60 cm |
| External dimensions | L110 × W76 × H76 cm |
| Pressure setting | 1.4 ATA |
| Material | Aluminum (oxidised) + high-strength acrylic + polycarbonate; stainless steel frame |
| Product weight | 65 kg (chamber); 85 kg (net system weight) |
| Rated voltage | AC 110V/220V ±10 %, 50/60Hz |
| Output pressure range | 40–60 kPa |
| Noise level | 60 dB |
| Output power | 1280 W |
| Air flow | 72 L/min |
| Warranty | 2 Year Manufacturer Warranty |
| Component | Specification | Details |
|---|---|---|
| Oxygen Concentrator | Oxygen purity ≥93% | Flow: 5 L/min | Weight: 32 kg | Size: 35 × 32 × 57 cm | PSA molecular sieve technology | Continuous production, no oxygen tank required |
| Air Compressor | Oil-free, quiet type | Power: 480 W | Flow: 72 L/min | Weight: 17.5 kg | Size: 39 × 24 × 26 cm | Dual activated carbon filters for input/output protection |
| Cooling System | Semiconductor refrigeration | Power: 200 W | Flow: 150 L/min | Weight: 5 kg | Pressure: 0.8 MPa | Separates moisture, reduces humidity | Harmless technology |
| Chamber Frame | Stainless steel | Frame size: L96 × W70 × H80 cm | Mounting plate: L89 × W34 × H1 cm | Robust, stable support structure |
| Model | MSLBOYT05 | Complete integrated hyperbaric oxygen therapy system |
Contact our veterinary equipment specialists to discuss system configuration, pricing, and delivery timelines for your clinic or facility.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
