Veterinary Analyzer Sperm Animal Microscope Machine NEUJX01
- High-definition imaging up to 1600X magnification
- Available with a 7-inch or 9-inch HD display
- Energy-efficient LED light source
- Optional eyepiece lenses: WF10X or WF20X
- Objective lens options: 4X, 10X, and 40X
- Durable steel nosepiece with chrome-plated surface
- LED spotlight with adjustable luminance
- Coarse and fine adjustment focusing knobs
- Comes in a portable high-grade metal case
- Capability to connect to computer or TV for enhanced viewing
- SKU
- NEUJX01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Veterinary Analyzer Sperm Animal Microscope Machine NEUJX01
Professional-grade HD microscope system for veterinary sperm analysis and animal tissue examination. Delivers up to 1600X magnification with energy-efficient LED illumination, available with 7-inch or 9-inch HD display options. Ideal for breeding programs, fertility assessment, and diagnostic pathology in veterinary practice.
Clinical overview
The NEUJX01 Veterinary Analyzer Sperm Animal Microscope is a comprehensive diagnostic imaging platform designed for veterinary practitioners and breeding specialists. With magnification capabilities ranging from 40X to 1600X, this system delivers exceptional clarity for sperm morphology assessment, tissue analysis, and cellular examination. The dual-display option (7-inch or 9-inch HD screen) accommodates both compact clinic environments and larger laboratory setups, while the energy-efficient LED light source ensures consistent illumination without excessive heat generation—critical for live specimen observation.
The microscope features a durable steel nosepiece with chrome-plated finish for longevity and precision, coupled with coarse and fine adjustment focusing knobs for rapid specimen location and detailed examination. Its ability to connect directly to computers or television displays enables real-time documentation, client education, and collaborative diagnosis. The complete system arrives in a high-grade portable metal case, making it suitable for mobile veterinary services, breeding facilities, and fixed laboratory installations.
Key features & surgeon benefits
High-Definition Magnification
- 40–1600X magnification range for comprehensive analysis

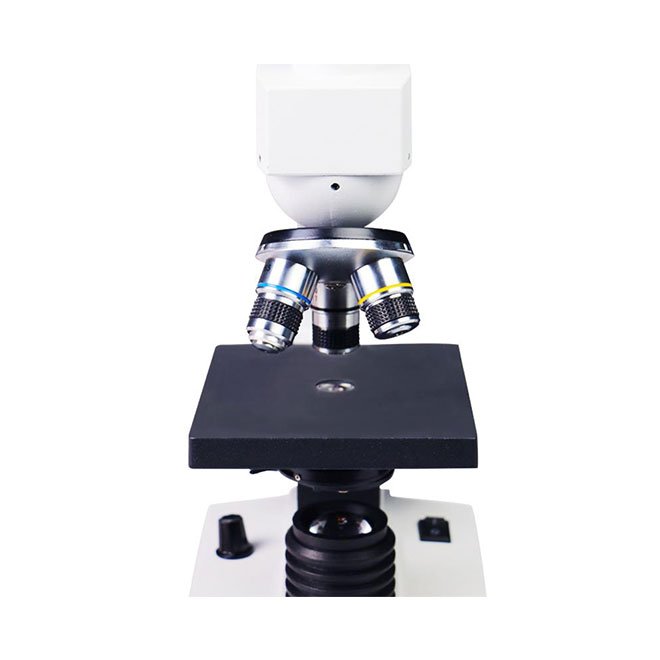

- Interchangeable objective lenses (4X, 10X, 40X) for flexible workflow
- Optional eyepiece lenses (WF10X or WF20X) for customised magnification
Flexible Viewing Options

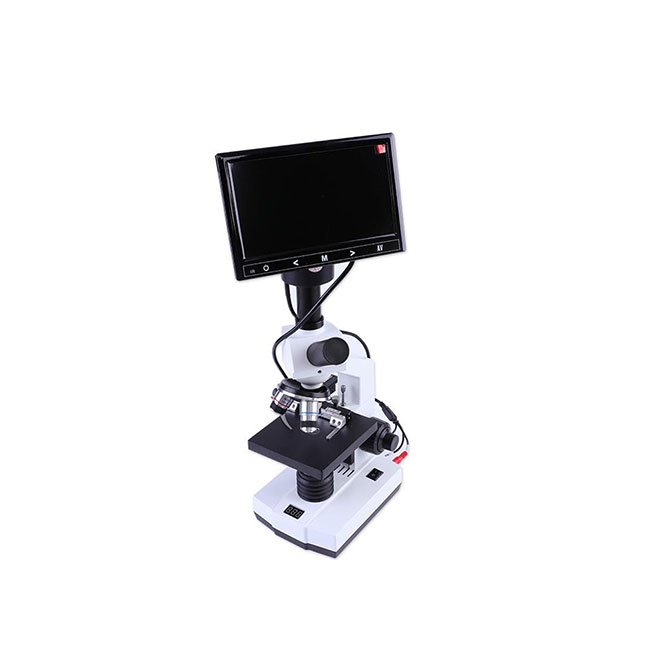

- 7-inch or 9-inch HD display for direct observation
- Computer and TV connectivity for documentation and client consultation
- Coarse and fine adjustment knobs for rapid specimen positioning
Robust Design & Energy Savings
- Steel nosepiece with chrome-plated surface for extended service life
- Energy-efficient LED light source with adjustable luminance
- Portable high-grade metal case for transport and storage
Tailored Configuration
- Selectable eyepiece and objective lens combinations
- Display size options (7-inch or 9-inch)
- OEM integration and custom specifications available
Technical specifications
| Product Name | Veterinary Analyzer Sperm Animal Microscope |
|---|---|
| Model | NEUJX01 |
| Magnification | 40–1600X |
| Eyepiece Lens | WF10X (optional WF10X or WF20X) |
| Objective Lens | 4X, 10X, 40X |
| Nosepiece | Steel, chrome-plated surface |
| Light Source | LED upper and lower cold light source, adjustable luminance |
| Focusing | Coarse and fine adjustment knobs |
| Display Options | 7-inch or 9-inch HD display |
| Connectivity | Computer and TV compatible |
| Packaging | High-grade portable metal case |
| Power Source | Energy-efficient LED illumination |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Microscope Head | Main optical and electronic unit with nosepiece | 1 |
| Objective Lens Set | 4X, 10X, 40X magnification lenses | 3 |
| Eyepiece Lens | WF10X (standard; WF20X optional) | 1 |
| HD Display | 7-inch or 9-inch HD screen (customer choice) | 1 |
| LED Light Source | Upper and lower cold light illumination unit | 1 |
| Focusing Mechanism | Coarse and fine adjustment knobs assembly | 1 |
| Portable Metal Case | High-grade protective carrying case | 1 |
| Power Cable & Adapters | LED power supply and connectivity cables | 1 |
| User Manual | Operation and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our veterinary equipment specialists to discuss system configuration, display options, and delivery timelines. We offer flexible ordering, OEM customisation, and comprehensive technical support.
