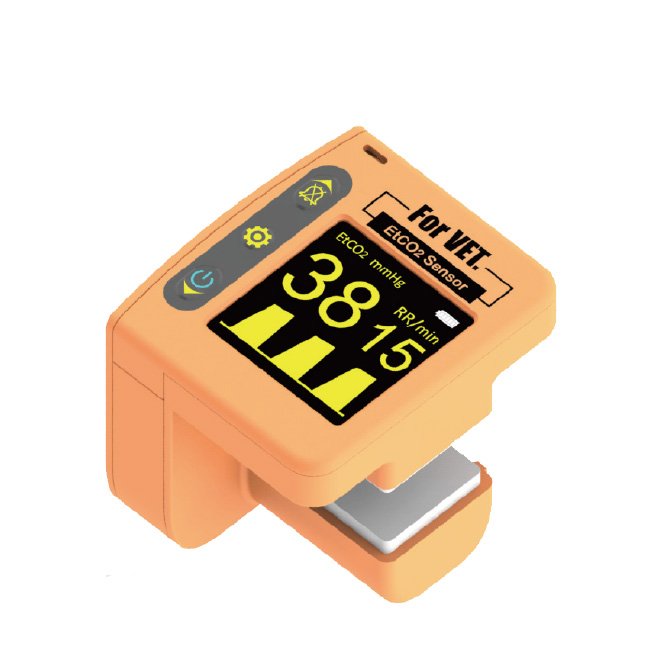

Veterinary Capnograph Monitor NEUVB01
- Compact Veterinary Capnograph Monitor (Model NEUVB01)
- Measures CO2 levels ranging from 0-99 mmHg and RR from 3-150 bpm
- Accuracy: ±2 mmHg for CO2 (0-40 mmHg) and ±1 bpm for RR
- Battery powered: Requires two AAA alkaline or lithium batteries
- Battery life: 6 hours (alkaline) and 10 hours (lithium)
- Operating temperature: 0 to 40°C (32 to 104°F)
- Lightweight design: Weighs only 2.3 oz (66 g) with alkaline batteries
- Display options: EtCO2, RR, and Capnogram
- Bluetooth data output (optional)
- IP33 protection rating for dust and water resistance
- SKU
- NEUVB01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Veterinary Capnograph Monitor NEUVB01
Compact, battery-powered capnograph monitor designed for veterinary anesthesia and respiratory monitoring. Delivers real-time CO2 and respiratory rate measurements with clinical-grade accuracy in a lightweight, portable form factor suitable for field and clinical environments.
Clinical overview
The NEUVB01 is a compact, hand-held capnograph monitor engineered for veterinary anesthesia and respiratory monitoring. It provides real-time measurement of end-tidal CO2 (EtCO2) and respiratory rate (RR) with clinical-grade accuracy, enabling clinicians to assess ventilation adequacy and detect hypoventilation or apnea during anesthetic procedures. The device combines portability with robust measurement capability, making it suitable for both fixed clinical settings and mobile veterinary practices.
With dual battery options (alkaline or lithium), extended runtime, and wireless data output capability, the NEUVB01 integrates seamlessly into modern veterinary anesthesia workflows while maintaining the simplicity and reliability required in high-pressure clinical environments.
Key features & surgeon benefits
Comprehensive CO2 & RR Coverage
- CO2 range: 0–99 mmHg with selectable units (mmHg, kPa, %)
- Respiratory rate: 3–150 bpm for neonatal to adult patients
- Real-time capnogram waveform display for visual assessment
Lightweight & Rugged Design
- Weighs only 2.3 oz (66 g) with alkaline batteries
- Compact dimensions: 1.7 × 1.7 × 2 in (4.4 × 4.5 × 5.2 cm)
- IP33 protection rating for dust and water resistance in clinical environments
Extended Operating Life
- Two AAA alkaline batteries: 6-hour runtime
- Two AAA lithium batteries: 10-hour runtime for extended procedures
- Simple battery replacement without tools or recalibration
Wireless & Flexible Output
- Optional Bluetooth data output for remote monitoring and record-keeping
- Multiple display parameters: EtCO2, RR, and real-time capnogram
- Integrates with veterinary anesthesia management systems
Technical specifications
| Indications | Anesthesia monitoring, respiratory assessment, capnography measurement in veterinary practice |
|---|---|
| CO2 Range | 0–99 mmHg (0–9.9 kPa, 0–10%) |
| Respiratory Rate Range | 3–150 bpm |
| CO2 Accuracy | 0–40 mmHg: ±2 mmHg; 41–99 mmHg: ±6% of reading |
| RR Accuracy | ±1 bpm |
| Batteries | Two AAA Alkaline (6 hours) or Lithium (10 hours) |
| Operating Temperature | 0–40°C (32–104°F) |
| Operating Humidity | 10–95% RH, non-condensing |
| Operating Atmospheric Pressure | 70–120 kPa |
| Storage Temperature | −20–70°C (−4–158°F) |
| Storage Atmospheric Pressure | 50–120 kPa |
| Dimensions | 1.7 × 1.7 × 2 in (4.4 × 4.5 × 5.2 cm) |
| Weight | 2.3 oz (66 g) with alkaline batteries |
| Display Parameters | EtCO2, RR, Capnogram |
| CO2 Units | mmHg, kPa, % (selectable) |
| Data Output | Bluetooth (optional) |
| Degree of Protection | IP33 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Capnograph Monitor | NEUVB01 portable capnograph with integrated display and battery compartment | 1 |
| AAA Batteries | Two AAA alkaline or lithium batteries (user-supplied or included per order) | 2 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, volume discounts, and customisation options for the NEUVB01. We offer fast delivery and comprehensive technical support to veterinary clinics and OEM partners worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

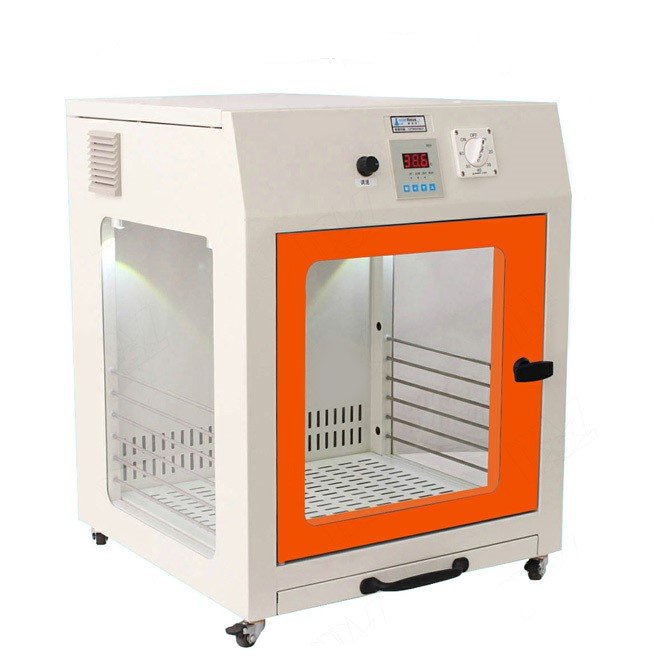

Small & Medium Pet Dryer Machine NEUHG01
- Efficient dryer for small and medium pets - Compact dimensions: 480*480*600mm - Durable iron steel body with epoxy coating - High power: 2100W with constant temperature control - Maximum temperature of 50°C for effective drying - Quiet operation with noise levels ≤65dB - LCD temperature display for precise adjustments - Features UV ozone disinfection for cleanliness - Fresh air exchange system ensures air quality - Includes wind speed control and anti-leakage protection

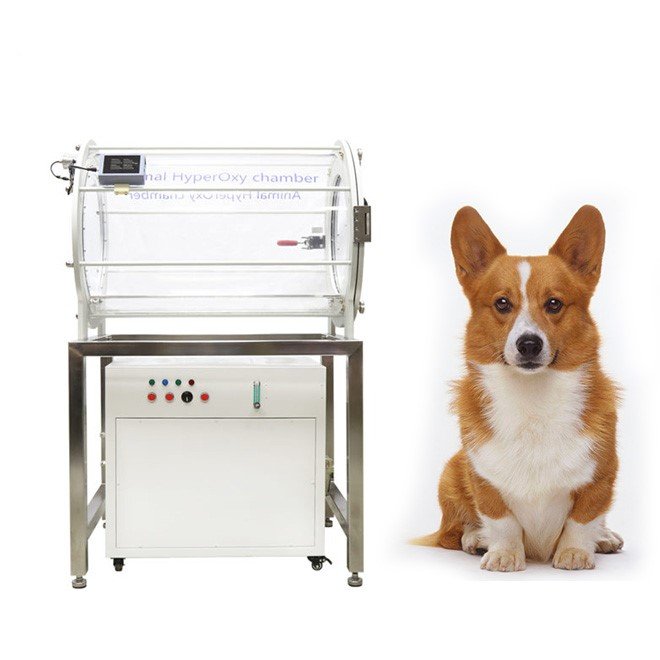

Pet Hyperbaric Oxygen Therapy Chamber Animal Care NEUDN01
- Pet Hyperbaric Oxygen Therapy Chamber designed for animal care - Internal dimensions: L90*W60*H60cm for optimal pet comfort - External dimensions: L110*W76*H76cm, robust and spacious design - Pressure setting of 1.4ATA for effective therapy - Constructed from high-strength aluminum, acrylic, and polycarbonate materials - Weighs 65KG, durable stainless steel frame for stability - Rated voltage of AC220V+1-0V 50Hz, ensuring efficient power usage - Maximum output pressure range of 40~60kPa - Noise level at a quiet 60dB for a comfortable experience - Includes advanced oxygen concentrator and air compressor systems

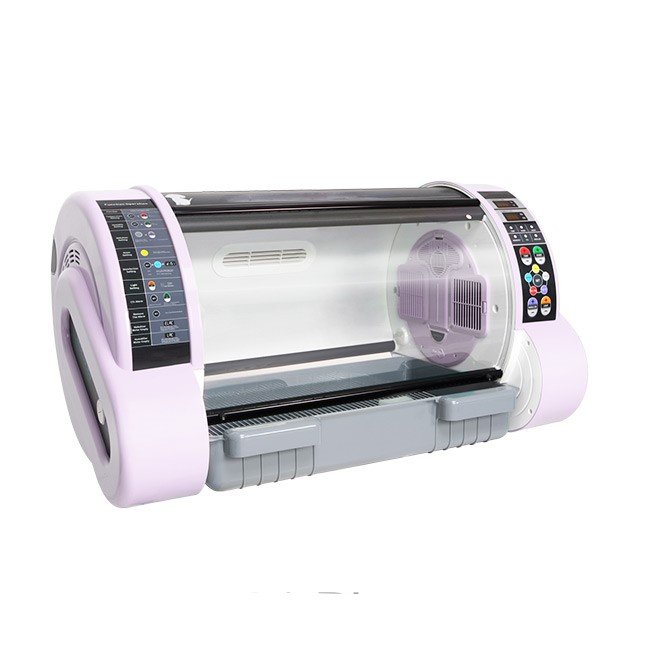

Pet Incubator NEUDW01
- Efficient Pet Incubator NEUDW01 designed for small animals - Dual power supply options: 220V and 110V - Optimal temperature control range: 15°C to 39°C - Precise temperature fluctuation of ≤0.8°C - Low noise operation at ≤30dB for a quiet environment - Quick temperature rise time: 5 to 20 minutes - Earth leakage current safety features (≤0.5 mA normal state) - Built for diverse ambient conditions: -10°C to 40°C for storage - Sturdy withstand voltage of 1500V for added safety - Ideal for veterinary clinics and pet care facilities
Professional Veterinary Endoscope System, Vet Camera Endoscopic for Dog or Cat NEUVP01
- Professional Veterinary Endoscope System designed for both dogs and cats - Ideal for upper and lower gastrointestinal procedures in companion animals - Equipped with a sleek design for ease of handling and maneuverability - Suitable for diagnosing conditions such as regurgitation and dysphagia - Helpful in addressing symptoms like nausea, vomiting, and diarrhea - Provides high-quality imaging for accurate assessments - Extends reach for comprehensive internal examinations - Multipurpose functionality for diverse veterinary applications - Enhances diagnostic capabilities in veterinary practices - Compact and portable for easy transport and usage

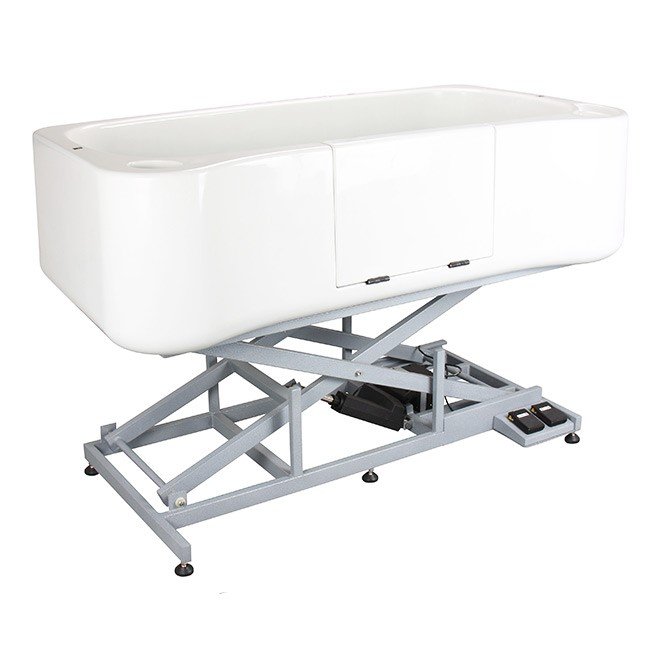

Nautical Grade Fiberglass Small Bathtub Dog Bathing Tub NEU180
- Constructed from nautical grade fiberglass for durability and reliability. - Designed in Italy with an elegant off-white color and pleasing shape. - Accommodates large breeds comfortably, including Great Danes and Mastiffs. - Electric lift system supports over 260lbs, lowering to 14" for easy access. - Door entrance lifts up to 42" for small breed accessibility. - Equipped with a silicone anti-slip mat for safety. - Features stainless steel drain and hair strainer for easy cleaning. - Includes flexible hose and overhead restraint bar for added convenience. - Sturdy base ensures stability during use.

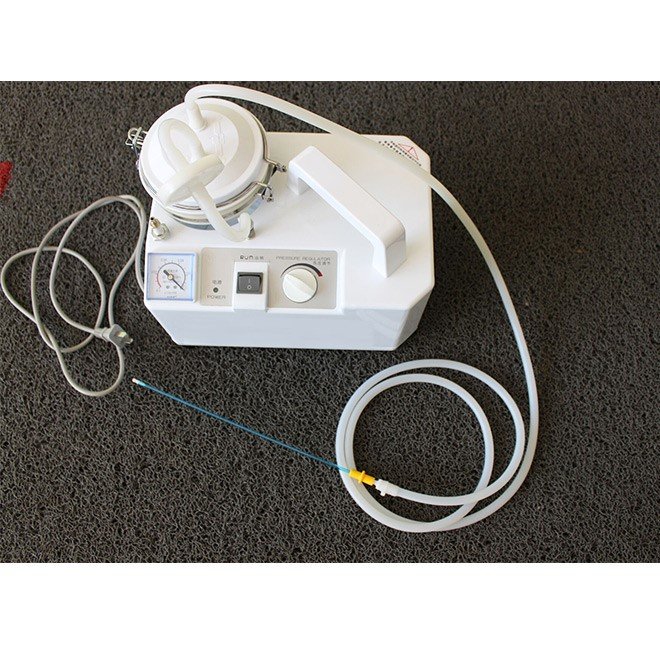

Automatic Uterine Cleaner for Veterinary Disinfection Equipment NEUDG01
- Automatic Uterine Cleaner designed for veterinary disinfection. - Utilizes an oil-free lubricating negative pressure pump. - Effective in rinsing animal uterus and vagina. - Capable of removing pus and viscous liquids. - High negative pressure with low flow for efficient cleaning. - Power supply requirement: 220V, 50Hz. - Input power: 90VA for optimal performance. - Comes with a 1000ml liquid storage bottle. - Weighs 4.4kg for easy handling. - Compact dimensions: 280 × 196 × 285 mm.

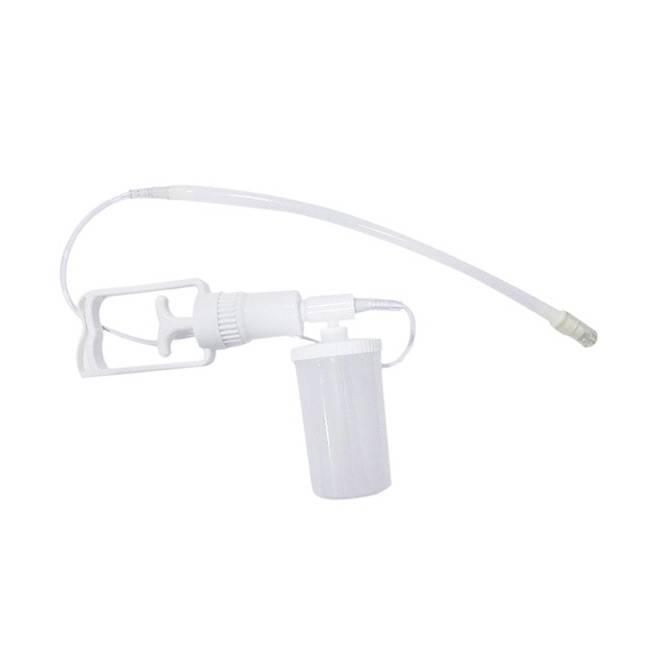

Portable Uterus Washer NEUDG02
