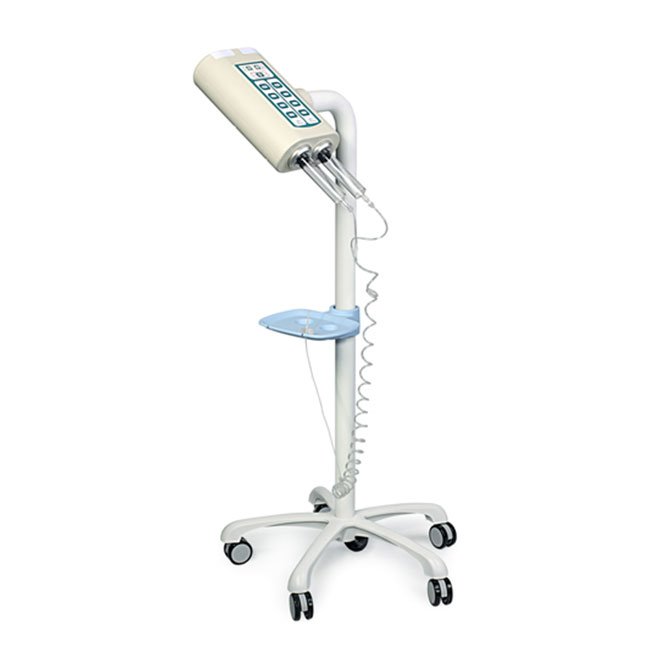

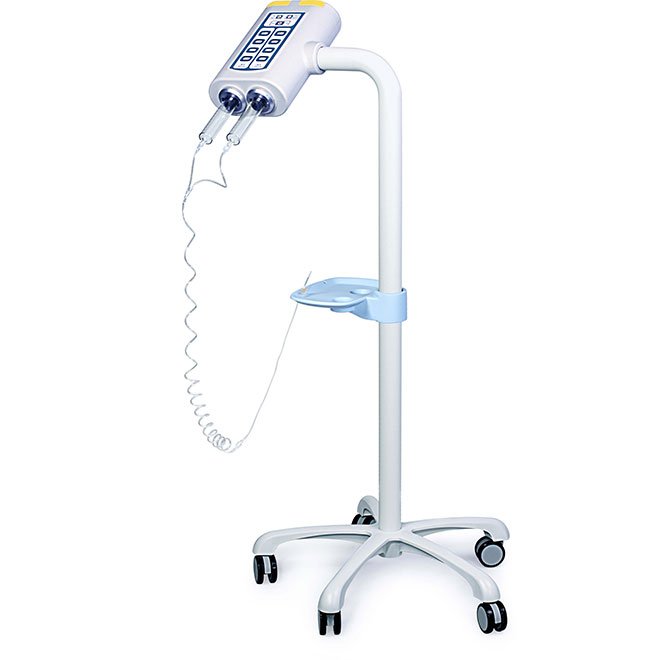

Radiographic Contrast Media Injector Control Machine NEUGT04
$24,990.00$26,990.00 (-7%)
– Advanced Radiographic Contrast Media Injector Control Machine (Model NEUGT04)
– Compact dimensions: Injector Arm (22.5″x22.5″x50.2″) and Console (4.55″x12.68″x9.77″)
– Color touch screen interface available in English, French, German, and Chinese
– Flow rate adjustable from 0.1 ml/sec to 10 ml/sec in 0.1 ml increments
– Syringe capacity of 65ml with precise volume settings (0.1 ml increments)
– 350psi pressure limit, factory set for optimal safety
– Store up to 100 custom injection protocols
– Emergency stop function for instant system halting during operation
– Autofill feature for quick and efficient preparation
– Independent KVO program for maintaining consistent flow rates
Specifications
Injector Arm and Pedestal：
Dimension:
Length: 22.5″(57.2cm)
Width: 22.5″(57.2cm)
Height: 50.2″(127.5cm)
Weight: 14 kg
Console Dimension:
Length: 4.55″(11.55cm)
Width: 12.68″(31.8cm)
Height: 9.77″(24.81cm)
Weight: 4.1 Kg
Color Touch Screen
Main Control Box：
Dimension:
Length: 16.2 ″ (41.2cm)
Width: 7.4 ″ (18.8cm)
Height:10.0″( 25.3cm)
Weight: 7.2 Kg
Electrical Requirements:
Arm Controller: Either electric network or battery Electric network: a.c.198~242V, 50/60 Hz, 200VA Battery: 8Ah Lithium polymer battery
Console: Input DC12V, 2A
Operation Interface：
Selectable in English, French, German and Chinese
Flow Rate：
0.1 ml/sec. to 10 ml/sec. in 0.1 ml/sec. increments
Syringe Capacity：
65ml
Volume：
0.1 ml to syringe capacity in 0.1 ml increments
Pressure Limit:
350psi (2415kPa) factory set
Injection or Scan Delay:
0 to 3599 seconds in 1 sec. increments
Autofill:
Settable flow rate from 3ml/sec. to 8ml/sec., in 0.1 ml increments,
volume from 10ml to syringe capability
Injection Capabilities:
Settable up to 8 phases
Pause Phase:
0~999 sec. in 1 sec. increments
Hold Capability:
More than 30 minutes.
Storage Capabilities:
100 protocols
Expel air locked:
Unable to inject unless expelling air
Test injection:
Settable flow rate from 0.1ml/sec. to 5ml/sec., in 0.1 ml increments, volume from 0.1ml to 10ml
KVO:
Independent KVO program
Heat maintainer:
35~38℃ (optional)
Hand switch:
Hand switch control pause and continue injection
Emergency stop function：
When the system is injecting, click on any point of the touch screen or any button on the injector arm, the system will stop injection
