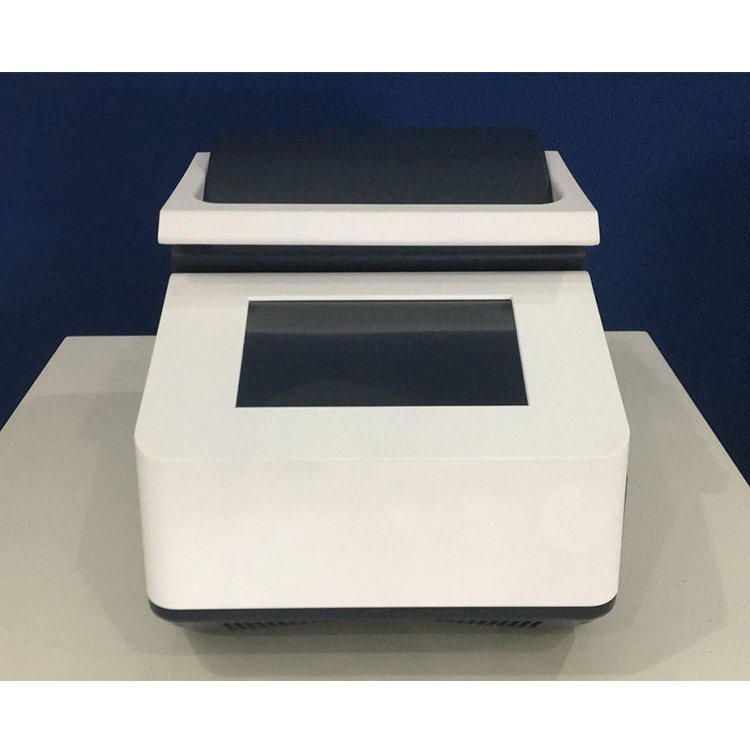

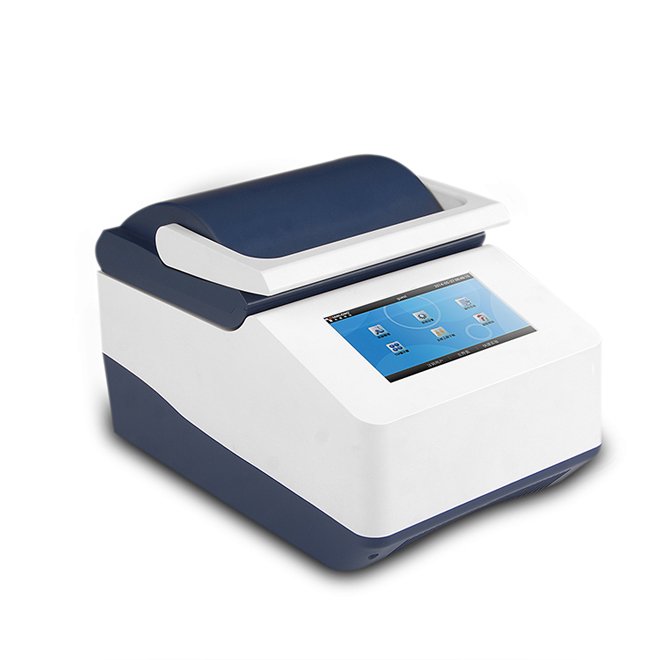

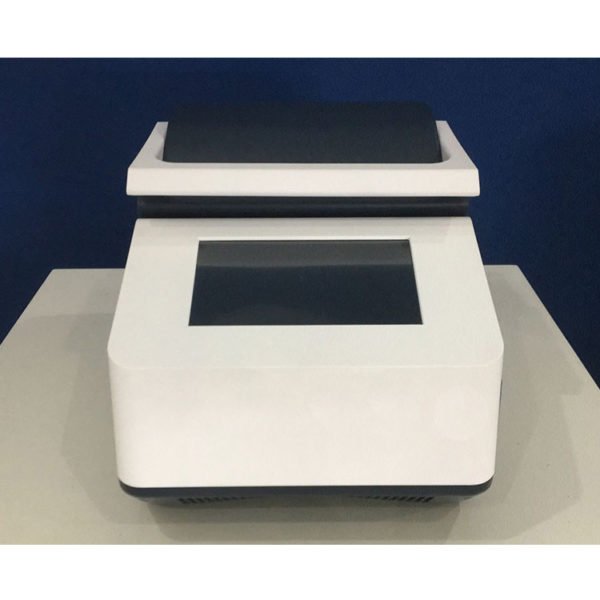

Real-Time PCR System NEUPCR16E

Specifications

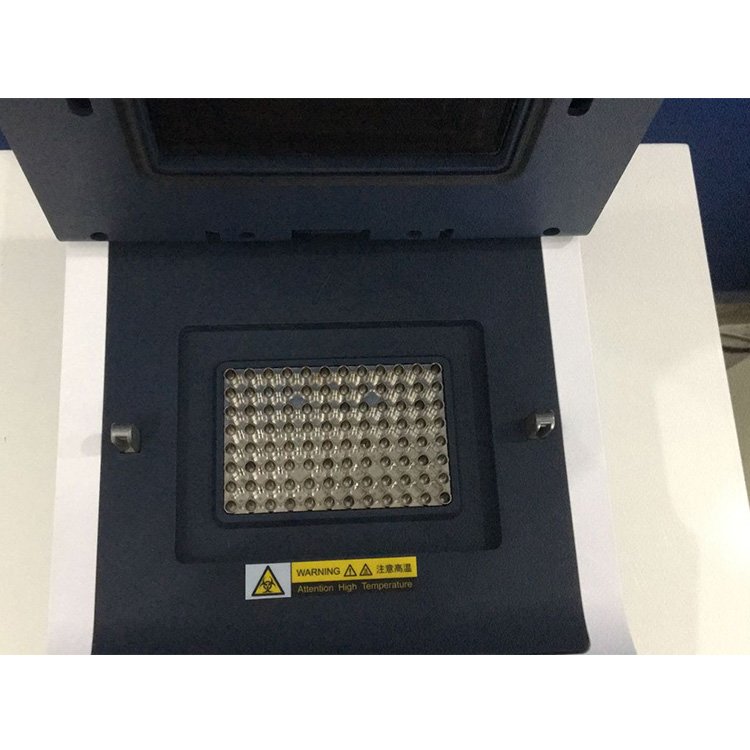

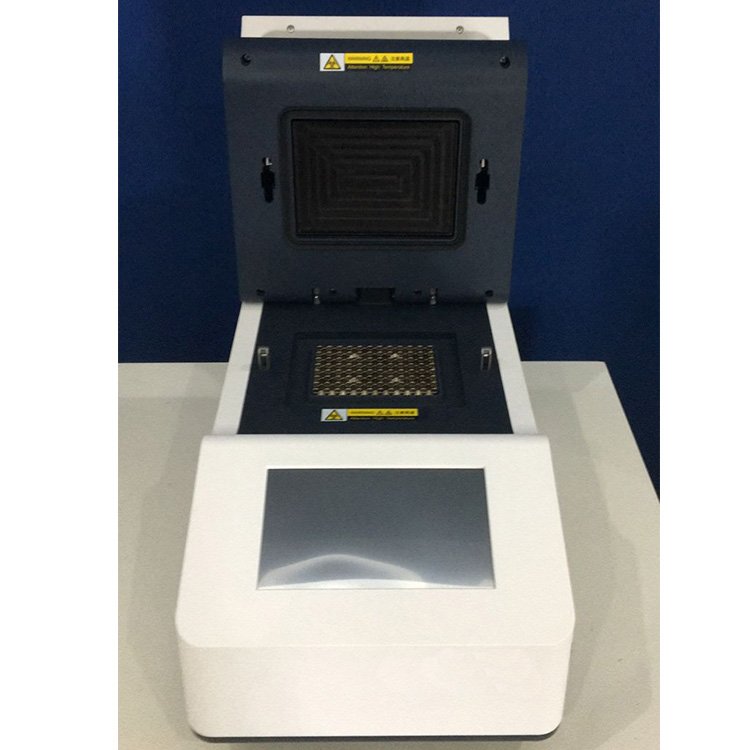

Thermal Block:

•Sample Capacity (wells): 48

•Reaction Volume: 5-100 µL

•Consumables: 0.2 ml 8-strip tubes, 0.2 ml PCR single tube (Optical flat cap, clear tube)

•Temperature Range: 0°C to 100°C

•Heating/Cooling Method: Peltier

•Max Heating Rate: 8.0°C/sec

•Average Heating Rate: 6.0°C/sec

•Max Cooling Rate: 5.5°C/sec

•Average Cooling Rate: 4.0°C/sec

•Temperature Accuracy: ±0.1°C

•Temperature Uniformity: ±0.1°C

•Gradient Range: 1°C to 40°C

•Gradient Block: 8-row

•Special Temperature Protocols: Gradient PCR, Long PCR, Touchdown PCR

Heat Lid:

•Temperature Range: Room Temperature to 110°C

Optical System:

•Excitation Source: 4 LEDs

•Detector: Photodiode

•Detection Position: Excitation and scan from lateral

•Detection Method: 4-channel scanning simultaneously (no edge effect)

•Detection Time: 2 seconds for 48 wells (all channels)

Range of Excitation/Emission Wavelengths (nm):

1.465 / 510: FAM, SYBR Green I, SYTO9, EvaGreen, LC Green

2.527 / 563: HEX, VIC, TET, JOE

3.580 / 616: ROX, Texas Red

4.632 / 664: Cy5

Probe Compatibility:

•TaqMan Probe

•Molecular Beacons Probe

•Scorpion Probe

Multiplexing:

•Up to 4 targets

Fluorescence Performance:

•Fluorescence Linearity: r ≥ 0.990

•Fluorescence Dynamic Range: Adjustable

•Sample Linearity: r ≥ 0.999

•Sample Repeatability (Ct value CV): ≤ 0.5%

•Sample Dynamic Range: 1–10¹⁰ copies

Functionality:

Data Analysis Modes:

•Qualitative Analysis

•Absolute Quantification

•Relative Quantification

•Genotyping Analysis

•Endpoint Analysis

•Melt Curve Analysis

•High-Resolution Melting

Control Modes:

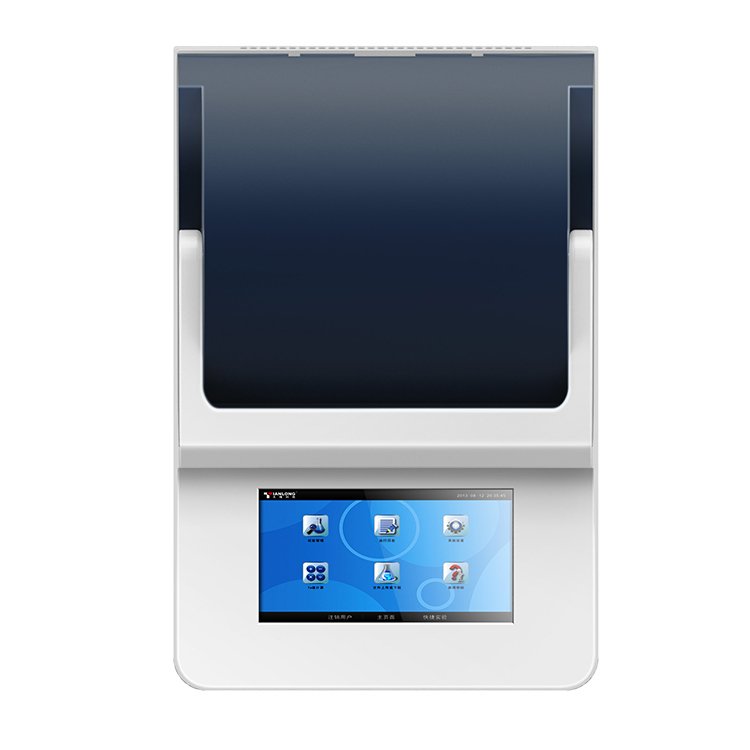

1.Touch Screen: 1.7”

2.PC Direct Control

3.WLAN Control:

•One PC can control up to 10 units

•Device can be controlled by any PC in the WLAN

Data Storage:

•Upload and download via USB disk

•Stores up to 1,000 results internally

Power Failure Protection:

•Automatically resumes experiments after power restoration (no PC wait time required)

Customizable Reports:

•Pre-set templates with customizable report options

Administration Management:

•Set user function limits for different access levels

Fault Management:

•Fault reports with analysis and solution instructions

LIS Connection:

•Data Output: CSV, Excel, TXT formats

•Open port available for LIS connection

Additional Information:

•PC Operating System: Windows 7, Windows 10

•Communication Ports: 1 Ethernet, 2 USB

•Footprint (W x D x H): 260 mm x 400 mm x 260 mm

•Weight: 11 kg

•Power Usage: AC 100–125 V / 200–240 V (50/60 Hz)

•Power Consumption: 600 VA

Work Environment:

•Temperature: 10°C to 30°C

•Humidity: 20% to 85%
