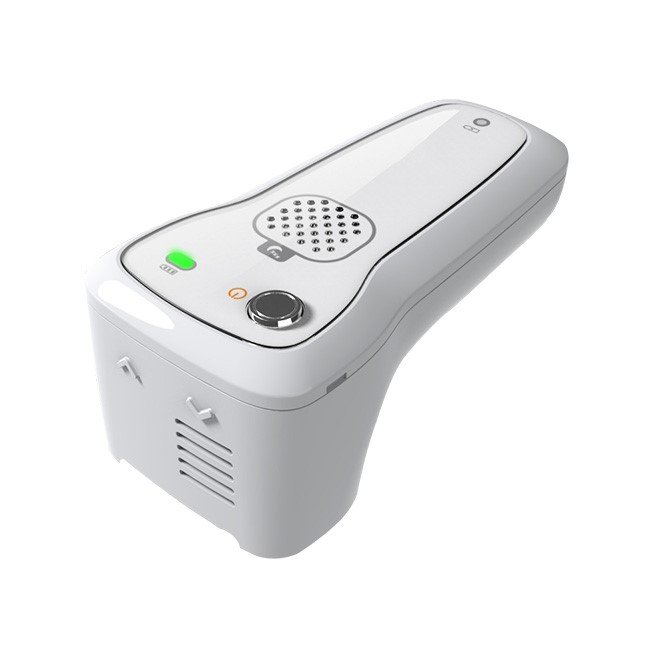

Vein Finder NEU263
- Effective positive projection distance: 29cm to 31cm
- Light projection range: 300lux to 1000lux
- Active radiation wavelength: 750nm to 980nm
- Powered by lithium ion polymer batteries
- Service voltage: DC 3.0V to 4.2V
- Lightweight design: Net weight of 0.28±0.02kg
- IPX0 rating for liquid intrusion protection
- Ideal for medical staff to accurately locate veins
- Encourages touch and visual observation for optimal results
- Recommended to select areas with minimal scars or hair for best detection
- SKU
- NEU263
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Vein Finder NEU263
Advanced infrared vein detection system designed to assist medical staff in accurately locating peripheral veins for venipuncture and vascular access procedures. Combines active near-infrared projection with intuitive visual guidance to improve first-attempt success rates and reduce patient discomfort.
Clinical overview
The Vein Finder NEU263 is a non-invasive, handheld infrared imaging device that projects a real-time map of subcutaneous veins onto the skin surface. By emitting near-infrared light (750–980 nm wavelength) that is absorbed by deoxygenated hemoglobin in venous blood, the device creates a high-contrast visual guide that enables clinicians to identify and access peripheral veins with greater accuracy and confidence. This is particularly valuable in patients with difficult venous anatomy, obesity, dark skin tones, or previous vascular trauma where traditional palpation may be unreliable.
Medical staff should combine visual observation of the projected vein map with tactile assessment and clinical judgment to determine the optimal insertion site. Best results are achieved on areas of smooth, intact skin with minimal scarring, hair, or pigmentation. The lightweight, battery-powered design allows for easy portability and use in diverse clinical environments, from emergency departments and operating theatres to outpatient phlebotomy centres and home healthcare settings.
Key features & surgeon benefits
Precision infrared imaging
- Active wavelength 750–980 nm for optimal hemoglobin absorption
- Effective projection distance 29–31 cm, ideal for standard clinical use
- Adjustable light intensity 300–1000 lux for varied skin types and ambient lighting
Intuitive clinical integration
- Handheld design enables rapid vein assessment at bedside or in procedure areas
- Real-time projection eliminates need for separate imaging equipment or software
- Combines visual guidance with tactile and clinical assessment for comprehensive vein evaluation
Lightweight & battery-powered
- Net weight 0.28 kg enables single-handed operation and easy transport
- Lithium-ion polymer battery (DC 3.0–4.2 V) provides extended runtime
- Suitable for mobile clinics, emergency response, and resource-limited settings
Robust clinical design
- IPX0 rating provides basic protection against incidental liquid contact
- Medical-grade polymer housing resists impact and cleaning agents
- Non-sterile, reusable device suitable for high-volume clinical environments
Technical specifications
| Indications | Peripheral vein location and visualization for venipuncture, IV insertion, blood draws, and vascular access procedures |
|---|---|
| Effective projection distance | 29–31 cm |
| Light projection range | 300–1000 lux |
| Active radiation wavelength | 750–980 nm (near-infrared) |
| Electrical source | Lithium-ion polymer battery |
| Service voltage | DC 3.0–4.2 V |
| Net weight | 0.28 ± 0.02 kg |
| Liquid intrusion protection | IPX0 rating |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Vein Finder NEU263 | Handheld infrared vein detection device with integrated near-infrared projector | 1 |
| Lithium-ion polymer battery | Rechargeable power source (DC 3.0–4.2 V) | 1 |
| User manual | Clinical operation and maintenance guide | 1 |
