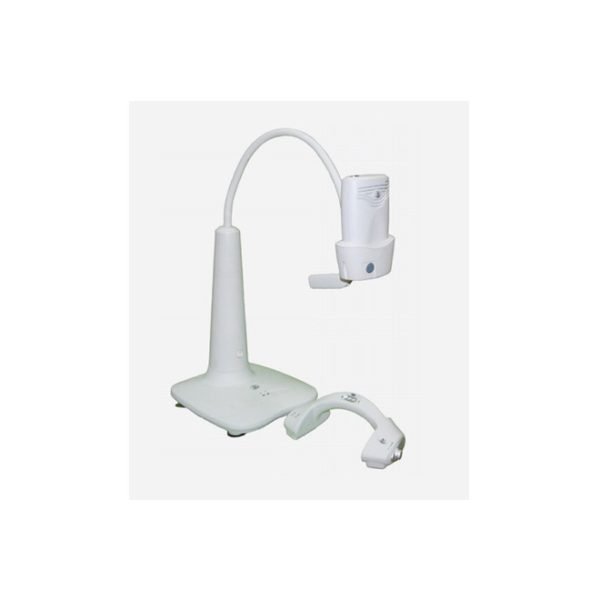

Vein Illumination System NEU264
- Advanced Vein Illumination System NEU264 for accurate vein locating
- Effective projection distance of 29cm to 31cm for enhanced visibility
- Adjustable projection illuminance ranging from 300lux to 1000lux
- Utilizes illumination light wavelengths between 750nm and 980nm
- High precision with an error margin of less than 1mm
- Equipped with a rechargeable lithium polymer battery for portability
- Versatile power adapter supports input of 100-240V AC with a maximum output of 20W
- Compact and lightweight design: measures 185mm x 115mm x 55mm and weighs ≤0.7kg
- Available with two stand options for stability: Stand I (≤1.1kg) and Stand II (≤3.5kg)
- Designed with IPX0 water resistance for safe usage in medical environments
- SKU
- NEU264
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Vein Illumination System NEU264
Advanced vein locating technology with near-infrared illumination for accurate peripheral vein identification. Delivers precise projection at 29–31 cm with adjustable illuminance and sub-millimetre accuracy. Portable, rechargeable, and designed for clinical reliability in infusion and phlebotomy procedures.
Clinical overview
The NEU264 Vein Illumination System employs near-infrared light (750–980 nm wavelength) to penetrate tissue and highlight subcutaneous veins in real time. This non-invasive optical approach significantly reduces insertion attempts, patient discomfort, and procedural time in phlebotomy, IV placement, and other vascular access scenarios. The system's precision error of less than 1 mm ensures clinicians can confidently target even difficult-to-access veins.
Designed for high-volume clinical environments, the NEU264 combines portability with robust performance. Its rechargeable lithium polymer battery, compact form factor (185 × 115 × 55 mm, ≤0.7 kg), and dual stand options enable seamless integration into emergency departments, infusion centres, oncology units, and mobile phlebotomy services. IPX0 water resistance ensures safe operation in standard medical settings.
Key features & surgeon benefits
Sub-millimetre accuracy
- Error margin <1 mm for reliable vein targeting
- Effective projection distance 29–31 cm optimised for standard clinical reach
- Adjustable illuminance (300–1000 lux) for varied skin tones and vein depth
Portable and ready-to-use
- Lightweight handheld design (≤0.7 kg) for one-handed operation
- Rechargeable battery eliminates cord dependency
- Two stand options (I and II) for hands-free positioning or mobile deployment
Cost-effective vascular access
- Reduces failed insertion attempts and associated costs
- Decreases patient anxiety and improves first-stick success rates
- Durable lithium polymer battery and robust construction minimise replacement cycles
Flexible deployment options
- Stand I (≤1.1 kg) for compact clinical spaces
- Stand II (≤3.5 kg) for stable, stationary infusion centre setups
- OEM customisation available for integration into clinical workflows
Technical specifications
| Indications | Peripheral vein location and visualization for infusion, phlebotomy, and vascular access procedures |
|---|---|
| Effective projection distance | 29–31 cm |
| Projection illuminance | 300–1000 lux (adjustable) |
| Illumination wavelength | 750–980 nm (near-infrared) |
| Precision error | <1 mm |
| Device dimensions | 185 × 115 × 55 mm (±5 mm tolerance) |
| Device weight | ≤0.7 kg |
| Battery | Rechargeable lithium polymer |
| Power adapter | Input: 100–110V/240V AC, 50/60 Hz, 0.7 A; Output: 5 V DC, 4 A, 20 W max |
| Water resistance | IPX0 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Vein finder unit | NEU264 handheld vein illumination system with rechargeable battery | 1 |
| Power adapter | 100–110V/240V AC input, 5 V DC 4 A output, 20 W max | 1 |
| Stand option I | Compact stand for handheld positioning (≤1.1 kg) | Optional |
| Stand option II | Stable stand for stationary deployment (≤3.5 kg) | Optional |
| User manual | Clinical operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss the NEU264 Vein Illumination System, customisation options, and volume pricing for your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
