- 8.4 inch color LCD screen for easy visibility
- Compact and user-friendly anesthesia ventilation system
- Supports adult and pediatric patients for diverse applications
- Monitors ventilation parameters with preset settings and alarms
- Operates on three gas sources: O2, N2O, and air
- Safety features include hypoxic guard system and safety valve
- High minute volume capacity of >18L/min
- Built-in vaporizer for Isoflurane, Enflurane, Sevoflurane, and Halothane
- Portable design with casters and central braking system
- Adheres to ISO 9001:13485 standards for quality assurance
A compact, user-friendly anesthesia ventilation system with an 8.4-inch color LCD screen for real-time monitoring. Supports adult and pediatric patients with advanced safety features, multi-gas capability, and integrated vaporizer technology for diverse inhalation anesthesia applications.

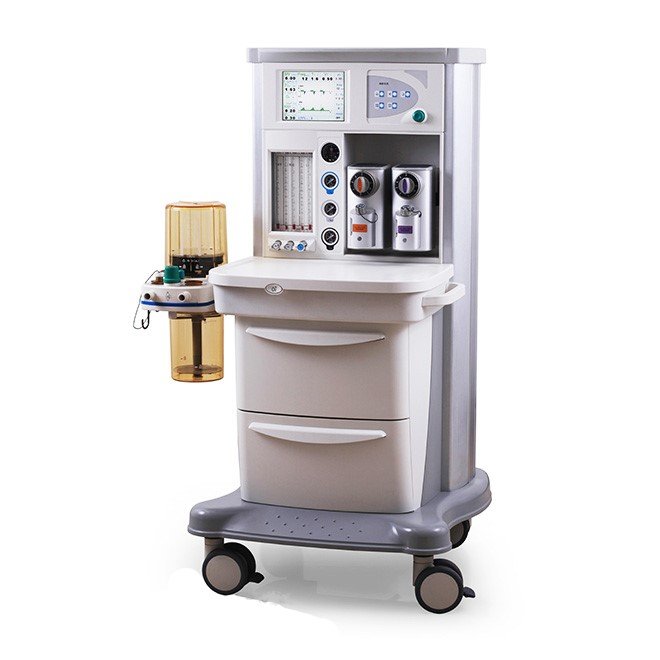

The NEUGA26 is a modern, portable anesthesia ventilation system designed for flexible inhalation anesthesia delivery in operating theatres, intensive care units, and emergency departments. Its 8.4-inch color LCD display provides clear, real-time visualization of ventilation parameters, waveforms, and alarm status, enabling clinicians to monitor patient physiology continuously and respond rapidly to changes in respiratory mechanics.
Supporting both adult and pediatric populations, the system operates on three independent gas sources (O₂, N₂O, and air) with integrated safety mechanisms including a hypoxic guard system and pressure relief valve. The built-in dual-mount vaporizer accommodates multiple volatile anesthetic agents (Isoflurane, Enflurane, Sevoflurane, Halothane), making it suitable for diverse anesthetic protocols and institutional preferences. Its portable design with central-brake casters ensures easy transport between clinical areas while maintaining stability during operation.
| Indications | Closed, semi-closed, semi-open inhalation anesthesia; controlled or assisted ventilation for adult and pediatric patients |
|---|---|
| Display | 8.4-inch color LCD with waveform graphics (P-T, F-T, V-T, P-V, V-F, F-P loops) |
| Minute volume range | >18 L/min |
| SIGH range | 0–5/100 |
| Fresh gas compensation | 25–75 L/min |
| CO₂ absorber capacity | 1.5 L |
| Gas sources | O₂, N₂O, air (3 independent sources) |
| Flow meter ranges | O₂: 0.1–10 L/min; N₂O: 0.1–10 L/min; air: 1–10 L/min |
| Vaporizer | 2 Selectetac mounts (Isoflurane, Enflurane, Sevoflurane, Halothane compatible) |
| Monitoring parameters | VT, MV, BPM, Paw, lung compliance, inspiratory platform, FiO₂ |
| Safety features | Hypoxic guard system (N₂O cut-off <25% O₂); pressure relief valve (<12.5 kPa); audio/visual alarms |
| Dimensions | 70 × 85 × 140 cm |
| Weight | 65 kg |
| Mobility | Casters with central brake and lock |
| Power supply | AC 110V/220V ±10%, 50/60Hz ±2%; max 500 mA |
| Output pressure | 0.4 ±0.1 MPa |
| Quality standard | ISO 9001:13485 certified |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main unit | Anesthesia ventilation system with integrated display and control panel | 1 |
| LCD display module | 8.4-inch color screen with waveform graphics and alarm indicators | 1 |
| Flow meter assembly | 5-tube cascade flow meter (O₂, N₂O, air) | 1 |
| Vaporizer mounts | Selectetac dual-mount vaporizer interface | 2 |
| CO₂ absorber canister | 1.5 L capacity with fresh gas compensation | 1 |
| Safety valve assembly | Pressure relief valve (<12.5 kPa) and hypoxic guard system | 1 |
| Caster wheels | Mobile base with central brake and lock mechanism | 4 |
| Power cable | AC 110V/220V ±10%, 50/60Hz ±2% rated | 1 |
Contact our sales team to discuss system configuration, pricing, delivery timelines, and customization options for your facility. We provide comprehensive technical support and clinical training for all NEUGA26 installations.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
