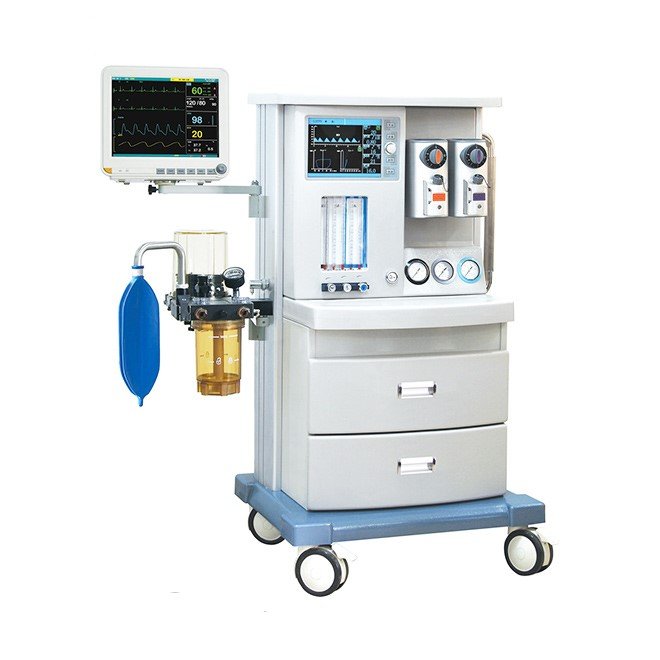

Anesthesia Ventilator NEUGA15
$11,990.00$12,990.00 (-8%)
– Model: Anesthesia Ventilator NEUGA15
– Operating Modes: Circulatory closed, semi-closed, and semi-open
– Respiratory Frequencies: 4-40 bpm
– Tidal Volume Range: 50-1500 mL
– Oxygen Flush Rate: 25-75 L/min
– Maximum Safety Pressure: ≤ 12.5 kPa
– Built-in Alarms for Low Oxygen Pressure and High Airway Pressure
– Complies with ISO standards for safety and performance
– Requires medical oxygen and laughing gas with specific pressure ranges
– Compact design with adjustable anesthetic gas concentration (0-5%)
Anesthesia Ventilator NEUGA15
Precision anesthesia delivery with integrated mechanical ventilation. The NEUGA15 combines closed, semi-closed, and semi-open operating modes with advanced safety monitoring, oxygen-nitrous oxide proportional control, and adjustable anesthetic gas concentration for comprehensive perioperative respiratory management.
Clinical overview
The NEUGA15 is a comprehensive anesthesia ventilator system designed for safe, reliable gas delivery and mechanical ventilation in the operating room. It integrates oxygen and nitrous oxide flow control with a precision vaporizer and mechanical ventilator, offering three operating modes—circulatory closed, semi-closed, and semi-open—to accommodate diverse anesthetic techniques and patient requirements.
Built-in safety features include low oxygen pressure alarms, high airway pressure monitoring, oxygen-nitrous oxide proportional control (ensuring minimum 20% FiO₂), and pressure-relief valves. The system complies with international standards (ISO 9918, ISO 7767, IEC 60601-2-13) and is equipped with monitoring interfaces for carbon dioxide, oxygen, and expiratory gas volume, ensuring comprehensive respiratory surveillance throughout anesthesia.
Key features & surgeon benefits
Integrated Alarm System
- Low oxygen pressure alarm (high priority) with automatic N₂O shutoff at 0.20 MPa ±0.05 MPa
- High airway pressure alarm with adjustable upper limit (0.3–6 kPa)
- Low airway pressure alarm with 4–15 second detection window
- Oxygen-nitrous oxide proportional control maintaining ≥20% FiO₂
Flexible Respiratory Modes
- Three operating modes: IPPV, SIPPV, and manual ventilation
- Respiratory frequency range 4–40 bpm for pediatric to adult patients
- Adjustable I/E ratio (1:1.5 to 1:4) for optimized gas exchange
- Tidal volume range 50–1500 mL with precise pressure control
Precision Anesthetic Administration
- Vaporizer concentration range 0–5% with ±20% relative accuracy
- Oxygen flush capability 25–75 L/min for rapid oxygenation
- Flow meter accuracy ±10% across 10–100% of full scale
- Proportional control device for consistent N₂O/O₂ mixing
Compact & Reliable
- Compact footprint suitable for standard OR environments
- Maximum safety pressure ≤12.5 kPa with pressure limit range 1–6 kPa
- 6-second controlled-to-assisted ventilation switching time
- Operates in ambient temperature 10–40°C, humidity ≤80%, pressure 860–1060 hPa
Technical specifications
| Indications | General anesthesia delivery and mechanical ventilation support during surgical procedures |
|---|---|
| Operating Modes | Circulatory closed, semi-closed, semi-open |
| Respiratory Frequency | 4–40 bpm |
| Tidal Volume Range | 50–1500 mL |
| I/E Ratio | 1:1.5 to 1:4 |
| Oxygen Flush Rate | 25–75 L/min |
| Vaporizer Concentration | 0–5% with ±20% relative error |
| Maximum Safety Pressure | ≤12.5 kPa |
| Pressure Limit Range | 1–6 kPa |
| Airway Pressure Alarm Range | Upper: 0.3–6 kPa; Lower: 0.2–5 kPa |
| Gas Supply Requirement | Medical oxygen and nitrous oxide at 0.3–0.5 MPa |
| Flow Meter Indication Range | 0.1–10 L/min (±10% accuracy at 10–100% full scale) |
| Power Requirement | 220–240V AC, 50/60 Hz, 40 VA (properly grounded) |
| Ambient Operating Conditions | Temperature 10–40°C; Humidity ≤80%; Atmospheric pressure 860–1060 hPa |
| Safety Standards | ISO 9918, ISO 7767, IEC 60601-2-13 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Anesthesia Ventilator NEUGA15 with integrated gas delivery and ventilation system | 1 |
| Oxygen Flow Meter | Precision flow meter with proportional control, 0.1–10 L/min range | 1 |
| Nitrous Oxide Flow Meter | Precision flow meter with proportional control, 0.1–10 L/min range | 1 |
| Vaporizer | Adjustable anesthetic gas vaporizer, 0–5% concentration | 1 |
| Oxygen Pressure Regulator | Safety valve equipped, exhaust pressure ≤6 kPa | 1 |
| Nitrous Oxide Pressure Regulator | Safety valve equipped, exhaust pressure ≤6 kPa | 1 |
| Ventilator Bellows Assembly | Mechanical bellows for IPPV, SIPPV, and manual modes | 1 |
| Breathing Circuit Safety Valve | Pressure relief valve, exhaust pressure ≤6 kPa | 1 |
| Oxygen Flush Valve | Manual oxygen flush control, 25–75 L/min | 1 |
| Alarm Module | Integrated low oxygen pressure and high airway pressure alarm system | 1 |
| Power Cable | AC power supply cable with grounding, 220–240V 50/60 Hz | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUGA15. We provide comprehensive technical support and can arrange demonstrations at your facility.
