- Advanced Ventilator Machine NEUVM04 designed for optimal respiratory support.
- Operating temperature range: -18 to 50°C with 15%-95% humidity tolerance.
- Versatile power options: AC110V-240V or DC12V with a rechargeable Li-battery.
- Multiple ventilation modes: CMV, A/C, SIMV, and SPONT to cater to various patient needs.
- Adjustable tidal volume from 50 to 1200ml and respiratory rate between 5 to 60 bpm.
- Comprehensive monitoring features for tidal volume, minute ventilation, and respiratory rate.
- Safety alarms for high and low airway pressure, low battery, and low oxygen source.
- Compact design with package dimensions of 570*460*250mm and weight of 12kg including accessories.

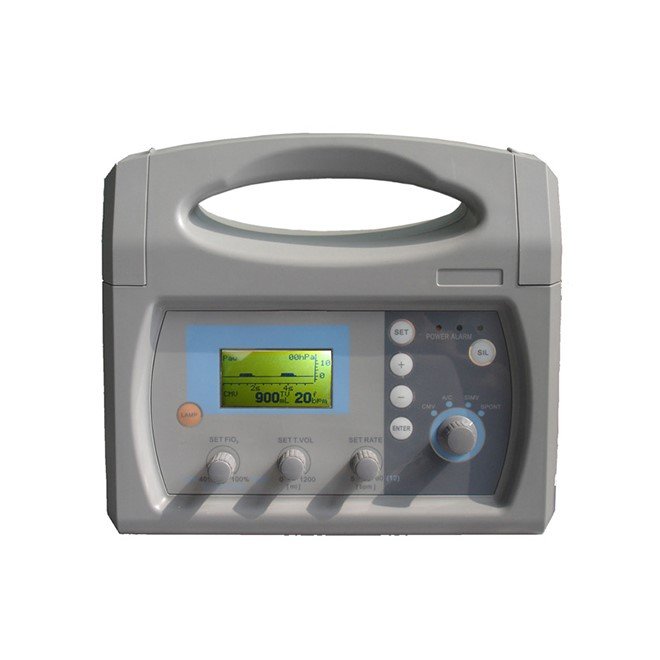

Advanced respiratory support system engineered for critical care environments. The NEUVM04 delivers versatile ventilation modes with comprehensive monitoring and safety features, operating reliably across demanding temperature and humidity conditions with dual power options for maximum clinical flexibility.
The NEUVM04 is a sophisticated ventilator system designed to meet the demands of modern critical care. It provides clinicians with four distinct ventilation modes—CMV (Controlled Mechanical Ventilation), A/C (Assist/Control), SIMV (Synchronized Intermittent Mandatory Ventilation), and SPONT (Spontaneous)—enabling tailored respiratory support for diverse patient populations and clinical scenarios. The device operates seamlessly across a wide environmental range (-18 to 50°C, 15–95% relative humidity) and supports both AC mains (110–110V/240V) and DC battery (12V rechargeable Li-battery) power, ensuring reliable operation in varied healthcare settings.
Comprehensive real-time monitoring of tidal volume, minute ventilation, respiratory rate, inspiratory time, trigger sensitivity, airway pressure, and airway pressure waveform enables clinicians to optimize ventilation parameters with precision. Multi-level safety alarms—including high and low airway pressure, low battery, and low oxygen source alerts—protect patient safety and alert staff to critical conditions. The compact, portable design (570×460×250 mm, 12 kg) facilitates transport and deployment in emergency, transport, and remote care scenarios.
| Indications | Respiratory support; CMV, A/C, SIMV, and spontaneous breathing modes |
|---|---|
| Ventilation modes | CMV, A/C, SIMV, SPONT |
| Tidal volume range | 50–1200 ml |
| Respiratory rate | 5–60 bpm (1–12 bpm for SIMV) |
| FiO2 | 40–100% |
| PEEP | 0, 5–20 hPa |
| Peak inspiratory pressure (PIP) | 0–60 hPa |
| Trigger sensitivity | -10 to 0 hPa |
| Maximum minute volume | ≥22 L/min |
| Base flow | 0–10 L/min |
| Over-pressure relief | ≤7.2 kPa |
| Sigh function | 1–10 per 100 breaths |
| Power supply | AC 110–110V/240V or DC 12V (rechargeable Li-battery, 14.8V) |
| Operating temperature | -18 to 50°C |
| Relative humidity | 15–95% |
| Atmospheric pressure | 70–110 kPa |
| Gas source requirement | 0.28–0.6 MPa, 60 L/min |
| Package dimensions | 570×460×250 mm |
| Weight | 12 kg (including all accessories) |
| Warranty | 2 Year Manufacturer Warranty |
| Monitoring Parameters | Alarm Functions |
|---|---|
| Tidal volume | High airway pressure alarm |
| Minute ventilation volume | Low airway pressure alarm |
| Respiratory rate | Low battery alarm |
| Inspiratory time | Low oxygen source alarm |
| Trigger sensitivity | |
| Airway pressure | |
| Airway pressure waveform |
Contact our sales team to discuss the NEUVM04 ventilator system, request detailed specifications, arrange a demonstration, or place an order. We provide comprehensive support and rapid delivery to healthcare facilities worldwide.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
