Trustworthy full-scan densitometer
Positioning guidance is good and the scans reproduce well between technicians. Calibration stability across the week has been reassuring.
Dr. Hana Yamamoto, MDVerified buyerMar 15, 2026
Bone Density Test Scan NEUBD08
4.3(3 reviews)- Advanced bone density test with ultrasonic parameters: BUA, SOS, and OI.
- Full dry type measurement method for easy operation without liquids.
- Quick measurement time of 25 seconds with high accuracy and repeatability.
- Features a built-in 10.1-inch touch screen for user-friendly navigation.
- Dual USB interface and built-in thermal printer for versatile report generation.
- Automatic calibration and temperature compensation ensure reliable results.
- Supports multiple languages and report formats for convenience.
- Child-friendly features, including animation playback to engage young patients.
- Bluetooth report transmission and cloud storage capabilities for easy access.
- Compact and lightweight design with a special work trolley for mobility.
- SKU
- NEUBD08
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic Ultrasound System

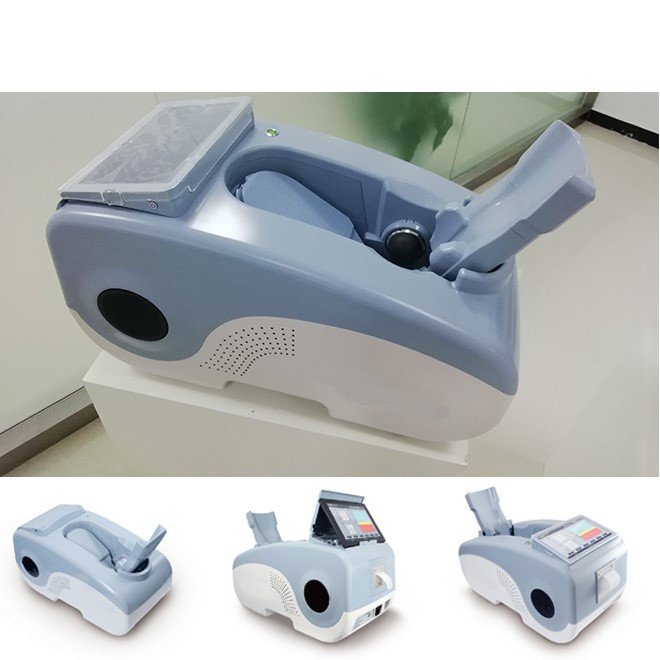

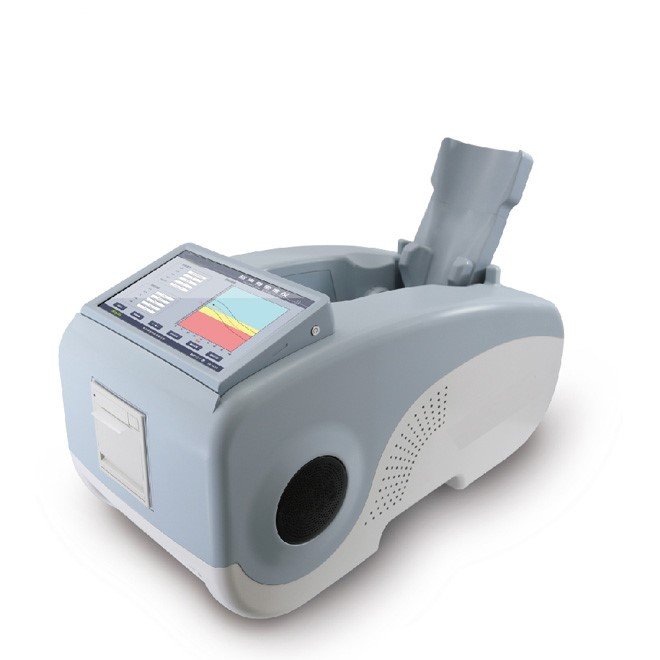

Bone Density Test Scan NEUBD08
Advanced ultrasonic bone density assessment system with dry-type measurement technology. Delivers rapid, accurate quantitative analysis of bone health via BUA, SOS, and OI parameters in under 25 seconds. Integrated 10.1-inch touchscreen, thermal printer, and multi-language support for seamless clinical workflow and patient engagement.
Ordering Ref.
NEUBD08
ConfigurationStandalone with integrated touchscreen
MaterialMedical-grade ultrasonic probe with oil bladder
ApplicationOrthopedic, rheumatology, primary care
OEM customisation available. PACS integration and hospital network connectivity supported. Includes mobile work trolley for point-of-care deployment.
Clinical overview
The NEUBD08 is a quantitative ultrasound (QUS) system designed for rapid, non-invasive assessment of bone mineral density and microarchitecture. Operating on a fully dry measurement principle—eliminating the need for coupling liquids or temperature control—the system delivers three core diagnostic parameters: BUA (broadband ultrasonic attenuation), SOS (speed of sound), and OI (bone mass index). Measurement is completed in ≤25 seconds with exceptional repeatability (OPR ≤±1%), making it ideal for high-throughput screening and longitudinal monitoring in diverse clinical settings.
The integrated 10.1-inch touchscreen, built-in thermal printer, and dual USB interface enable standalone operation without external infrastructure. Automatic probe positioning, real-time signal optimization, and child-friendly animation features reduce operator dependency and enhance patient compliance. Multi-database support (Asian, European, Middle Eastern, African) and comprehensive diagnostic reporting—including T-values, Z-values, BMI, height prediction, and obesity indices—provide clinicians with actionable bone health intelligence for both adult and pediatric populations.
Key features & surgeon benefits
Measurement Accuracy
Precision Ultrasonic Parameters
- Three-parameter analysis: BUA, SOS, OI for comprehensive bone assessment
- SOS accuracy ≤±2%; BUA repeatability ≤±5%; OPR ≤±1%
- 0.5 MHz probe frequency with >60% broadband at 4–6 dB
- Automatic calibration and temperature compensation for consistent results
Workflow Efficiency
Rapid, Operator-Independent Testing
- Measurement completed in ≤25 seconds per patient
- Automatic probe positioning and best-signal detection
- Child-friendly animation playback to engage pediatric patients
- Built-in thermal printer for immediate on-site report generation
Deployment & Integration
Flexible Clinical Connectivity
- Standalone operation with integrated 10.1-inch touchscreen and Windows OS
- Dual USB interface and Bluetooth report transmission for seamless data sharing
- PACS network integration and hospital system compatibility
- Mobile work trolley for point-of-care and remote clinic deployment
Patient Population Support
Comprehensive Diagnostic Reporting
- Dual adult and pediatric leg shields with three auxiliary foot stations
- Adult parameters: T-value, Z-value, age ratio, adult ratio, obesity index
- Pediatric parameters: Z-value, BMI, height prediction, obesity assessment
- Multi-language interface (Chinese/English) and A4/B5 report formats
Technical specifications
| Indications | Bone density screening, osteoporosis risk assessment, longitudinal bone health monitoring in adults and pediatric populations |
|---|---|
| Ultrasonic Parameters | BUA (broadband ultrasonic attenuation), SOS (speed of sound), OI (bone mass index) |
| Measurement Method | Full dry type (no coupling liquid or temperature control required); two-way ultrasonic transmission and reception |
| Probe Frequency | 0.5 MHz ±10% |
| Broadband (4–6 dB) | >60% |
| Measurement Time | ≤25 seconds |
| Repeatability (OPR) | ≤±1% |
| SOS Accuracy | ≤±2% |
| BUA Repeatability | ≤±5% |
| Ultrasonic Output (TIS) | 2.8×10⁻³ mW/cm² |
| Calibration | Automatic calibration of human body simulation module |
| Temperature Compensation | Automatic system to compensate for temperature-induced measurement deviation |
| Reference Databases | Asian, European, Middle Eastern, African populations |
| Display | Built-in 10.1-inch touchscreen with integrated computer host |
| Output Interfaces | Dual USB, built-in thermal printer, Bluetooth report transmission, PACS network support |
| Probe Design | Oil bladder probe with special ultrasonic oil conductor; permanent use without replacement |
| Language Support | Chinese/English interface switching |
| Report Formats | A4, B5, and other sizes; color report output; EXCEL export for data analysis |
| Leg Shields | Dual adult and pediatric shields with three auxiliary foot stations for variable anatomical sizes |
| Operating System | Windows XP, Win7, Win8, Win10 (32-bit and 64-bit support) |
| Operating Temperature | 10–40°C |
| Operating Humidity | 30–70% relative humidity (non-condensing) |
| Power Requirements | AC 110V/220V ±10%, 50/60Hz, 3.15 A, 125 W |
| Instrument Weight | 13 kg |
| Instrument Dimensions | 330 mm (W) × 360 mm (H) × 645 mm (L) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit (Host) | Integrated computer with 10.1-inch touchscreen, ultrasonic measurement module, and thermal printer | 1 |
| Ultrasonic Probe | Oil bladder probe with 0.5 MHz frequency and automatic signal optimization | 1 |
| Adult Leg Shield | Measurement positioning device for adult patients | 1 |
| Pediatric Leg Shield | Measurement positioning device for pediatric patients | 1 |
| Auxiliary Foot Stations | Three stations for variable anatomical foot sizes | 3 |
| Mobile Work Trolley | Wheeled stand for portable deployment and point-of-care operation | 1 |
| Thermal Printer Paper | Consumable report paper for on-site printing | 1 roll |
| USB Cables | Dual USB interface connectors for data transfer and external device connectivity | 2 |
| Power Cable & Adapter | AC 110V/220V power supply with regional plug adapters | 1 |
| User Manual & Software | Comprehensive operating guide, software installation media, and training materials | 1 set |
