Portable Bone Density Scanner NEUBD10
5.0(2 reviews)- Portable and lightweight design for easy transport
- Utilizes ultrasound technology for non-invasive bone density measurement
- Measures bone density at the radius and tibia, suitable for all ages
- Ideal for pregnant women, children, and the elderly
- Provides reliable results unaffected by soft tissue thickness or bone size
- Quick measurement time: single measurement in ≤ 25 seconds
- Compatible with Windows XP and above operating systems
- Features a comprehensive database for multi-age data selection
- Operating conditions: 5-40℃ and relative humidity ≤ 80%
- Easy to connect to desktop computers, laptops, or tablets
- SKU
- NEUBD09-1
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic & Monitoring Devices

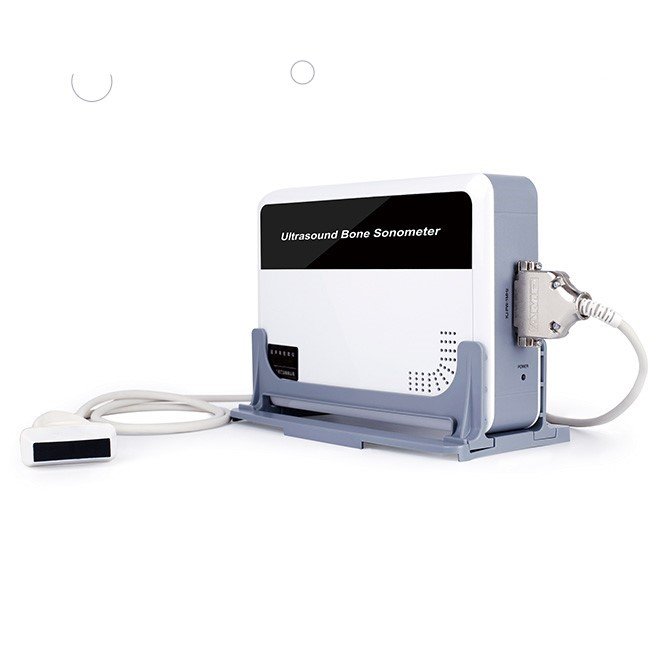

Portable Bone Density Scanner NEUBD10
Lightweight ultrasound-based bone density measurement system for radius and tibia assessment. Non-invasive, rapid measurement in ≤25 seconds. Ideal for pregnant women, children, and elderly populations across all medical and physical examination institutions.
Ordering Ref.
NEUBD09-1
ConfigurationPortable ultrasound scanner
MaterialMedical-grade ultrasound probe
ApplicationClinical bone density assessment
OEM customisation available. Multi-region database support (Asia, Europe, and others). Compatible with Windows XP and above systems.
Clinical overview
The NEUBD10 employs critical angle side wave theory ultrasound technology to measure bone density at the radius and tibia—measurement sites that are convenient, accessible, and clinically reliable. The non-invasive approach makes it especially suitable for pregnant women, children, and other special populations where radiation exposure must be minimised. Results are unaffected by soft tissue thickness, bone size, or skeletal shape, ensuring consistent accuracy across diverse patient demographics.
Designed for medical and physical examination institutions, the NEUBD10 provides detailed bone density data essential for osteoporosis screening in the elderly and developmental bone assessment in children. The system includes comprehensive multi-age and multi-region databases (Asia, Europe, and others), enabling clinicians to select appropriate reference populations for accurate comparative analysis.
Key features & surgeon benefits
Portability
Lightweight & Mobile
- Compact, elegant design for easy transport between clinics or departments
- Connects to desktop computers, laptops, or tablets via standard interfaces
- Ideal for mobile screening programmes and remote healthcare settings
Workflow
Rapid & Convenient Measurement
- Single measurement completed in ≤25 seconds; repeat measurement in ≤75 seconds
- Measurement at radius or tibia—accessible anatomical sites requiring minimal patient positioning
- Streamlined workflow reduces patient wait times and increases throughput
Reliability
Accurate & Unbiased Results
- Results independent of soft tissue thickness, bone size, or skeletal morphology
- Critical angle side wave theory provides robust, reproducible measurements
- Comprehensive parameter output: T-score, Z-score, skeletal age, BQI, RRF, EOA
Versatility
Multi-Population Applicability
- Safe for pregnant women, infants, children, and elderly patients
- Multi-region database support enables region-specific reference comparisons
- Suitable for diverse clinical settings: hospitals, clinics, occupational health, research
Technical specifications
| Measurement Position | Radius (NEUBD09–NEUBD10) |
|---|---|
| Measurement Theory | Critical Angle Side Wave Theory |
| Ultrasound Parameters | SOS (Speed of Sound), T-score |
| Output Parameters | T-score, Z-score, Skeletal Age, BQI, RRF, EOA |
| Probe Frequency | 1 MHz ±15% |
| Measurement Time | Single ≤25 seconds; Repetition ≤75 seconds |
| Operating System | Windows XP or above |
| Operating Temperature | 5–40°C |
| Operating Humidity | Relative humidity ≤80% |
| Power Requirement | AC 110V/220V ±10%, 50/60Hz ±1 Hz |
| Suitable Populations | Pregnant women, infants, children, elderly |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Portable Bone Density Scanner | NEUBD10 ultrasound measurement unit with integrated probe | 1 |
| Ultrasound Probe | 1 MHz ±15% frequency, critical angle side wave technology | 1 |
| Connection Cable | USB/standard interface for computer/tablet connectivity | 1 |
| Software | Measurement and analysis software with multi-region database | 1 |
| User Manual | Operating instructions and clinical guidelines | 1 |
| Calibration Block | Quality assurance and system verification | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUBD10 system, request a demonstration, or obtain a formal quotation. We provide comprehensive support, rapid delivery, and flexible customisation options for your institution.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
