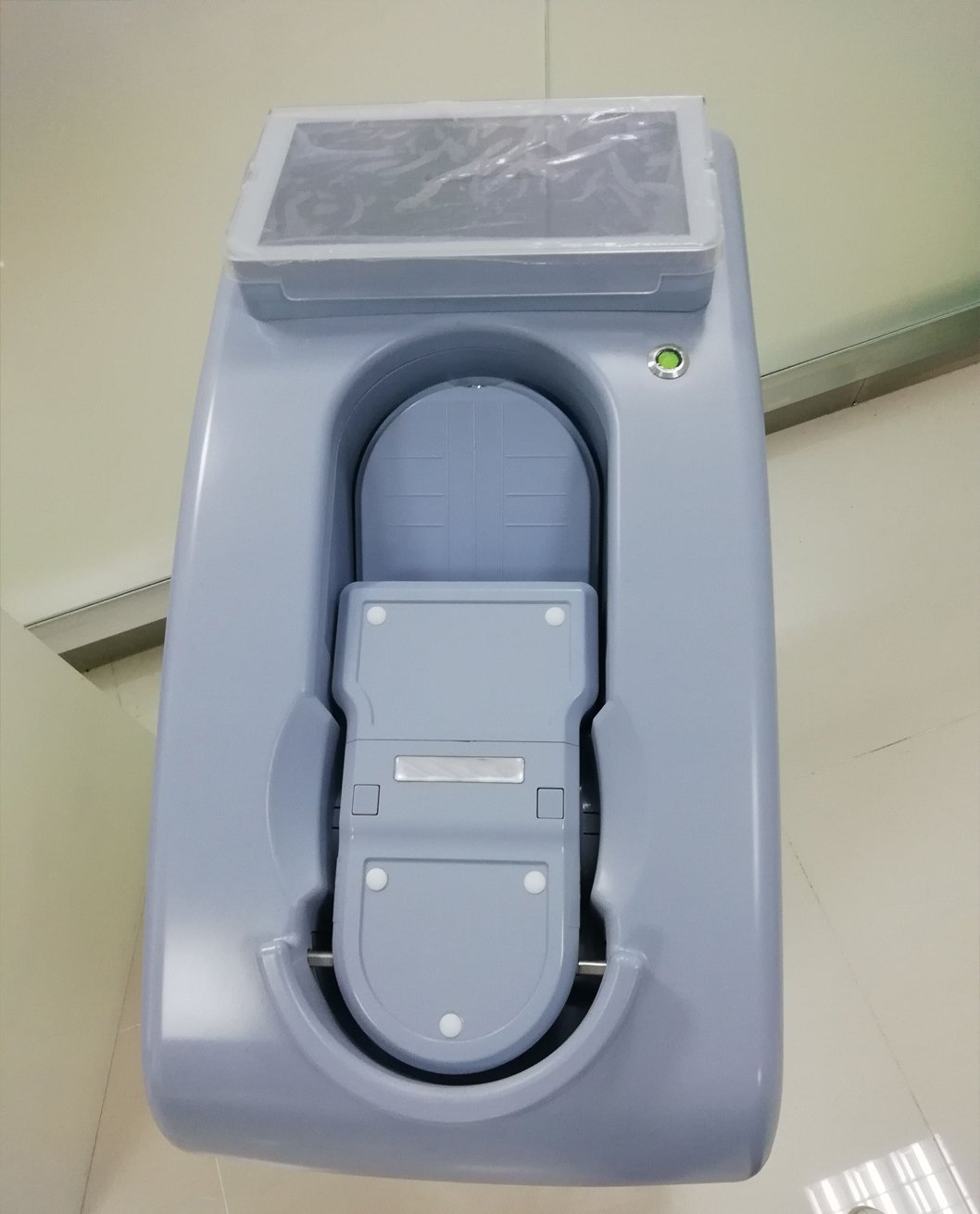

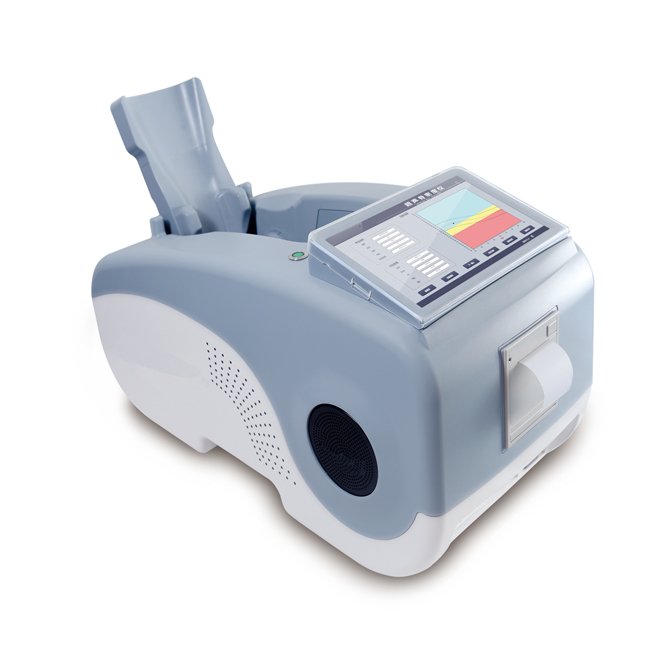

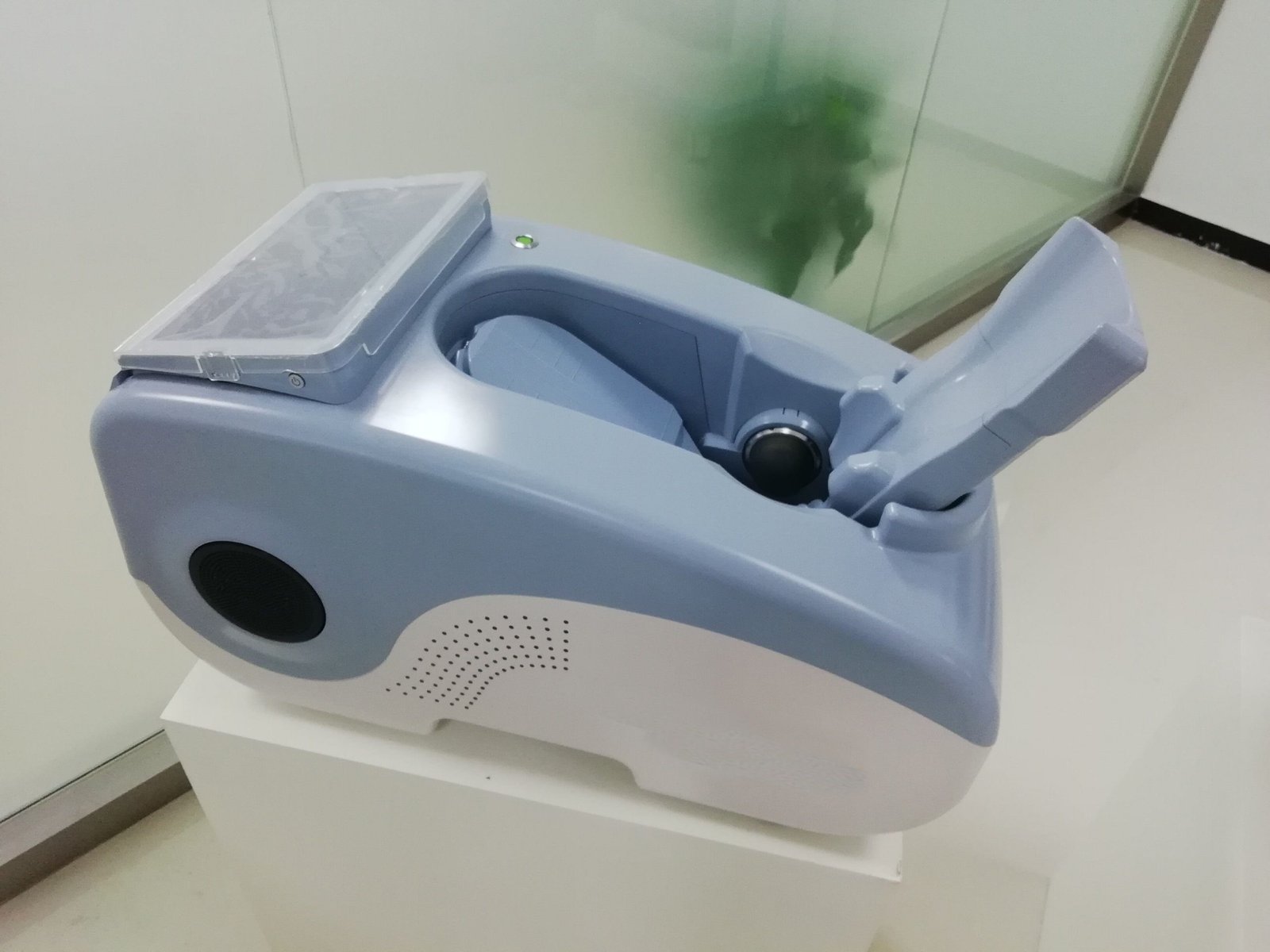

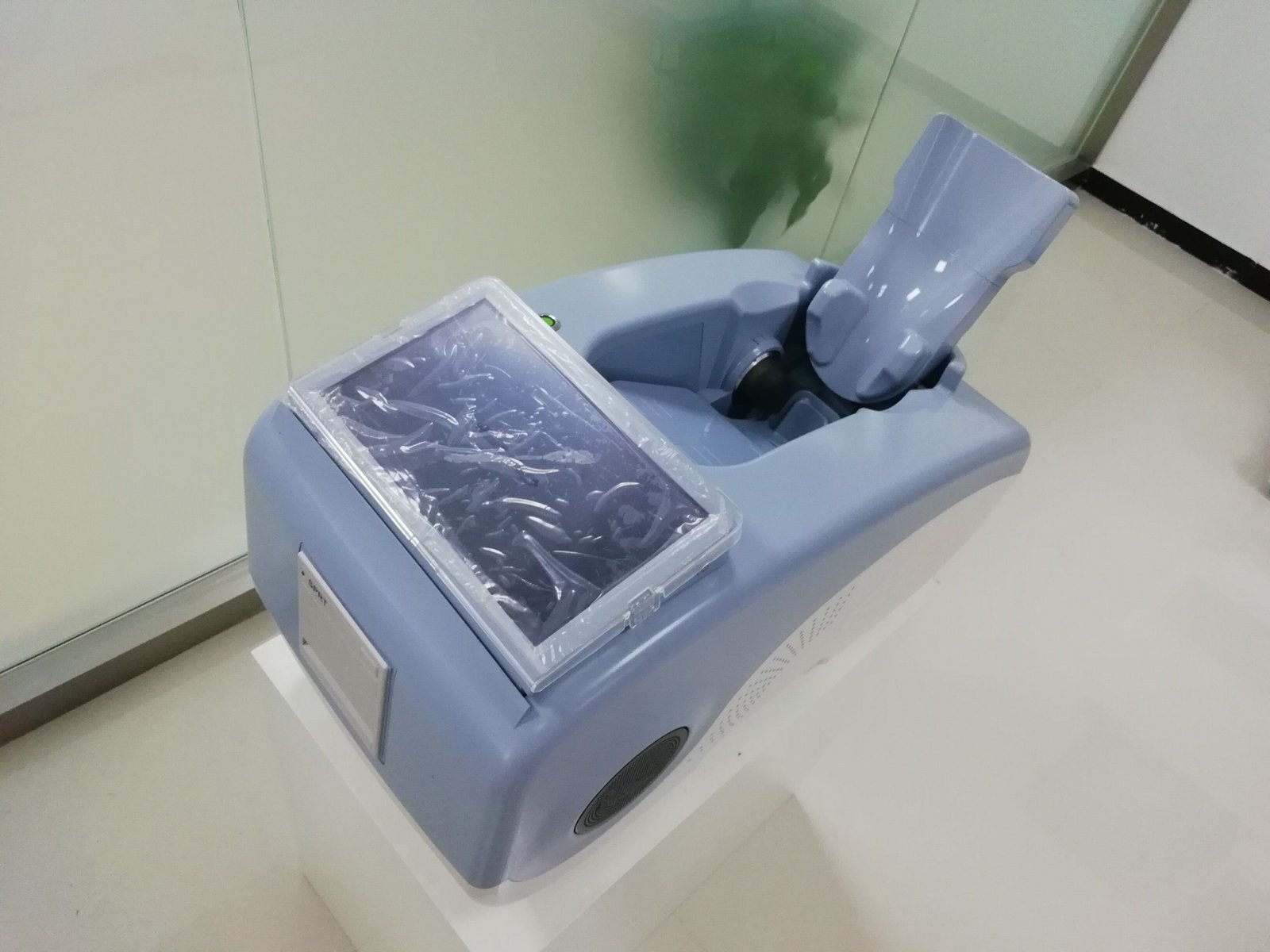

Ultrasound Bone Densitometer NEUBD07
$15,900.00$17,900.00 (-11%)
– Advanced ultrasound technology for non-invasive bone density measurement.
– Quick measurement time of ≤ 25 seconds for efficient diagnostics.
– Built-in computer system with 10.1-inch touch screen for easy operation.
– Automatic calibration and temperature compensation for accurate results.
– Includes a built-in thermal printer for immediate report generation.
– Diagnostic parameters include BUA, OI, T value, Z value, and more.
– Supports multiple user databases from Asia, Europe, the Middle East, and Africa.
– Dual USB interface for data output and compatibility with PACS networks.
– Designed for use in various medical and physical examination institutions.
– Compact and space-saving design, eliminating the need for external devices.
Ultrasound Bone Densitometer NEUBD07
Advanced Non-Invasive Bone Density Measurement System
Professional ultrasound bone densitometer featuring advanced dry-type measurement technology with 10.1-inch integrated touch screen, automatic calibration, and comprehensive diagnostic capabilities. Delivers accurate bone density assessment in 25 seconds or less with built-in thermal printer for immediate report generation. Ideal for hospitals, clinics, and physical examination centers requiring reliable osteoporosis screening and bone health monitoring.
Fast Worldwide Shipping
Expert Support
Certified Quality
Warranty Included
Product Introduction
The NEUBD07 Ultrasound Bone Densitometer represents the pinnacle of non-invasive bone density measurement technology, combining advanced ultrasound diagnostics with user-friendly operation in a comprehensive, all-in-one system. This professional-grade bone densitometer retains the excellent design legacy of its series while incorporating significant configuration upgrades that seamlessly integrate measurement, display, and multimedia functions. The system eliminates the need for external equipment connections, featuring fully optimized operating software that enables healthcare professionals to obtain accurate measurement results and comprehensive reports through a streamlined, intuitive workflow.
Designed for versatility and precision, the NEUBD07 utilizes ultrasound technology to measure calcaneal bone density, which accurately reflects overall body bone mineral density. The completely non-invasive measurement process makes it especially suitable for vulnerable populations including pregnant women, children, and elderly patients who require frequent monitoring. With its space-saving integrated design, built-in computer system supporting Windows XP through Windows 10, and advanced features including automatic calibration, temperature compensation, and multiple international databases, this bone densitometer provides medical and physical examination institutions with detailed clinical reference data essential for diagnosing osteoporosis in the elderly and monitoring bone development in adolescents.
Clinical Applications
Technical Specifications
| Ultrasonic Parameters | BUA (Broadband Ultrasound Attenuation), SOS (Speed of Sound), OI (Osteo Index/Bone Mass Index) |
| Measurement Method | Full dry type (no liquid inside or outside equipment, no temperature control device required), bi-directional ultrasonic transmission and reception |
| Probe Frequency | 0.5MHz ± 10% |
| Broadband at -6dB | >60% |
| Measurement Time | ≤ 25 seconds |
| Test Repeatability (OPR) | ≤ ±1% |
| SOS Measurement Accuracy | ≤ ±2% |
| BUA Test Repeatability | ≤ ±5% |
| Diagnostic Parameters | BUA, OI value, T value, Z value, SOS, OPR, adult ratio, age ratio |
| Ultrasonic Output TIS | 2.8 × 10⁻³ mW/cm² |
| Calibration Method | Automatic calibration using human body simulation module |
| Temperature Compensation | Automatic compensation for measurement deviation caused by temperature variations |
| Reference Databases | Built-in databases for Asian, European, Middle Eastern, and African populations |
| Display | 10.1-inch integrated touch screen display with intuitive operation interface |
| Computer System | Built-in computer host supporting Windows XP / 7 / 8 / 10 operating systems |
| Printer | Built-in high-speed thermal printer for immediate report output (suitable for out-of-office operation) |
| Interface Connectivity | Standard dual USB interface output, reserved external VGA, keyboard and mouse interface |
| Network Capability | Network transmission function with PACS system support for seamless data integration |
| Measurement Site | Calcaneus (heel) with automatic probe spacing adjustment for direct contact measurement |
| Probe Control | Oil balloon probe with air pressure control for automatic pressure adjustment, maintaining comfortable foot positioning |
| Foot Positioning | Two auxiliary foot stations included to accommodate various foot sizes and detection requirements |
| Report Output | Automatic test data diagnosis with built-in and external printer options, customizable diagnostic information entry |
Key Features & Benefits
Integrated 10.1-Inch Touch Screen Display
The NEUBD07 features a high-resolution 10.1-inch touch screen that makes operation remarkably convenient and intuitive. This integrated display eliminates the need for external monitors, saving valuable workspace while providing crystal-clear visualization of all measurement data, diagnostic parameters, and patient information. Healthcare professionals can navigate through the comprehensive software interface with simple touch gestures, streamlining the entire examination workflow.
Built-In Computer System
Equipped with a powerful built-in computer host that supports Windows XP, 7, 8, and 10 operating systems, the NEUBD07 functions as a complete standalone diagnostic workstation. The system includes reserved interfaces for external VGA display, keyboard, and mouse, providing flexibility for different operational preferences. Advanced network transmission capabilities enable seamless integration with hospital information systems and PACS networks for efficient data management and storage.
Advanced Dry-Type Measurement Technology
Revolutionary full dry-type measurement method eliminates the need for liquid coupling media, water baths, or temperature control devices that are required by traditional bone densitometry systems. This innovative approach simplifies operation, reduces maintenance requirements, eliminates messy cleanup procedures, and ensures consistent measurement conditions regardless of ambient temperature. The bi-directional ultrasonic transmission and reception system provides comprehensive data collection for highly accurate bone density assessment.
Rapid 25-Second Measurement
Advanced signal processing algorithms and optimized measurement protocols enable complete bone density assessment in 25 seconds or less. This exceptional speed significantly increases patient throughput in busy clinical settings, reduces patient waiting times, and improves overall operational efficiency. The rapid measurement capability makes the NEUBD07 ideal for high-volume screening programs and physical examination centers where time efficiency is paramount.
Exceptional Measurement Accuracy
Precision-engineered transducers and sophisticated signal processing deliver outstanding measurement accuracy with SOS accuracy ≤ ±2% and BUA repeatability ≤ ±5%. The system achieves test repeatability (OPR) ≤ ±1%, ensuring reliable and consistent results across multiple measurements. This exceptional accuracy provides clinicians with confidence in diagnostic decisions and enables reliable monitoring of treatment effectiveness over time.
Automatic Calibration System
The NEUBD07 incorporates an advanced automatic calibration system using a human body simulation module that ensures measurement accuracy and consistency over extended periods. The system performs self-calibration routines to maintain optimal performance without requiring manual intervention or external calibration services. This automated approach reduces maintenance costs, minimizes downtime, and guarantees that every measurement meets the highest quality standards.
Intelligent Temperature Compensation
Sophisticated temperature compensation algorithms automatically adjust for measurement deviations caused by ambient temperature variations, ensuring accurate and consistent results regardless of environmental conditions. This intelligent feature is particularly valuable in facilities with variable climate control or when performing measurements in different locations, guaranteeing reliable diagnostic data in any setting.
Multi-Population Reference Databases
Comprehensive built-in reference databases for Asian, European, Middle Eastern, and African populations enable accurate interpretation of bone density measurements across diverse patient demographics. These extensive normative databases account for ethnic and regional variations in bone density, providing clinically relevant T-values and Z-values that facilitate accurate diagnosis and appropriate treatment recommendations for patients from different ethnic backgrounds.
Built-In Thermal Printer
The integrated high-speed thermal printer enables immediate generation of professional diagnostic reports without requiring external printing equipment. This feature is particularly valuable for mobile screening programs, field operations, and point-of-care testing where immediate report delivery is essential. The system also supports external printer connections for facilities preferring laser-printed reports or requiring specific report formats.
Comfortable Oil Balloon Probe System
Innovative oil balloon probe technology with automatic air pressure control ensures optimal probe-to-heel contact while maintaining patient comfort throughout the measurement process. The system automatically adjusts probe pressure to accommodate different foot sizes and shapes, ensuring consistent measurement quality while providing a gentle, comfortable experience. This patient-friendly design is especially important for elderly patients with sensitive skin or painful conditions.
Non-Invasive & Radiation-Free
Ultrasound-based measurement technology provides completely non-invasive bone density assessment without any ionizing radiation exposure. This safety profile makes the NEUBD07 ideal for vulnerable populations including pregnant women, children, adolescents, and patients requiring frequent follow-up measurements. The absence of radiation concerns enables unrestricted screening programs and longitudinal studies without cumulative exposure risks.
Comprehensive Diagnostic Parameters
The system calculates and displays an extensive range of diagnostic parameters including BUA (Broadband Ultrasound Attenuation), SOS (Speed of Sound), OI (Osteo Index), T-value, Z-value, OPR (measurement repeatability), adult ratio, and age ratio. This comprehensive parameter set provides clinicians with detailed information for accurate diagnosis, risk assessment, treatment planning, and monitoring of therapeutic interventions. Customizable report formats allow healthcare providers to emphasize specific parameters most relevant to their clinical practice.
Why Choose the NEUBD07 Ultrasound Bone Densitometer
Complete All-In-One Solution: The NEUBD07 represents a paradigm shift in bone densitometry by integrating all essential components—computer system, touch screen display, measurement hardware, and thermal printer—into a single compact unit. This comprehensive integration eliminates the complexity and expense of assembling multiple components, reduces installation time, minimizes workspace requirements, and simplifies staff training. Healthcare facilities benefit from a turnkey solution that arrives ready for clinical use with minimal setup requirements, while the streamlined design reduces potential points of failure and simplifies troubleshooting.
Advanced Patented Technology: Incorporating numerous patented innovations, the NEUBD07 delivers superior performance through technologies unavailable in competing systems. The proprietary oil balloon probe with automatic pressure control represents years of research and development focused on optimizing measurement accuracy while maximizing patient comfort. Advanced signal processing algorithms extract maximum diagnostic information from ultrasound signals, while intelligent software features including automatic probe positioning, optimal signal searching, and correct placement verification ensure consistent high-quality measurements regardless of operator experience level.
Versatile Clinical Applications: The NEUBD07’s exceptional versatility makes it suitable for diverse healthcare environments including hospitals, specialized osteoporosis clinics, orthopedic practices, endocrinology departments, geriatric care facilities, pediatric clinics, sports medicine centers, and comprehensive health screening facilities. The system’s radiation-free measurement method, rapid examination time, and comprehensive diagnostic capabilities support applications ranging from routine screening to specialized clinical research. Multi-population databases and customizable reporting enable appropriate use across different patient demographics and clinical settings.
Superior Clinical Value: Beyond its technical specifications, the NEUBD07 delivers exceptional clinical value through improved diagnostic confidence, enhanced patient satisfaction, increased operational efficiency, and reduced total cost of ownership. The system’s accuracy and repeatability support reliable diagnosis and effective treatment monitoring, while the non-invasive, radiation-free measurement method appeals to health-conscious patients and enables unrestricted screening programs. Rapid measurement time increases patient throughput and revenue potential, while the integrated design and automatic calibration minimize maintenance requirements and operational costs. Comprehensive warranty support and expert technical assistance from Neuvar Inc. ensure long-term reliability and optimal return on investment.
Frequently Asked Questions
What is the difference between ultrasound and X-ray bone densitometry?
Ultrasound bone densitometry uses high-frequency sound waves to assess bone density by measuring ultrasound velocity (SOS) and attenuation (BUA) through bone tissue, providing information about both bone density and bone quality. This method involves no ionizing radiation, making it completely safe for pregnant women, children, and patients requiring frequent monitoring. X-ray densitometry (DEXA) uses low-dose radiation to measure bone mineral density at central skeletal sites. While DEXA is considered the gold standard for osteoporosis diagnosis at the spine and hip, ultrasound measurement at the calcaneus provides clinically relevant information about overall bone health and fracture risk, with the advantages of portability, lower cost, no radiation exposure, and faster examination time.
How accurate is calcaneal ultrasound measurement compared to central DEXA?
Calcaneal ultrasound bone densitometry has been extensively validated in clinical studies and shows strong correlation with DEXA measurements at central skeletal sites. The calcaneus (heel bone) is approximately 90% trabecular bone, similar to the vertebral bodies, and bears significant weight-bearing stress, making it an excellent site for assessing overall bone health and fracture risk. The NEUBD07 achieves exceptional measurement precision with SOS accuracy ≤ ±2% and OPR ≤ ±1%, providing reliable and reproducible results suitable for screening, diagnosis, and monitoring applications. While ultrasound measurements at the heel cannot directly replace central DEXA for all clinical scenarios, they provide valuable diagnostic information and have been shown to predict fracture risk independent of DEXA measurements.
What do T-scores and Z-scores mean in bone density reports?
T-scores and Z-scores are standardized measures that compare a patient’s bone density to reference populations. The T-score compares the patient’s bone density to the average peak bone mass of healthy young adults of the same gender, expressed as standard deviations above or below that reference mean. According to WHO criteria, T-scores of -1.0 or above indicate normal bone density, T-scores between -1.0 and -2.5 indicate low bone mass (osteopenia), and T-scores of -2.5 or below indicate osteoporosis. The Z-score compares the patient’s bone density to the average for people of the same age, gender, and ethnicity. Z-scores are particularly useful in premenopausal women, men under 50, and children, helping identify bone density that is lower than expected for the patient’s age, which may warrant investigation for secondary causes of bone loss.
How long does a bone density measurement take with the NEUBD07?
The NEUBD07 completes a full bone density measurement in 25 seconds or less from the moment the patient’s foot is properly positioned. Including patient positioning, data entry, and report generation, a complete examination typically requires 3-5 minutes, making it one of the fastest bone density assessment systems available. This exceptional speed is achieved through advanced ultrasound technology, optimized signal processing algorithms, and intelligent automation features that streamline the measurement workflow. The rapid examination time enables high patient throughput in busy clinical settings, reduces patient waiting times, improves clinic efficiency, and makes bone density screening practical for large-scale population health programs.
Is the NEUBD07 suitable for pediatric bone density assessment?
Yes, the NEUBD07 is exceptionally well-suited for pediatric bone density assessment due to its completely non-invasive, radiation-free measurement method. Unlike X-ray-based densitometry, which raises concerns about cumulative radiation exposure in growing children, ultrasound measurement can be performed as frequently as needed without any safety concerns. The system’s comfortable oil balloon probe design and rapid measurement time are particularly appealing to pediatric patients who may have difficulty remaining still for extended periods. The NEUBD07 provides valuable information for monitoring bone development in healthy children, assessing bone health in children with chronic diseases, evaluating the effects of medications on bone density, and identifying children at risk for fractures due to bone disorders or nutritional deficiencies.
Can the NEUBD07 be used for monitoring treatment effectiveness?
Absolutely. The NEUBD07’s exceptional measurement precision (OPR ≤ ±1%) makes it highly suitable for monitoring bone density changes over time in response to treatment interventions. The system’s automatic calibration and temperature compensation ensure consistent measurement conditions across follow-up examinations, enabling reliable detection of clinically significant changes. When monitoring treatment effectiveness, measurements should typically be performed at consistent intervals (commonly 12-24 months for osteoporosis treatment) using the same measurement site and, ideally, the same device. The NEUBD07’s comprehensive database management allows easy retrieval of previous measurements for comparison, while graphical trend analysis helps visualize changes over time and assess whether treatment goals are being achieved.
What type of training is required to operate the NEUBD07?
The NEUBD07 is designed for ease of use and requires minimal training for competent operation. Healthcare professionals with basic computer skills can typically achieve proficiency within 2-4 hours of hands-on training. The intuitive touch screen interface guides operators through each step of the examination process with clear on-screen instructions, while automated features including patient positioning verification, automatic probe adjustment, and optimal signal detection minimize the potential for operator error. Neuvar Inc. provides comprehensive training materials including user manuals, video tutorials, and online resources. For facilities requiring additional support, on-site training can be arranged, and technical support is available to answer questions and provide guidance on clinical interpretation of results.
How does the NEUBD07 integrate with hospital information systems?
The NEUBD07 features comprehensive connectivity options designed to integrate seamlessly with modern healthcare IT infrastructure. The built-in computer system supports network connectivity, enabling the device to communicate with hospital information systems (HIS), radiology information systems (RIS), and picture archiving and communication systems (PACS). The system can export examination data and reports in standard formats compatible with most electronic medical record systems. Standard dual USB interfaces provide additional connectivity options for data transfer to external storage devices or computers. The network transmission capability allows examination results to be automatically sent to central servers for archiving and retrieval, supporting compliance with medical record-keeping requirements while enabling authorized healthcare providers to access patient bone density history from any connected workstation.
