- Portable and lightweight design for easy transportation
- Non-invasive ultrasound technology for measuring bone density
- Suitable for pregnant women, children, and elderly populations
- Fast measurement time: single measurement in ≤ 25 seconds
- Provides reliable results unaffected by soft tissue thickness
- User-friendly operation linked to desktop computers, laptops, or tablets
- Multiple databases for diverse age groups across various regions
- Measures radius or tibia bone density for comprehensive analysis
- Compatible with Windows XP or higher operating systems
- Operates effectively in temperatures of 5-40℃ and up to 80% humidity
Non-invasive quantitative ultrasound system for rapid osteoporosis screening and bone density assessment. Portable design with critical angle side wave technology enables safe, radiation-free measurement of radius and tibia bone density across all patient populations including pregnant women, children, and elderly patients.

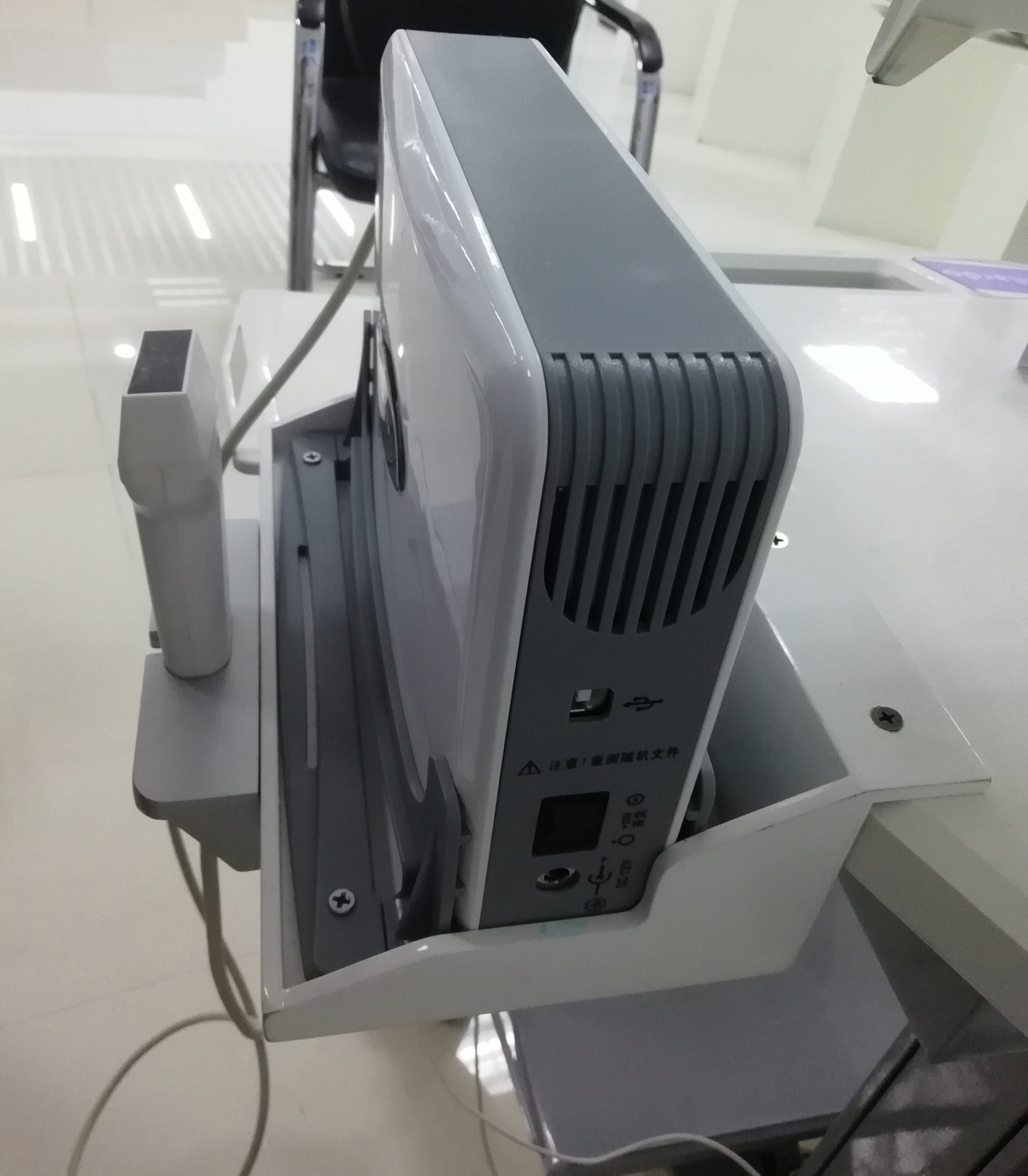

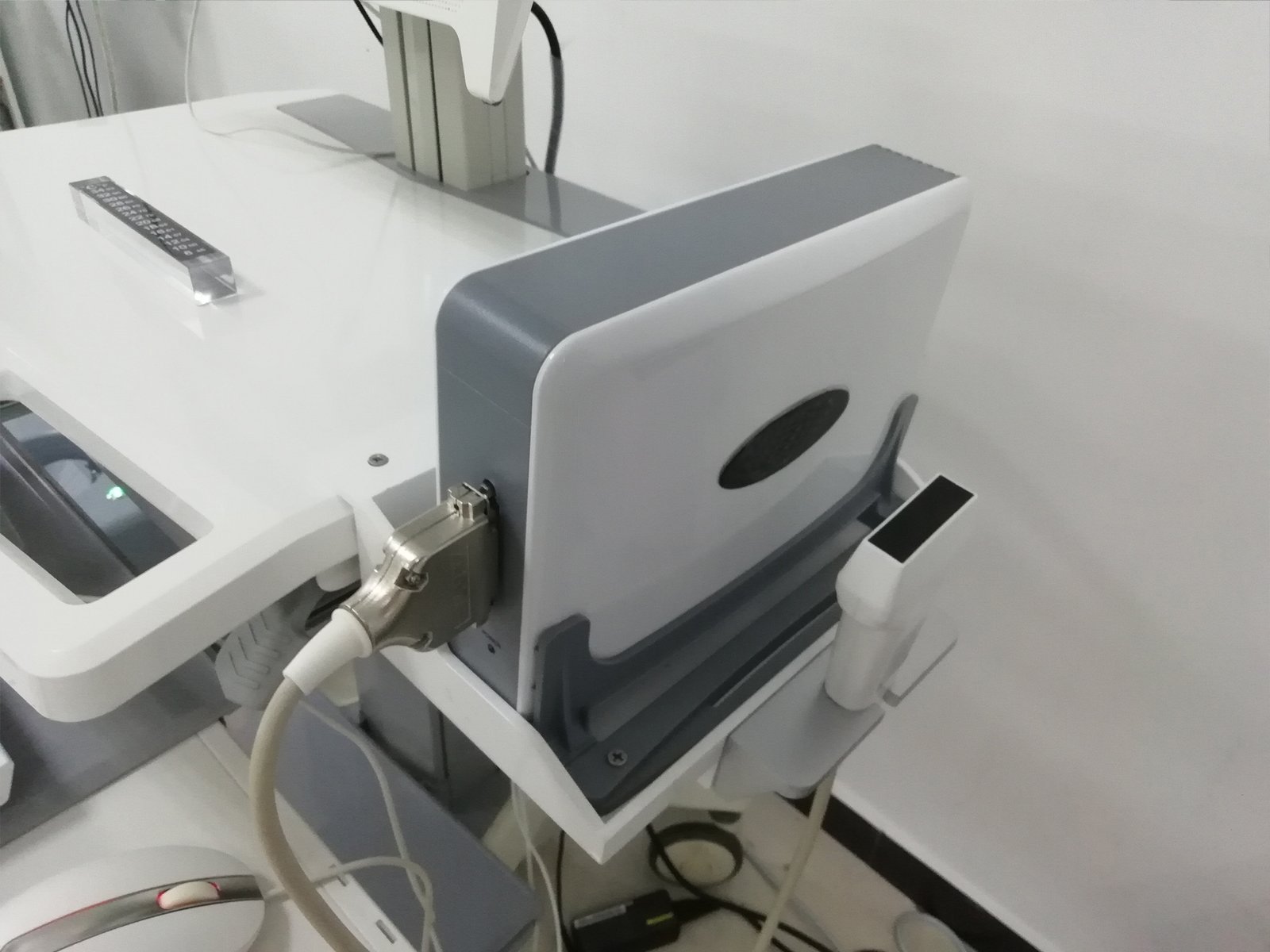

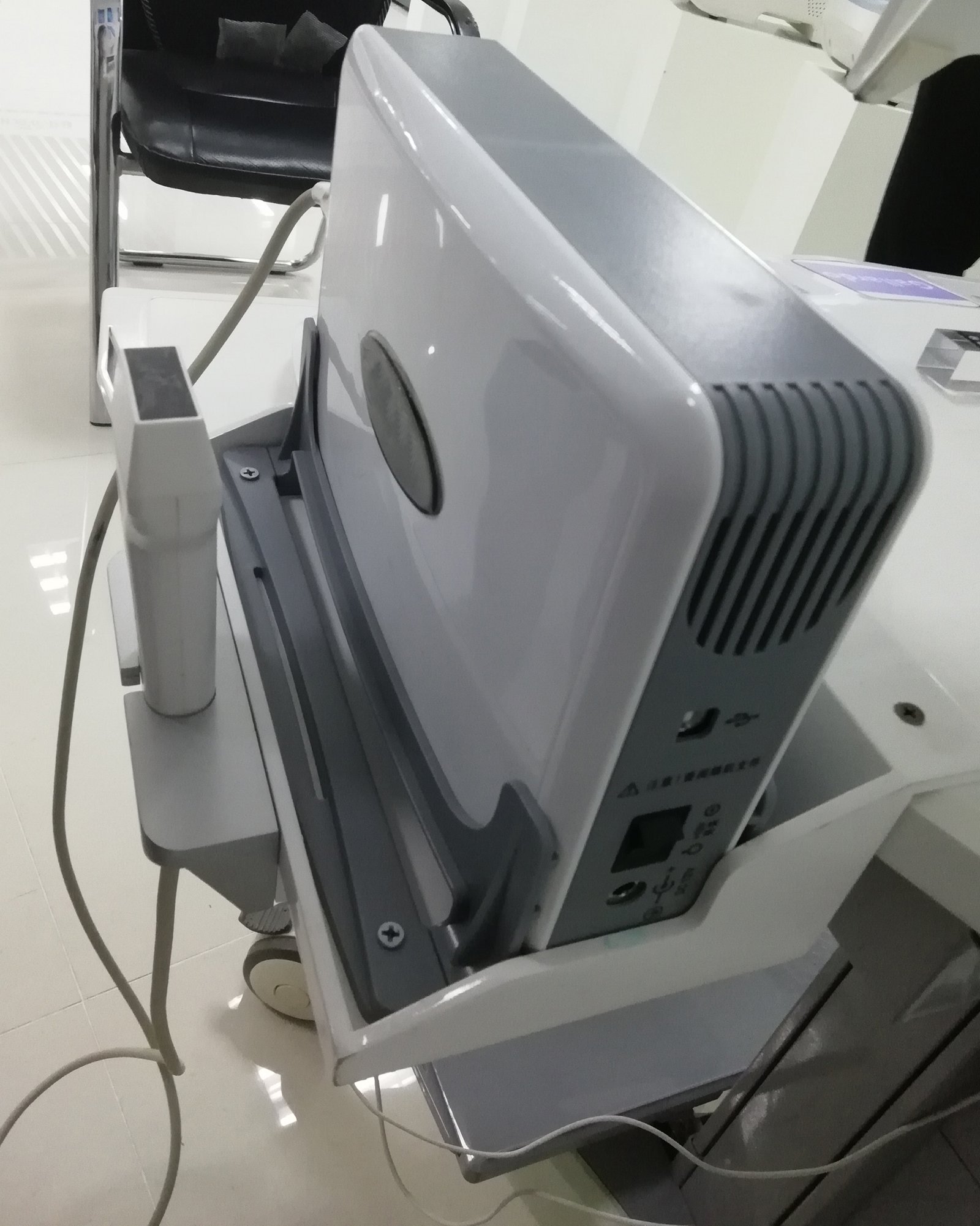

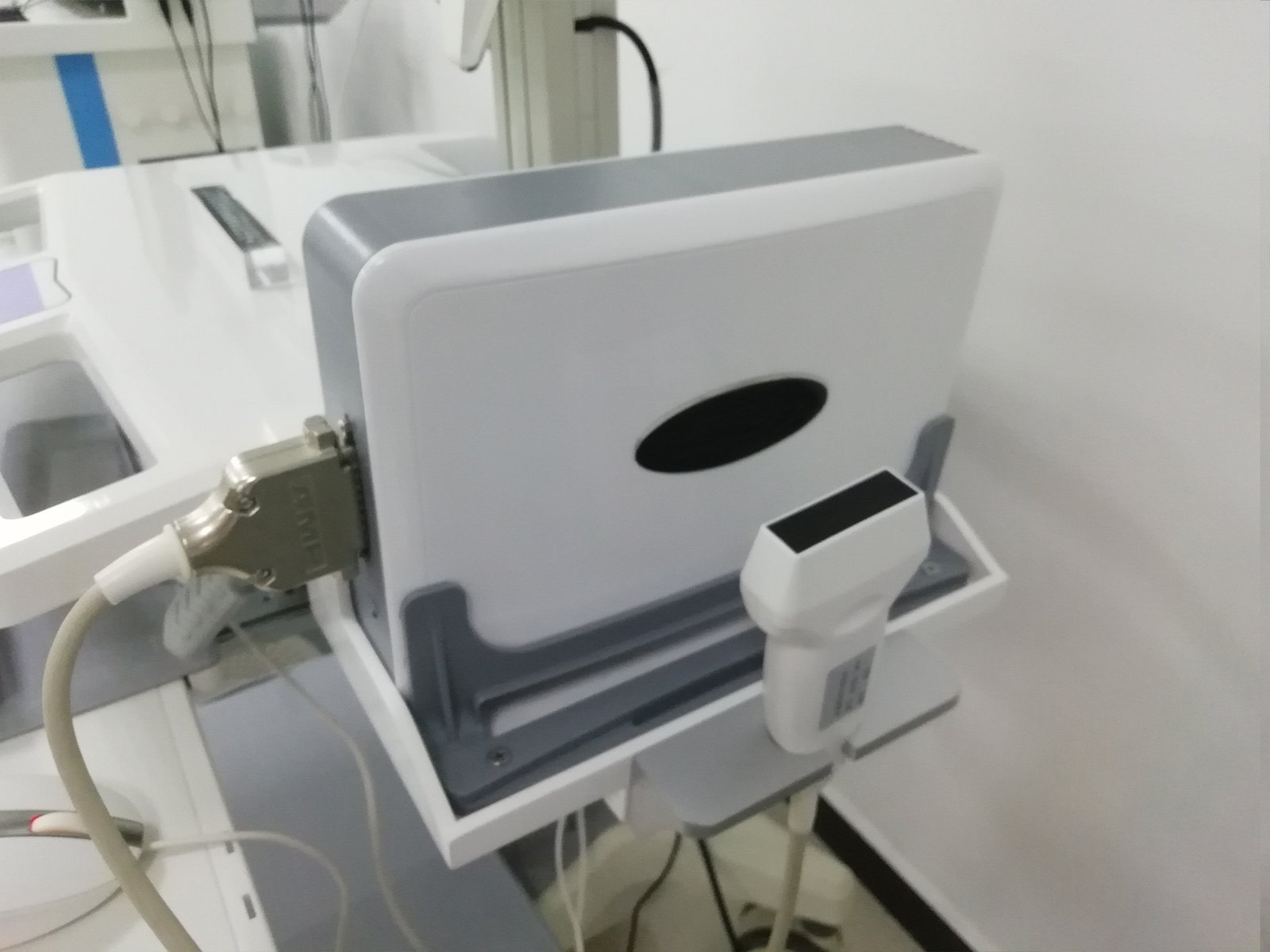

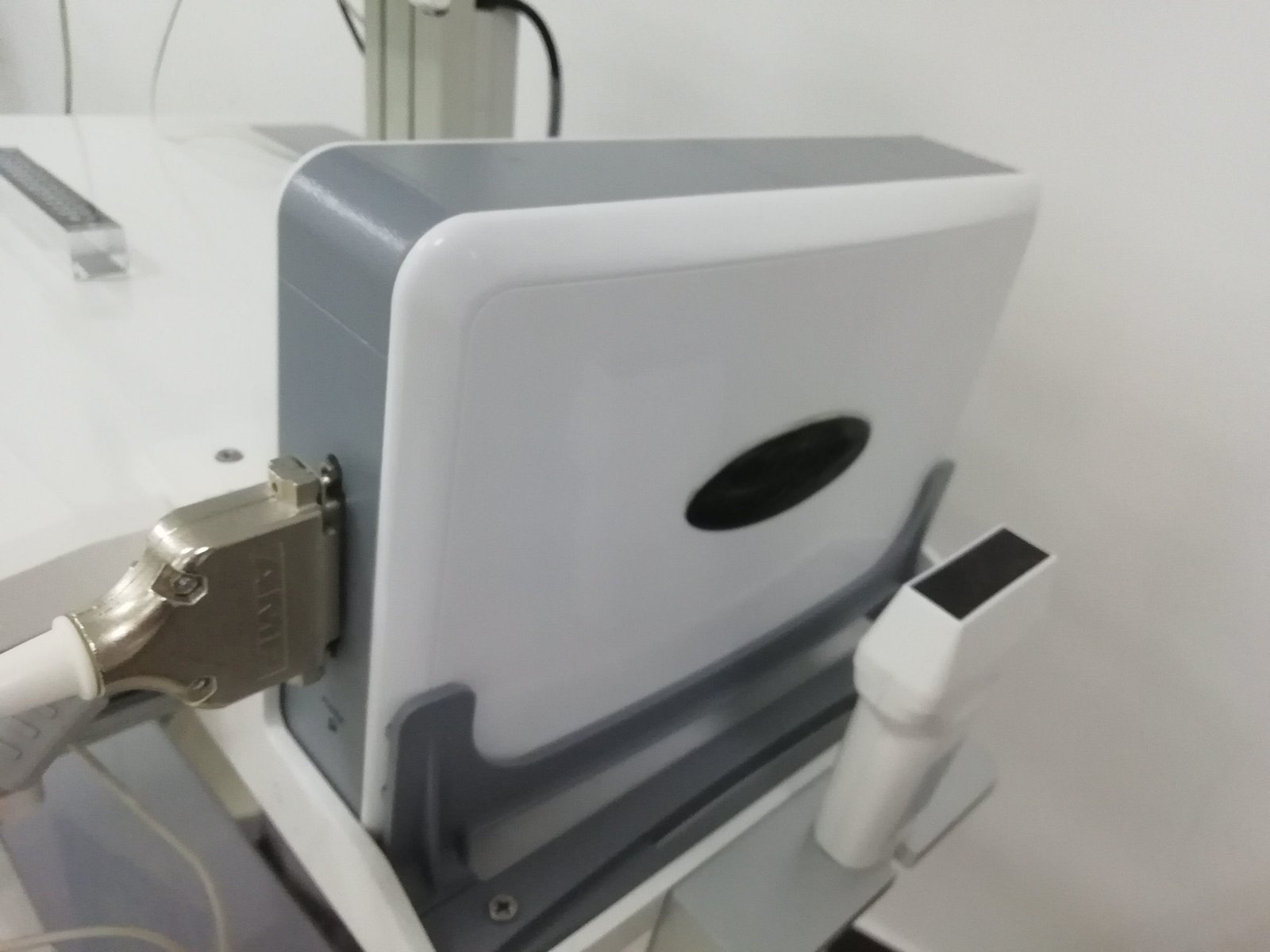

The NEUBD09 is a portable, non-invasive quantitative ultrasound (QUS) system designed for rapid osteoporosis screening and bone density assessment. Using critical angle side wave theory, the device measures bone density at peripheral sites (radius or tibia) and provides comprehensive bone health parameters including speed of sound (SOS), T-score, Z-score, skeletal age, bone quality index (BQI), relative risk factor (RRF), and expected osteoporotic age (EOA). Single measurements complete in ≤25 seconds, enabling high-throughput screening in clinical settings.
The system is particularly valuable for populations where DXA scanning is impractical or contraindicated: pregnant women, children, elderly patients in nursing facilities, and mobile screening programs. Measurement results are unaffected by soft tissue thickness, bone size, or skeletal shape variations, ensuring reliable assessment across diverse body types. Multi-region reference databases (Asia, Europe, and other regions) with multi-age data enable accurate interpretation across diverse demographic populations. Windows XP or higher compatibility allows integration with desktop computers, laptops, or tablets for flexible clinical deployment.
| Indications | Osteoporosis screening, bone density assessment, fracture risk evaluation, pediatric bone development monitoring, postmenopausal women assessment, elderly population screening |
|---|---|
| Measurement sites | Radius or tibia (peripheral bone sites) |
| Measurement technology | Critical Angle Side Wave Theory with quantitative ultrasound |
| Probe frequency | 1 MHz ±15% |
| Measurement parameters | SOS (Speed of Sound), T-score, Z-score, Skeletal Age, BQI (Bone Quality Index), RRF (Relative Risk Factor), EOA (Expected Osteoporotic Age) |
| Single measurement time | ≤25 seconds |
| Repetition time | ≤75 seconds between measurements |
| Operating system | Windows XP or higher |
| Reference database | Multi-age data from Asia, Europe, and other regions |
| Soft tissue independence | Results not affected by soft tissue thickness, bone size, or skeletal shape |
| Operating temperature | 5°C to 40°C |
| Operating humidity | ≤80% relative humidity |
| Power requirement | AC 110V/220V ±10%, 50/60Hz ±1Hz |
| Design | Portable and lightweight for easy transportation |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable bone density scanner with integrated ultrasound probe | 1 |
| Ultrasound probe | 1 MHz ±15% critical angle side wave transducer | 1 |
| Coupling gel | Medical-grade ultrasound coupling medium | As applicable |
| Software | Windows-based measurement and analysis software with multi-region database | 1 license |
| Power cable | AC 110V/220V ±10%, 50/60Hz ±1Hz connection | 1 |
| User manual | Comprehensive operating and maintenance documentation | 1 |
| Quality control phantom | Calibration and quality assurance device | 1 |
