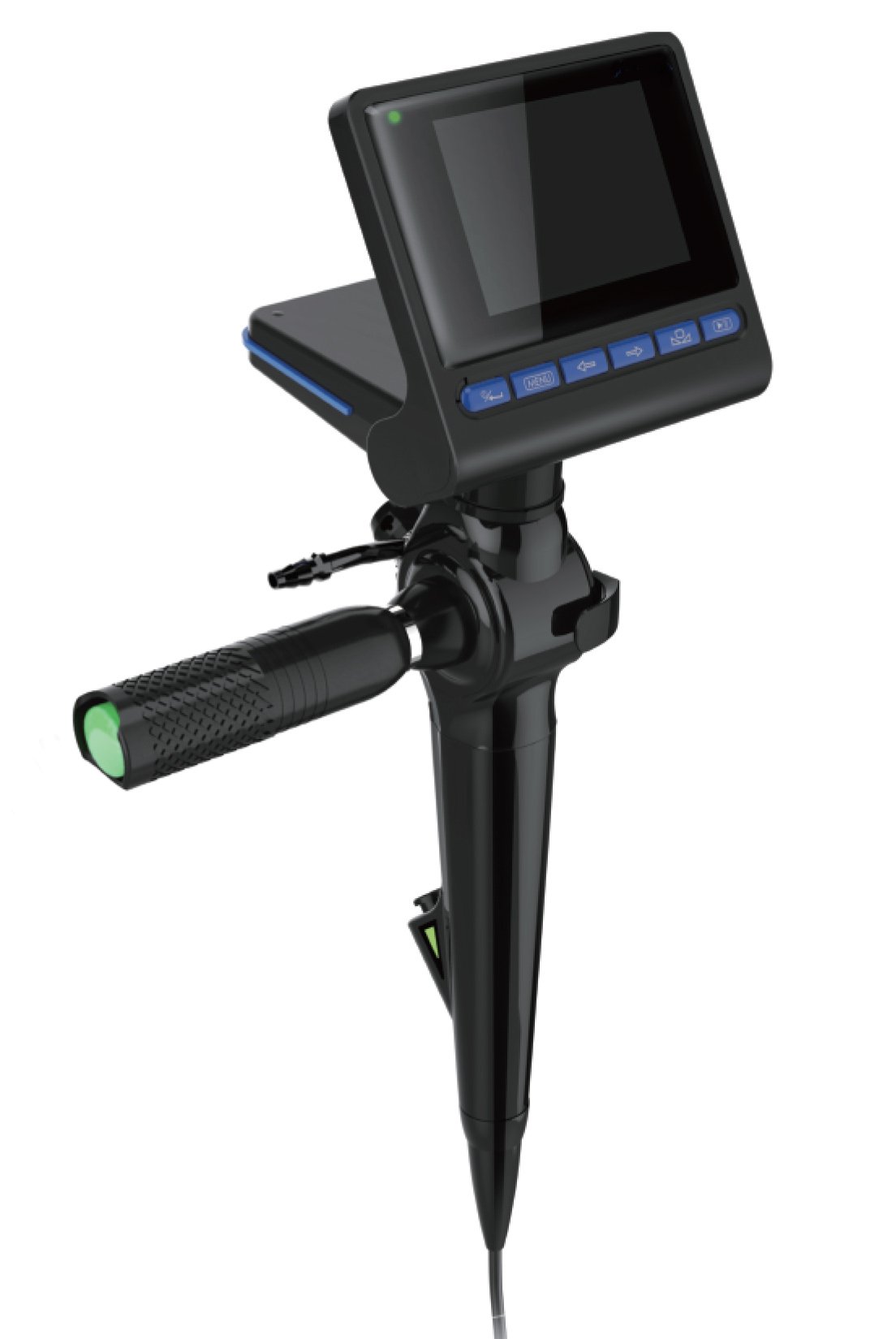

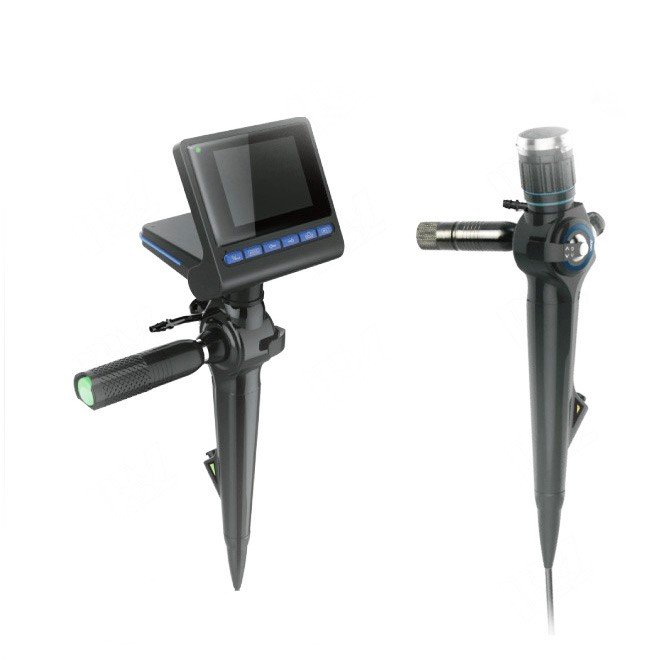

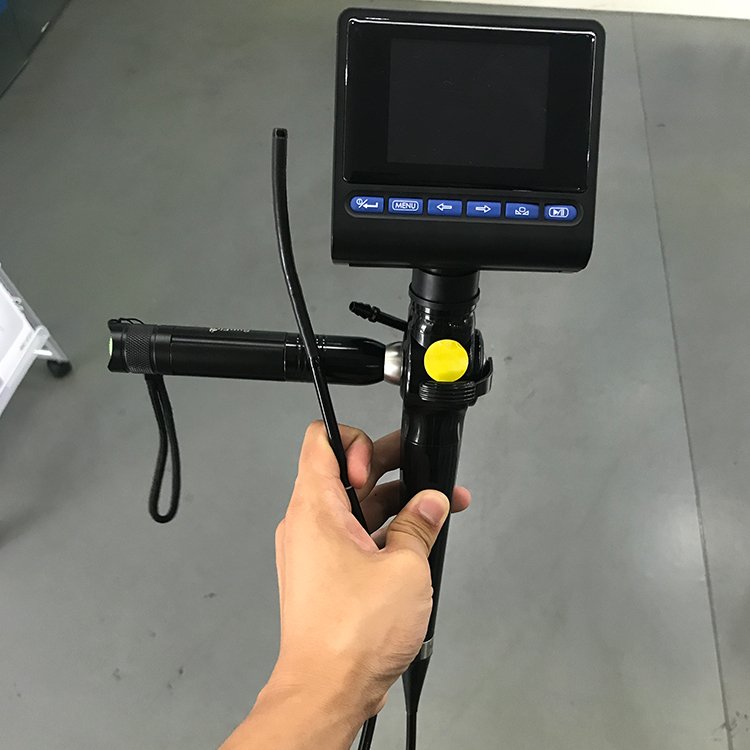

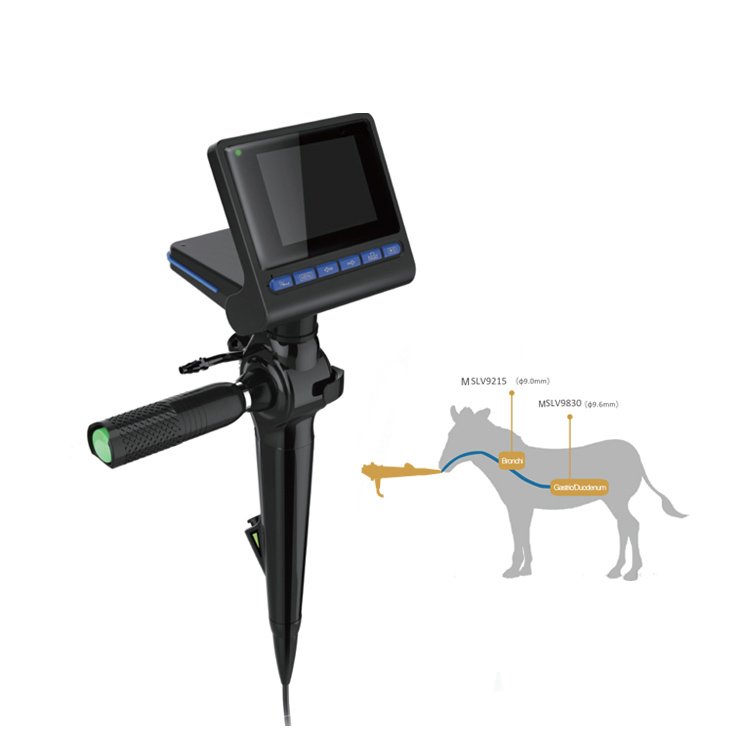

Flexible Portable Cat, Dog, Horse Endoscopy NEUV5010
- Portable video endoscope for pets and horses
- Self-contained ambulatory system with integral screen and battery
- High-resolution CMOS camera for clear imaging
- Field of view ≧100° for comprehensive examination
- Depth of field adjustment between 3-50mm
- Two-way angulation of 180° up and 160° down for flexible visualization
- Waterproof design for easy cleaning and disinfection
- Supplied with essential accessories including biopsy forceps and cleaning brush
- Light-weight and easy to transport in a protective case
- Ideal for veterinary applications and diagnostics in various anatomical areas
- SKU
- NEUV5010
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Flexible Portable Cat, Dog, Horse Endoscopy NEUV5010
Self-contained ambulatory video endoscope system with integral screen, battery, and recording capabilities. High-resolution CMOS imaging with flexible two-way tip angulation for comprehensive examination of ear, nose, throat, urinary tract, and bladder in companion and equine patients.
Clinical overview
The NEUV5010 is a self-contained ambulatory endoscopy system designed for rapid, cost-effective diagnosis in veterinary practice. Combining an integral high-resolution CMOS camera, built-in display, battery pack, and video recording capability, this portable system eliminates the need for external equipment and enables flexible examination in clinical and field settings. The two-way tip deflection (180° up, 160° down) permits visualization of difficult-to-reach anatomical areas, including regions behind the palate, making it ideal for both routine screening and targeted diagnostic procedures.
The waterproof insertion tube design facilitates straightforward cleaning and disinfection between patients, ensuring infection control compliance. Supplied complete with essential accessories including biopsy forceps, aspiration catheter, leak tester, cleaning brush, channel irrigator, and protective transport case, the NEUV5010 provides a comprehensive diagnostic solution for ear, nose, throat, urinary tract, and bladder examination in cats, dogs, and horses.
Key features & surgeon benefits
High-Resolution Optics
- High-resolution CMOS camera for clear, detailed visualization
- Field of view ≥100° for comprehensive anatomical coverage
- Depth of field 3–50mm for flexible focus range
Portable & Self-Contained
- Integral screen, battery, and recording eliminate external dependencies
- Two-way tip angulation (180° up, 160° down) for flexible visualization
- Lightweight design with protective case for easy transport and field use
Cost-Effective Solution
- All-in-one system reduces capital equipment investment
- Waterproof design simplifies cleaning and extends service life
- Complete accessory kit included; no additional purchases required
Multi-Application Capability
- Suitable for ear, nose, throat, urinary tract, and bladder examination
- Instrument channel (1.5–2.6mm) accommodates biopsy and therapeutic tools
- Available in multiple working lengths (1000mm, 1500mm) for different anatomical access
Technical specifications
| Indications | Ear, nose, throat, urinary tract, bladder, and other anatomical areas in cats, dogs, and horses |
|---|---|
| Working length | 1000mm, 1500mm |
| Distal end diameter | φ5.2mm, φ5.8mm |
| Instrument channel | 1.5mm, 2.2mm, 2.6mm |
| Tip bending range | 180° up / 160° down |
| Camera | High-resolution CMOS |
| Field of view | ≥100° (forward viewing) |
| Depth of field | 3–50mm |
| Material | Stainless steel, medical-grade polymers |
| Waterproof design | Yes — full air-tightness |
| Sterilisation | Waterproof for cleaning and disinfection |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Endoscope | Flexible video endoscope with integral CMOS camera and screen | 1 |
| Battery pack | Rechargeable battery for portable operation | 1 |
| Video recording head | For moving image and still capture | 1 |
| Biopsy forceps | For tissue sampling via instrument channel | 1 |
| Aspiration catheter | For fluid aspiration and irrigation | 1 |
| Channel irrigator | For channel flushing and cleaning | 1 |
| Cleaning brush | For endoscope insertion tube cleaning | 1 |
| Leak tester | For air-tightness verification | 1 |
| Protective case | For safe transport and storage | 1 |
| Operation manual | User and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUV5010 endoscopy system, custom configurations, and delivery timelines. We provide comprehensive support and training to ensure optimal clinical outcomes.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
