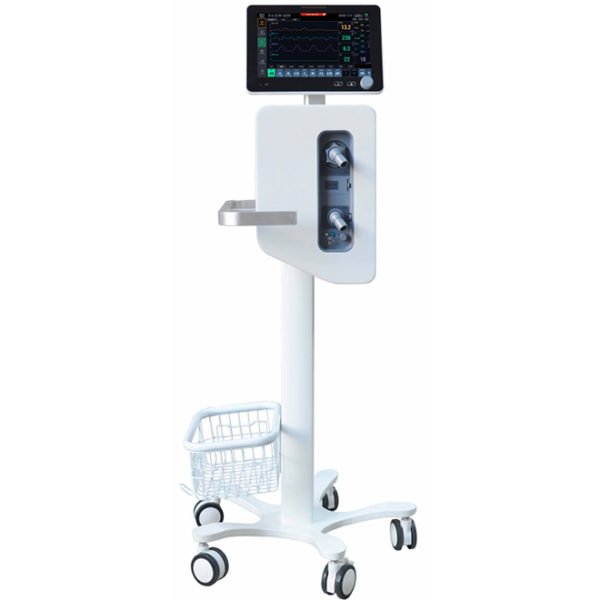

Movable Ventilator NEUPV06
- Advanced movable ventilator model NEUPV06
- Suitable temperature range: 5-40°C, or -20 to 60°C for the sensor
- High relative humidity tolerance: 10-95%
- Multiple communication interfaces: HDMI, RS232, USB, Nurse call, and more
- Equipped with functionalities including suction, nebulization, and manual breath
- Compact dimensions: 380 mm * 325 mm * 675 mm (without trolley)
- Lightweight at approximately 14.9 kg; 30.0 kg with trolley
- 12.1-inch TFT color touch screen with 1280*800 resolution
- Versatile oxygen percentage range: 21% to 100%
- Supports adult and pediatric ventilation with adjustable settings for optimal care
- SKU
- NEUPV06
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Movable Ventilator NEUPV06
Advanced portable ventilation system with comprehensive monitoring and support for adult and pediatric patients. Features 12.1-inch touchscreen interface, multiple communication protocols, and integrated therapeutic functions including suction, nebulization, and manual breath support for flexible clinical deployment.
Clinical overview
The NEUPV06 is a sophisticated portable ventilator engineered for critical care, perioperative, and emergency transport environments. Its compact footprint (380 × 325 × 675 mm without trolley) and lightweight construction (14.9 kg) enable rapid deployment while maintaining full clinical capability. The 12.1-inch TFT touchscreen with 1280 × 800 resolution provides intuitive access to comprehensive ventilation modes, real-time waveform monitoring, and patient-specific parameter adjustment.
Designed to support both adult and pediatric populations, the NEUPV06 delivers flexible tidal volume control (adult 100–2000 mL; pediatric 20–300 mL), adjustable respiratory rates (1–80 bpm), and oxygen concentration from 21% to 100%. Integrated value-added functions—including suction, nebulization, manual breath delivery, inspiratory and expiratory hold, and advanced monitoring tools (P0.1, NIF, PV loop analysis)—enable comprehensive respiratory management in a single platform.
Key features & surgeon benefits
Mobile-Ready Design
- Compact dimensions: 380 × 325 × 675 mm (without trolley)
- Lightweight at 14.9 kg; 30 kg with integrated trolley
- Rapid setup and transport between care areas
Intuitive Touchscreen Control
- 12.1-inch TFT color display, 1280 × 800 resolution
- Real-time waveform and trend monitoring
- Rapid parameter adjustment and mode selection
Dual-Population Support
- Adult and pediatric ventilation modes with separate parameter ranges
- Oxygen delivery 21–100% with 1% resolution
- Respiratory rate 1–80 bpm for flexible patient management
Multi-Protocol Integration
- HDMI, RS232, USB, Nurse call, CO₂ and SpO₂ module connectors
- Seamless EMR and monitoring system integration
- Remote data access and alarm notification
Technical specifications
| Indications | Adult and pediatric mechanical ventilation, respiratory support, anesthesia delivery |
|---|---|
| Tidal Volume (Adult) | 100–2000 mL (10 mL resolution) |
| Tidal Volume (Pediatric) | 20–300 mL (1 mL resolution) |
| Respiratory Rate | 1–80 bpm (1 bpm resolution) |
| Oxygen Concentration | 21–100% (1% resolution) |
| PEEP Range | OFF, 1–40 cmH₂O (1 cmH₂O resolution) |
| Inspiratory Pressure (ΔP-insp.) | 5–60 cmH₂O (1 cmH₂O resolution) |
| Inspiratory Time | 0.2–10 s (0.05 s resolution) |
| I:E Ratio | 1:10 to 4:1 (1:2 resolution) |
| Trigger Sensitivity (Pressure) | -10 to -0.5 cmH₂O (0.5 cmH₂O resolution) |
| Trigger Sensitivity (Flow) | 0.5–15 L/min (0.1 L/min resolution) |
| Dimensions (without trolley) | 380 mm (L) × 325 mm (W) × 675 mm (H) |
| Dimensions (with trolley) | 640 mm (L) × 640 mm (W) × 1370 mm (H) |
| Weight (without trolley) | Approximately 14.9 kg |
| Weight (with trolley) | Approximately 30.0 kg |
| Display | 12.1-inch TFT color touchscreen, 1280 × 800 resolution |
| Operating Temperature | 5–40°C (sensor: -20 to 50°C) |
| Storage Temperature | -20 to 60°C |
| Relative Humidity | 10–95% (non-condensing) |
| Barometric Pressure | 62–106 kPa |
| Communication Interfaces | HDMI, RS232, USB, Nurse call, CO₂ module connector, SpO₂ module connector |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Ventilator Unit | NEUPV06 main console with integrated touchscreen and control module | 1 |
| Mobile Trolley | Integrated wheeled trolley for transport and positioning | 1 |
| Patient Circuit | Standard adult and pediatric breathing circuit with connectors | 1 set |
| Power Supply | AC mains adapter with backup battery option | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quick Reference Guide | Clinical parameter quick-start guide | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss NEUPV06 specifications, pricing, delivery timelines, and customization options for your facility or procurement program.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
