Multi-functional Smart Insulated Housing NEUDW07
- Advanced temperature control system (15°C - 38°C)
- Oxygen concentration regulation (21% - 60%)
- Integrated dehumidification below 70% humidity
- Nebulization treatment capability for enhanced respiratory therapy
- Carbon dioxide monitoring with automatic removal system
- Ultraviolet sterilization for internal air circulation
- Intelligent fault navigation for ease of use
- Multiple light-source modes for various medical applications
- Compact design with external dimensions of 1470*880*1900 mm
- Low noise operation (≤40dB) for patient comfort
- Optional features include a built-in micro printer and animal sleeping basket
- SKU
- NEUDW07
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

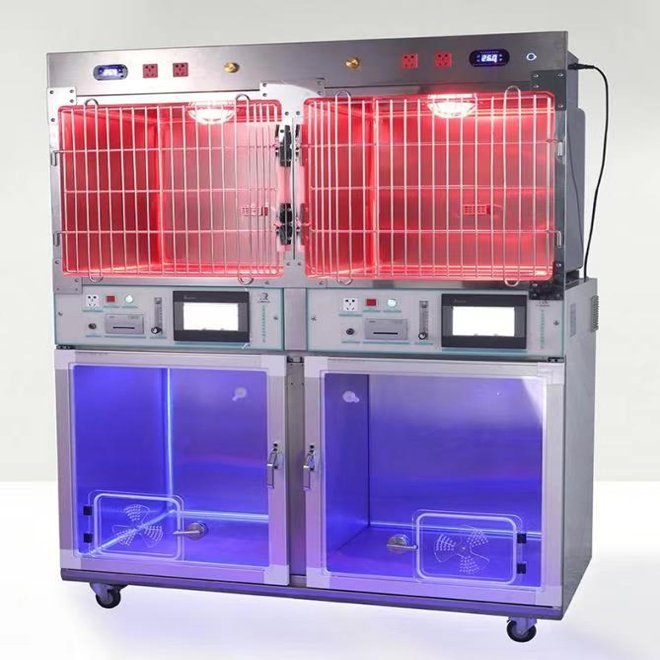

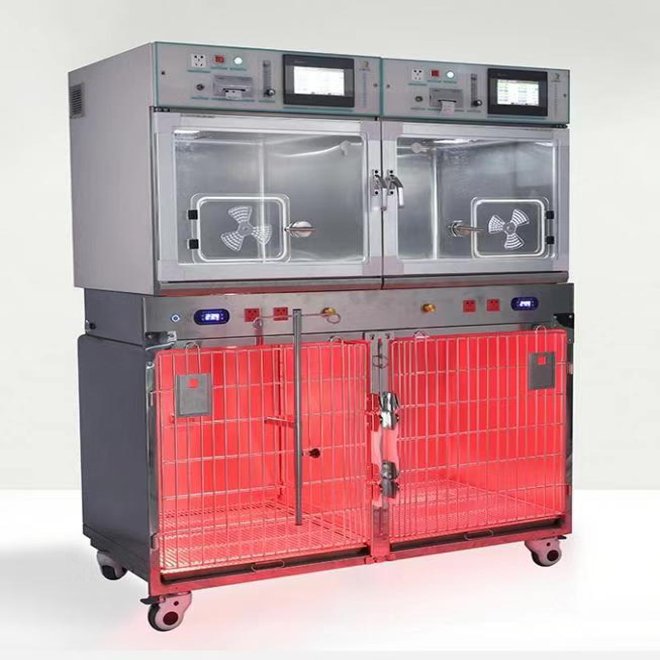

Multi-functional Smart Insulated Housing NEUDW07
A comprehensive environmental control system for veterinary and laboratory animal care. The NEUDW07 integrates advanced temperature regulation, oxygen concentration management, COâ‚‚ monitoring, and UV sterilization in a single intelligent platform designed for optimal animal welfare and operational efficiency.
Clinical overview
The NEUDW07 is a state-of-the-art multi-functional housing system engineered for veterinary clinics, research facilities, and animal care centers requiring precise environmental control. It combines independent temperature management, oxygen regulation, COâ‚‚ monitoring with automatic removal, and integrated UV sterilization to create an optimal microenvironment for animal recovery and welfare.
With four independently controlled cabins, the system allows simultaneous treatment of multiple animals with customized environmental parameters. The intelligent fault navigation system provides real-time alerts and diagnostics, while the low-noise operation (≤40 dB) minimizes stress on animals. Optional nebulization capability enhances respiratory therapy protocols, and the built-in negative ion air purification system maintains superior air quality throughout operation.
Key features & surgeon benefits
Precision Climate Management
- Temperature control 15°C–38°C with ±0.5°C accuracy
- Oxygen concentration regulation 21%–60% (±1% accuracy)
- Automatic dehumidification below 70% humidity
Advanced Purification & Sterilization
- UV-C (253 nm) internal circulation sterilization
- CO₂ monitoring (300–5000 PPM, ±10 PPM error) with automatic removal
- High-concentration negative ion air purification
Smart Automation & Monitoring
- Intelligent fault navigation with real-time diagnostics
- Four independent cabin split cooling/PTC heating
- Emergency ventilation hatch with program control
Flexible Configuration & Options
- Optional nebulization treatment for respiratory therapy
- Built-in micro printer for automated logging
- Multiple light-source modes (warm, cold, medical inspection)
Technical specifications
| Indications | Veterinary care, laboratory animal housing, post-operative recovery, respiratory therapy support |
|---|---|
| External Dimensions | 1470 × 880 × 1900 mm (L × D × H) |
| Weight | Approximately 297 kg |
| Temperature Range | Service: −10°C to 40°C (ambient); Set: 15°C to 38°C; Accuracy: ±0.5°C |
| Oxygen Control | 21%–60% concentration; Accuracy: ±1% |
| CO₂ Monitoring | 300–5000 PPM; Error: ±10 PPM; Automatic removal system included |
| Humidity Control | Automatic dehumidification; Standard 40%, Actual <50% |
| Sterilization | Internal UV-C (253 nm) circulation sterilization; High-efficiency system |
| Air Purification | UV sterilization lamp; High-concentration negative ion purification |
| Nebulization (Optional) | Maximum atomization rate ≥0.2 ml/min; Particle size 0.5–2 μm; Noise ≤40 dB |
| Lighting | LED board with two-way control; Warm light (10 levels), cold light, medical inspection modes |
| Power Supply | AC 100V/110V/220V, 50/60 Hz (grounded socket) |
| Power Consumption | Max: 13 kW (3–4 rooms independent); Average: 0.5 kW (3–4 cabins independent) |
| Noise Level | ≤40 dB (low-noise operation) |
| Display | 8.4" touch screen (W171 × H128 mm); Pointer film resistance type |
| Alarms & Warnings | Abnormal concentration, temperature, sensor, door switch, emergency, hatch switch |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Housing Unit | 4-cabin independent split system with integrated control panel | 1 |
| Temperature Control Module | PTC heating and cooling system per cabin | 4 |
| Oxygen Regulation System | Integrated oxygen concentration control (21%–60%) | 1 |
| COâ‚‚ Monitoring & Removal | Sensor and automatic removal device with medical-grade purification agent | 1 |
| UV-C Sterilization Lamp | 253 nm internal circulation sterilization system | 1 |
| Negative Ion Purifier | High-concentration air purification unit | 1 |
| Touch Screen Display | 8.4" control interface with fault navigation | 1 |
| LED Lighting Board | Dual-mode lighting (warm & cold) with medical inspection function | 1 |
| Emergency Ventilation Hatch | Program-controlled safety vent | 1 |
| Multiple Hanging Racks | For cabin organization and animal placement | As applicable |
| Animal Sleeping Basket | Optional comfort accessory | Optional |
| Micro Printer | Optional intelligent automatic timing printing system | Optional |
Get in touch for pricing & availability
The NEUDW07 is a premium investment in animal care excellence. Contact our sales team to discuss pricing, delivery timelines, and customization options tailored to your facility's specific requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
