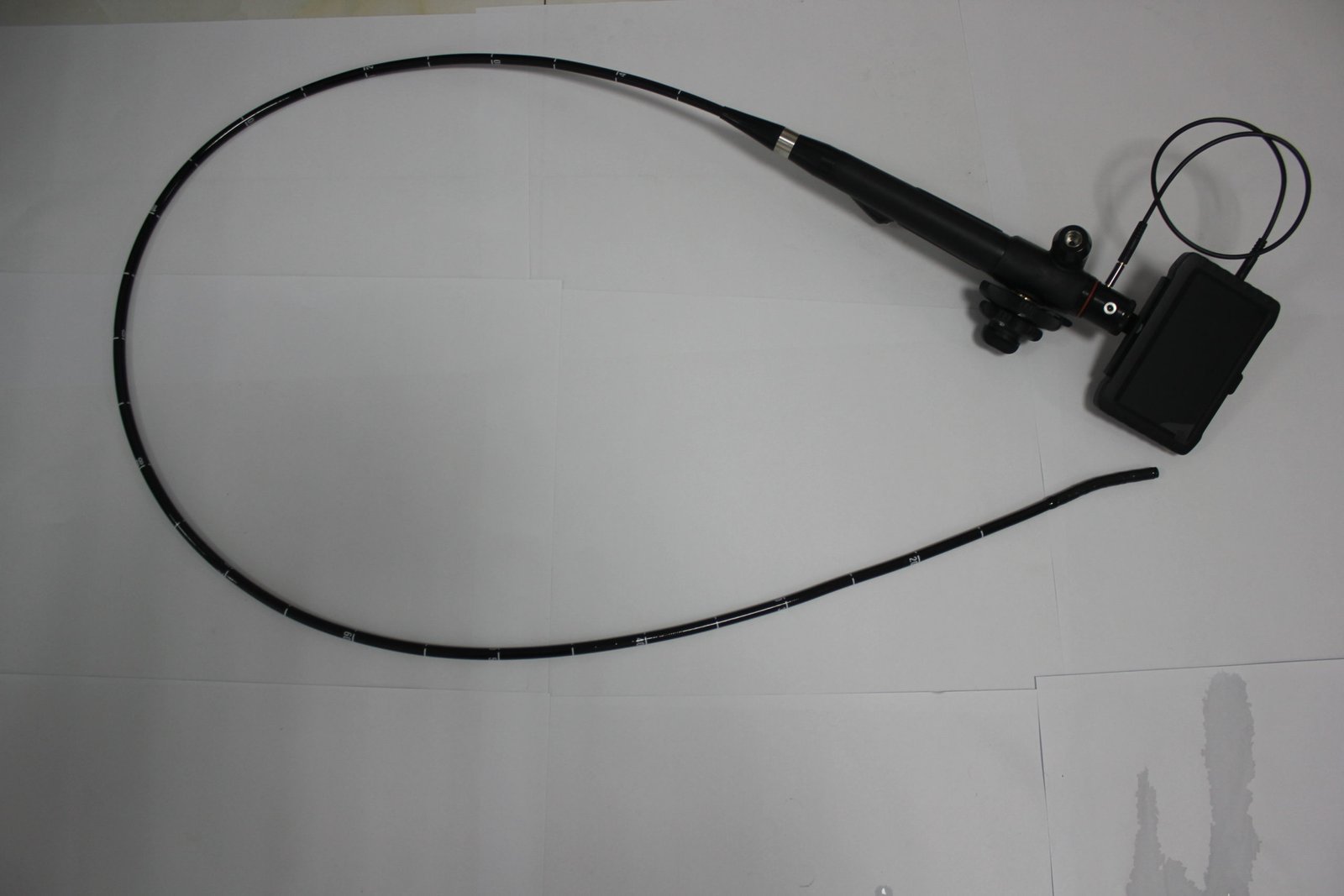

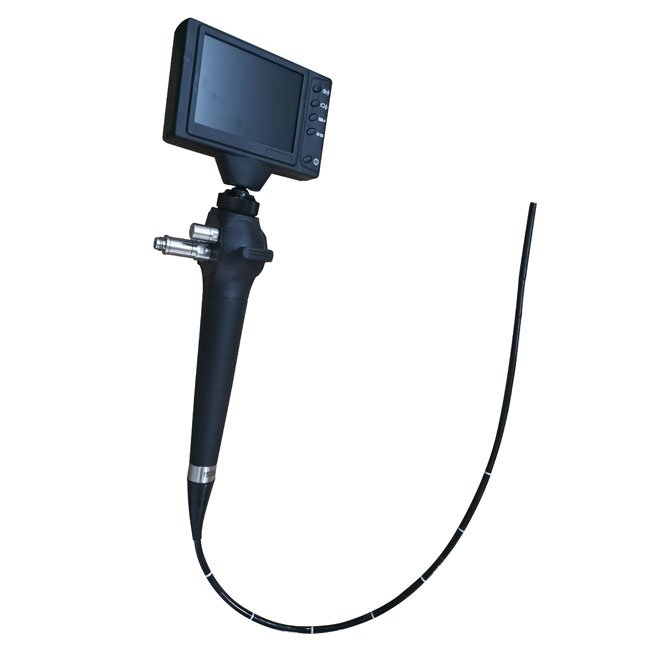

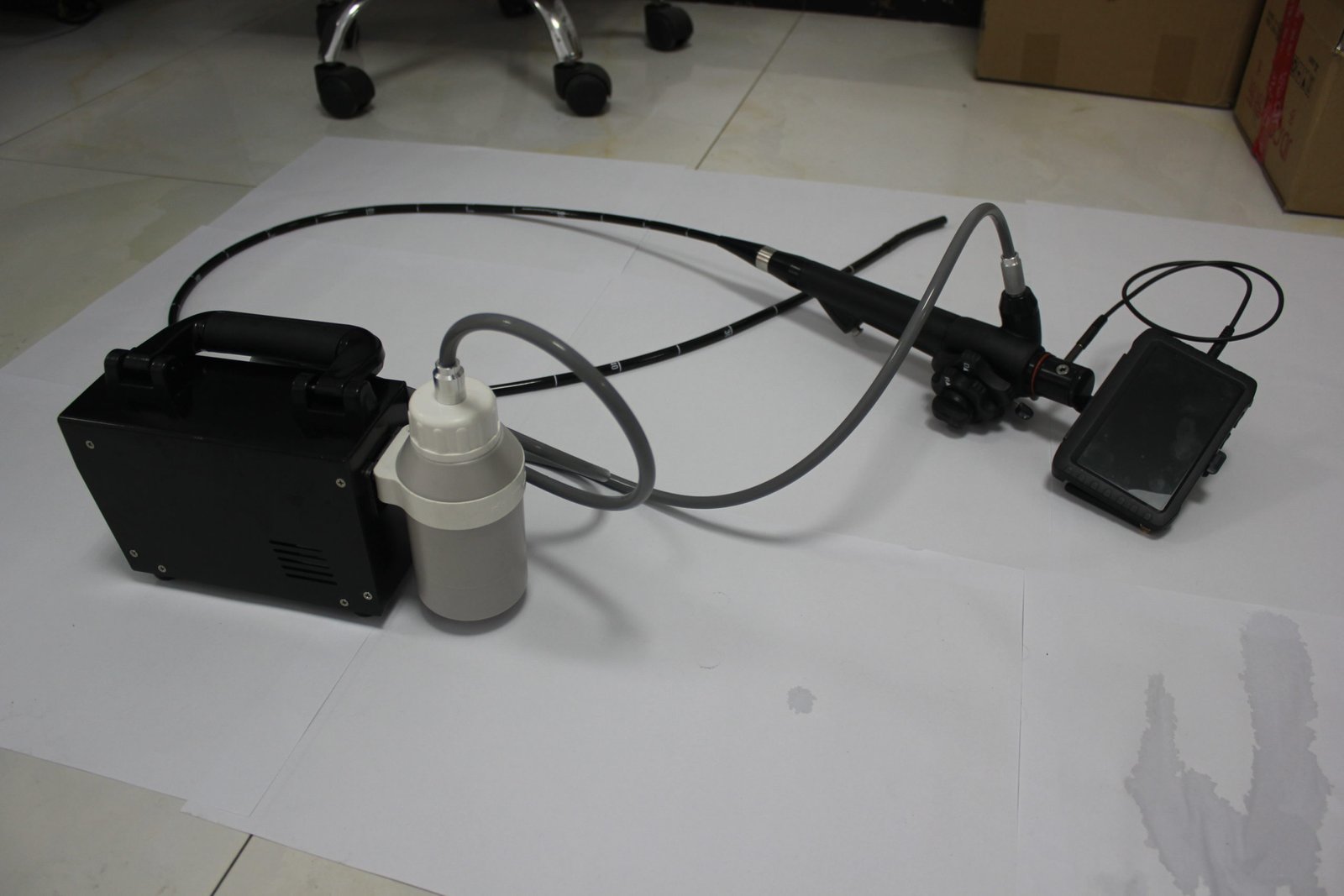

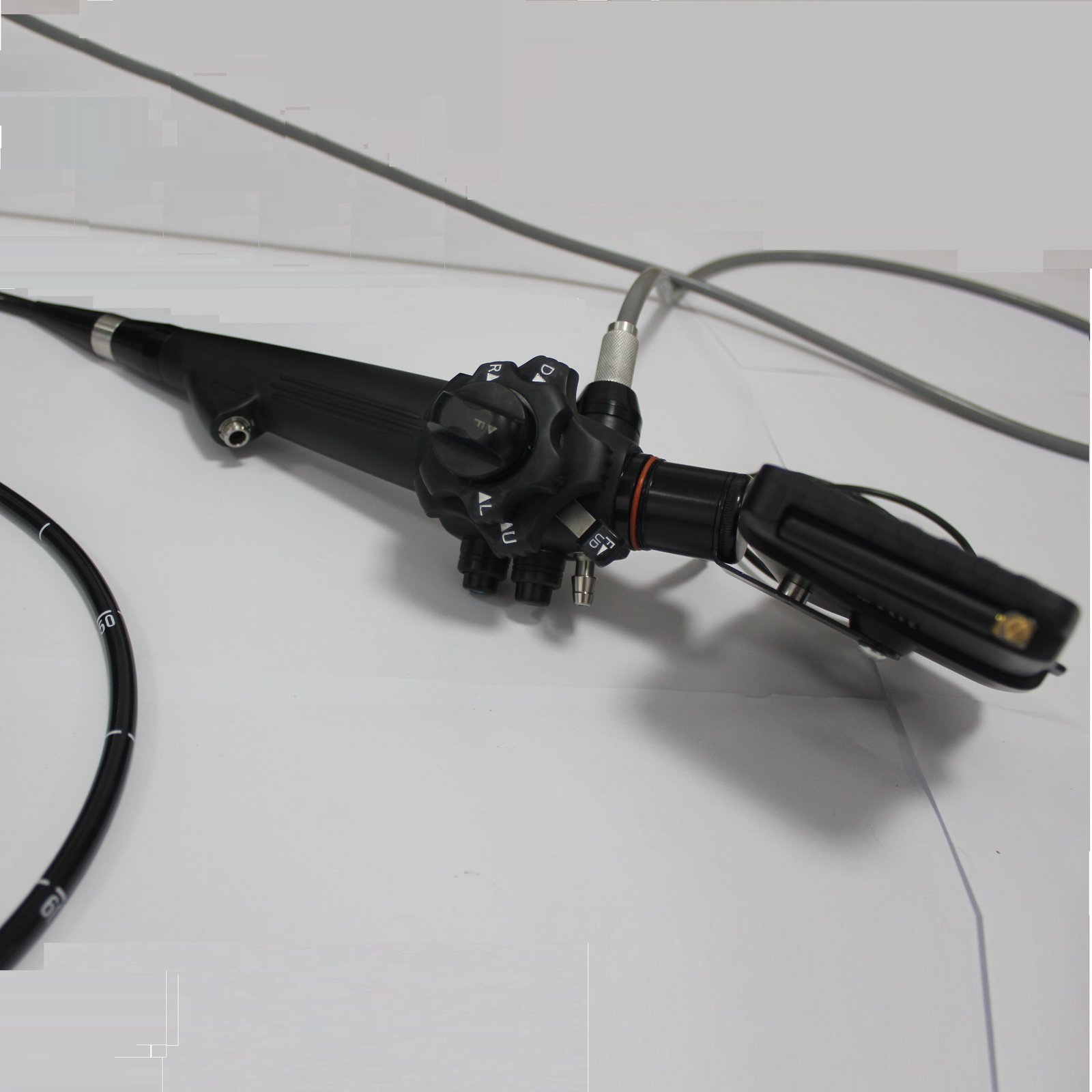

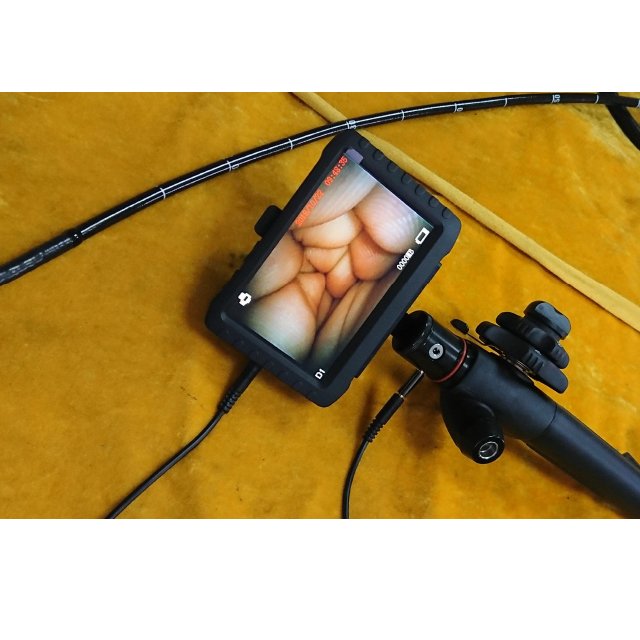

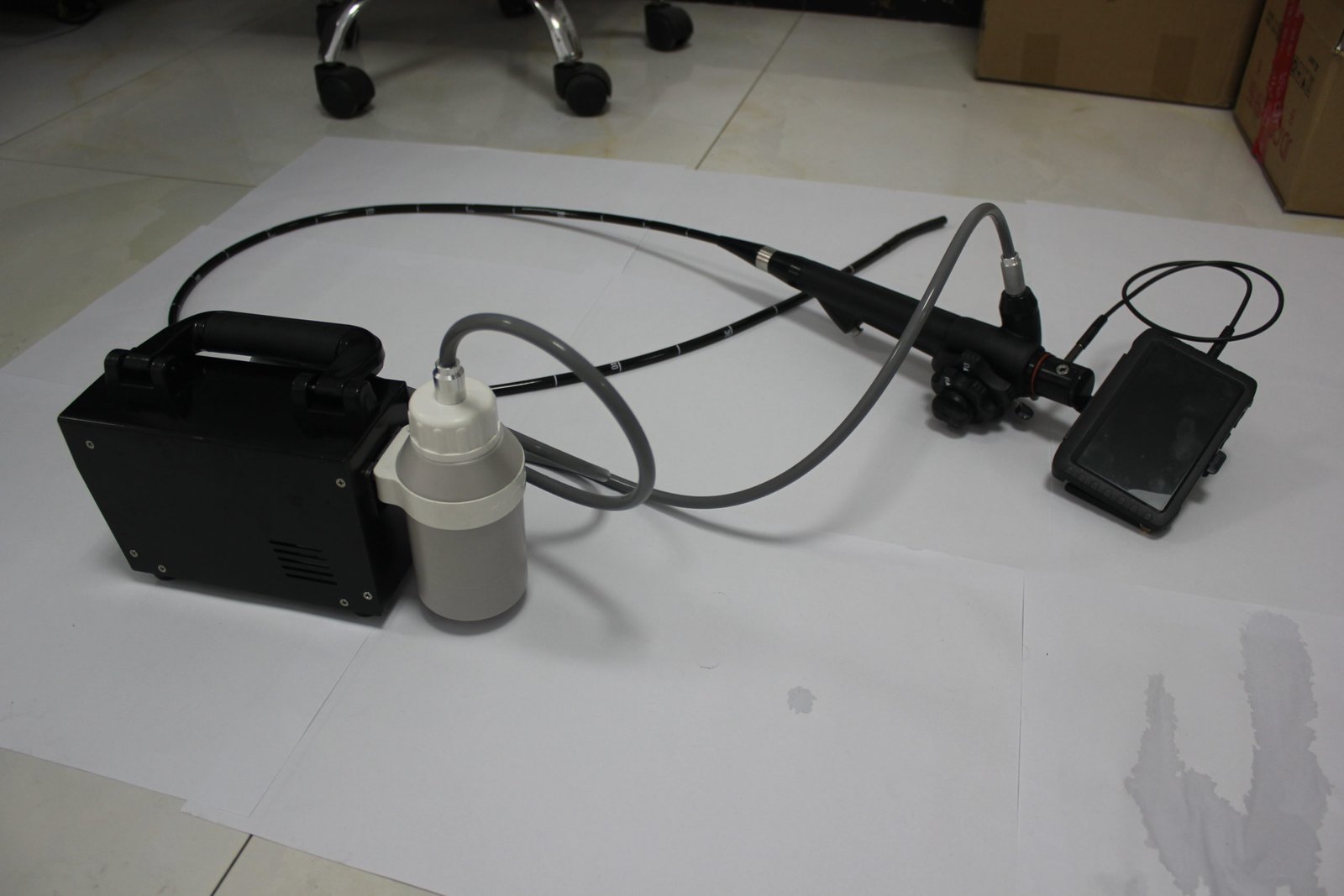

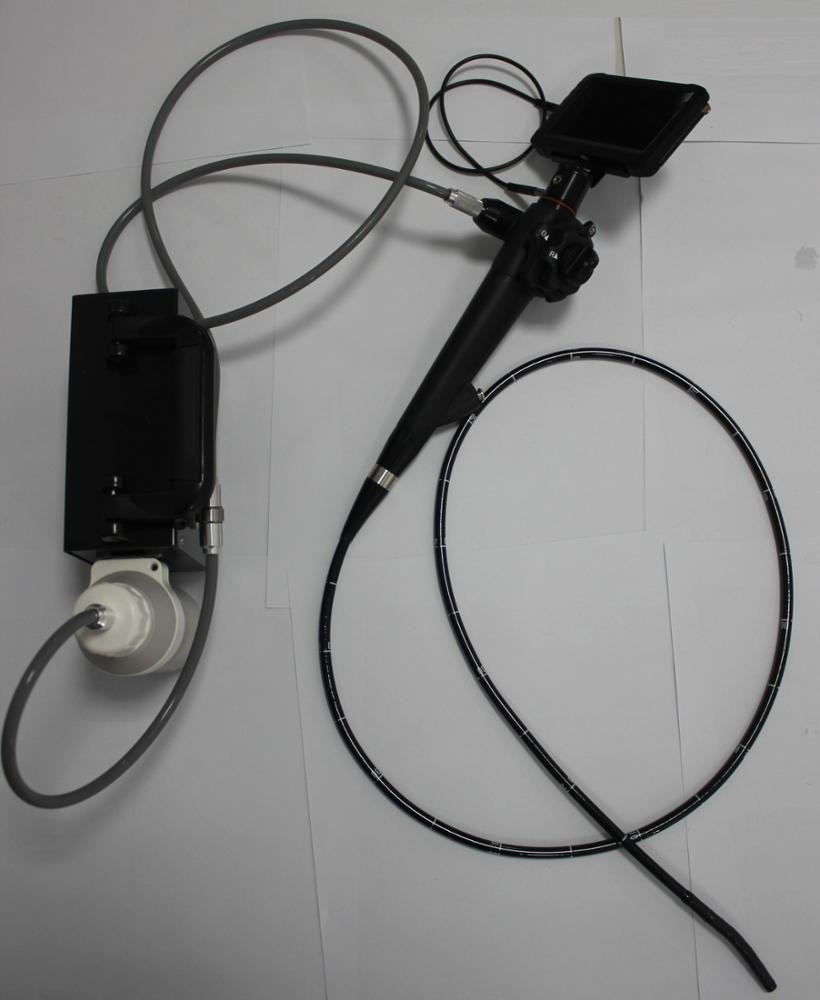

Multifunctional Portable Video Gastroscope Machine NEUVF02
- Compact and portable design for ease of use in various settings
- 120° field of view for enhanced visualization
- Distal-end diameter of Φ8.0mm for optimal access
- Depth of view ranging from 3-100mm for detailed examination
- Flexible bending range: Up 210°, Down 90°, Left/Right 100°
- 2.0mm working channel for instrument passage
- 1500mm working length to reach targeted areas
- 5.0” LCD screen for clear image display
- High resolution with 160,000 pixels for accurate diagnostics
- Ideal for various gastrointestinal procedures and examinations
- SKU
- NEUVF02
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Multifunctional Portable Video Gastroscope Machine NEUVF02
A compact, portable gastroscope system designed for comprehensive gastrointestinal visualization in veterinary and clinical settings. Features a 120° field of view, 8.0mm distal-end diameter, and advanced imaging with 160,000-pixel CMOS resolution for precise diagnostic capability.
Clinical overview
The NEUVF02 is a multifunctional portable video gastroscope system engineered for veterinary practitioners and clinical facilities requiring reliable gastrointestinal visualization. Its compact design enables deployment across multiple settings—from primary care clinics to specialized endoscopy suites—without compromising optical performance or diagnostic accuracy.
With a 120° field of view and 3–100mm depth of view, the system delivers comprehensive visualization of the gastric mucosa and proximal small intestine. The flexible insertion tube (1500mm working length, Φ8.0mm diameter) navigates anatomical variations with precision, while the 2.0mm working channel accommodates biopsy forceps, brushes, and therapeutic instruments for integrated diagnostic and interventional procedures.
Key features & surgeon benefits
Superior Optical Performance
- 120° field of view for comprehensive mucosal assessment
- 160,000-pixel CMOS sensor for high-definition imaging
- 3–100mm depth of view for detailed focal examination
Intuitive Handling & Control
- Flexible bending range: Up 210°, Down 90°, Left/Right 100°
- 5.0" LCD screen for real-time image display and documentation
- Compact, portable design for multi-site deployment
Integrated Therapeutic Capability
- 2.0mm working channel for instrument passage
- 1500mm working length for deep luminal access
- Supports biopsy, brushing, and therapeutic interventions
Robust & Reliable Design
- Medical-grade construction for clinical durability
- 2-year manufacturer warranty with lifetime support
- Standardized maintenance protocols for extended service life
Technical specifications
| Field of View | 120° |
|---|---|
| Distal-End Diameter | Φ8.0mm |
| Outer Diameter of Insert Tube | Φ8.0mm |
| Depth of View | 3–100mm |
| Bending Range | Up 210°, Down 90°, Left/Right 100° |
| Working Channel | Φ2.0mm |
| Working Length | 1500mm |
| Display | 5.0" LCD screen |
| Image Resolution | CMOS 160,000 pixels |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Video Gastroscope Head | Complete insertion tube with optics and working channel | 1 |
| Control Unit | Main processor and control interface | 1 |
| LCD Display Monitor | 5.0" screen for real-time image display | 1 |
| Power Supply | Mains adapter and power cable | 1 |
| Video Cable | Connection cable between scope and processor | 1 |
| User Manual | Operation and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, and delivery timelines. We provide comprehensive support and customisation options for veterinary and clinical facilities worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
