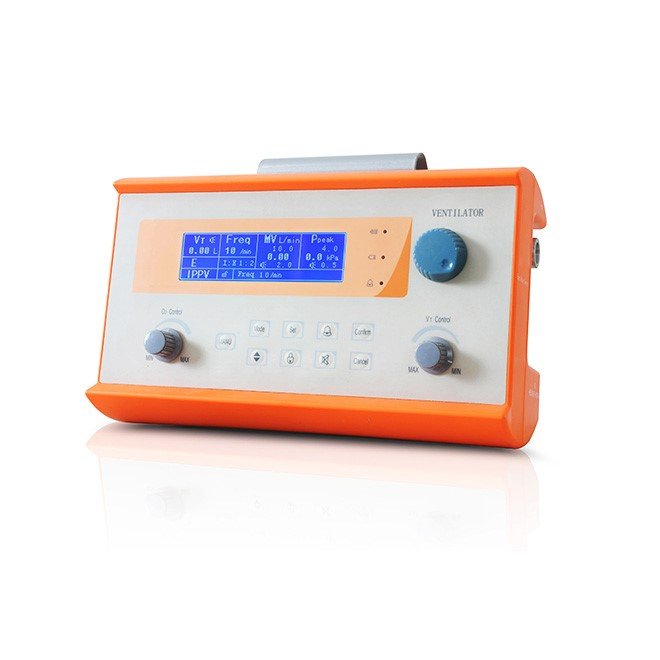

Portable Ventilator NEUVM17
- Portable Ventilator NEUVM17 suitable for children and adults
- Electronically controlled with gas-driven operation
- LCD display for easy monitoring of vital parameters
- Multiple ventilation modes: IPPV, SIMV, A/C, SIGH, MANUAL, and optional CPAP
- Adjustable tidal volume from 0 to 1500ml
- High sensitivity pressure trigger and optional PEEP settings
- Battery life of at least 2 hours with AC power support
- Compact design: 310mm x 190mm x 115mm and weighs only 3.5kg
- Alarms for critical conditions: VT, MV, and airway pressure
- Designed for emergency rescue in vehicles or portable stretchers
- SKU
- NEUVM17
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Ventilator NEUVM17
Electronically controlled, gas-driven portable ventilator designed for emergency rescue in vehicles and portable stretchers. Supports both paediatric and adult patients with multiple ventilation modes, real-time LCD monitoring, and comprehensive alarm systems for critical care transport.
Clinical overview
The NEUVM17 is a compact, electronically controlled portable ventilator engineered for emergency respiratory support in pre-hospital and transport settings. Suitable for both paediatric and adult patients, it delivers reliable ventilation during respiratory depression, paralysis, or acute failure. The gas-driven operation with electronic control ensures consistent performance across diverse field environments, from ambulances to portable stretchers.
With multiple ventilation modes (IPPV, SIMV, A/C, SIGH, MANUAL, and optional CPAP), adjustable tidal volumes up to 1500 ml, and real-time LCD monitoring of vital parameters, clinicians gain precise control and visibility. Integrated alarms for tidal volume, minute volume, and airway pressure provide critical safety oversight, while a 2-hour battery life ensures uninterrupted care during transport.
Key features & surgeon benefits
Multi-mode ventilation
- Six ventilation modes: IPPV, SIMV, A/C, SIGH, MANUAL, CPAP (optional)
- Adjustable tidal volume 0–1500 ml for paediatric and adult patients
- Breathing rate 4–99/min (4–65/min under SIMV)
Compact field-ready design
- Dimensions: 310 × 190 × 115 mm; weight only 3.5 kg
- Battery life ≥2 hours with AC power support (110V/220V/50/60Hz)
- Optimised for vehicle and portable stretcher deployment
Real-time parameter visibility
- LCD display with continuous monitoring of tidal volume, minute volume, breathing rate, airway pressure
- FiO₂ range 48–100% with pure air or oxygen
- Pressure trigger sensitivity –2 to 0 kPa; PEEP 0–20 cmH₂O (optional)
Comprehensive alarm system
- Audio and visual alarms for no VT, high/low MV, high/low airway pressure
- AC power loss and backup battery low alerts
- I:E ratio control 3:1 to 1:5 for precise ventilation timing
Technical specifications
| Indications | Respiratory depression, respiratory paralysis, respiratory failure; emergency rescue in vehicles or portable stretchers |
|---|---|
| Patient population | Paediatric and adult |
| Drive system | Gas-driven with electronic control |
| Ventilation modes | IPPV, SIMV, A/C, SIGH, MANUAL, CPAP (optional) |
| Tidal volume | 0–1500 ml |
| Breathing rate | 4–99/min; 4–65/min under SIMV |
| I:E ratio | 3:1 to 1:5 |
| FiO₂ range | 48–100% |
| Gas source | Pure air or oxygen |
| Pressure trigger sensitivity | –2 to 0 kPa |
| PEEP | 0–20 cmH₂O (optional) |
| Display | LCD with monitoring of tidal volume, minute volume, breathing rate, airway pressure |
| Alarms | No VT, MV too high/low, airway pressure too high/low, AC power off, backup battery low; audio and visual alerts |
| Power supply | Battery (≥2 hours) and AC 110V/220V/50/60Hz |
| Dimensions | 310 × 190 × 115 mm (L × H × W) |
| Net weight | 3.5 kg |
| Operating temperature | 5–40 °C |
| Operating humidity | <80% relative humidity |
| Storage temperature | –10 to 40 °C |
| Storage humidity | <90% relative humidity |
| User manual | English (standard) |
| Warranty | 2 Year Manufacturer Warranty |

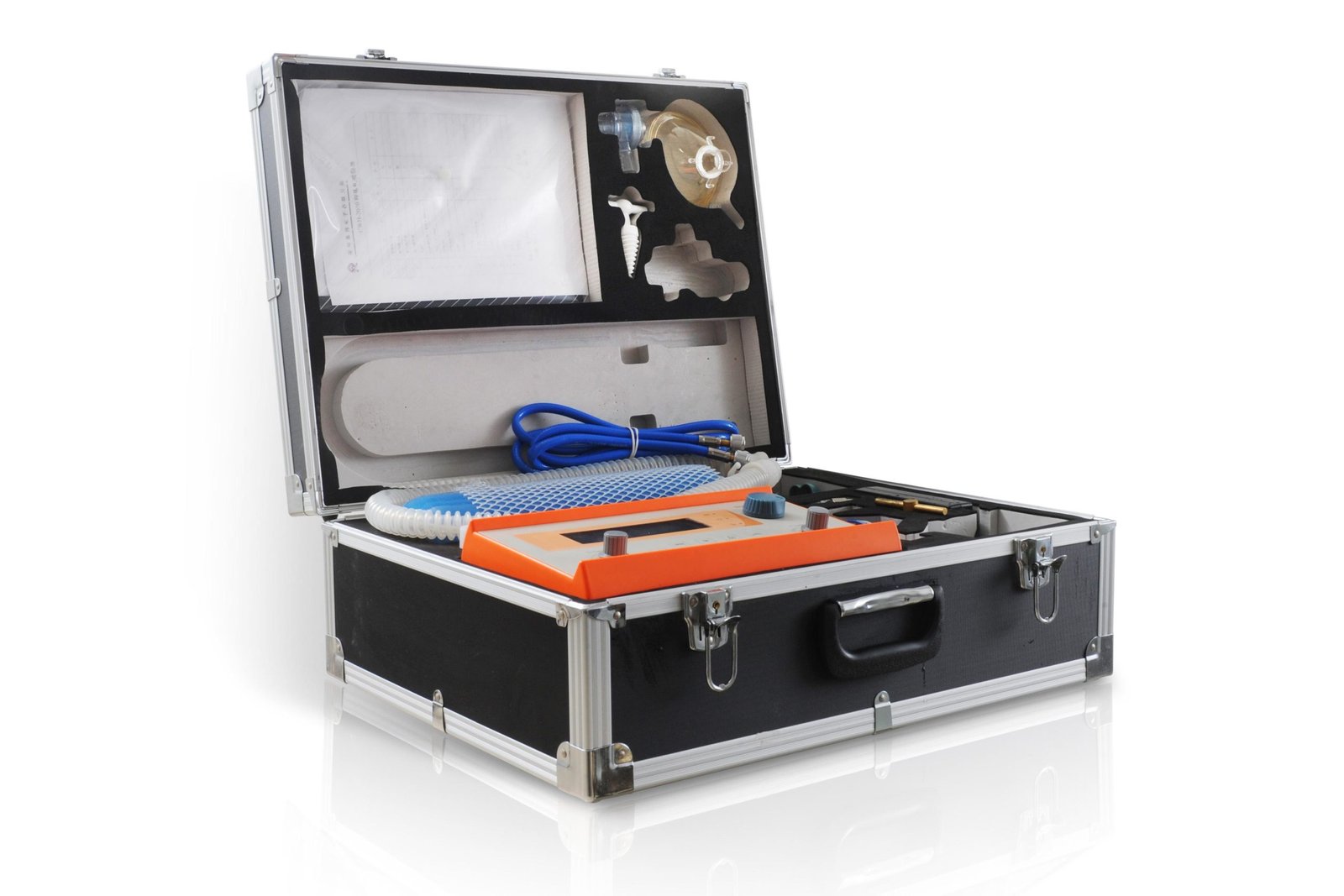

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main body | Portable ventilator unit with electronic control and LCD display | 1 |
| Oxygen cylinder | 3 L oxygen cylinder for gas supply | 1 |
| Silicon mask/circuit | Medical-grade silicon mask and breathing circuit for patient interface | 1 |
| Accessories | Additional components required for basic operation | As required |
