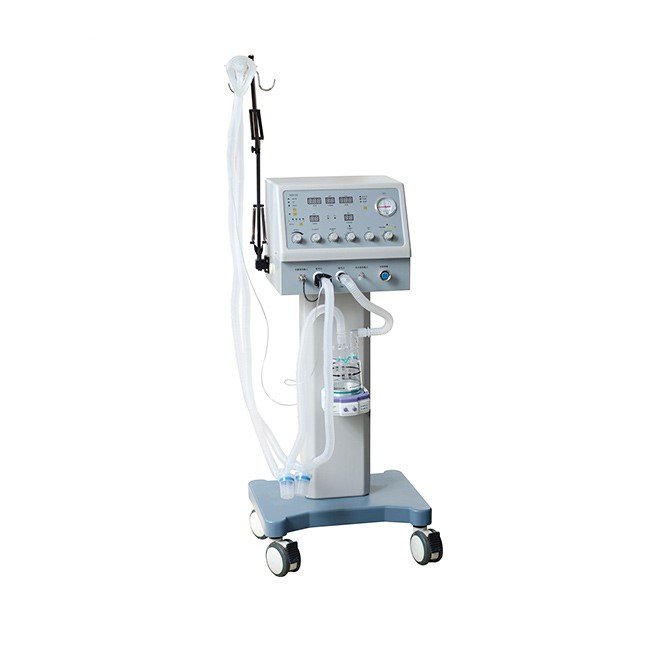

Ventilator Machine NEUVM09
- Advanced ventilator machine designed for critical care.
- Supports multiple ventilation modes: SIPPV, IPPV, IMV, and SIMV.
- Tidal volume range of 50 to 1200ml with ±20% accuracy.
- Maximum minute ventilation up to 18 L/min, allowing tailored patient care.
- Oxygen concentration output below 45% for safe delivery.
- Continuous operation capability for 24 hours on AC power.
- Compact design with a net weight of 28kg and dimensions of 410×300×1100 mm.
- Adjustable maximum operating pressure range (5-6.0 KPa).
- Features controlled ventilation frequency between 6 to 60 times/min.
- Equipped with an inspiration triggering pressure range of -0.4 to 1.0 KPa.
- SKU
- NEUVM09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ventilator Machine NEUVM09
Advanced critical care ventilator with multi-mode support for controlled, assisted, and spontaneous ventilation. Delivers precise tidal volumes from 50–1200 mL with ±20% accuracy and supports minute ventilation up to 18 L/min. Compact, reliable, and designed for continuous 24-hour operation in intensive care settings.
Clinical overview
The NEUVM09 is a sophisticated critical care ventilator engineered for intensive care units and acute respiratory support. It combines precision gas delivery with flexible ventilation modes to meet the complex demands of mechanically ventilated patients. The device supports SIPPV, IPPV, IMV, and SIMV modes, allowing clinicians to transition seamlessly between controlled ventilation and patient-triggered assisted breathing.
With tidal volume accuracy of ±20% across a 50–1200 mL range and minute ventilation up to 18 L/min, the NEUVM09 delivers reliable, reproducible gas delivery. The compact design (410×300×1100 mm, 28 kg) facilitates placement in space-constrained ICU environments, while continuous 24-hour AC operation ensures uninterrupted patient care. Adjustable pressure limits, PEEP capability, and inspiration triggering sensitivity provide granular control for individualised patient management.
Key features & surgeon benefits
Multi-mode flexibility
- SIPPV (Synchronized Intermittent Positive Pressure Ventilation)
- IPPV (Intermittent Positive Pressure Ventilation)
- IMV (Intermittent Mandatory Ventilation)
- SIMV (Synchronized Intermittent Mandatory Ventilation)
Accurate gas parameters
- Tidal volume 50–1200 mL with ±20% accuracy
- Minute ventilation up to 18 L/min
- Oxygen concentration output <45%
- Inspiration triggering pressure –0.4 to 1.0 KPa
Continuous, dependable care
- 24-hour continuous AC operation
- Compact footprint: 410×300×1100 mm, 28 kg
- Pressure limit range 1.0–6.0 kPa
- PEEP capability 0.1–1.0 kPa
Granular parameter adjustment
- Ventilation frequency 6–60 times/min (±15% deviation)
- I:E ratio options: 1:1.5, 1:2.0, 1:2.5, 1:3.0
- Sigh (deep breath) function for alveolar recruitment
- Real-time display of spontaneous breathing frequency and ventilation capacity
Technical specifications
| Indications | Critical care ventilation, intensive care units, controlled and assisted breathing support |
|---|---|
| Ventilation modes | SIPPV, IPPV, IMV, SIMV |
| Tidal volume range | 50–1200 mL (±20% permissible deviation) |
| Maximum minute ventilation | ≥18 L/min (±20% permissible deviation) |
| Oxygen concentration output | <45% |
| Ventilation frequency (IPPV) | 6–60 times/min (±15% permissible deviation) |
| I:E ratio options | 1:1.5, 1:2.0, 1:2.5, 1:3.0 (±15% permissible deviation) |
| Maximum safety pressure | ≤6.0 KPa |
| Settable maximum operating pressure | 5–6.0 KPa (gas source 280–600 kPa) |
| Inspiration triggering pressure | –0.4 to 1.0 KPa (±0.15 KPa permissible deviation) |
| IMV frequency range | 1–12 times/min (±15% permissible deviation) |
| PEEP range | 0.1–1.0 kPa |
| Pressure limit range | 1.0–6.0 kPa (±20% permissible deviation) |
| Oxygen consumption | ≤1.5 MPa/h pressure variation on 40 L cylinder during continuous 1-hour operation |
| Mode switching time | 6 seconds (+1 s, –2 s permissible deviation) |
| Display refresh rate | Once per minute (spontaneous breathing frequency, overall respiratory rate, ventilation capacity) |
| Continuous operation duration | 24 hours on AC utility main |
| Net weight | 28 kg |
| Dimensions (L×W×H) | 410×300×1100 mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main ventilator unit | NEUVM09 critical care ventilator with integrated control panel | 1 |
| Power cable | AC mains power supply cable (24-hour continuous operation) | 1 |
| Gas inlet connectors | Medical gas inlet ports for oxygen and air supply | As applicable |
| Patient circuit | Standard ventilator tubing and connectors | As applicable |
| User manual | Clinical operation and maintenance documentation | 1 |
