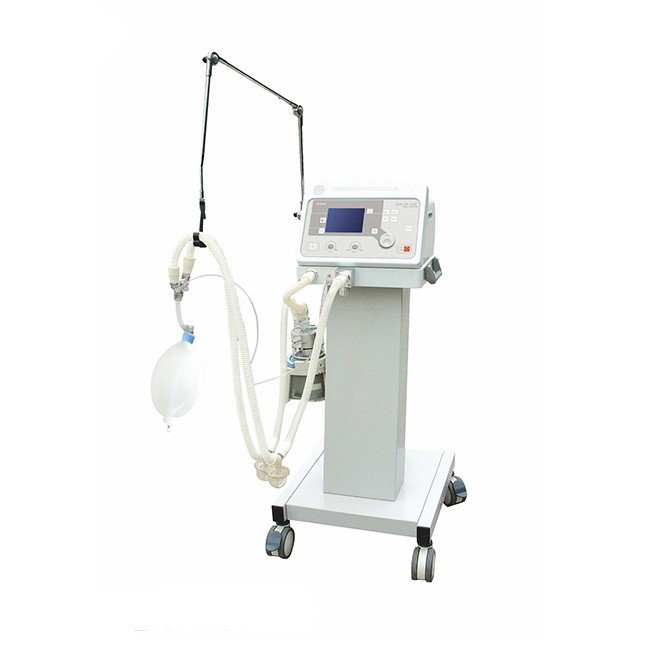

Ventilator Machine NEUVM05
- Advanced Ventilator Machine NEUVM05 for patient support
- Multiple ventilation modes: CMV, A/C, SIMV, MANUAL
- Adjustable tidal volume range: 50~2000ml
- High respiratory rate capability: 1~100 bpm
- Oxygen concentration (FiO2) from 40% to 100%
- User-friendly interface with real-time monitoring
- Comprehensive alarm system for airway and ventilation issues
- Compact design with a package dimension of 550×550×1220mm
- Lightweight at 32kg, including all accessories
- Suitable for a variety of clinical environments with robust power specifications
- SKU
- NEUVM05
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ventilator Machine NEUVM05
Advanced mechanical ventilation system for critical care environments. The NEUVM05 delivers comprehensive respiratory support with multiple ventilation modes, precise parameter control, and real-time monitoring for diverse patient populations across ICU, emergency, and surgical settings.
Clinical Overview
The NEUVM05 represents a breakthrough in mechanical ventilation technology, engineered to meet the demanding requirements of modern critical care units, emergency departments, and surgical environments. This state-of-the-art ventilation system combines advanced functionality with intuitive operation, enabling healthcare professionals to deliver precise, personalized respiratory support across a wide range of clinical scenarios. With its comprehensive suite of ventilation modes—CMV, A/C, SIMV, and MANUAL—and extensive parameter adjustment capabilities, the NEUVM05 adapts seamlessly to diverse patient populations and clinical protocols.
Engineered for reliability and performance, the NEUVM05 features robust construction that ensures consistent operation in challenging environments. The system's sophisticated monitoring capabilities provide real-time feedback on critical parameters including tidal volume, minute ventilation, respiratory rate, inspiratory time, I:E ratio, trigger sensitivity, PEEP, airway pressure, pressure-time waveforms, and oxygen concentration. An integrated comprehensive alarm system continuously monitors for high and low airway pressure, minute ventilation volume anomalies, frequency variations, apnea events, parameter configuration errors, and power failures, ensuring maximum patient safety through multiple layers of protection.
Key Features & Clinician Benefits
Comprehensive Mode Selection
- CMV for complete ventilatory control in apneic patients
- A/C mode supporting spontaneous breathing with guaranteed minimum ventilation
- SIMV for synchronized weaning with combined mandatory and spontaneous breaths
Precision Customisation
- Tidal volume 50–2000 ml for pediatric to large adult patients
- Respiratory rate 1–100 bpm for diverse clinical strategies
- FiO₂ adjustment 40–100% for precise oxygen titration
Real-Time Vigilance
- Continuous monitoring of 11 critical parameters
- Intelligent alarm system for 8 distinct safety conditions
- Over-pressure relief ≤7.2 kPa prevents barotrauma
Compact & Deployable
- Lightweight at 32 kg including all accessories
- Compact dimensions 550×550×1220 mm for space-constrained areas
- Operates across -18°C to 50°C and 15–95% humidity
Technical Specifications
| Indications | Acute and chronic respiratory failure, mechanical ventilation support in ICU, emergency departments, surgical suites, post-operative recovery, long-term ventilation care |
|---|---|
| Ventilation Modes | CMV, A/C, SIMV, MANUAL |
| Tidal Volume | 50–2000 ml |
| Respiratory Rate | 1–100 bpm |
| FiO₂ (Oxygen Concentration) | 40–100% |
| Inspiratory Time | 0.3–6 seconds |
| Trigger Sensitivity | OFF, −19 to +19 kPa |
| Peak Inspiratory Pressure (PIP) | 0–60 hPa |
| PEEP | 0, 5–20 hPa |
| Airway Pressure Range | −10 to +100 hPa |
| Maximum Minute Volume | ≥22 L/min |
| Over Pressure Relief | ≤7.2 kPa |
| Operating Temperature | −18°C to +50°C |
| Relative Humidity | 15–95% |
| Atmospheric Pressure | 70–110 kPa |
| Power Requirements | AC 110V/220V, 50/60Hz |
| Gas Source Pressure | 0.28–0.6 MPa, 60 L/min |
| Package Dimensions | 550×550×1220 mm |
| Weight (with accessories) | 32 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard System Composition
| Item | Description | Qty |
|---|---|---|
| Ventilator Unit | NEUVM05 main ventilation system with integrated control panel and monitoring display | 1 |
| Patient Circuit | Complete breathing circuit with tubing, connectors, and humidifier interface | 1 |
| Air Compressor Module | Integrated compressor for air delivery and pressure regulation | 1 |
| Oxygen Blender | Precision oxygen concentration control module (40–100% FiO₂) | 1 |
| Pressure Transducers | Airway pressure and system pressure monitoring sensors | 2 |
| Flow Sensors | Tidal volume and minute ventilation measurement sensors | 2 |
| Alarm Module | Integrated audible and visual alarm system with 8 monitoring conditions | 1 |
| Power Cable | AC 110V/220V, 50/60Hz power supply cable with safety connectors | 1 |
| Gas Supply Hoses | High-pressure hoses for oxygen and air input (0.28–0.6 MPa rated) | 2 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quick Reference Guide | Clinical parameter settings and troubleshooting guide | 1 |
| Carrying Case | Protective transport case for portability and storage | 1 |
Get in Touch for Pricing & Availability
Contact our clinical sales team to discuss the NEUVM05 ventilator system, request detailed specifications, arrange a demonstration, or obtain volume pricing for your healthcare facility.
