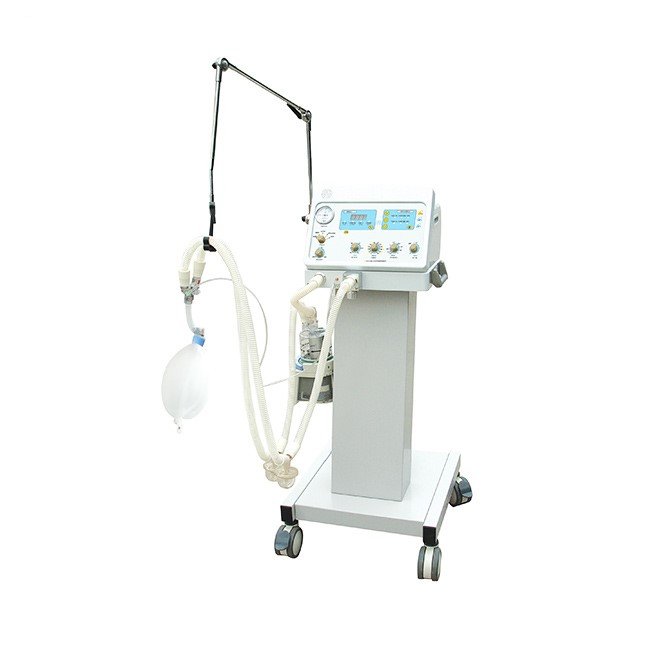

- Advanced Ventilator Machine NEUVM07 for critical care
- Supports multiple operating modes: CMV, SIGH, A/C, SIMV, MANUAL, PEEP
- Tidal Volume adjustment range: 50~1200ml
- Respiratory Rate settings from 5 to 60 bpm
- FiO2 levels adjustable between 40% and 100%
- User-friendly interface with real-time monitoring features
- Comprehensive alarm system for safety: includes high/low pressure and apnea alerts
- Compact design with dimensions of 550×550×1220mm
- Weighs 32kg, including all accessories for ease of transport
- Reliable performance in diverse environmental conditions (temperature -18~50°C, humidity 15-95%)
Advanced critical care ventilator with multi-mode support including CMV, SIGH, A/C, SIMV, MANUAL, and PEEP. Delivers precise tidal volume control (50–1200 ml), adjustable respiratory rates (5–60 bpm), and comprehensive real-time monitoring with integrated safety alarms for high-acuity patient management.
The NEUVM07 is a sophisticated critical care ventilator engineered for demanding clinical environments. It combines advanced respiratory support modes with intuitive operator controls, enabling clinicians to deliver precise, patient-centered ventilation across diverse acute care scenarios. The system supports spontaneous breathing modes, synchronized ventilation, and manual override capabilities—essential for managing patients from initial stabilization through weaning protocols.
Built for reliability in variable environmental conditions (−18 to +50°C, 15–95% relative humidity), the NEUVM07 maintains consistent performance in resource-constrained settings. Comprehensive real-time monitoring and multi-parameter alarms ensure early detection of circuit anomalies, patient desaturation, and equipment faults, reducing clinical risk and supporting evidence-based respiratory management.
| Indications | Critical care ventilation, ICU support, anesthesia, respiratory failure management |
|---|---|
| Operating modes | CMV, SIGH, A/C, SIMV, MANUAL, PEEP |
| Tidal volume range | 50–1200 ml |
| Respiratory rate | 5–60 bpm |
| FiO₂ range | 40–100% |
| Inspiratory time | 0.5–3 seconds |
| PEEP settings | 0, 5–20 hPa |
| Airway pressure range | −10 to +100 hPa |
| Maximum minute volume | ≥22 L/min |
| Trigger sensitivity | −0.5 to 1 kPa |
| Over-pressure relief | ≤7.2 kPa |
| Gas source requirement | 0.28–0.6 MPa, 60 L/min |
| Power supply | AC 110V/220V, 50/60Hz |
| Ambient temperature | −18 to +50°C |
| Relative humidity | 15–95% |
| Atmospheric pressure | 70–110 kPa |
| Dimensions | 550 × 550 × 1220 mm |
| Weight | 32 kg (including all accessories) |
| Warranty | 2 Year Manufacturer Warranty |
| Monitoring Parameters | Alarm Functions |
|---|---|
| Tidal volume | High airway pressure alarm |
| Circuit pressure | Low airway pressure alarm |
| Alarm set point | High minute volume alarm |
| Minute volume | Low minute volume alarm |
| Breath rate | High respiratory rate alarm |
| Trigger level | Apnea alarm |
| Power failure alarm | |
| Low oxygen source alarm |
| Item | Description | Qty |
|---|---|---|
| Ventilator unit | NEUVM07 main system with integrated control panel | 1 |
| Patient circuit | Standard dual-limb breathing circuit with exhalation valve | 1 |
| Humidifier | Heated humidification chamber for inspired gas | 1 |
| Gas inlet manifold | Oxygen and air supply connection block | 1 |
| Pressure transducers | Airway and circuit pressure monitoring sensors | 2 |
| Power cable | AC 110V/220V, 50/60Hz mains connection | 1 |
| Gas hoses | High-pressure oxygen and air delivery tubing | 2 |
| Mounting bracket | Ventilator stand with adjustable height | 1 |
| User manual | Comprehensive operation and maintenance guide | 1 |
| Accessories kit | Filters, connectors, and spare parts | 1 |
Contact our clinical sales team to discuss the NEUVM07 specifications, pricing, delivery timelines, and integration with your facility's respiratory care protocols. We offer comprehensive training and post-sale support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
