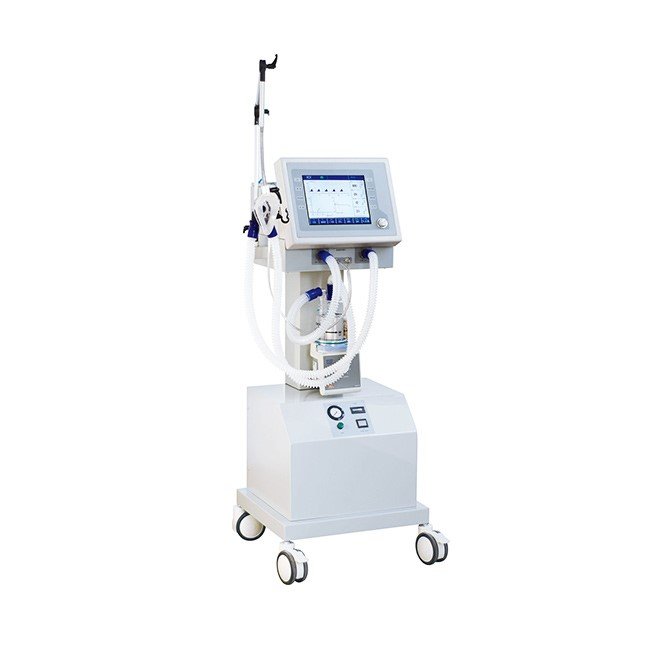

Ventilator NEUVM12
- Tidal Volume adjustment: 0-1500ml for precise ventilation.
- Maximum ventilation capacity: ≥18L/min for optimal respiratory support.
- Oxygen Concentration range: 21%-100%, with ±15% error margin.
- Adjustable I/E Ratio options: 1:4 to 4:1 for flexible ventilation settings.
- SIMV mode: 1-20 times/min, allowing tailored patient care.
- Maximum Safety Pressure: ≤6.0kPa to ensure patient safety.
- Continuous operation capability: 24 hours on main power; 30 minutes on battery.
- Deep breath feature: adjustable 1-8 times after control breathing.
- Flow trigger sensitivity: customizable levels for patient comfort.
- SKU
- NEUVM12
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ventilator NEUVM12
The NEUVM12 is a precision-engineered ventilator delivering flexible respiratory support across multiple ventilation modes. With tidal volume control from 0–1500 mL, adjustable I/E ratios, and integrated safety pressure limits, it provides clinicians with the control and reliability required for diverse patient populations in critical care and perioperative settings.
Clinical overview
The NEUVM12 ventilator combines precision tidal volume control with comprehensive ventilation mode flexibility, enabling clinicians to tailor respiratory support to individual patient physiology. Featuring adjustable I/E ratios from 1:4 to 4:1, SIMV capability at 1–20 breaths/min, and integrated sigh (deep breath) functionality, the system accommodates diverse clinical scenarios from controlled ventilation to spontaneous breathing support.
With maximum ventilation capacity exceeding 18 L/min, oxygen concentration range of 21–100%, and safety pressure limits ≤6.0 kPa, the NEUVM12 ensures both therapeutic efficacy and patient safety. The device supports continuous operation on main power (24 hours) and battery backup (≥30 minutes), making it suitable for perioperative, critical care, and transport environments.
Key features & surgeon benefits
Granular Ventilation Parameters
- Tidal volume adjustment 0–1500 mL with ±20 mL accuracy (≤100 mL) or ±20% (>100 mL)
- I/E ratio selection: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2, 1:2.5, 1:3, 1:4
- IPPV range 0–99 times/min with ±15% error tolerance
Multi-Mode Flexibility
- SIMV mode 1–20 breaths/min for patient-triggered ventilation
- Adjustable sigh (deep breath) 1–8 times per 100 control breaths
- Flow trigger sensitivity customizable at levels 3–8 for patient comfort
Integrated Protection
- Maximum safety pressure ≤6.0 kPa prevents barotrauma
- Pressure restriction range 1–6 kPa with ±20% accuracy
- PEEP adjustment 0.1–1.0 kPa for optimal end-expiratory pressure
Comprehensive Gas Control
- Oxygen concentration 21–100% with ±15% error margin
- Maximum ventilation capacity ≥18 L/min
- Ventilation compliance ≤30 mL/kPa for accurate delivery
Technical specifications
| Tidal Volume | 50–1500 mL; error ≤100 mL: ±20 mL; >100 mL: ±20% |
|---|---|
| Ventilation Capacity | ≥18 L/min |
| Oxygen Concentration | 21–100% (±15% error allowed) |
| Ventilation Compliance | ≤30 mL/kPa |
| IPPV Range | 0–99 times/min (±15% error allowed) |
| I/E Ratio Options | 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2, 1:2.5, 1:3, 1:4 (±15% error allowed) |
| SIMV Mode | 1–20 times/min (±15% error allowed) |
| Maximum Safety Pressure | ≤6.0 kPa |
| Control Pressure Range | 0.3 kPa to 4 kPa – PEEP |
| PTR Sensitivity | PEEP – 1 cmH₂O to PEEP – 9 cmH₂O (±1 cmH₂O error allowed) |
| End-Inhale Continuous Time | 0–50% adjustable (0.1–20 seconds) |
| PEEP Range | 0.1–1.0 kPa |
| Flow Trigger Sensitivity | Level 3 to Level 8 |
| Pressure Restriction | 1–6 kPa (±20% error allowed) |
| Sigh (Deep Breath) | 1–8 times per 100 control breaths; inspiration time 1.5× setup time |
| Sustained Operation | 24 hours on main power; ≥30 minutes on battery backup |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Ventilator Unit | NEUVM12 main ventilator assembly with integrated control panel | 1 |
| Power Supply | Main power adapter and battery backup module | 1 |
| Patient Circuit | Standard breathing circuit with connectors | 1 |
| Oxygen Inlet | Oxygen concentration control module | 1 |
| Safety Pressure Relief | Integrated pressure relief valve assembly | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUVM12 ventilator. We provide comprehensive support from specification review through installation and training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
