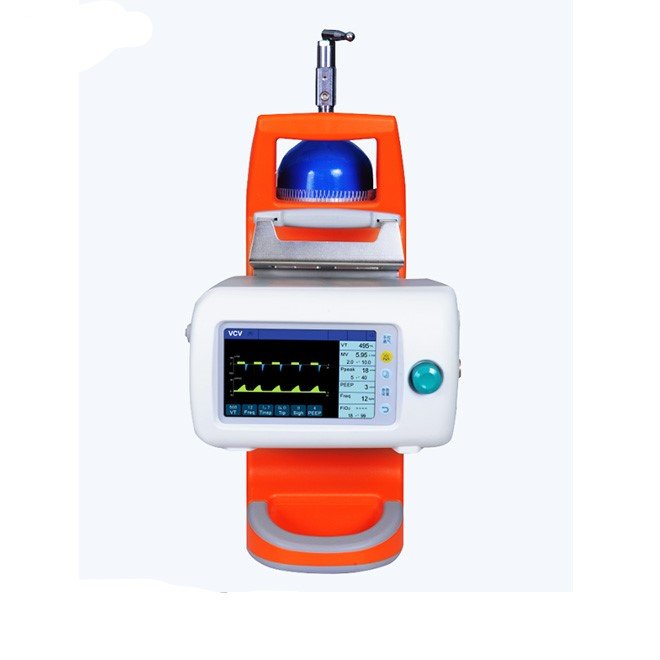

- Compact and portable Ventilator System NEUVM18
- Compatible with both DC (12V) and AC (100V-240V) power sources
- Supports ventilation for both children and adults (weight ≥ 5kg)
- Features 7-inch LCD for clear monitoring and control
- Multiple ventilation modes: VCV, SIMV, A/C, SIGH, MANUAL, CPAP, PSV (optional), PCV
- Adjustable tidal volume ranging from 20-1500 mL
- Integrated alarms for safety: No VT, high/low MV, airway pressure alerts
- Includes a 3L oxygen cylinder for extended usage
- Electronically controlled operation with gas-driven functionality
- Accessory set includes main unit, silicon mask, and essential accessories for operation

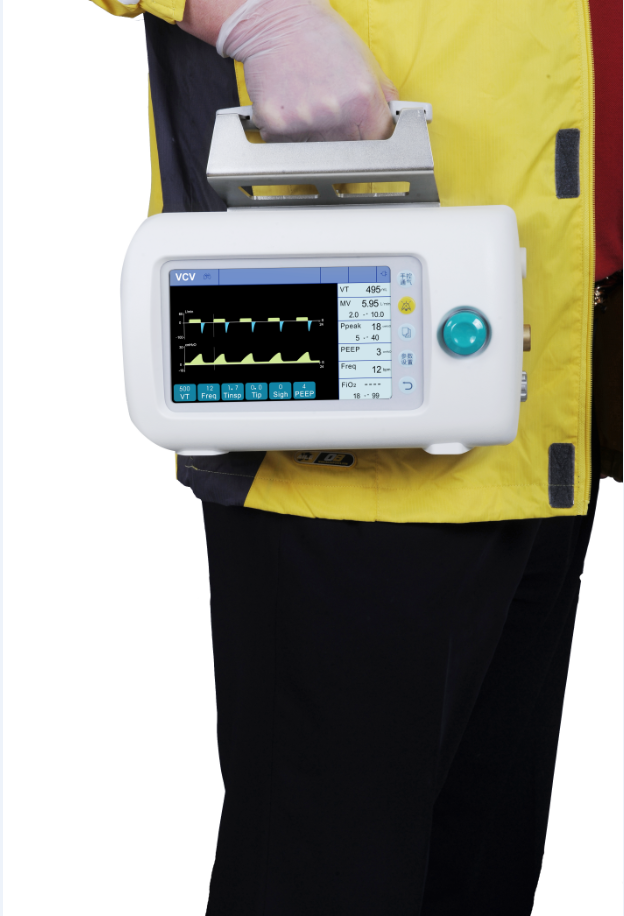

Compact, portable ventilator system designed for both adult and pediatric patients (≥5 kg). Dual power capability (DC 12V and AC 100V–110V/240V) enables deployment in ambulances, field settings, and clinical environments. Features 7-inch LCD display, multiple ventilation modes, and integrated safety alarms for reliable respiratory support.
The NEUVM18 is a gas-driven, electronically controlled ventilator system engineered for rapid deployment in pre-hospital, ambulance, and acute care settings. Its compact footprint and dual power architecture (DC 12V for vehicle integration; AC 100V–110V/240V for facility use) eliminate logistical constraints, enabling seamless transitions between transport and clinical environments. The system supports both pediatric and adult populations, with adjustable parameters spanning tidal volumes of 20–1500 mL and breathing rates from 4–99/min.
Eight ventilation modes—VCV, SIMV, A/C, SIGH, MANUAL, CPAP, PSV (optional), and PCV—provide clinicians with flexible respiratory strategies for diverse patient presentations. Real-time monitoring of tidal volume, minute volume, breathing rate, and airway pressure via the 7-inch LCD display ensures continuous visibility. Integrated safety alarms (no VT, high/low MV, airway pressure alerts, AC power loss, low battery) and FiO₂ control (48–100%) deliver the clinical rigor required in critical care.
| Indications | Mechanical ventilation for pediatric and adult patients (weight ≥5 kg) |
|---|---|
| Ventilation modes | VCV, SIMV, A/C, SIGH, MANUAL, CPAP, PSV (optional), PCV |
| Tidal volume range | 20–1500 mL |
| Breathing rate | 4–99/min; 4–65/min under SIMV |
| I:E ratio | 4:1 to 1:8 |
| FiO₂ range | 48–100% |
| PEEP | 0–20 cmH₂O |
| Pressure trigger sensitivity | −2 to 0 kPa |
| Display | 7-inch LCD with English-language operating panel |
| Drive mechanism | Gas-driven, electronically controlled |
| Gas source | Pure air or oxygen |
| Power supply | DC 12V (vehicle/ambulance) and AC 100V–110V/240V (facility) |
| Monitoring parameters | Tidal volume, minute volume, breathing rate, airway pressure |
| Alarms | No VT, MV too high/low, airway pressure too high/low, AC power off, backup battery low, audio alarms and prompt hints |
| Oxygen cylinder | 3L included for extended usage |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main unit | NEUVM18 Ventilator System with 7-inch LCD display | 1 |
| Oxygen cylinder | 3L oxygen cylinder for extended autonomous operation | 1 |
| Silicon mask | Medical-grade silicon mask for patient interface | 1 |
| Circuit | Medical-use silicon circuit for gas delivery | 1 |
| Accessories | DC 12V charger, AC 100V–110V/240V adapter, regulator, oxygen circuit connector, and essential operational accessories | As applicable |
Contact our respiratory solutions team to discuss clinical requirements, power specifications, and customisation options. We provide rapid quotes and flexible delivery schedules for ambulance fleets, hospitals, and emergency services.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
