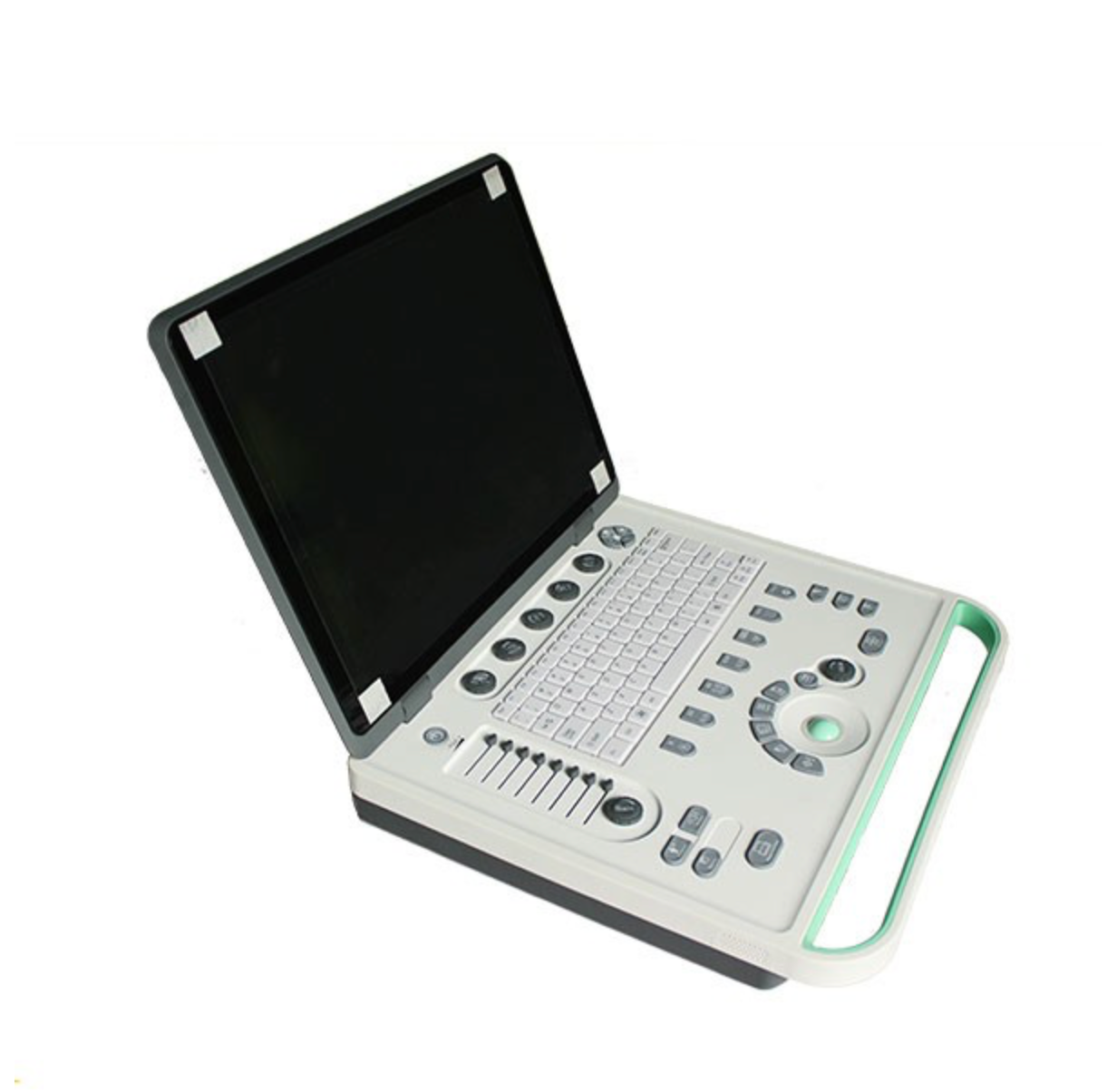

3D Laptop Ultrasound Machine NEUPU34
$3,970.00$4,500.00 (-12%)
– 15 inch LCD display for clear imaging
– Wide working frequency range: 2.0MHz to 10MHz
– Multiple display modes: B, B+B, B+M, M, and 4B
– Convex array scanning range of 60° to 150°
– Adjustable amplification factor (1.0, 1.2, 1.5, 2.0)
– 8 segments TGC and overall gain control
– Advanced image processing techniques for enhanced clarity
– Supports 512 lines/frame with a 30 fps frame rate
– Convenient USB flash disk image storage
– Built-in battery allows over 5 hours of operation
– Weighs only 4Kg, including battery for portability

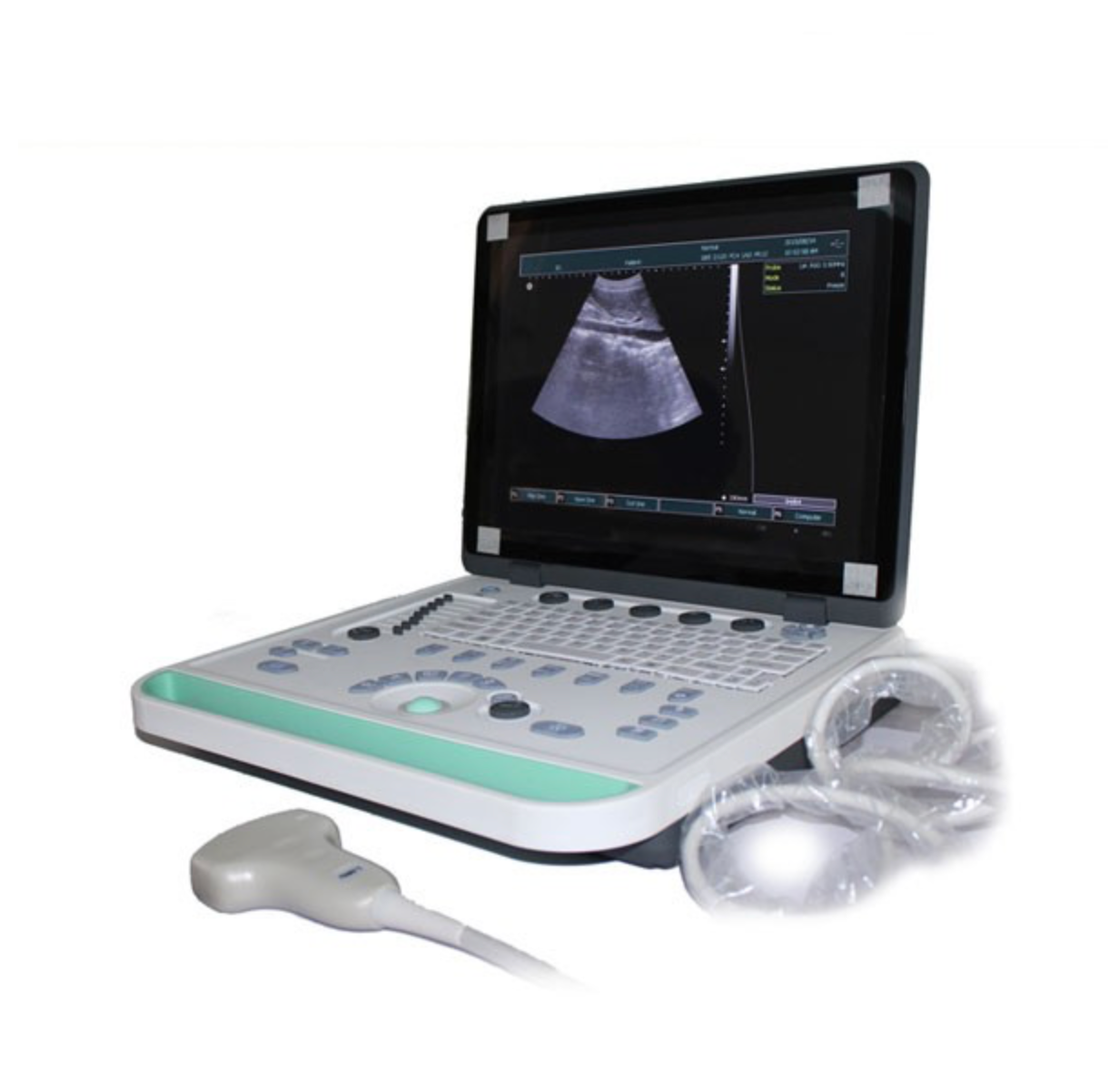

3D Laptop Ultrasound Machine NEUPU34
Professional portable diagnostic imaging system with advanced 3D reconstruction capabilities. True laptop design with extended battery life for mobile point-of-care ultrasound.
FDA Approved
ISO 13485 Certified
2-Year Warranty
24/7 Support
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | NEUPU34 (MSLPU34) |
| Display Screen | 15-inch LCD high-resolution display |
| Frequency Range | 2.0 MHz – 10 MHz |
| Display Modes | B, B+B, B+M, M, 4B (multi-format viewing) |
| Scanning Range | Convex array 60° – 150° adjustable |
| Gray Scale | 256 levels for superior image quality |
| Frame Rate | 512 lines per frame at 30 fps |
| Image Amplification | 1.0, 1.2, 1.5, 2.0× zoom factors |
| TGC Control | 8 segments TGC with overall gain adjustment |
| Digital Scanning | 512×512×8 bits conversion |
| Image Processing | 8 gamma corrections, frame/point/line correlation, digital filtering, edge enhancement, pseudo-color |
| Measurements | Distance, perimeter, area, volume + OB measurements |
| OB Functions | Gestational weeks, expected delivery dates, fetal weight estimates |
| Report Generation | Automatic report function with measurements |
| Storage | USB flash disk support for image/data storage |
| Connectivity | USB interface, video output |
| Dimensions | 362mm × 340mm × 60mm (compact laptop design) |
| Weight | 4 kg (with battery included) |
| Battery Life | Over 5 hours continuous operation |
| Standard Configuration | Host unit, convex probe, aluminum carrying trunk |
| Price | $3,970 (12% discount from $4,500) |
| Warranty | Manufacturer warranty included |
Clinical Applications
Versatile 3D imaging system for comprehensive diagnostic capabilities across multiple specialties
Key Benefits & Features
True Laptop Design
Genuine laptop-style ultrasound machine weighing only 4kg, designed for ultimate portability without compromising imaging quality. The compact 362×340×60mm form factor fits easily in the included aluminum carrying trunk for safe transport between locations.
- Compact folding design like a traditional laptop
- Lightweight construction for easy single-person transport

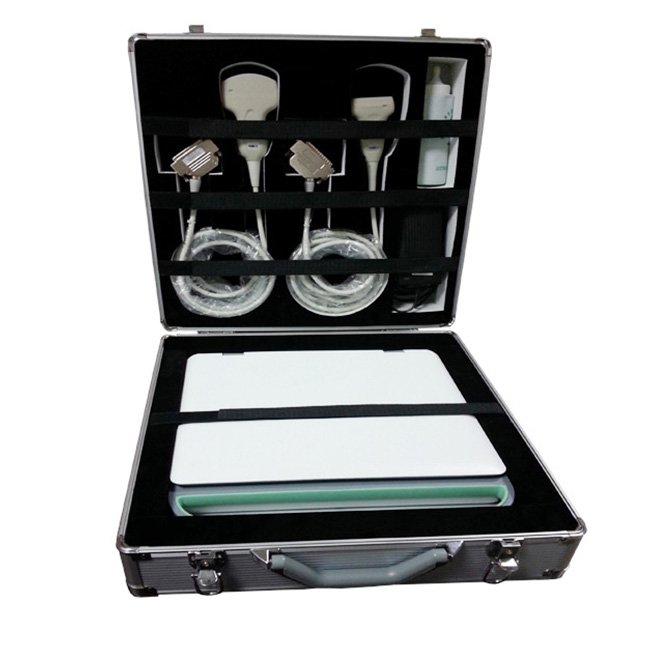

- Aluminum carrying case included for protection
- No cart required – place on any flat surface
3D Imaging Capabilities
Advanced 3D reconstruction and visualization enable spatial understanding of anatomical structures, particularly valuable for obstetric examinations and complex anatomy assessment. The 3D functionality provides enhanced diagnostic confidence.
- Volumetric data acquisition for dimensional imaging
- Enhanced fetal imaging for obstetric applications
- Better assessment of complex anatomical relationships
- Improved patient communication with 3D visuals
Extended Battery Operation
Over 5 hours of continuous scanning on a single charge provides true mobility for field work, home visits, and locations without reliable power access. Built-in battery ensures uninterrupted examinations throughout your workday.
- 5+ hours continuous operation per charge
- Integrated battery – no external power pack needed
- Perfect for mobile healthcare delivery
- AC operation available when wall power accessible
Large 15-Inch Display
High-resolution 15-inch LCD screen provides excellent image visualization with 256 gray-scale levels for superior tissue differentiation. Large viewing area reduces eye strain during extended examination sessions and enables better detail recognition.
- 15-inch high-resolution LCD screen
- 256 gray-scale levels for superior contrast
- Reduced eye strain during long scanning sessions
- Clear visualization in various lighting conditions
Advanced Image Optimization
Comprehensive image processing suite includes 8 gamma corrections, frame/point/line correlation, digital filtering, edge enhancement, and pseudo-color processing. 8-segment TGC control enables precise depth-dependent gain adjustment for optimal image uniformity.
- 8 gamma correction settings for optimal brightness
- Digital filtering and edge enhancement
- 8-segment TGC for depth-dependent gain control
- Pseudo-color processing for enhanced visualization
Multi-Format Display Modes
Flexible display options including B, B+B (dual), B+M (motion), M-mode, and 4B (quad) viewing enable simultaneous comparison and comprehensive examination. Switch between modes instantly to optimize your diagnostic workflow.
- B-mode for standard 2D imaging
- B+B dual display for side-by-side comparison
- B+M for motion mode analysis
- 4B quad display for comprehensive multi-view assessment
Comprehensive Measurement Tools
Full suite of measurement capabilities including distance, perimeter, area, and volume calculations. Dedicated obstetric measurement package automatically calculates gestational age, expected delivery dates, and fetal weight estimates based on standard biometric parameters.
- Distance, perimeter, area, and volume measurements
- Automated OB calculations (GA, EDD, fetal weight)
- Standard biometric parameter tracking
- Integrated measurement worksheets
Automatic Report Generation
Built-in report generation function streamlines documentation by automatically compiling measurements and findings into professional reports. Saves time and improves consistency in patient records and referring physician communications.
- One-click report generation from measurements
- Professional formatting for patient records
- Customizable report templates
- Streamlined workflow for busy practices
USB Storage & Connectivity
USB flash disk support enables easy image archival, report storage, and data transfer without additional equipment. Video output interface allows connection to external monitors or projectors for teaching and presentations.
- Direct USB flash disk storage support
- Video output for external displays
- Easy image and data archiving
- Teaching and presentation capabilities
Variable Zoom Magnification
Four zoom levels (1.0×, 1.2×, 1.5×, 2.0×) allow detailed examination of regions of interest. High frame rate of 30 fps with 512 lines per frame maintains smooth real-time imaging even at higher magnifications.
- Four zoom levels (1.0×, 1.2×, 1.5×, 2.0×)
- 30 fps frame rate for smooth real-time imaging
- 512 lines per frame resolution
- Detail enhancement for focused examinations
Wide Frequency Range
2.0-10 MHz frequency range with convex array scanning from 60° to 150° provides versatility for both deep penetration and high-resolution superficial imaging. Adjustable scanning angles optimize field of view for different anatomical regions.
- 2.0-10 MHz frequency range for versatility
- Adjustable 60°-150° scanning angles
- Deep penetration for abdominal imaging
- High-resolution superficial imaging capability
Exceptional Value
At $3,970, the NEUPU34 delivers 3D imaging capabilities and advanced features typically found in systems costing significantly more. Complete package includes convex probe and aluminum carrying case for immediate deployment. 12% discount represents $530 in savings.
- $3,970 discounted price (save $530)
- 3D imaging at accessible price point
- Complete system with probe and case included
- Professional features at mid-range investment
Frequently Asked Questions
What makes this a “laptop” ultrasound machine?
The NEUPU34 features a genuine laptop design with all components integrated into a compact, portable unit weighing only 4kg. Unlike cart-based systems, it folds closed like a laptop, includes an internal battery for 5+ hours of cordless operation, and comes with an aluminum carrying case. The 362×340×60mm dimensions make it truly portable for field work, home visits, and mobile clinics.
What does the 3D capability include?
The NEUPU34 offers 3D reconstruction and visualization capabilities that allow volumetric data acquisition and spatial rendering of anatomical structures. This is particularly valuable in obstetrics for fetal imaging, allowing expectant parents to see dimensional views of their baby, and for clinicians to better assess complex anatomical relationships in various applications.
What probes are included and what others are compatible?
The standard configuration includes a convex array probe suitable for abdominal and obstetric imaging with 2.0-10 MHz frequency range and 60°-150° scanning capability. The system’s probe connector supports multiple transducer types. Contact us for information about compatible linear, endocavity, and specialty probes to expand your clinical applications.
How long does the battery last and can I scan while charging?
The integrated battery provides over 5 hours of continuous scanning time on a full charge, sufficient for a typical day of portable examinations. Yes, the system can operate while connected to AC power, allowing unlimited scanning time when wall power is available. The battery charges while the unit is plugged in.
What obstetric measurements and calculations are included?
The NEUPU34 includes a comprehensive OB measurement package that automatically calculates gestational age based on standard biometric parameters (BPD, HC, AC, FL), estimates expected delivery date (EDD), and calculates estimated fetal weight. The system uses established fetal growth curves and provides measurement worksheets for complete prenatal documentation.
How do I save and export images?
Images and reports are saved via USB flash disk – simply insert a USB drive into the system and save your data directly to portable media. The video output port also allows you to capture images through external recording devices or display on larger screens for teaching and presentations. This eliminates the need for DICOM networking or complex connectivity.
Is this suitable for emergency medicine or FAST exams?
Absolutely. The NEUPU34’s portability, battery operation, and rapid boot-up make it ideal for emergency settings. The convex probe covers the frequency range needed for FAST (Focused Assessment with Sonography for Trauma) examinations to detect free fluid. The lightweight design allows emergency physicians to bring the system directly to the patient’s bedside or trauma bay.
What training and support is provided with purchase?
Neuvar provides comprehensive support including basic operation training, user manual, and ongoing technical assistance. Our team can guide you through system setup, probe selection, image optimization, and measurement protocols. We offer video tutorials and documentation for common clinical applications. Extended training programs and on-site instruction are available upon request.
