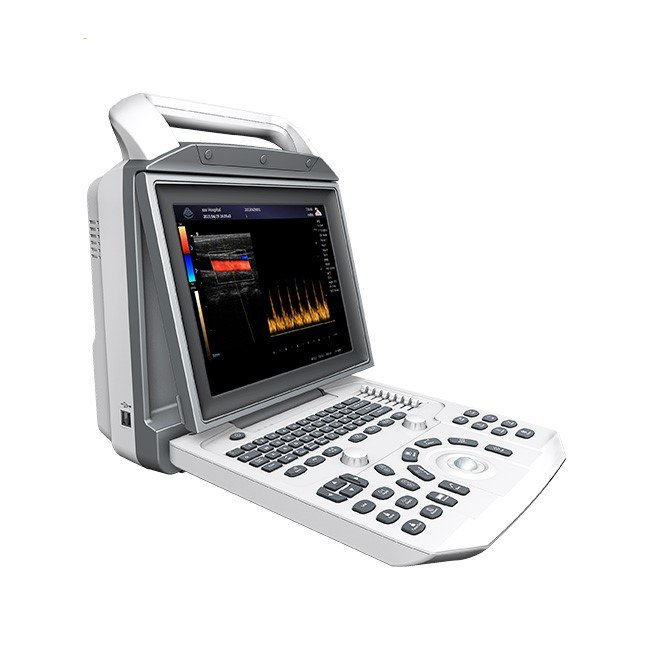

Full Digital Color Doppler Ultrasonic Diagnostic System NEUCU45M
- High-definition 12.1″ LCD monitor with adjustable viewing angle
- Dual transducer ports for versatile imaging capabilities
- Long-lasting lithium battery for over 2 hours of operation
- Advanced imaging technologies including speckle noise removal and tissue harmonic imaging
- Comprehensive software packages for various medical uses: Abdomen, Cardiac, Obstetrics, and more
- DICOM 3.0 compatibility for seamless data sharing
- Multiple data interface options: USB2.0, VGA, and more
- Lightweight design: Net weight of 8KG, gross weight of 14KG
- Extensive clinical applications across various medical disciplines
- Unique puncture guide and automated measurement technologies for enhanced accuracy
- SKU
- NEUCU45-1
- Brand
- Neuvar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Full Digital Color Doppler Ultrasonic Diagnostic System NEUCU45M
A comprehensive, portable digital ultrasound platform featuring a high-definition 12.1″ LCD display, dual transducer ports, and advanced imaging technologies. Designed for multi-disciplinary clinical applications including obstetrics, cardiology, vascular, and musculoskeletal imaging with DICOM 3.0 compatibility and extended battery operation.
Clinical overview
The NEUCU45M is a full-featured digital color Doppler ultrasound diagnostic system engineered for versatility across multiple clinical disciplines. Its 12.1″ high-definition LCD monitor with adjustable viewing angle (0–90°) delivers exceptional image clarity in diverse clinical environments. The system supports dual transducer ports, enabling rapid switching between imaging modalities without system reconfiguration, and incorporates advanced imaging technologies including speckle noise removal, tissue harmonic imaging, and color deflection imaging for superior diagnostic accuracy.
With a lightweight design (8 kg net weight) and lithium battery providing over 2 hours of continuous operation, the NEUCU45M offers true portability for point-of-care and mobile ultrasound applications. Comprehensive software packages for obstetrics, cardiology, vascular, urology, and musculoskeletal imaging, combined with DICOM 3.0 compatibility and multiple data interface options (USB 2.0, VGA, RS-232, RJ45), ensure seamless integration into existing hospital information systems and workflow environments.
Key features & surgeon benefits
High-Definition Imaging Platform
- 12.1″ LCD monitor with 0–90° adjustable angle for optimal viewing in any clinical setting
- Smart image optimization technology for excellent 2D imaging quality
- Task light indicator for real-time operational feedback
Dual Transducer Architecture
- Two activated transducer ports for rapid modality switching without system restart
- Automatic probe frozen protection to prevent accidental image loss
- Trapezoidal extended imaging for comprehensive anatomical coverage
Extended Mobile Operation
- Lightweight design: 8 kg net weight, 14 kg gross weight
- Lithium battery with over 2 hours of continuous operation
- Compact package dimensions (395 × 335 × 455 mm) for easy transport
Precision Measurement & Analysis
- Automated carotid IMT measurement for vascular assessment
- Unique puncture guide technology for interventional procedures
- Dual/triple synchronous imaging for complex anatomical evaluation
Technical specifications
| Indications | Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Small Parts, Vascular, Orthopedics, Pediatrics, Breast, Musculoskeletal, Blood Vessel |
|---|---|
| Display | 12.1″ High-definition LCD monitor, 0–90° adjustable angle |
| Transducer Ports | 2 Activated ports with simultaneous operation capability |
| Battery | Lithium battery, over 2 hours continuous operation |
| Net Weight | 8 kg |
| Gross Weight | 14 kg |
| Package Dimensions | 395 mm × 335 mm × 455 mm |
| Data Interfaces | USB 2.0 (Dual), VGA, Video, S-Video, RS-232, RJ45 |
| DICOM Compatibility | DICOM 3.0 |
| Sterilisation | Transducers compatible with standard clinical sterilisation protocols |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Console Unit | NEUCU45M Digital Ultrasound System with 12.1″ LCD display and dual transducer ports | 1 |
| Electronic Convex Transducer | 2.5/3.5/5.0 MHz multi-frequency convex probe (Standard) | 1 |
| Electronic Linear Transducer | 6.5/7.5/9.0 MHz multi-frequency linear probe (Standard) | 1 |
| Lithium Battery Pack | Rechargeable battery with over 2 hours operation time | 1 |
| Power Supply & Charger | AC adapter and battery charging dock | 1 |
| Data Interface Cables | USB 2.0, VGA, RS-232, RJ45 connectivity cables | 1 set |
| Transducer Gel | Medical-grade ultrasound coupling gel (500 ml) | 1 |
| Carrying Case | Protective transport case with foam insert | 1 |
| User Documentation | Operating manual, quick reference guide, software installation media | 1 set |
Available transducer options
| Transducer Type | Frequency Range | Status |
|---|---|---|
| Electronic Convex Transducer | 2.5 / 3.5 / 5.0 MHz | Standard |
| Electronic Linear Transducer | 6.5 / 7.5 / 9.0 MHz | Standard |
| Electronic Endorectal Transducer | 5.0 / 6.5 / 7.5 MHz | Optional |
| Electronic Micro Convex Transducer | 2.5 / 3.5 / 4.0 / 5.0 MHz | Optional |
| Electronic Micro Convex Transducer | 5.0 / 6.5 / 8.0 MHz | Optional |
Get in touch for pricing & availability
Contact our sales team to discuss system configurations, transducer options, software packages, and delivery timelines. We provide comprehensive support for clinical integration and staff training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
